Mexen CL22 Plate Radiator 900 x 1100 mm, Side Connection, 2419 W, White - W422L-090-110-00
The Mexen Line CL22 is a modern plate radiator measuring 900 x 1100 mm, with side connection and impressive heating power up to 3063 W. Made of durable steel, covered with a high-quality paint coating, it ensures long life and an aesthetic appearance. With a connection spacing of 85 cm and maximum working pressure of 10 bar, the Mexen Line CL22 is perfectly suited for modern interiors. Additionally, the set includes all necessary mounting accessories, making its installation and operation easy.
Technical data:
Height (Y): 900 mm
Width (X): 1100 mm
Depth: 103 mm
Connection spacing: 85 cm
Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1249 W
- 75/65/20 °C 2419 W
- 90/70/20 °C 3063 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features a side cover and a removable top cover
Includes: hangers, mounting kit, plug caps and air vent

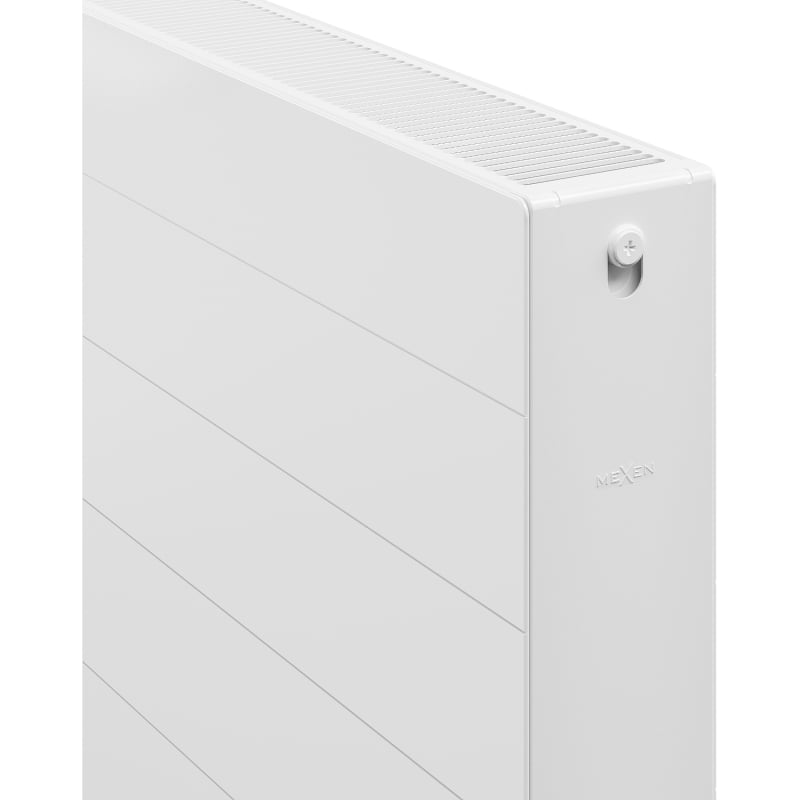

Pictures show the radiator in size 600 x 1200 mm.
