Mexen CVL22 Flat Panel Radiator Line 400 x 2000 mm, Bottom Connection, 2276 W, White - W622L-040-200-00

The Mexen Line CVL22 is a modern, white flat panel radiator measuring 400 x 2000 mm. Made of steel, it offers exceptional durability and efficiency, achieving a heating power up to 2276 W at 75/65/20 °C. The radiator is equipped with bottom and side connections, allowing for flexible installation. High-quality DIN 99500 paint coating ensures aesthetics and resistance to damage. The product withstands a maximum working pressure of 10 bar and an operating temperature of up to 110 °C, making it a reliable choice for any room. The set includes hangers, installation kit, and accessories.

Technical data:

Height (Y): 400 mm

Width (X): 2000 mm

Depth: 103 mm

Connection Distance: 5 cm

Vertical Water Channel Distance: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating Temperature: max 110 °C

Maximum Working Pressure: 10 bar

Maximum Test Pressure: 13 bar

Heating Power:

- 55/45/20 °C 1194 W

- 75/65/20 °C 2276 W

- 90/70/20 °C 2865 W

Connections:

- 2xG ½″ from the bottom, right or left side

- 4xG ½″ side

High quality, durable paint coating - DIN 99500

Features side cover and removable top cover

Includes: hangers, installation kit, sealing plugs, air vent, and valve insert

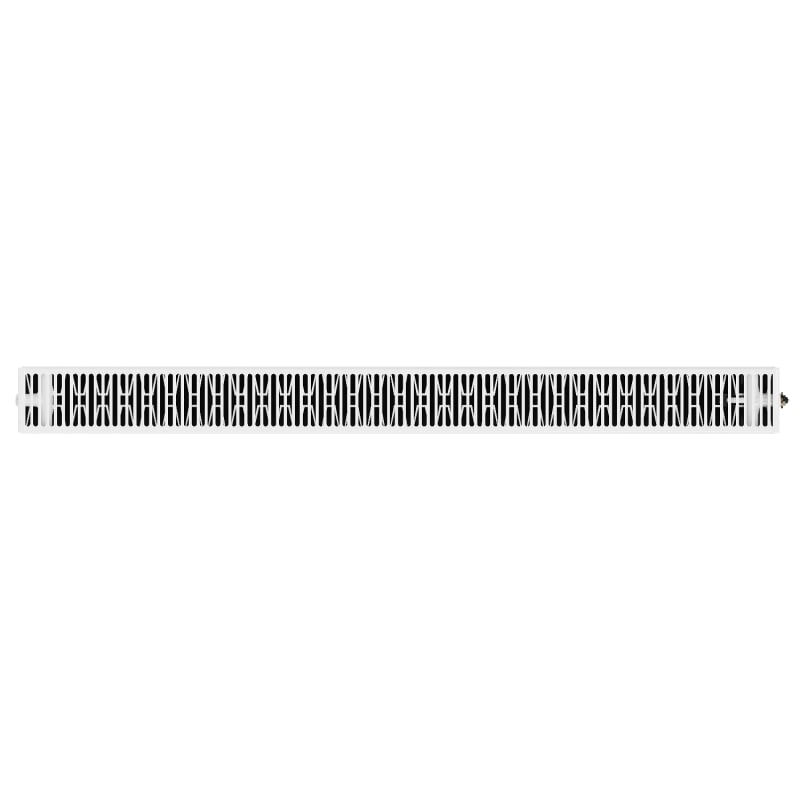

The pictures show a radiator size of 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVL22
Width
2000 mm
Height
400 mm
Depth
103 mm
Type
Plate / Panel
Heating power
2276 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
