Mexen CVL21 Plate radiator line 900 x 1200 mm, bottom connection, 1907 W, white - W621L-090-120-00

Mexen Line CVL21 is a modern plate radiator measuring 900 x 1200 mm, distinguished by its white color (RAL 9016) and solid steel construction. With bottom connection 2xG ½″ and high heating power up to 1907 W at 75/65/20 °C, it effectively heats any room. The product offers side covers and a removable top cover, making it easy to clean. Mexen Line CVL21 is characterized by high quality, durable paint coating (DIN 99500) and easy installation with the included mounting kit.

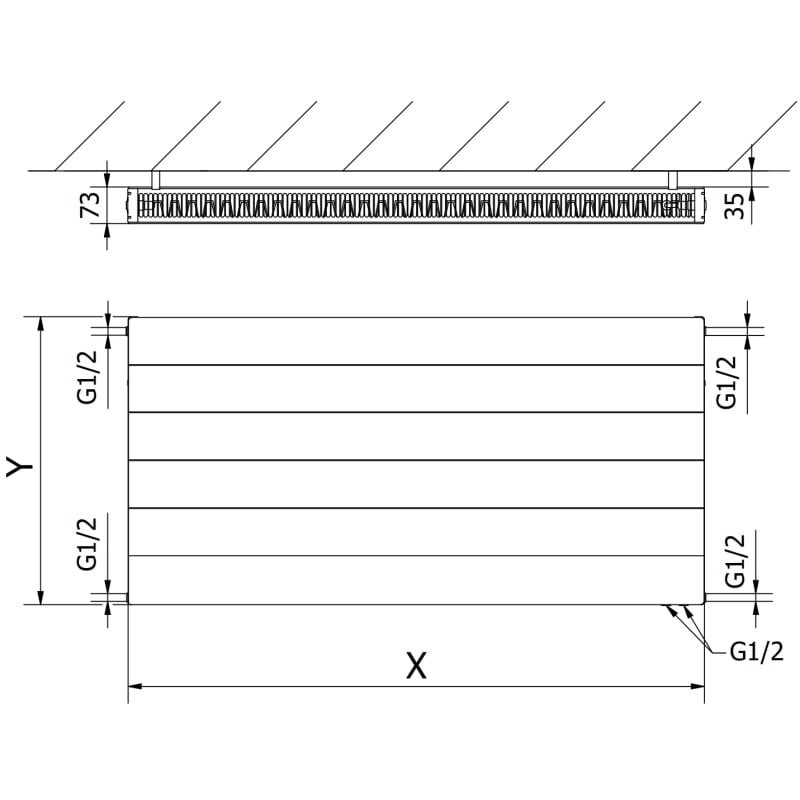

Technical data:

Height (Y): 900 mm

Width (X): 1200 mm

Depth: 73 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1039 W

- 75/65/20 °C 1907 W

- 90/70/20 °C 2369 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ lateral

High quality, durable paint coating - DIN 99500

Features side covers and removable top cover

Includes: hangers, installation kit, blind plugs, air vent, and valve insert

The images show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVL21
Width
1200 mm
Height
900 mm
Depth
73 mm
Type
Plate / Panel
Heating power
1907 W
Color
White
Material
Steel
Type
21
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
