Mexen Uni-Term angled radiator valve, Duplex, DN50, black - W907-000-70

The Mexen angled radiator valve Duplex DN50 black is an excellent solution for modern heating systems. Made of high-quality brass, it features an elegant black colour scheme. It offers easy installation thanks to a connection diameter of G 1/2" and a head thread of M30 x 1.5 mm. Designed for operation at high temperatures (up to 120°C) and an operating pressure of up to 10 bar. The possibility of connecting the head on the left or right side provides installation flexibility.

Technical specifications:

Material: Brass

Colour: Black

Connection diameter: G 1/2"

Head thread: M30 x 1.5 mm

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

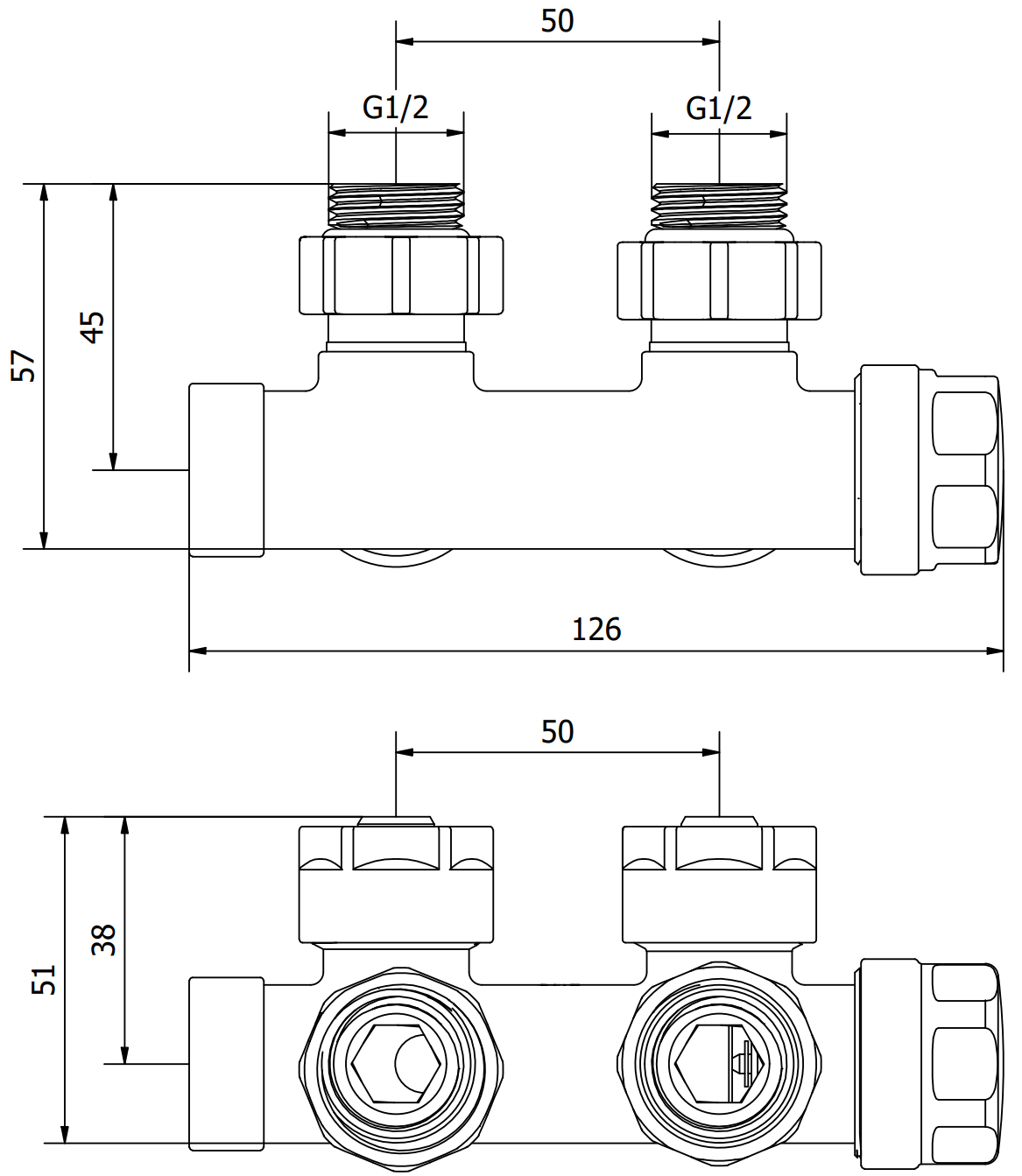

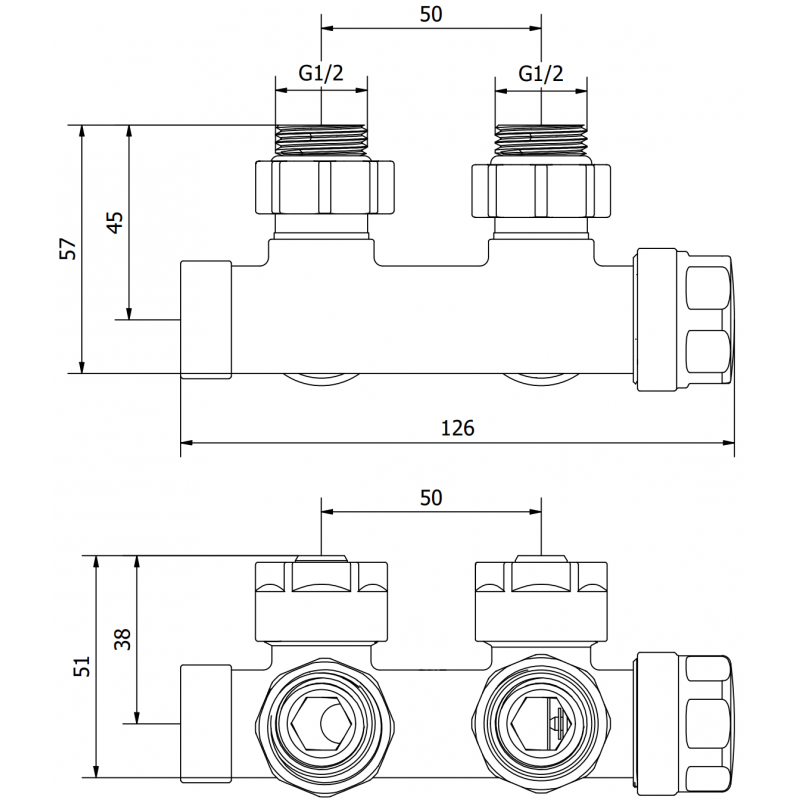

Bottom connection with a spacing of 50 mm

Possibility of connecting the head on the left or right side

Includes fittings for 16x2 mm multilayer pipes and 15 mm copper pipes

Innovative solutions used in this product

Brass

Making the product from brass ensures its durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and fluctuating temperatures.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Standard Connection

A 1/2" threaded connection is a commonly used standard component in internal water installations. This makes connecting and installing additional installation components much easier and more intuitive.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
Uni-Term
Type
Angular
Colour
Black
Connection diameter
G 1/2"
