Mexen CF21 Flat panel radiator 500 x 400 mm, side connection, 403 W, white - W421F-050-040-00
Mexen Flat CF21 features an elegant design and high functionality. The 500 x 400 mm panel radiator, made of durable steel, in white RAL 9016, fits modern interiors. It offers heating power up to 403 W at 75/65/20 °C and excellent durability thanks to the paint coating conforming to DIN 99500. Equipped with 4xG ½″ side connections and mounting elements, it is ideal for those valuing quality and efficiency. Maximum operating pressure is 10 bar, and working temperature is up to 110 °C.

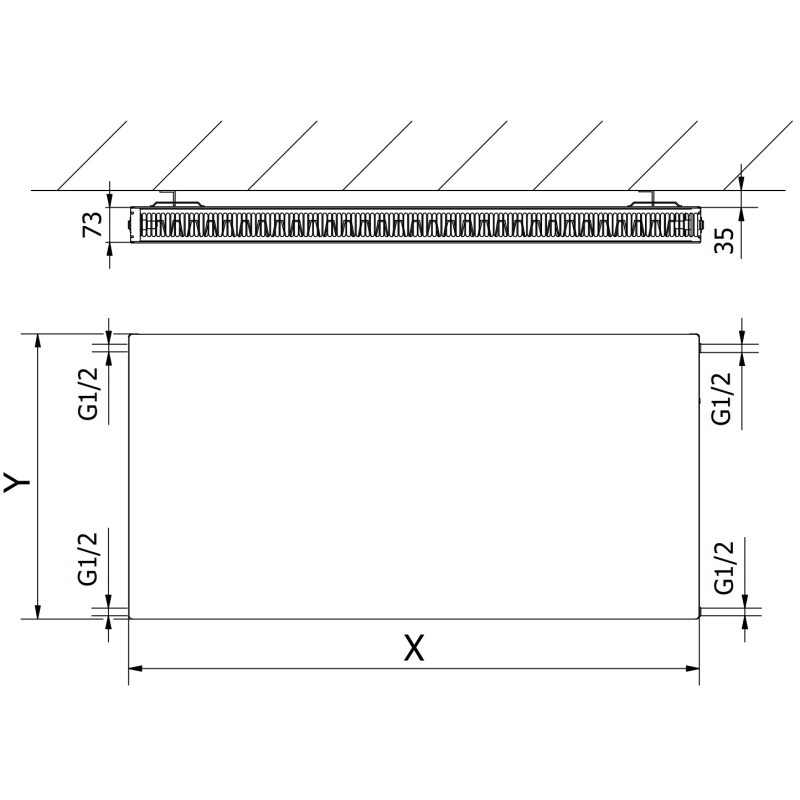

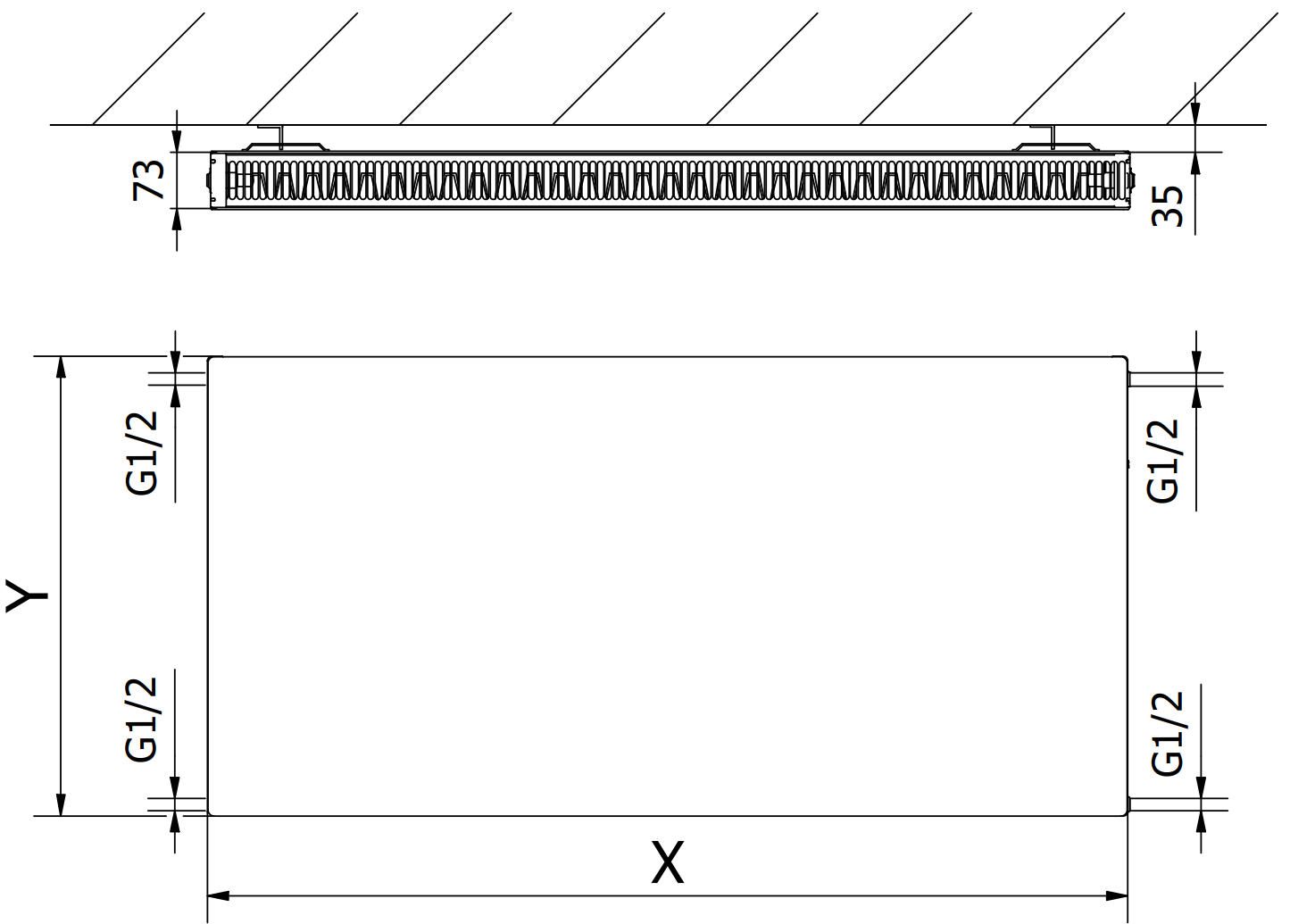

Technical data:
Height (Y): 500 mm
Width (X): 400 mm
Depth: 73 mm
Connection spacing: 45 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 214 W
- 75/65/20 °C 403 W
- 90/70/20 °C 505 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Comes with side cover and removable top cover
Includes: brackets, installation set, blind plugs, and air vent

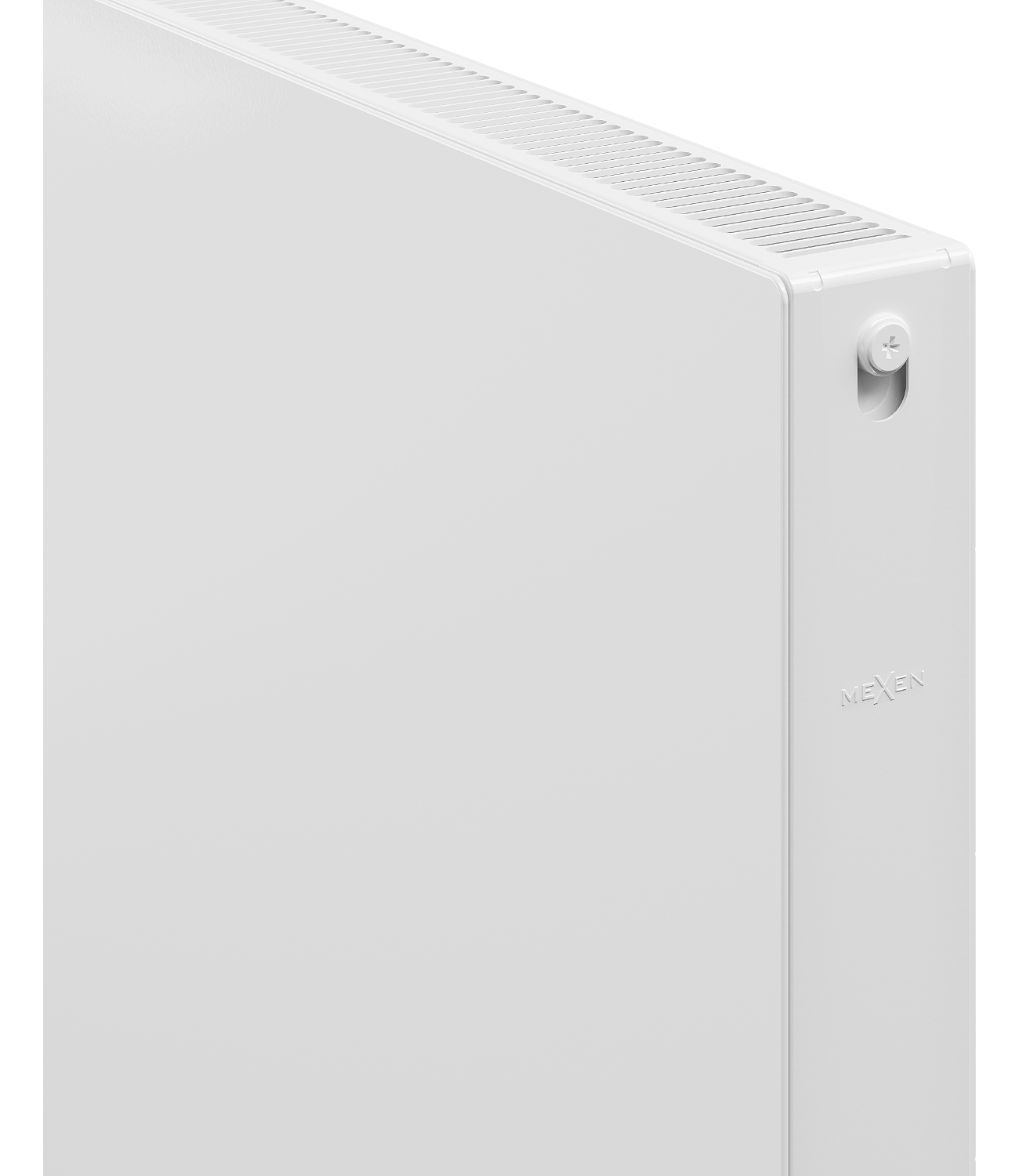

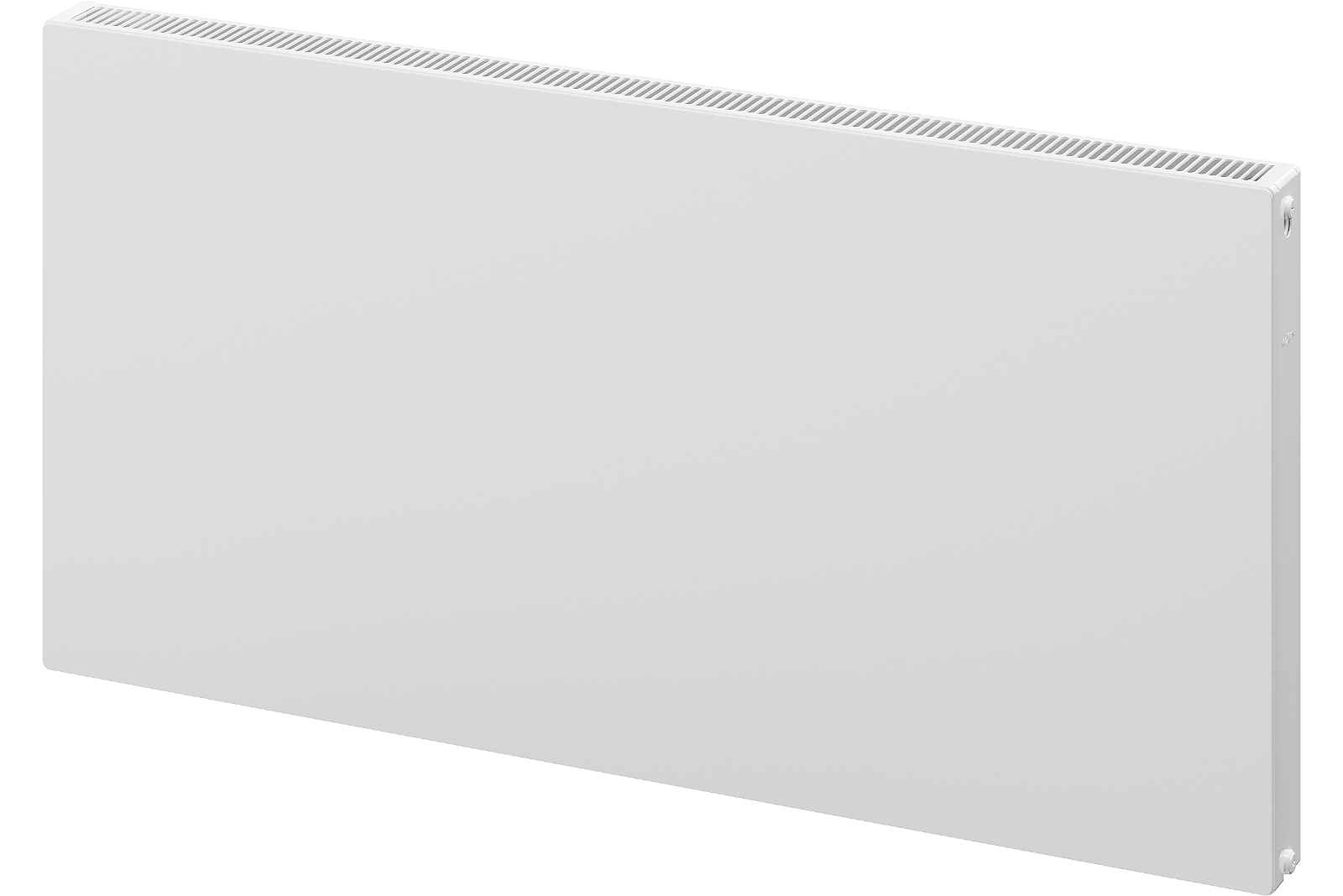

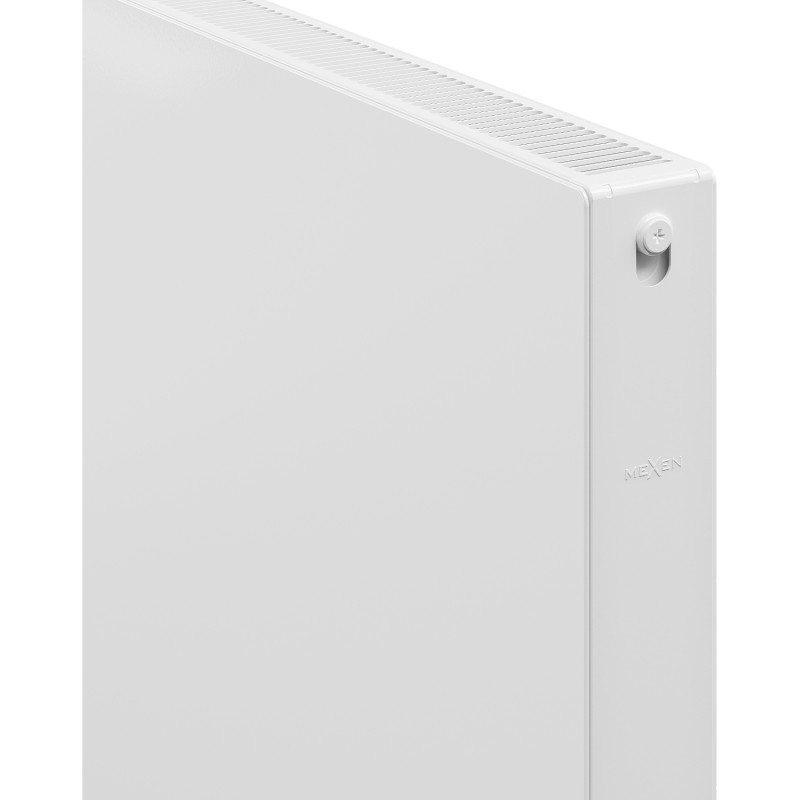

Pictures show the radiator in size 600 x 1200 mm.
