Mexen CF21 Flat panel radiator 500 x 1000 mm, side connection, 1008 W, white - W421F-050-100-00
Mexen Flat CF21 panel radiator 500 x 1000 mm is an elegant and functional solution for heating rooms. Its compact dimensions of 500 mm in height and 1000 mm in width and a heating power of up to 1263 W ensure efficient heating even on cold days. Thanks to its white RAL 9016 finish, it fits perfectly into modern interiors. The high quality and durability of the paint coating compliant with DIN 99500 and a maximum working pressure of 10 bars make it a reliable element of the installation. The product is equipped with side connections 4xG ½″ and includes brackets and an installation set.
Technical data:

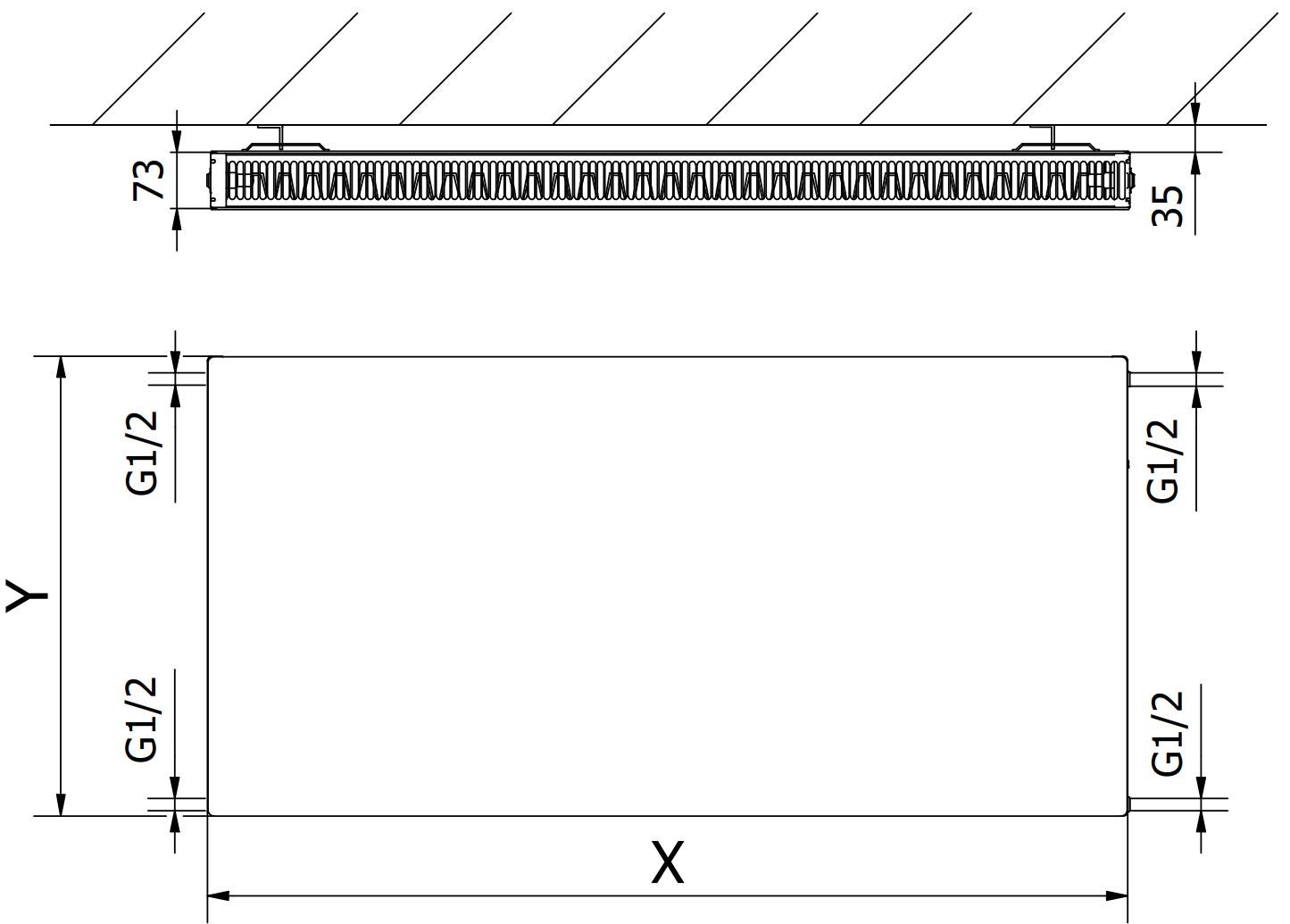

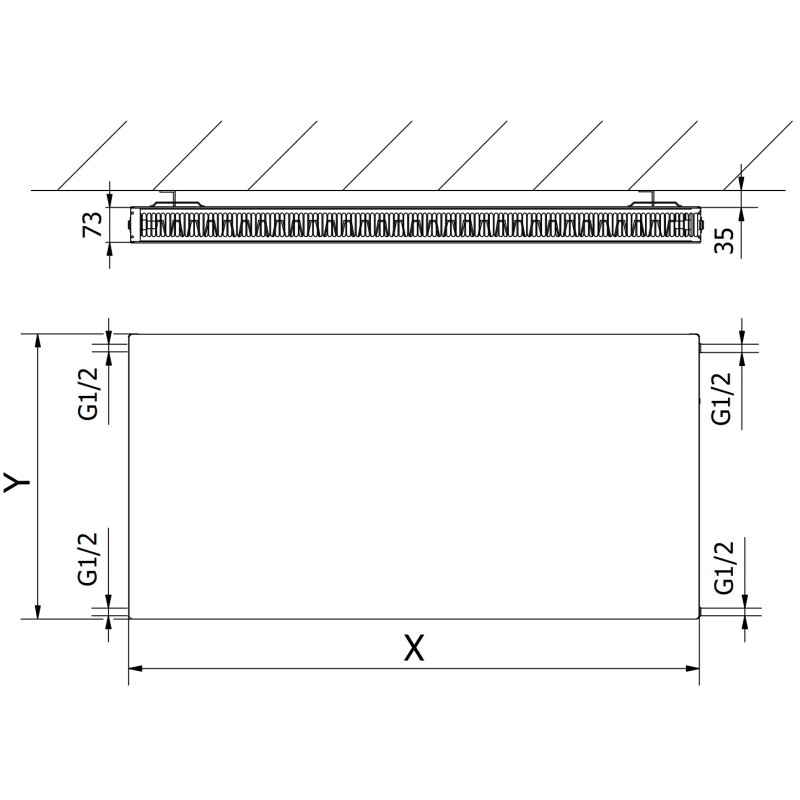

Height (Y): 500 mm
Width (X): 1000 mm
Depth: 73 mm
Connection spacing: 45 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Working temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 536 W
- 75/65/20 °C 1008 W
- 90/70/20 °C 1263 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500

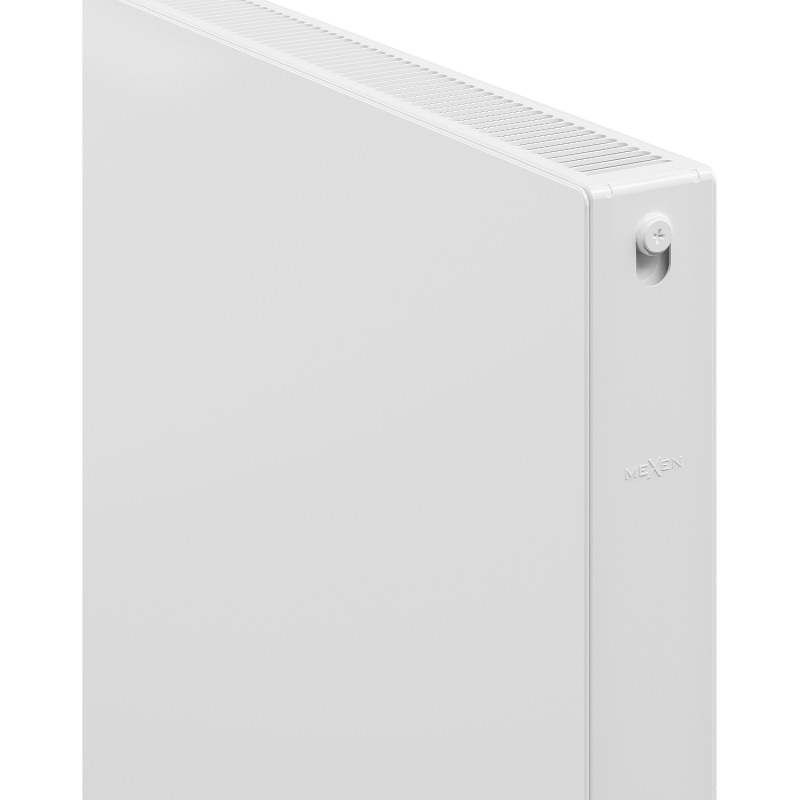

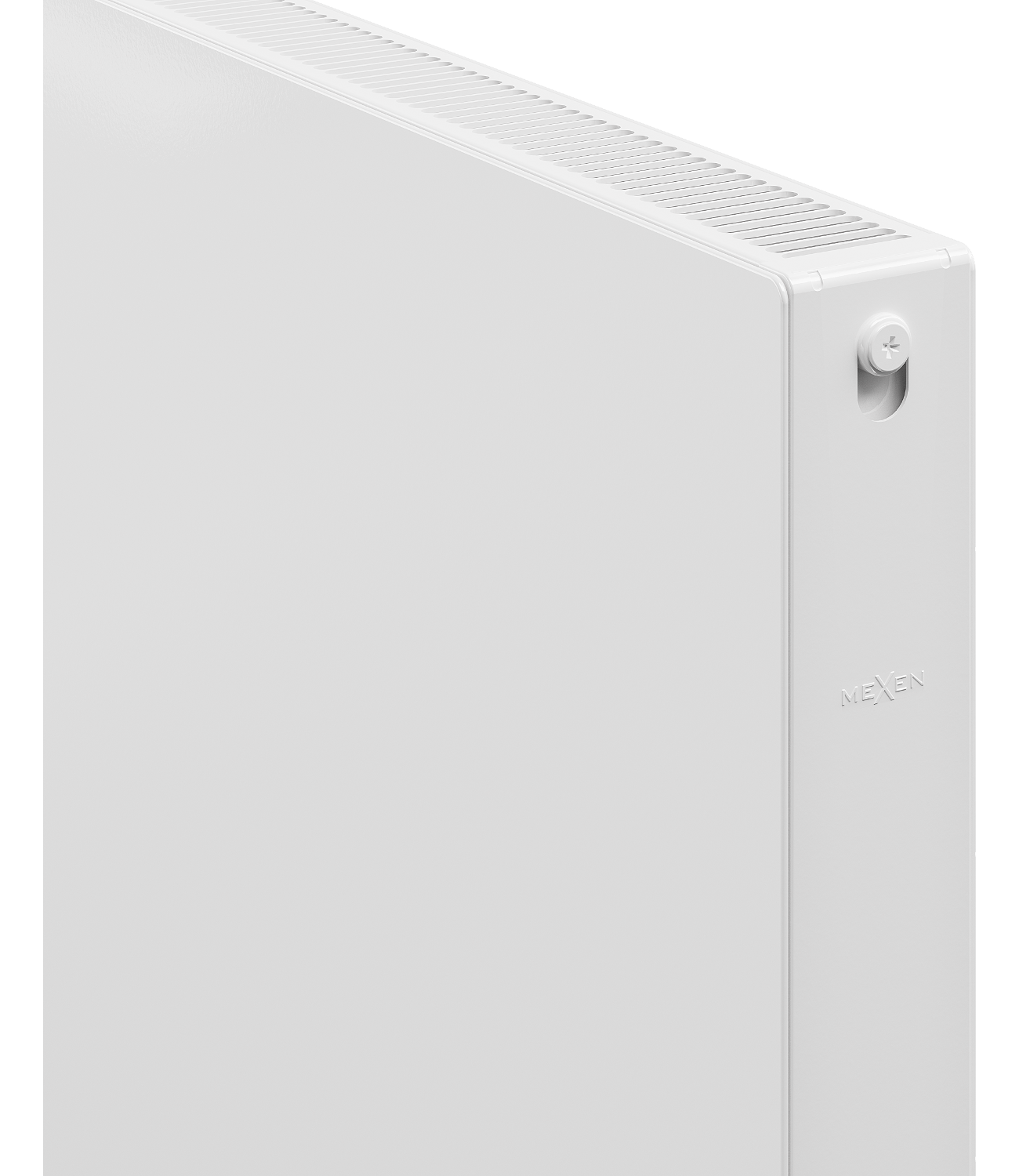

Features side cover and removable top cover
Includes: brackets, installation set, blind plugs, and air vent

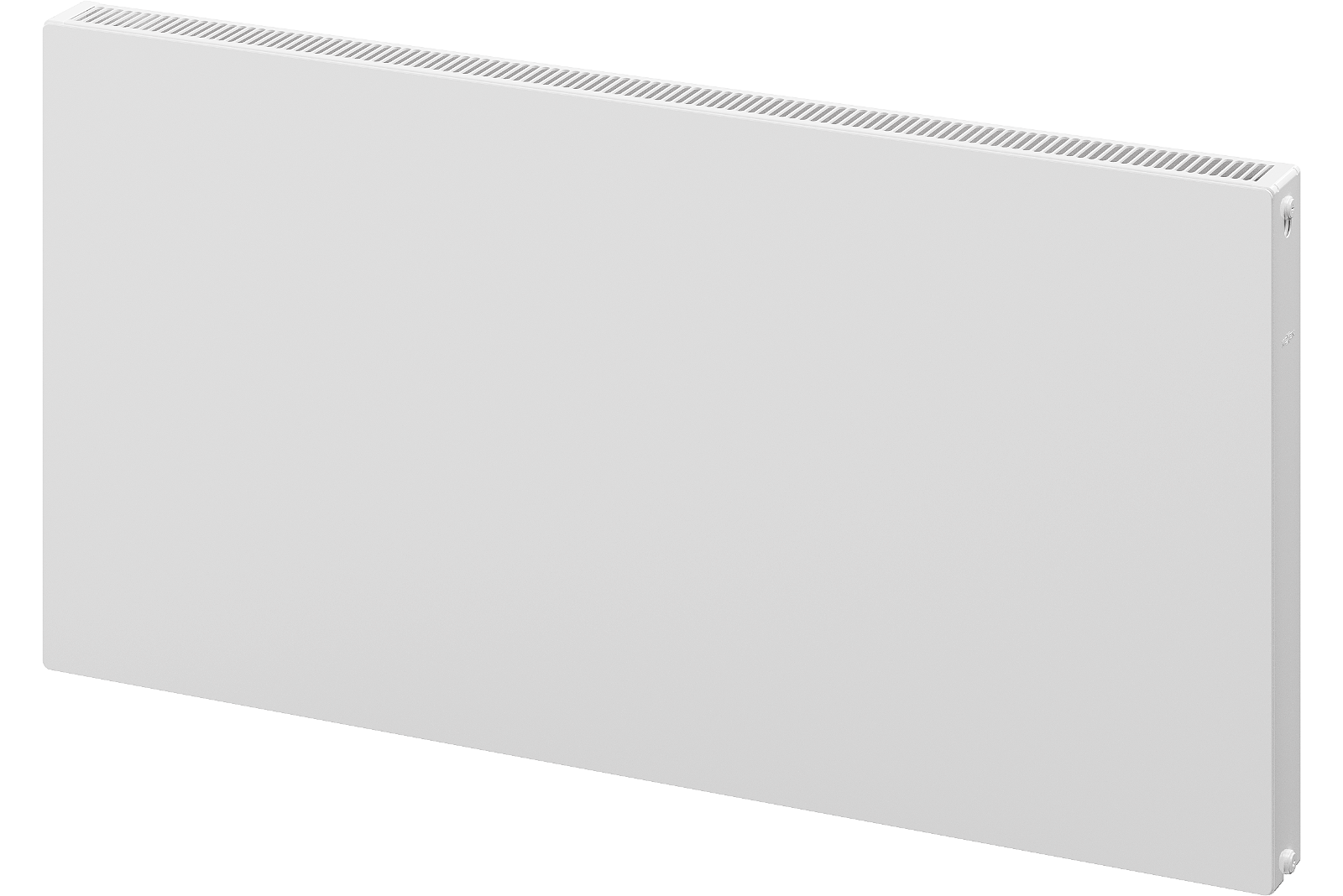

Photos show the radiator in size 600 x 1200 mm.
