Mexen CF21 Flat panel radiator 500 x 800 mm, side connection, 807 W, white - W421F-050-080-00
Mexen Flat CF21 is a modern panel radiator measuring 500 x 800 mm with a power of 807 W, ideal for efficient room heating. Its side connection and compact dimensions make it a perfect fit for any space. Made of durable steel, covered with a white RAL 9016 coating that ensures an aesthetic appearance and resistance to damage. Operates at temperatures up to 110°C with a maximum working pressure of 10 bar. The set includes hangers, an installation kit, sealing caps, and an air vent for easy installation.

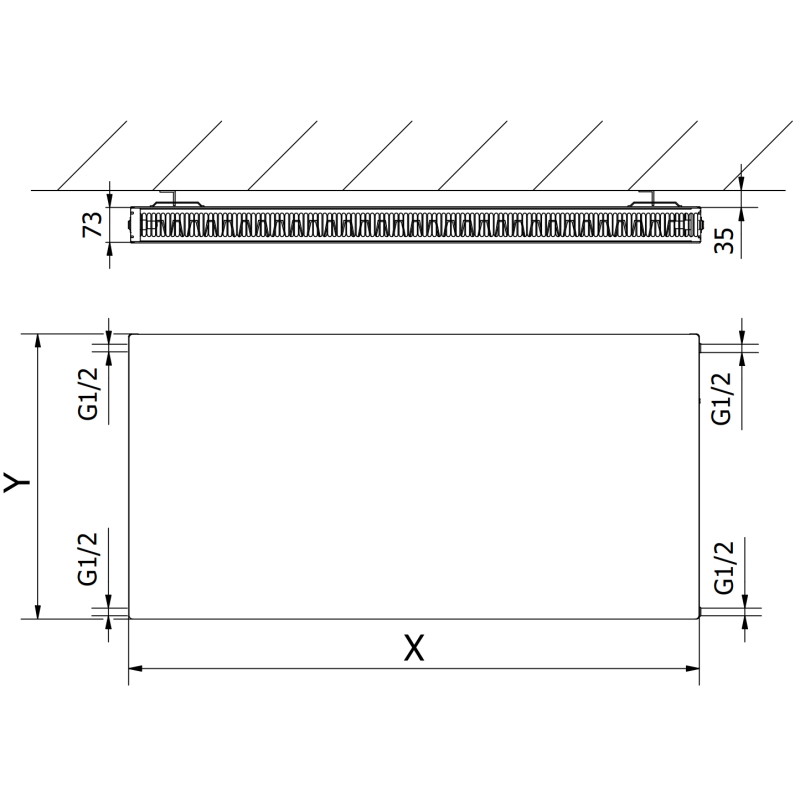

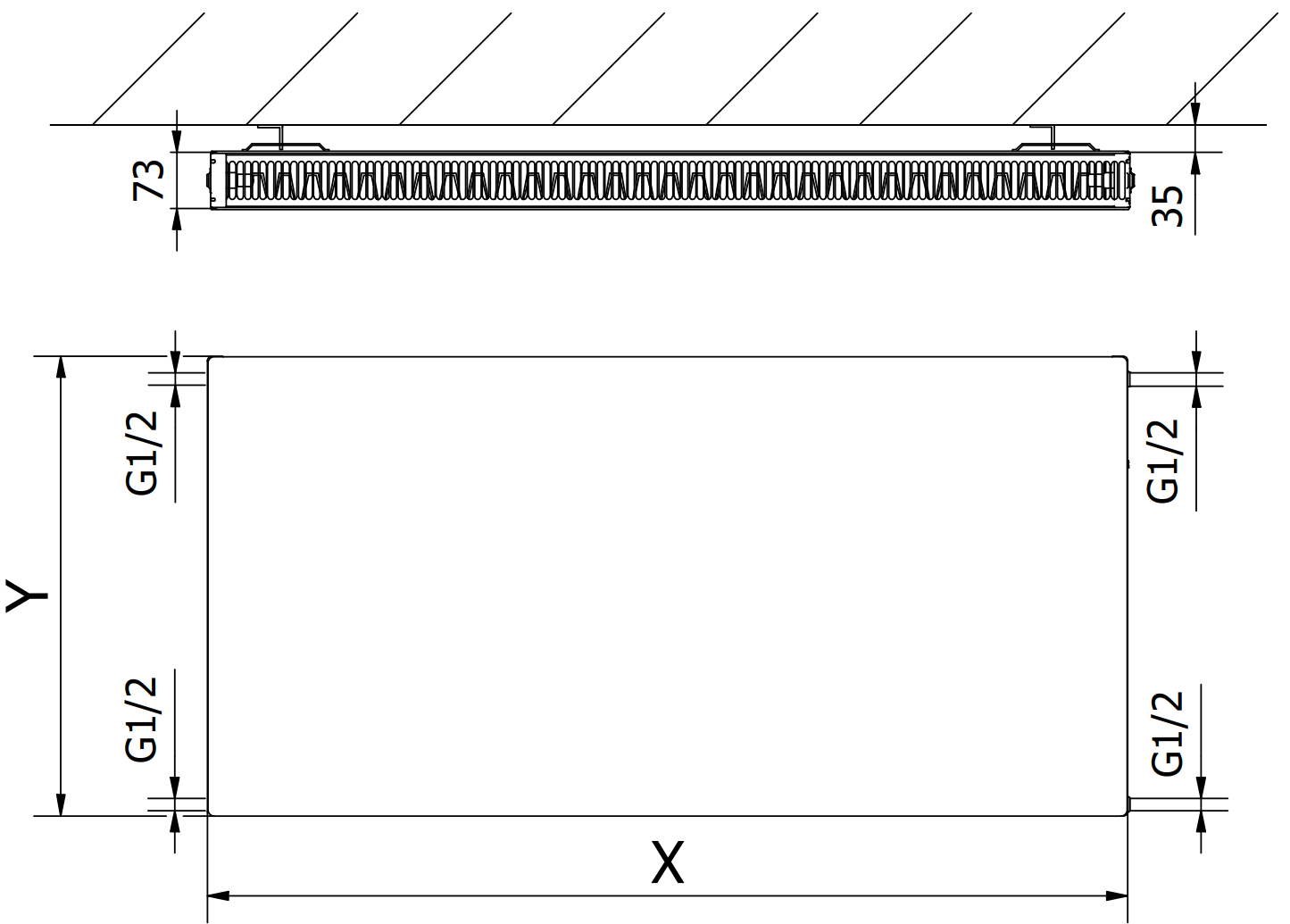

Technical data:
Height (Y): 500 mm
Width (X): 800 mm
Depth: 73 mm
Connection spacing: 45 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 429 W
- 75/65/20 °C 807 W
- 90/70/20 °C 1011 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features a side cover and removable top cover
Includes: hangers, installation kit, sealing caps, and air vent

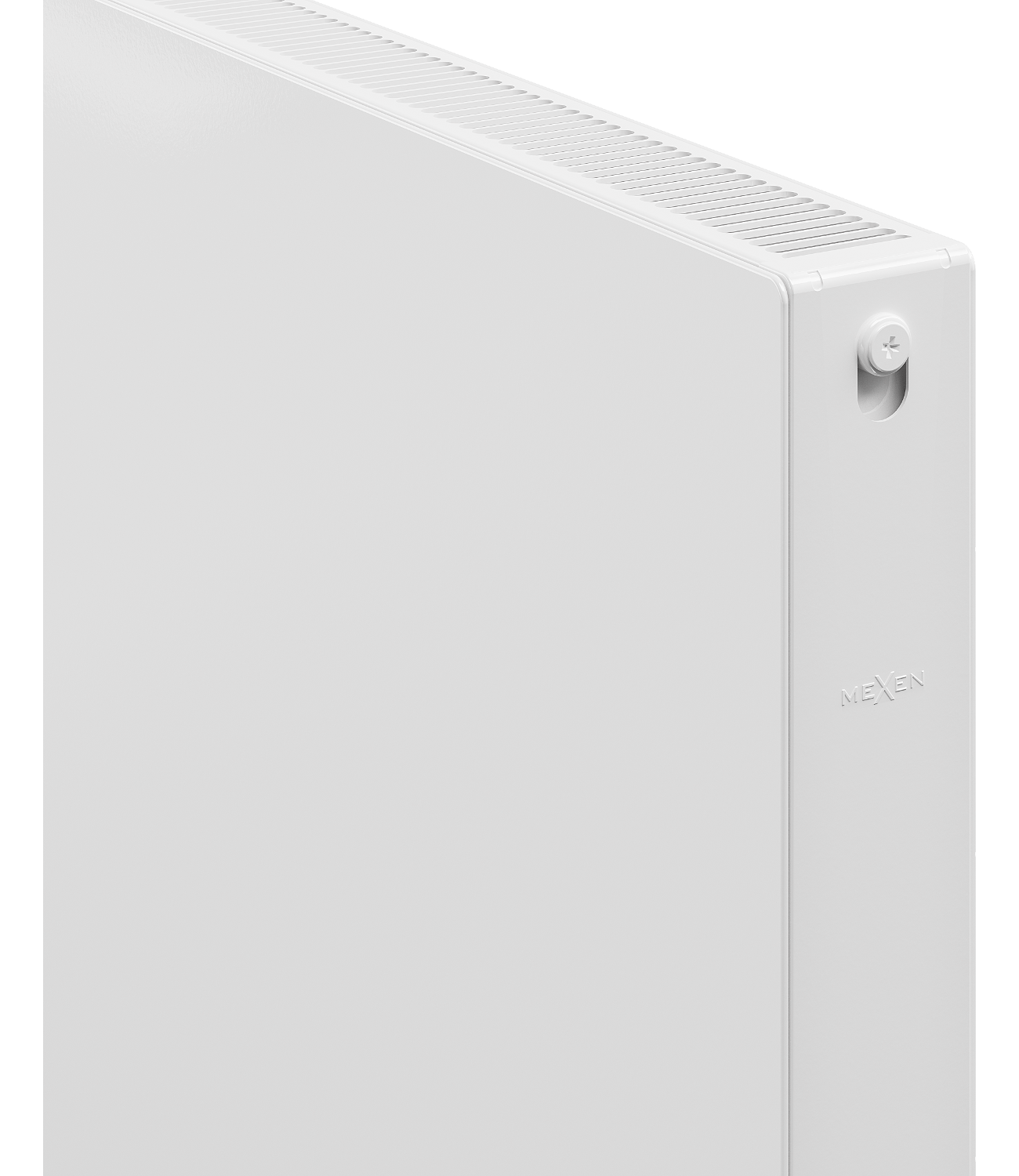

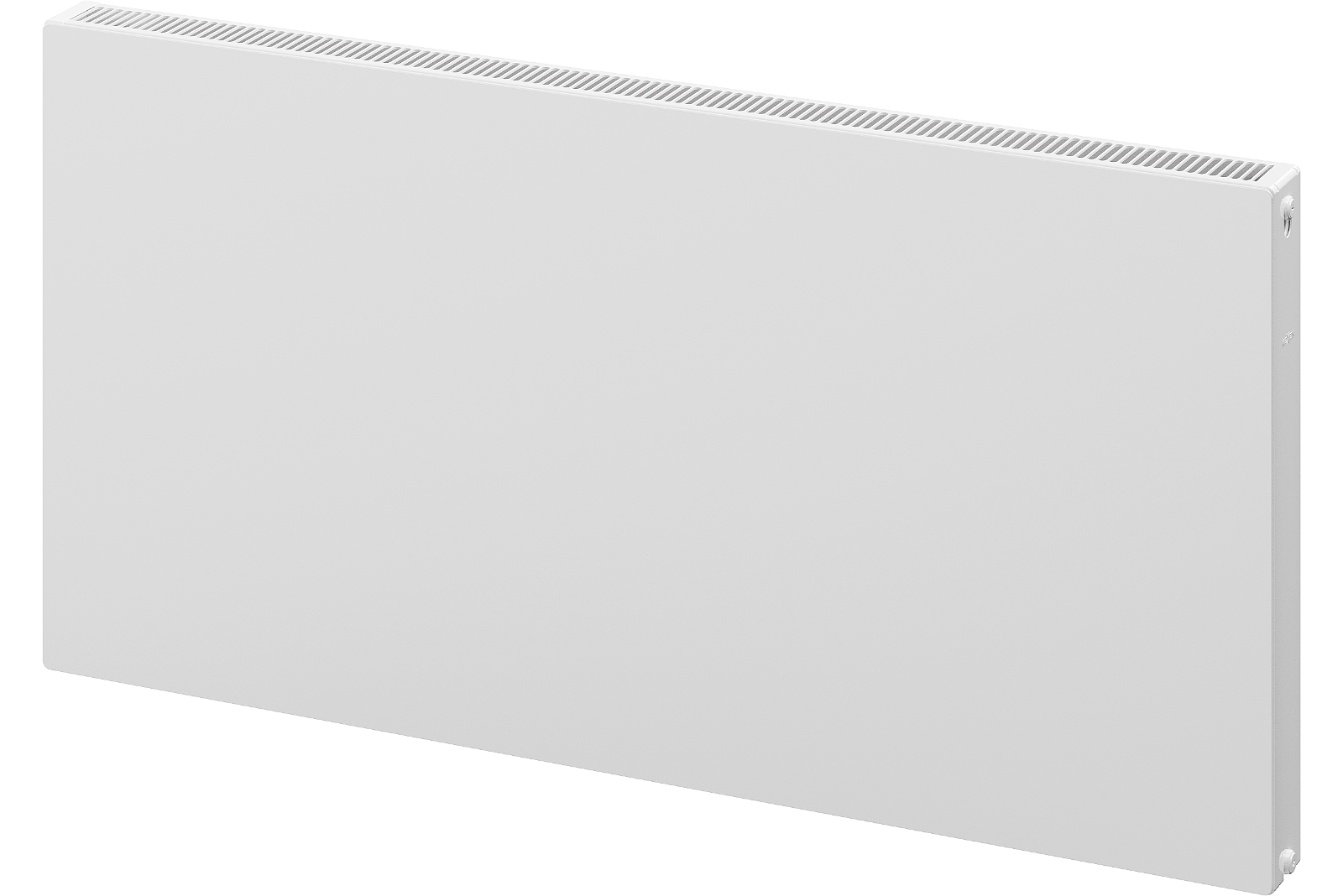

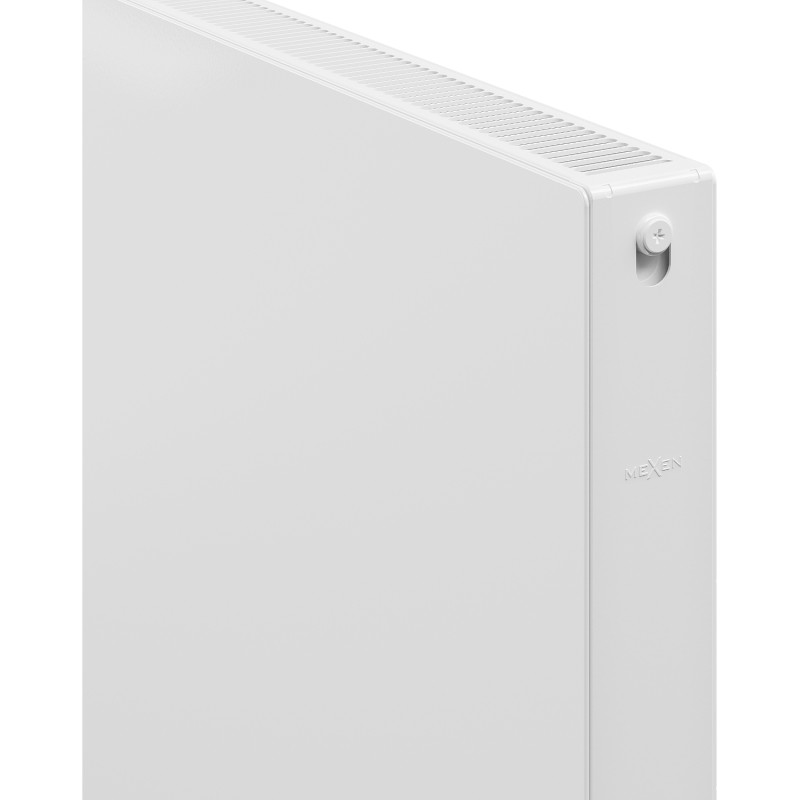

Photos show the radiator in size 600 x 1200 mm.
