Mexen CF21 Flat panel radiator 900 x 800 mm, side connection, 1272 W, white - W421F-090-080-00

The Mexen Flat CF21 panel radiator is an excellent solution for those seeking an efficient heating system. It features an impressive heating power of up to 1579 W at 90/70/20 °C, ensuring quick and even heating of the room. Made of durable steel and coated with a high-quality paint finish, this unit is not only functional but also aesthetic. With dimensions of 900x800 mm and side connection, it fits perfectly into various spaces, and the white color RAL 9016 adds elegance.

Technical specifications:

Height (Y): 900 mm

Width (X): 800 mm

Depth: 73 mm

Connection distance: 85 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 693 W

- 75/65/20 °C 1272 W

- 90/70/20 °C 1579 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side cover and removable top cover

Includes: brackets, installation set, sealing plugs, and air vent

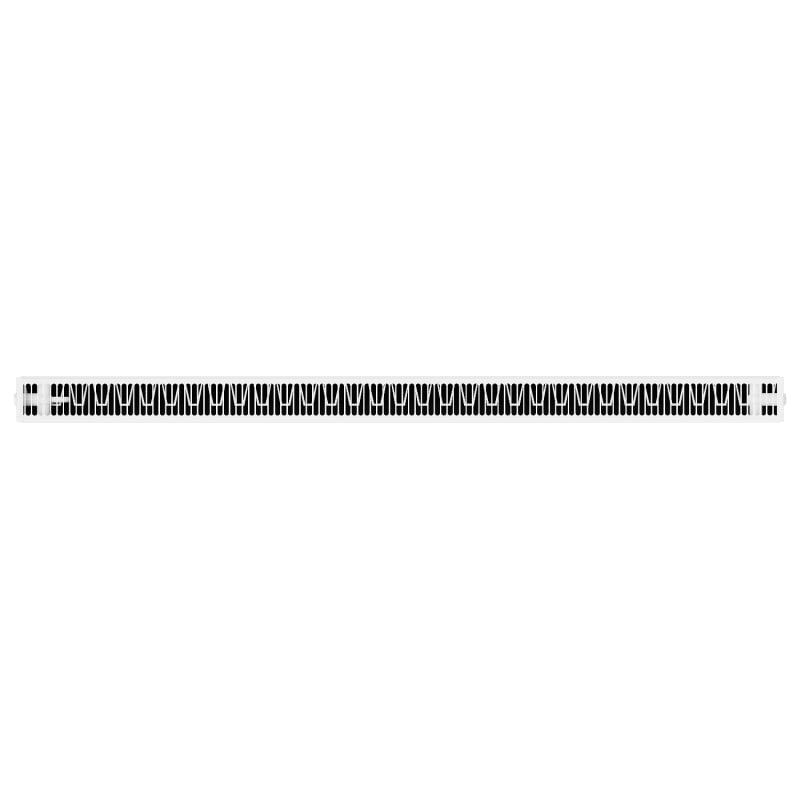

Photos show a radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CF21
Width
800 mm
Height
900 mm
Depth
73 mm
Type
Plate / Panel
Heating power
1272 W
Color
White
Material
Steel
Type
21
Installation Orientation
Universal
Connection spacing
85 cm
Connection
Side
Orientation
Horizontal
