Mexen CVF11 Flat Panel Radiator 500 x 1600 mm, Bottom Connection, 1092 W, Black - W611F-050-160-70

The Mexen Flat CVF11 panel radiator is a modern and stylish product with excellent heating properties. Its dimensions of 500 x 1600 mm and bottom connection make it a perfect fit for various interiors. Its black steel construction is durable, resistant to high temperatures up to 110 °C, and has a working pressure of up to 10 bar. The heating power is up to 1092 W at 75/65/20 °C, providing efficient heating. The radiator is equipped with brackets, an installation kit, and an air vent.

Technical data:

Height (Y): 500 mm

Width (X): 1600 mm

Depth: 59 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 582 W

- 75/65/20 °C 1092 W

- 90/70/20 °C 1367 W

Connections:

- 2xG ½″ bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side cover and removable top cover

Includes: brackets, installation kit, sealing plugs, air vent, and valve insert

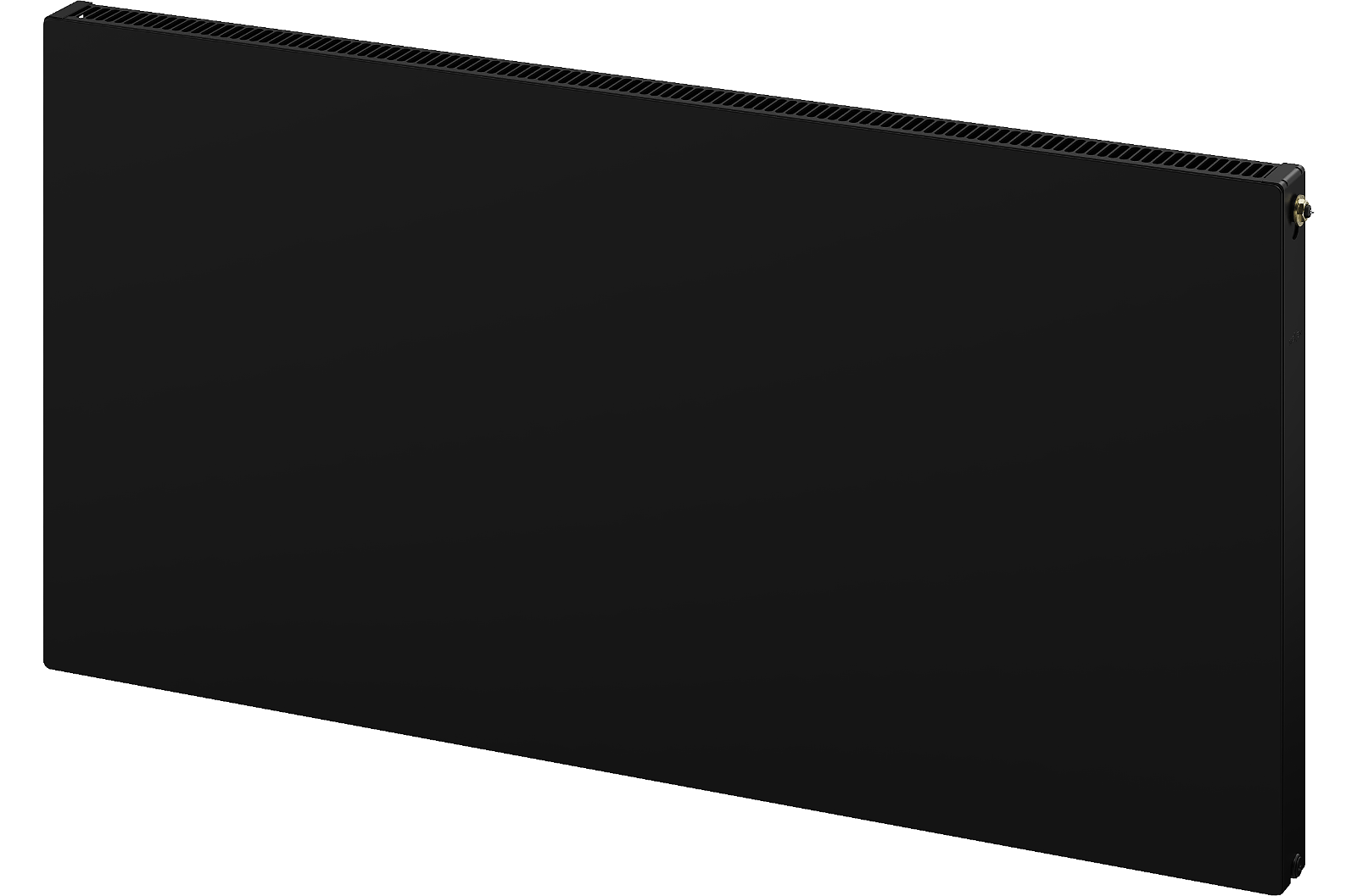

The pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF11
Width
1600 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
1092 W
Color
Black
Material
Steel
Type
11
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
