Mexen CVF11 Flat panel radiator 500 x 900 mm, bottom connection, 614 W, black - W611F-050-090-70

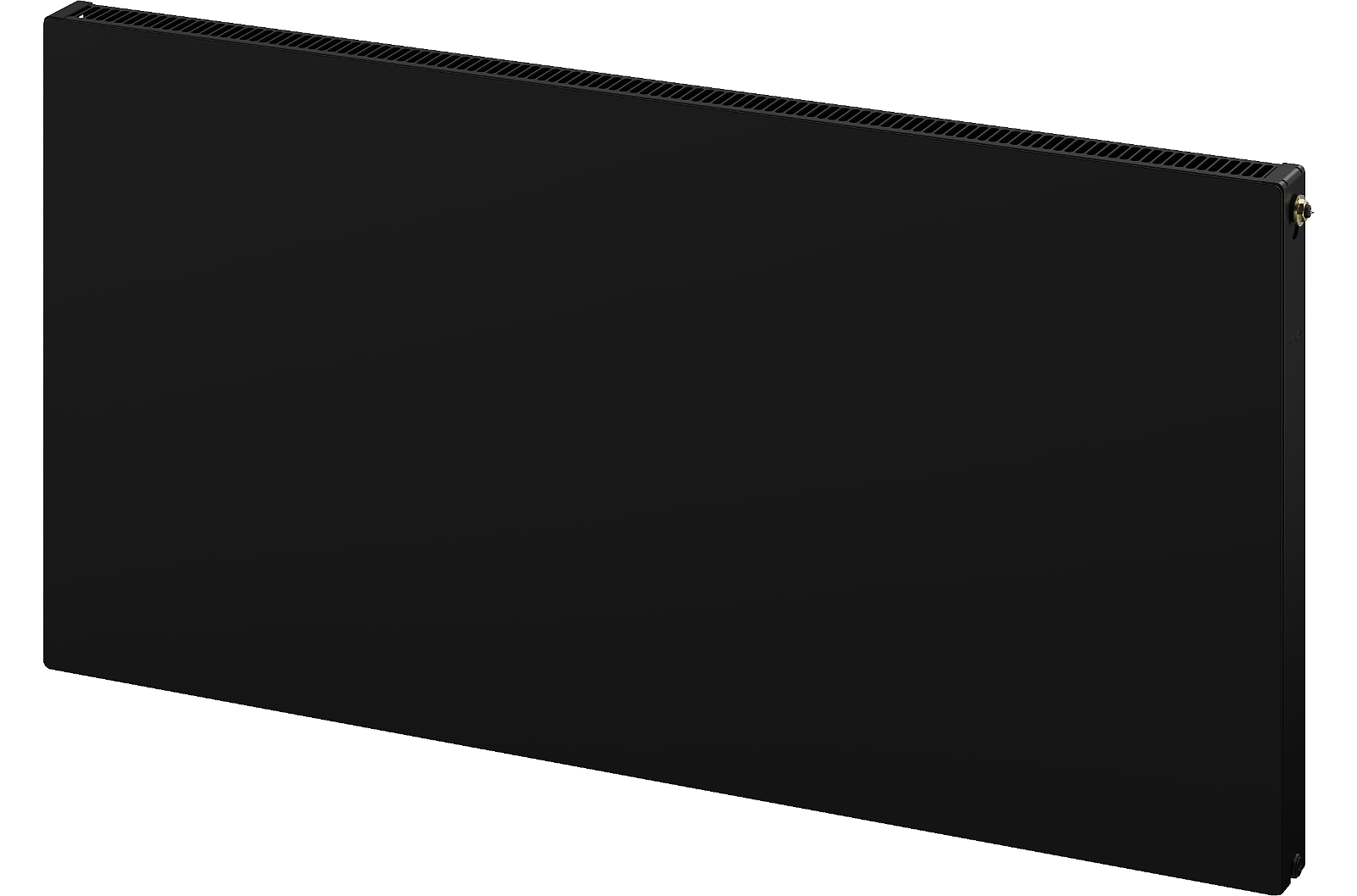

Mexen Flat CVF11 is a modern flat panel radiator measuring 500 x 900 mm, which fits perfectly in any interior thanks to its elegant black finish (RAL 9005). It has a heating power of up to 614 W at a temperature of 75/65/20 °C, which ensures efficient room heating. The high-quality steel and durable paint finish meeting DIN 99500 standard ensure longevity and resilience. The radiator is equipped with bottom and side connections and convenient installation accessories, making it easy to install. The maximum operating temperature is 110 °C, and the working pressure is up to 10 bars. With side covers and a removable top cover, it is both functional and aesthetic.

Technical data:

Height (Y): 500 mm

Width (X): 900 mm

Depth: 59 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heat output:

- 55/45/20 °C 327 W

- 75/65/20 °C 614 W

- 90/70/20 °C 769 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High-quality, durable paint finish - DIN 99500

Features side covers and a removable top cover

Included: brackets, installation kit, sealing plugs, air vent, and valve insert

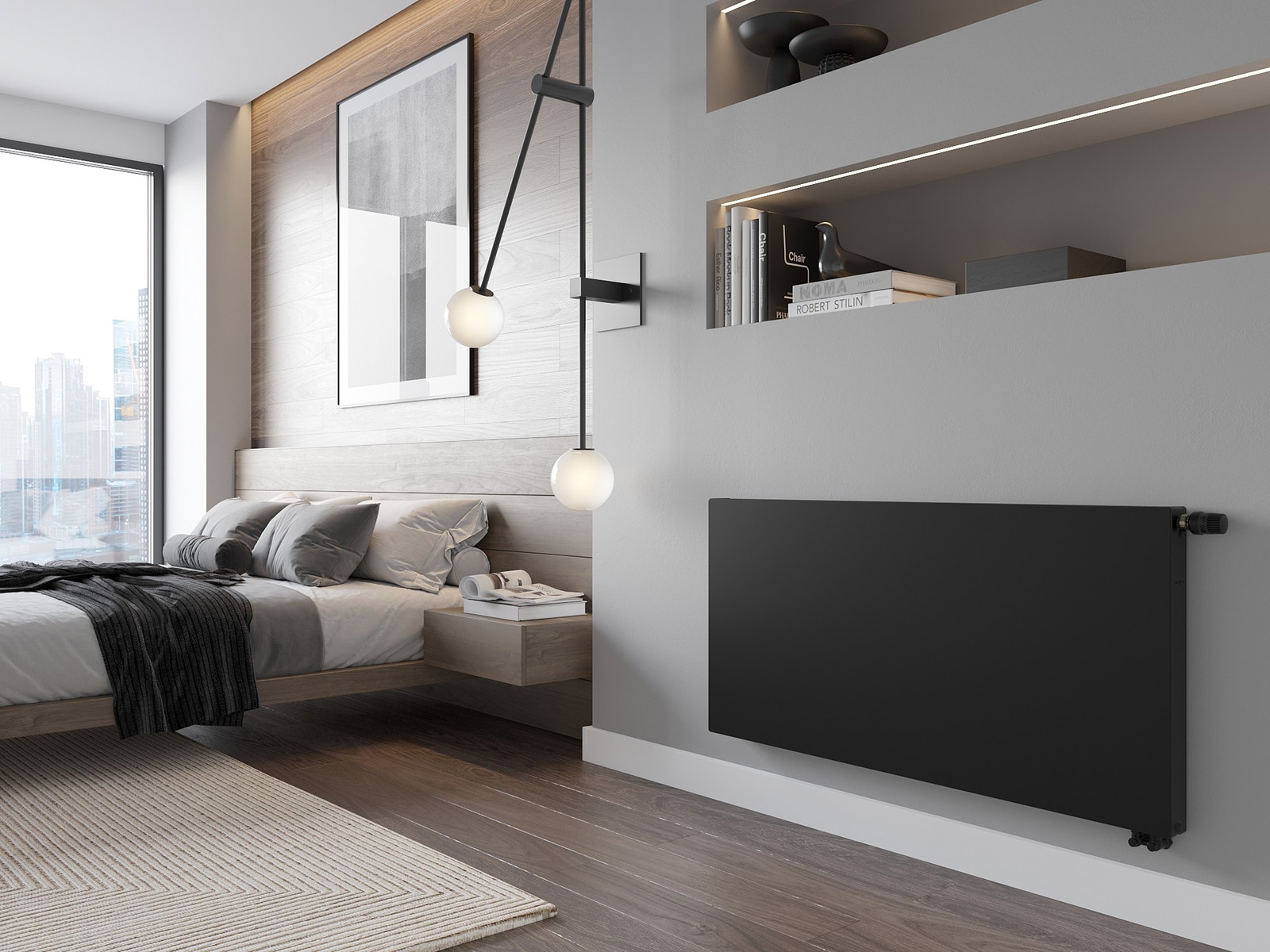

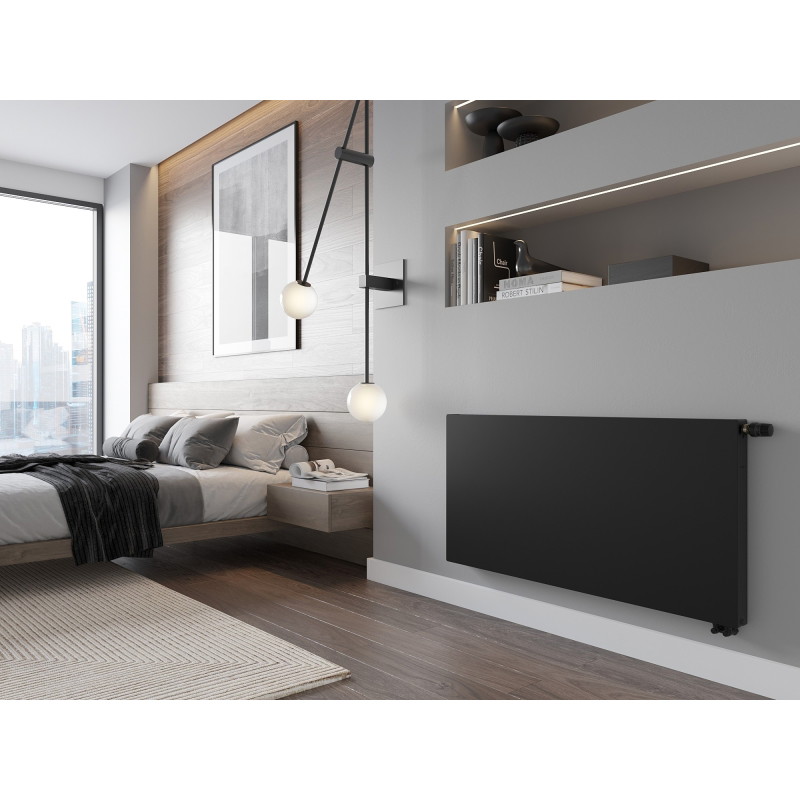

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF11
Width
900 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
614 W
Color
Black
Material
Steel
Type
11
Mounting Position
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
