Mexen CVF11 Flat Panel Radiator 500 x 2000 mm, Bottom Connection, 1365 W, Black - W611F-050-200-70

The Mexen Flat CVF11 panel radiator 500 x 2000 mm in black is an excellent solution for your home. It features a heating power of 1365 W (at 75/65/20 °C), ensuring efficient room heating. Its modern design and black color (RAL 9005) add style to any interior. Thanks to its solid steel construction, the radiator is durable and robust. The maximum working pressure is 10 bar, guaranteeing safe operation. The set includes all necessary mounting elements, including hangers, assembly kit, and vent valve. Mexen Flat CVF11 is an elegant and practical solution for modern spaces.

Technical Data:

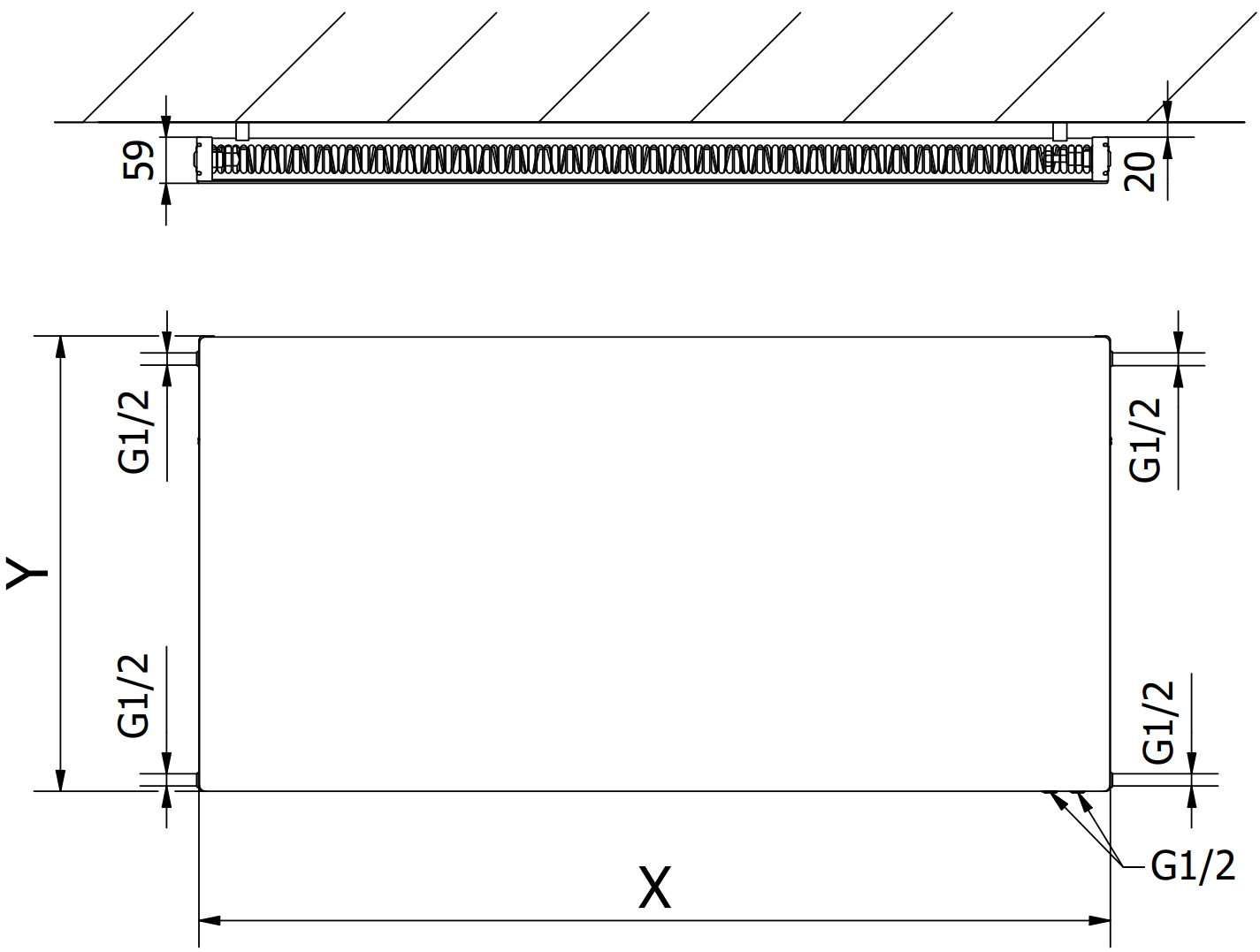

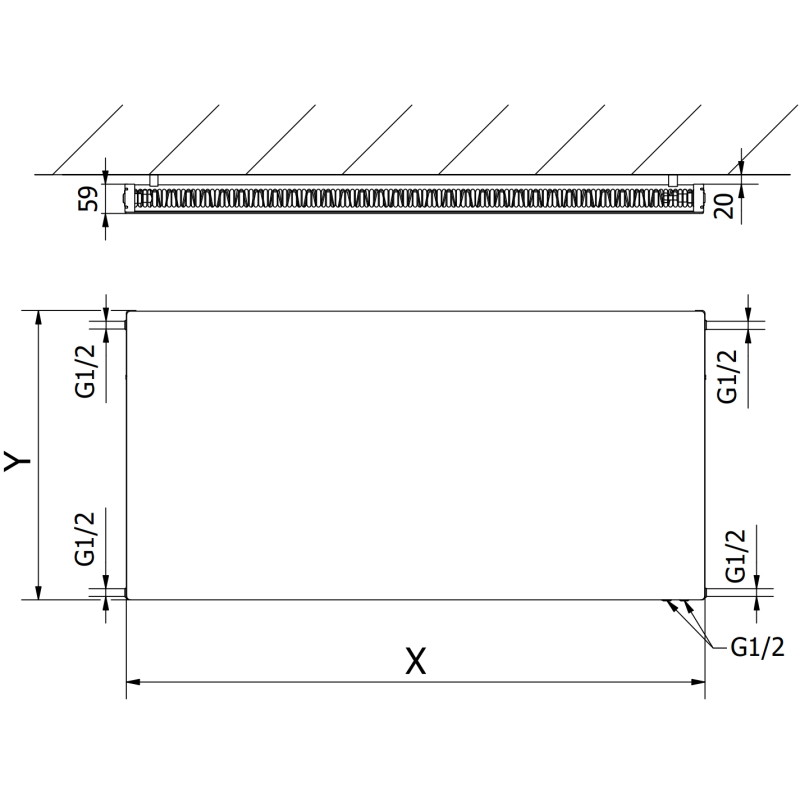

Height (Y): 500 mm

Width (X): 2000 mm

Depth: 59 mm

Connection Interval: 5 cm

Vertical Water Channel Interval: 33.3 mm

Color: Black RAL 9005

Material: Steel

Working Temperature: max 110 °C

Maximum Working Pressure: 10 bar

Maximum Test Pressure: 13 bar

Heating Power:

- 55/45/20 °C 727 W

- 75/65/20 °C 1365 W

- 90/70/20 °C 1709 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side connections

High-quality, durable lacquer coating - DIN 99500

Features side cover and removable top cover

Includes: hangers, assembly kit, blanking plugs, vent valve, and valve insert

Pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF11
Width
2000 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
1365 W
Color
Black
Material
Steel
Type
11
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
