Mexen CVF21 Flat panel radiator 900 x 1200 mm, bottom connection, 1907 W, black - W621F-090-120-70
The Mexen Flat CVF21 is an elegant panel radiator that fits perfectly in modern interiors. Its dimensions are 900 mm in height and 1200 mm in width, offering a heating power of up to 1907 W at a working temperature of 75/65/20 °C. Made of durable steel and coated with a durable black paint layer RAL 9005, this radiator is suitable for a maximum operating temperature of 110 °C and a working pressure of up to 10 bar. The bottom and side connection system and included mounting accessories ensure easy installation and functionality.

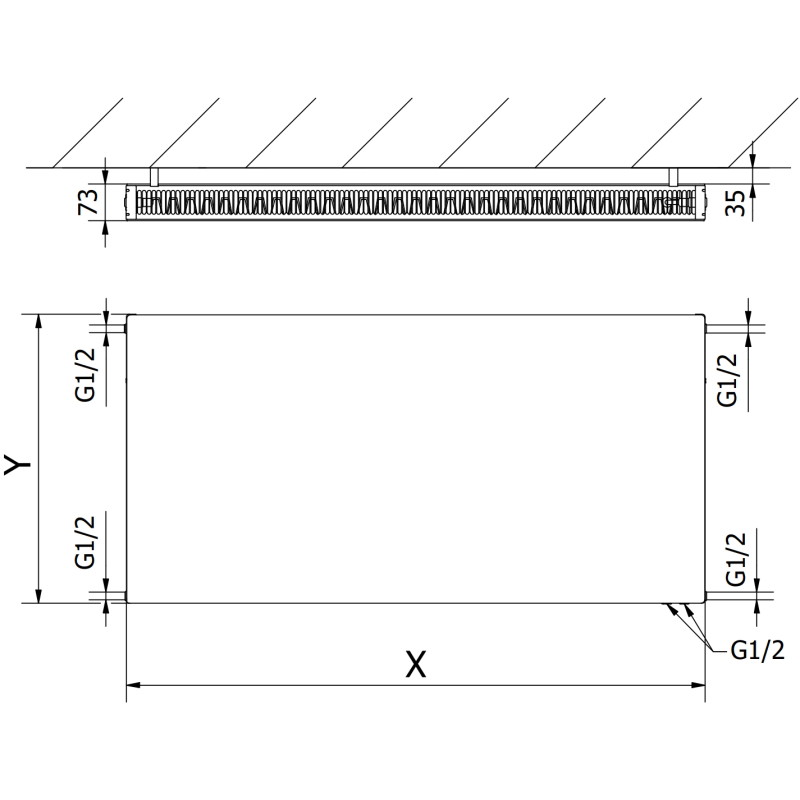

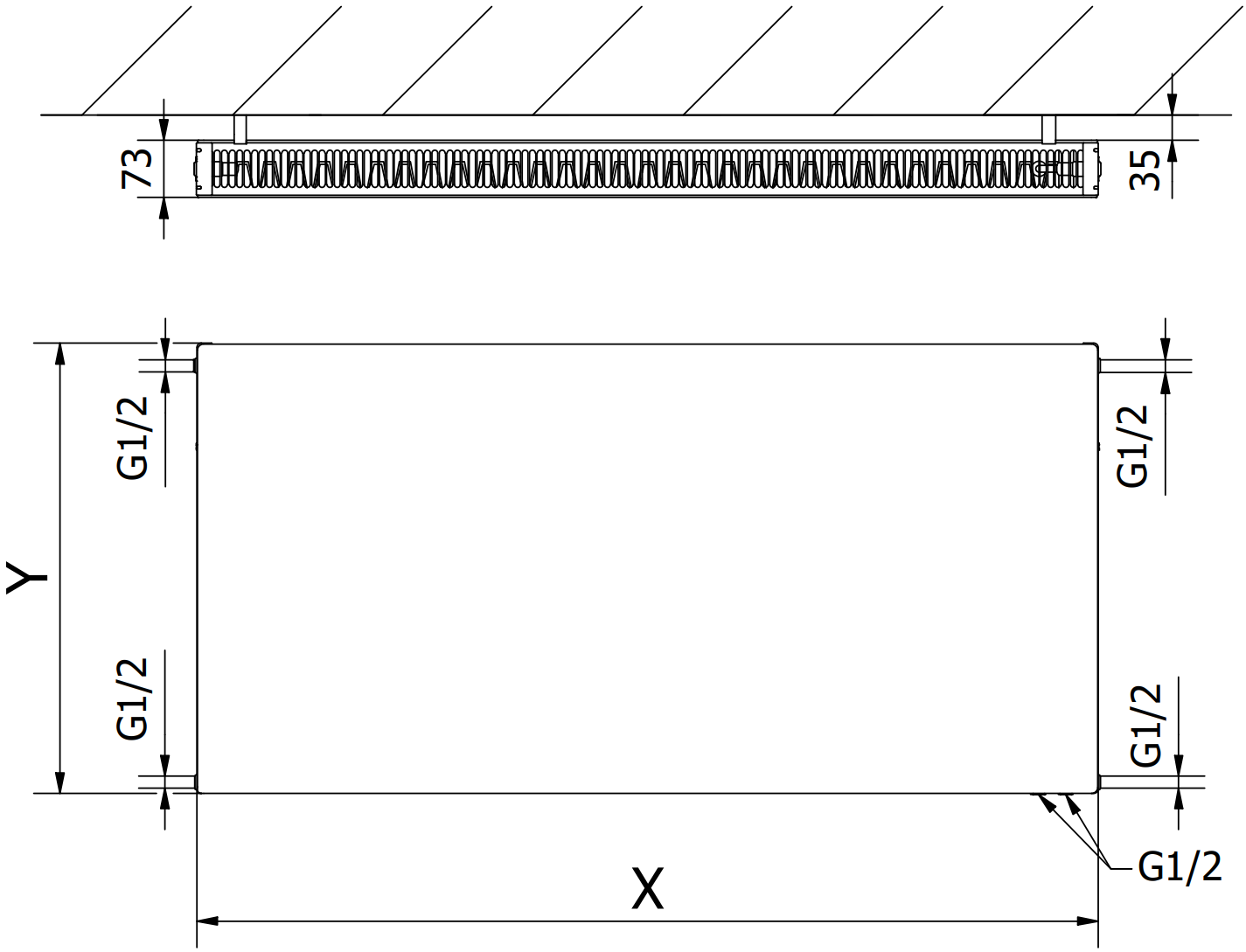

Technical data:
Height (Y): 900 mm
Width (X): 1200 mm
Depth: 73 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: Black RAL 9005
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1039 W
- 75/65/20 °C 1907 W
- 90/70/20 °C 2369 W
Connections:
- 2xG ½″ from the bottom on the right or left side
- 4xG ½″ side
High quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Comes with: suspensions, installation kit, blind plugs, air vent and valve insert

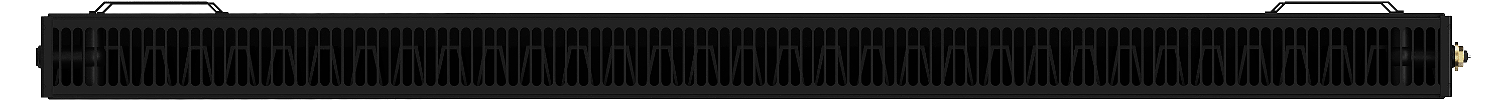

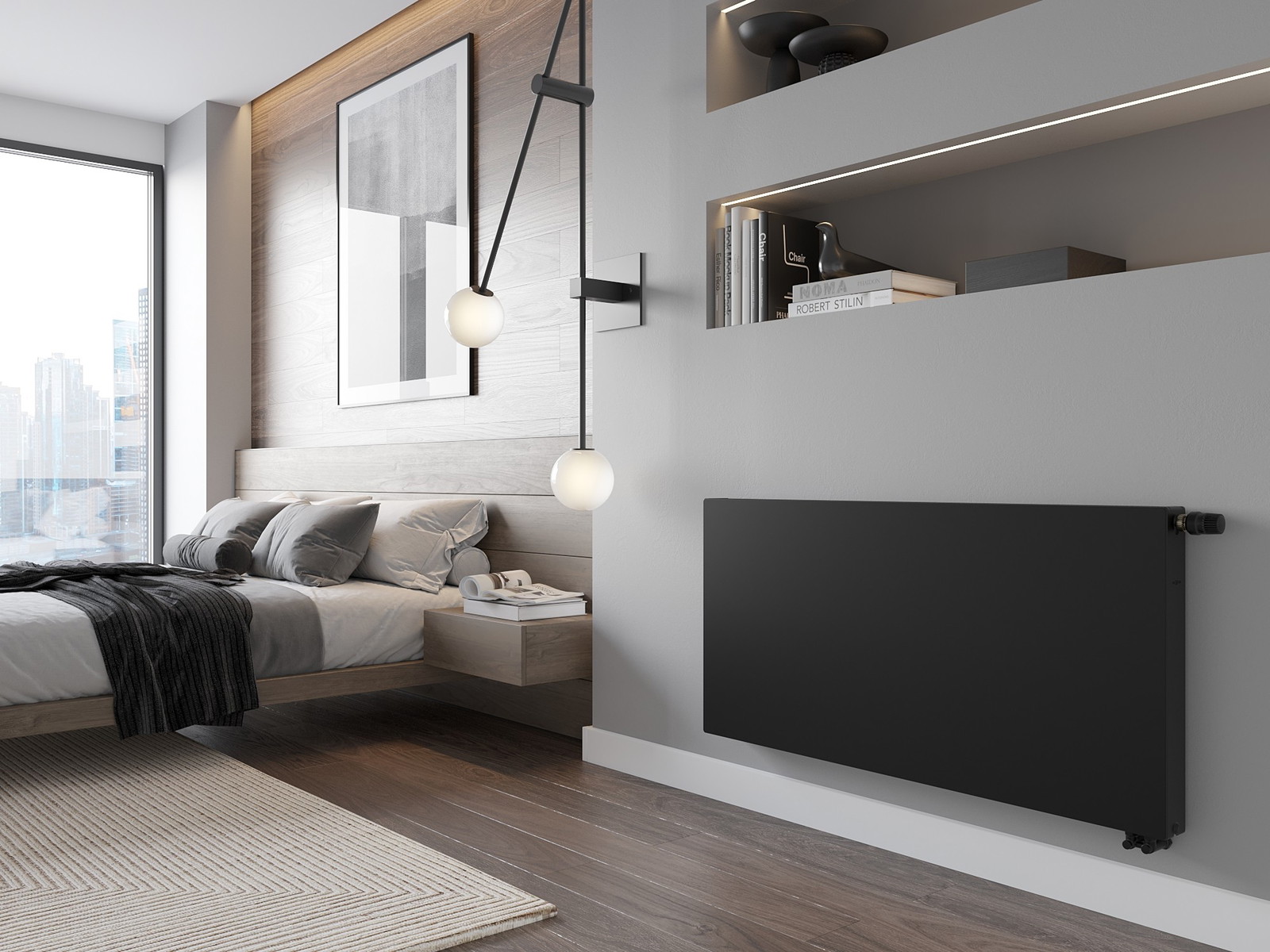

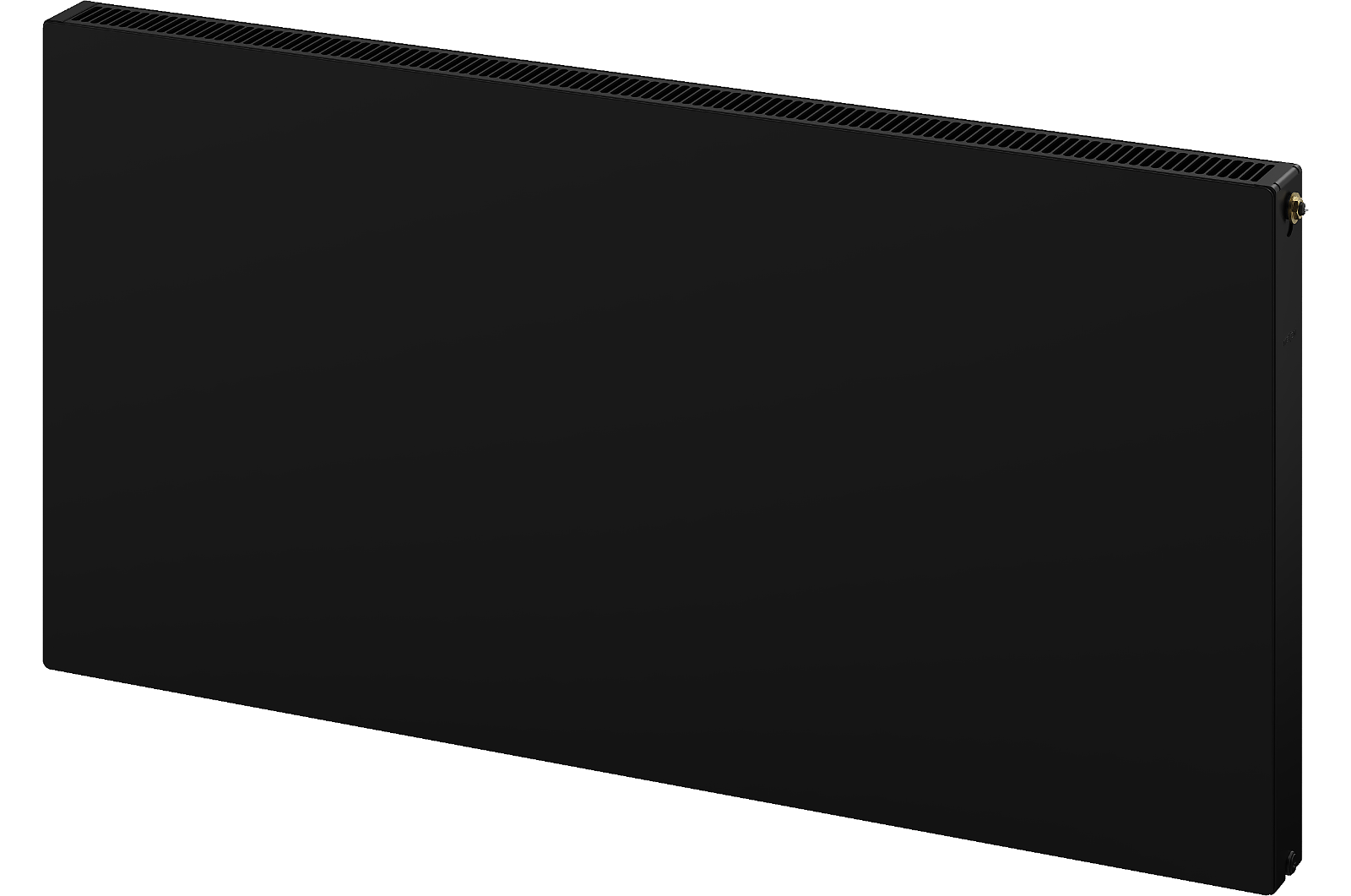

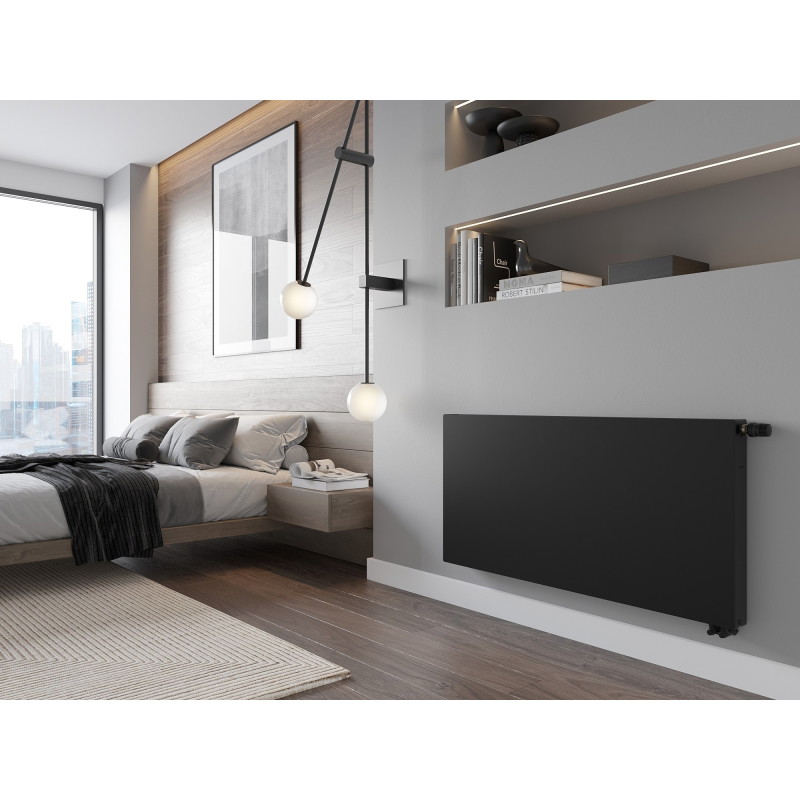

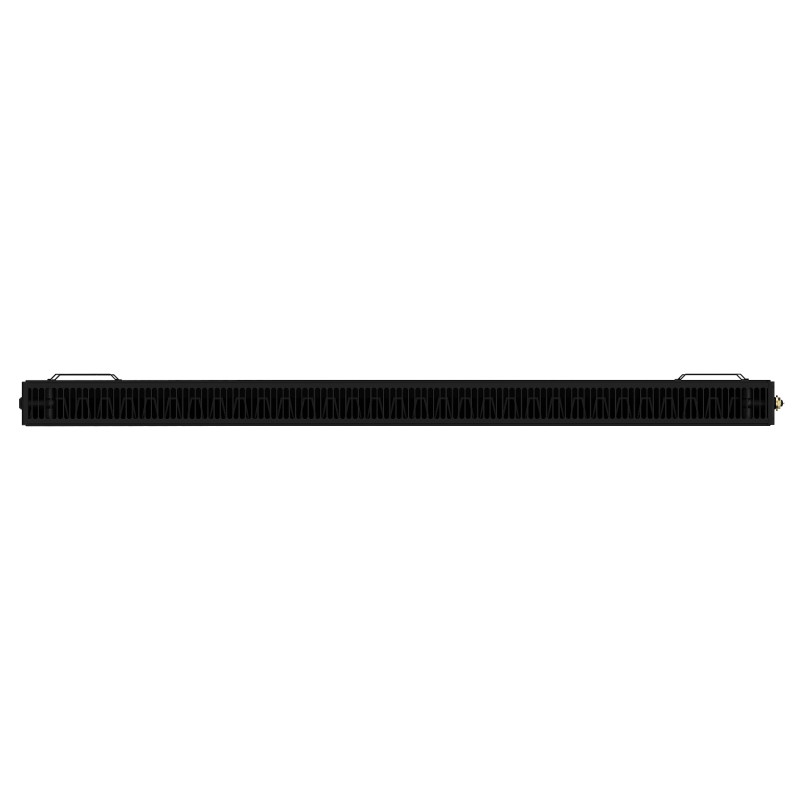

The pictures show the radiator in size 600 x 1200 mm.
