Mexen CVF21 Flat panel radiator 900 x 1400 mm, bottom connection, 2225 W, black - W621F-090-140-70
Mexen Flat CVF21 is an elegant and efficient panel radiator with dimensions of 900 x 1400 mm. Its black, stylish housing, painted to DIN 99500 standard, conceals a solid steel construction, ready to withstand working pressures up to 10 bar and temperatures up to 110°C. The bottom connection and choice of connection sides make installation remarkably simple. A heat output of 2225 W at 75/65/20 °C ensures ideal heating in all conditions. The installation kit includes everything necessary for installation.

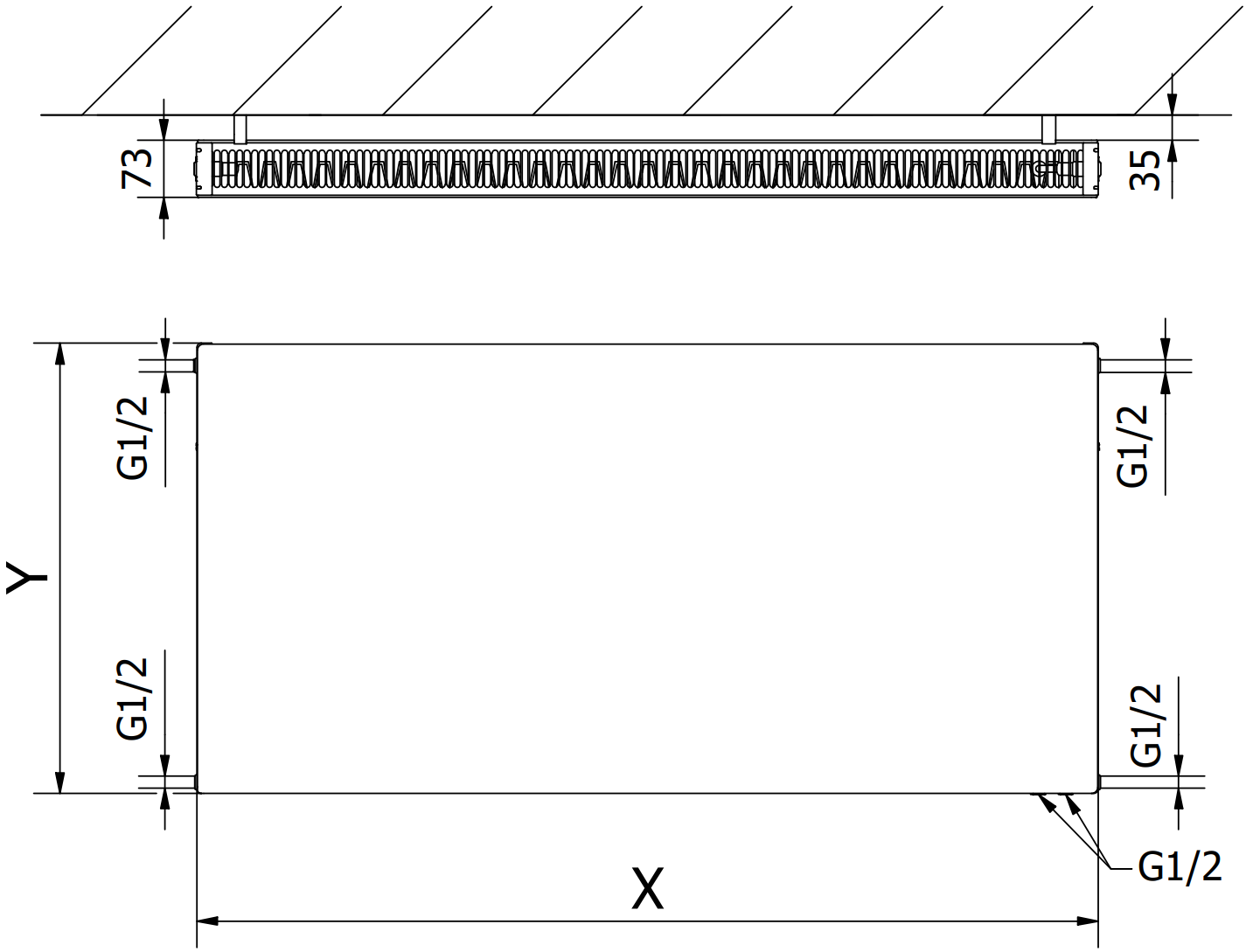

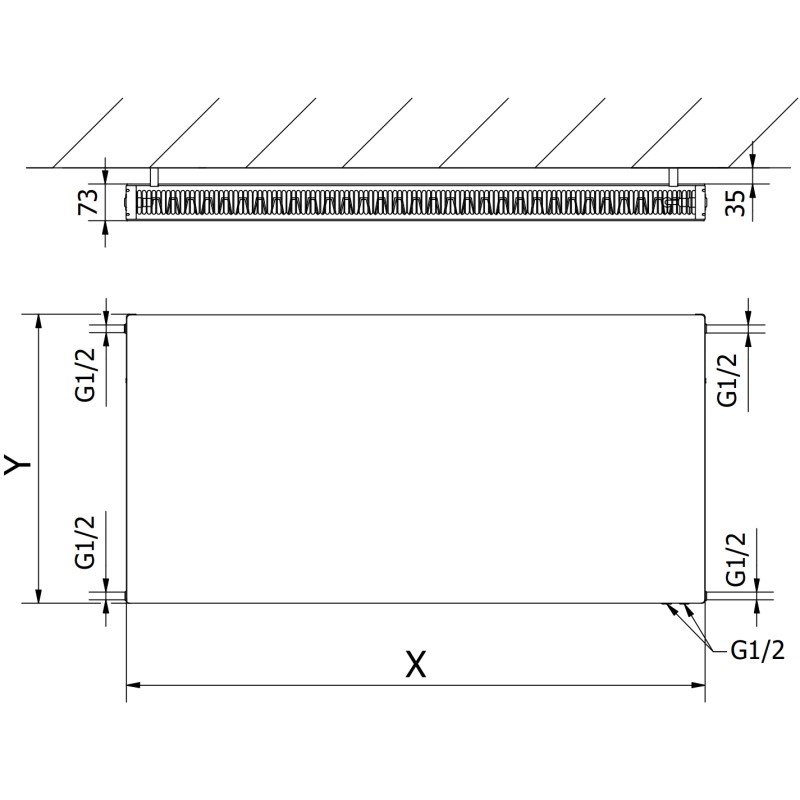

Technical data:
Height (Y): 900 mm
Width (X): 1400 mm
Depth: 73 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: Black RAL 9005
Material: Steel
Working temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heat output:
- 55/45/20 °C 1212 W
- 75/65/20 °C 2225 W
- 90/70/20 °C 2764 W
Connections:
- 2xG ½″ from the bottom on the right or left side
- 4xG ½″ side
High-quality, durable paint finish - DIN 99500
Includes side cover and removable top cover
Includes: hangers, installation kit, sealing plugs, vent and valve insert

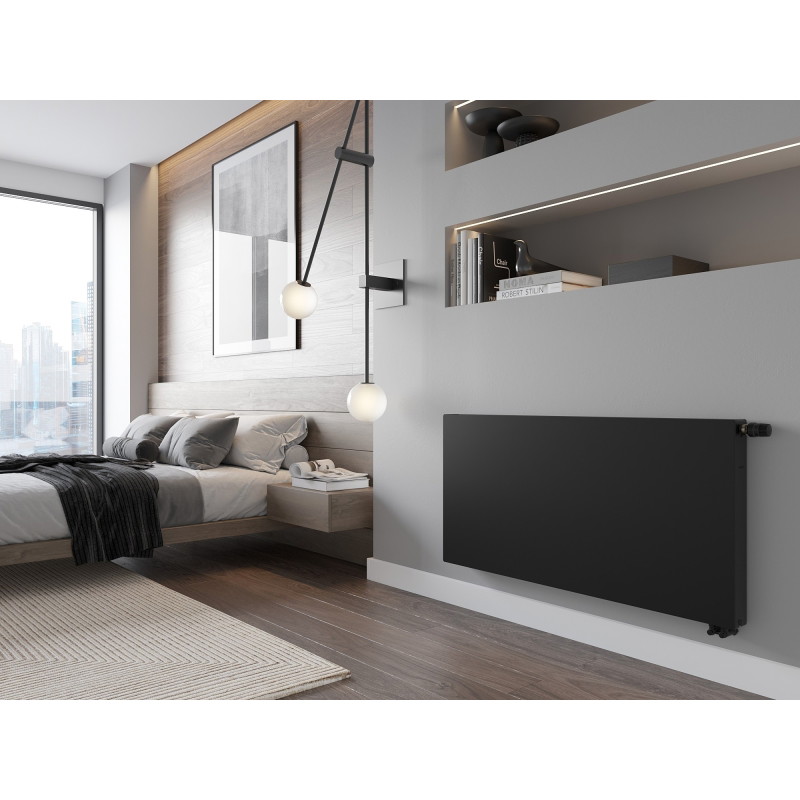

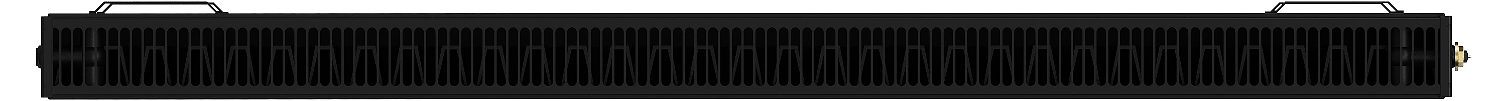

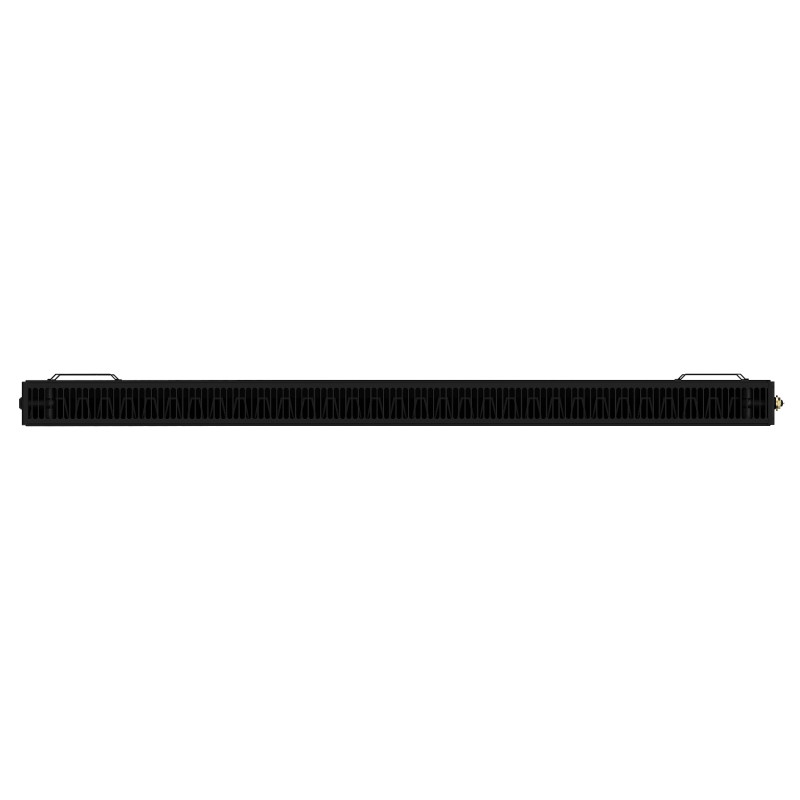

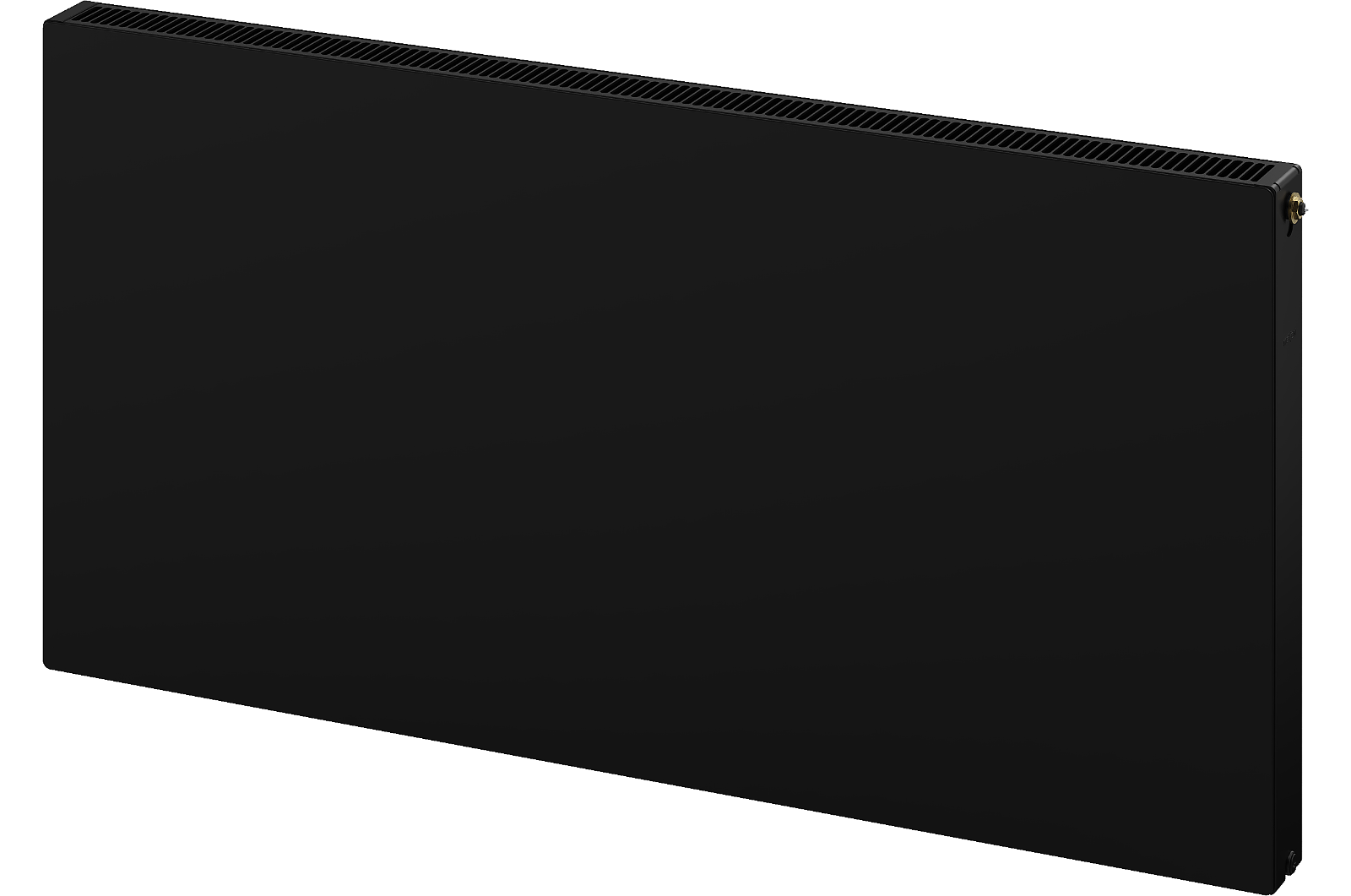

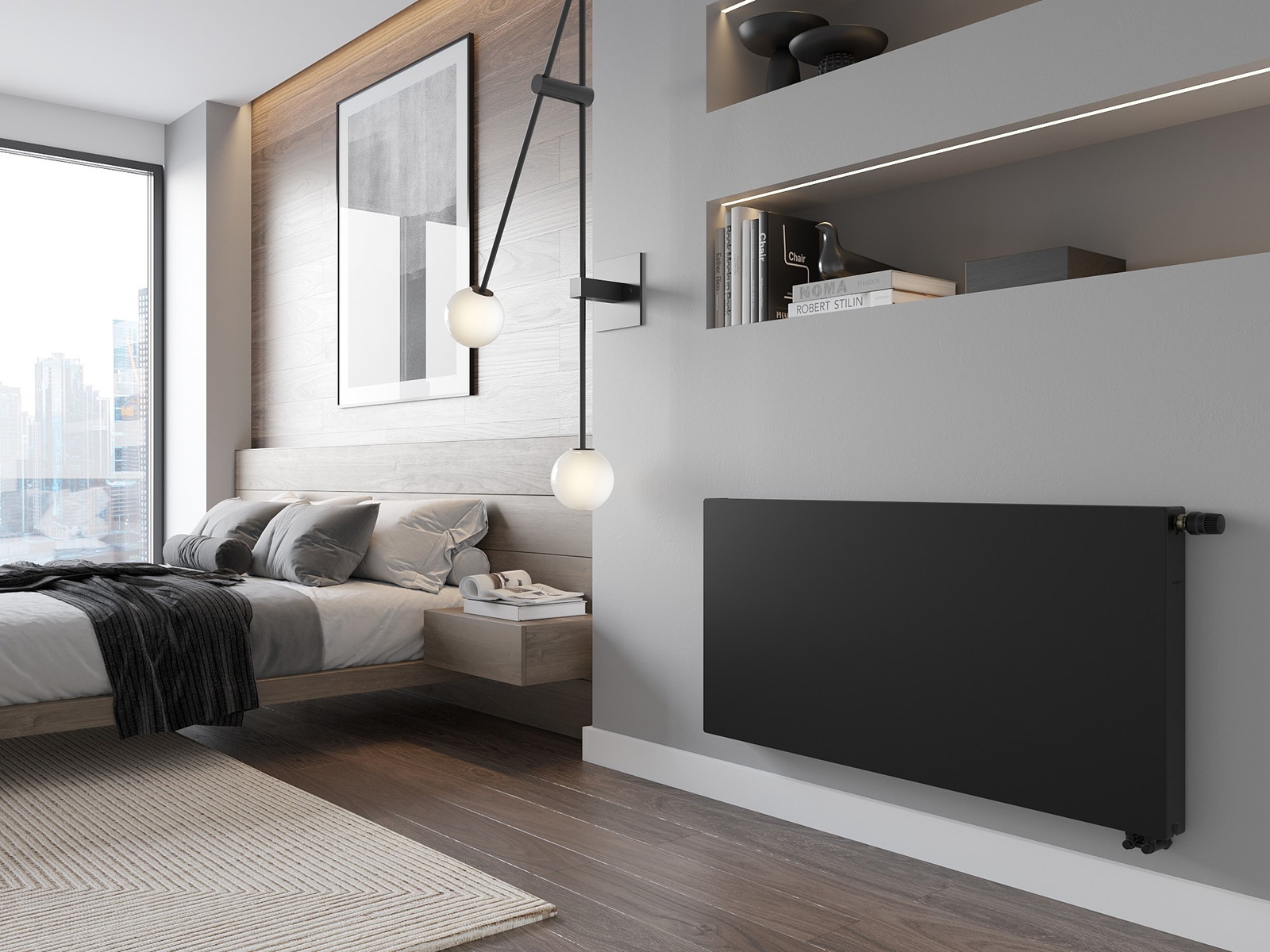

The pictures show the radiator in size 600 x 1200 mm.
