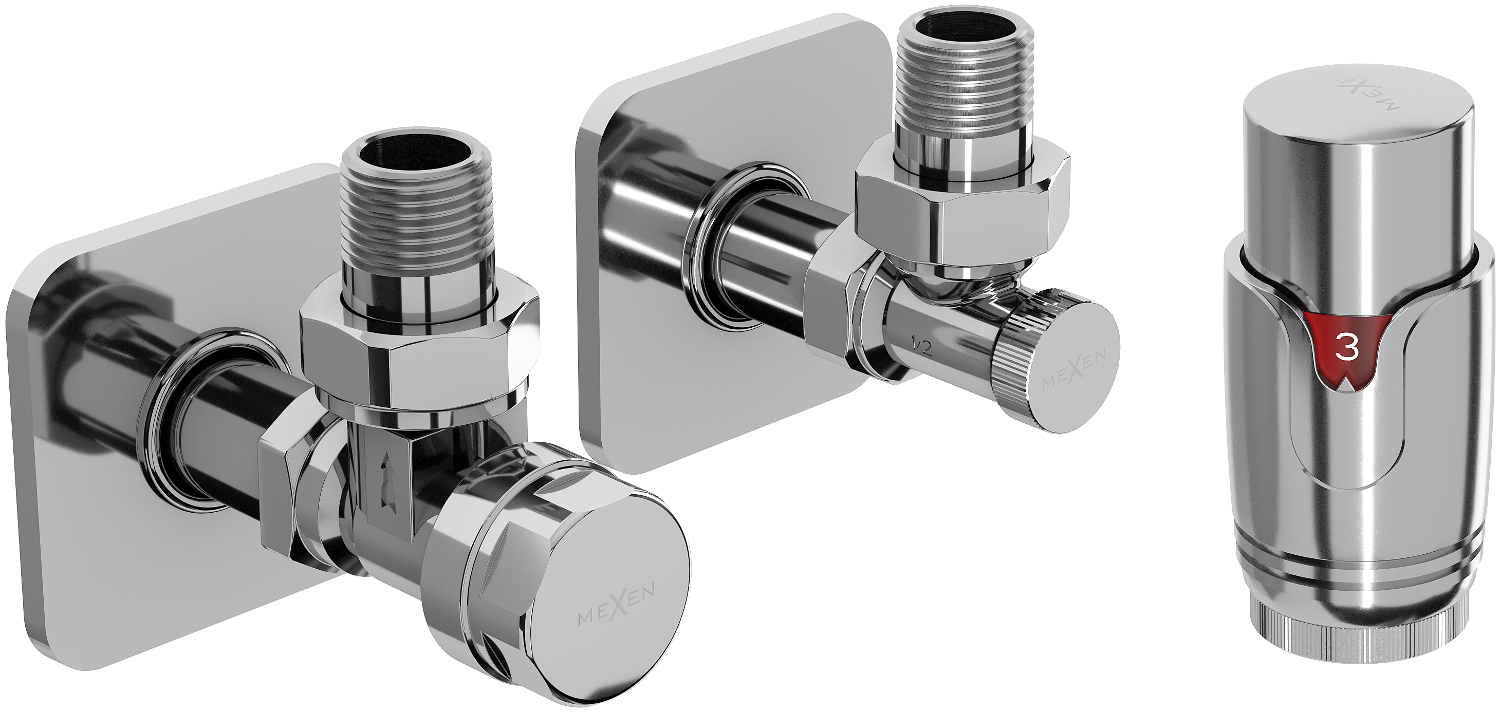

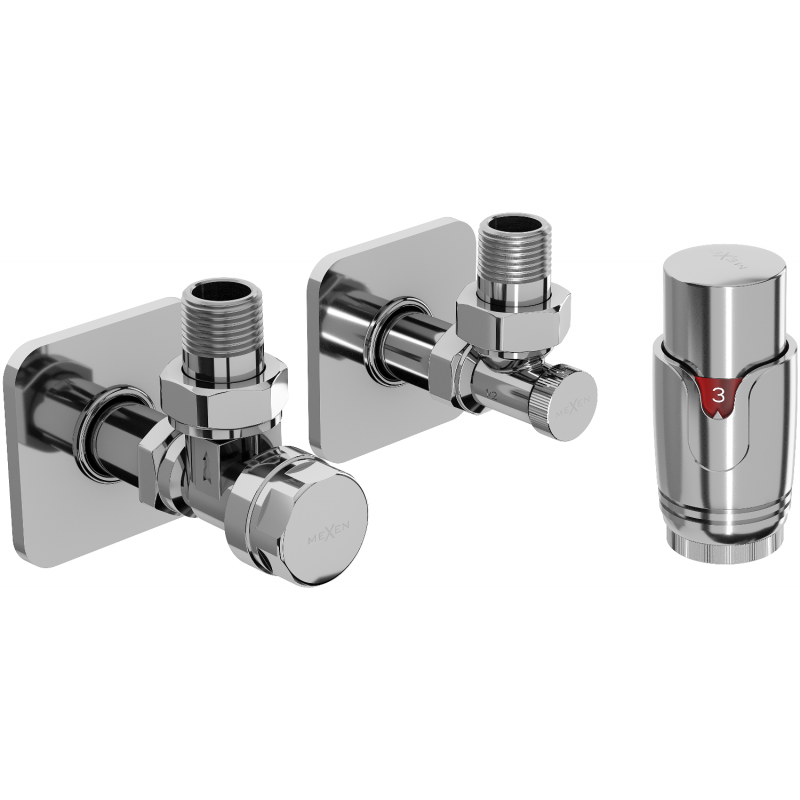

Mexen G00 angled thermostatic valve set with S cover, chrome - W901-900-909-01

The Mexen G00 angled thermostatic valve set with S cover, chrome, is distinguished by high quality brass construction. The valves, in elegant chrome with a connection diameter of G 1/2", are resistant to high pressure (up to 10 bar) and temperature (up to 120 °C). The adjustable head with a scale of 0-5, temperature range of 0-29 °C, and frost protection (5°C). The set includes a cover with two stainless steel rosettes. Perfect for elegant and functional heating installations.

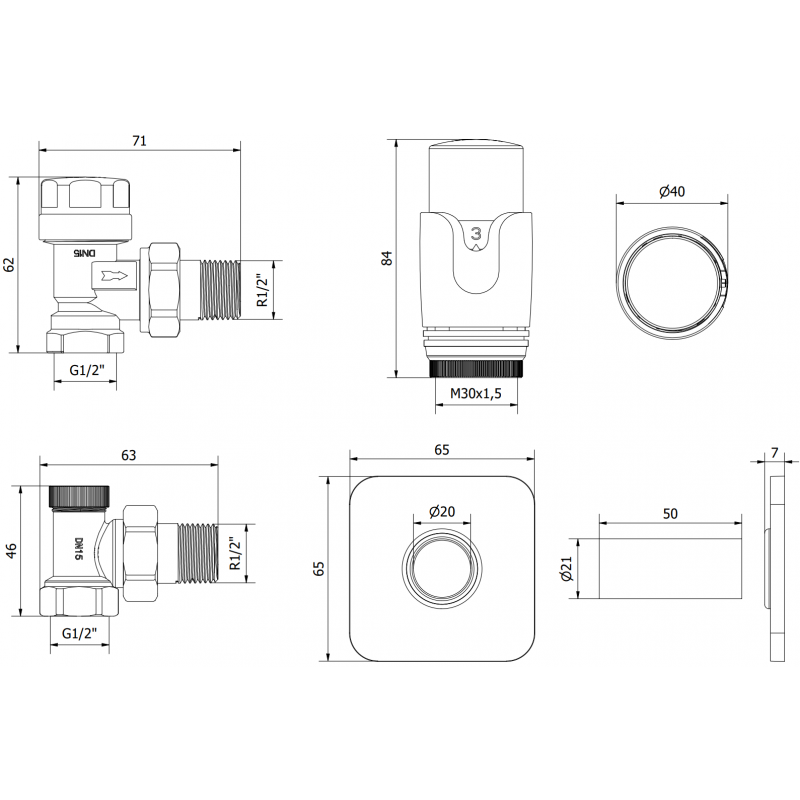

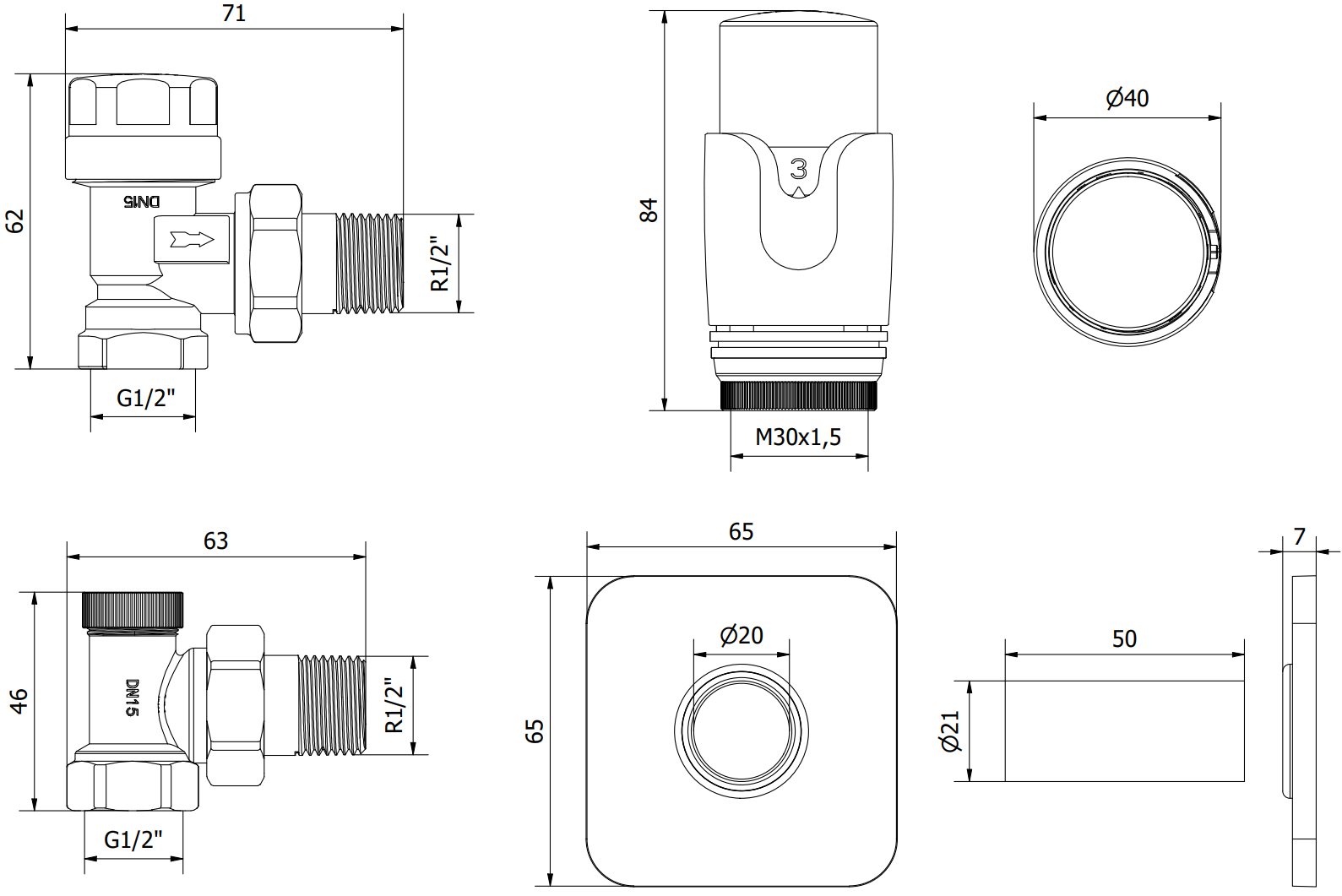

Technical data:

Valve material: Brass

Valve colour: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Chrome

Rosette material: Stainless steel

Rosette width: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

The cover consists of two individual rosettes and a sleeve

Includes supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G00
Type
Angle
Color
Chrome
Inlet Diameter
G 1/2"
Cover
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
Manufacturer
See
