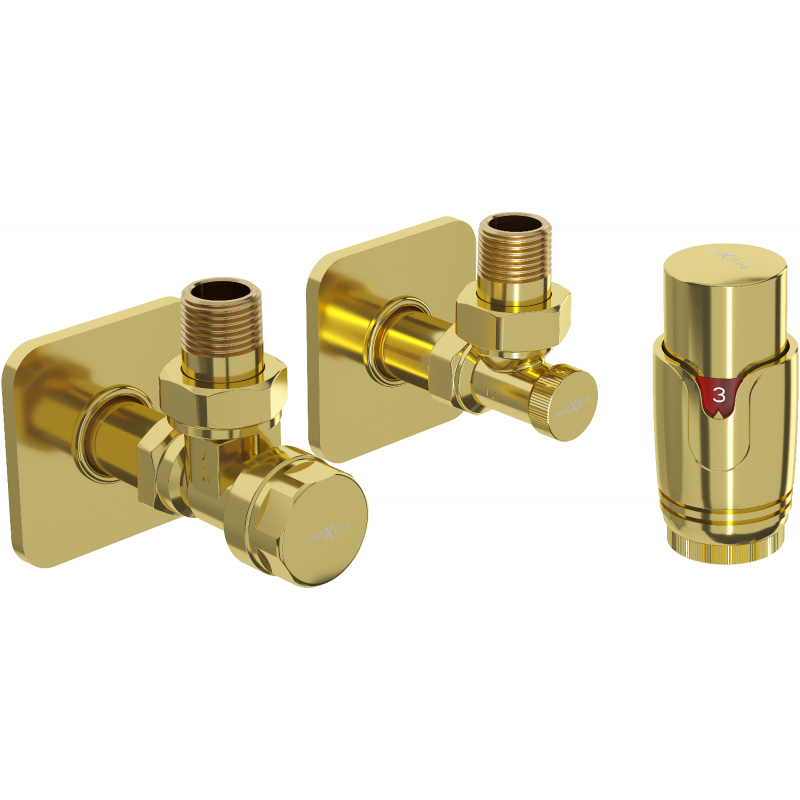

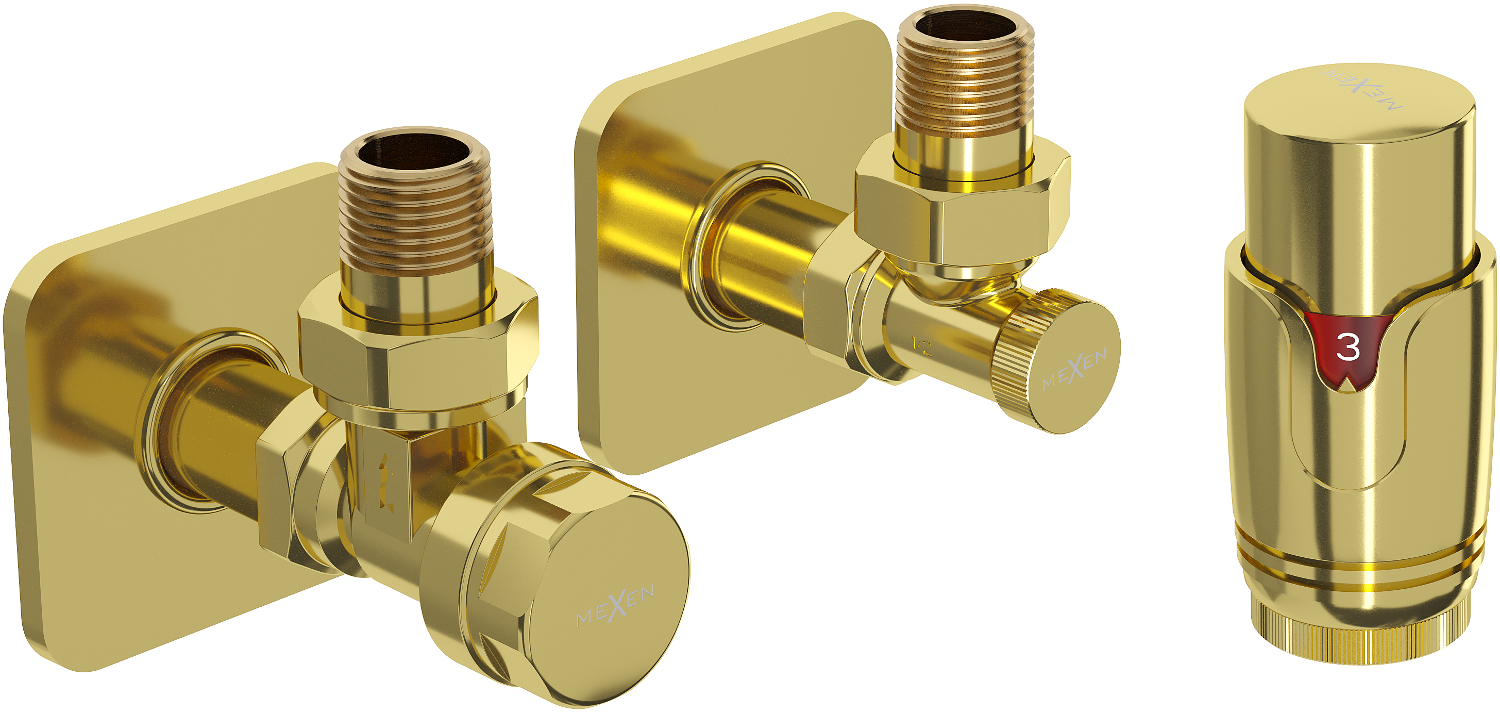

Mexen G00 angled thermostatic set with S cover, gold - W901-900-909-50

The Mexen G00 angled thermostatic set with S cover in gold is an excellent choice for the most demanding. Made of brass, with an M30 x 1.5 mm head thread and a wide temperature regulation scale from 0 to 29°C, it provides precise control. It features high resistance to temperatures up to 120°C and pressure up to 10 bar. Additionally, it is protected against freezing at 5°C. The elegant gold color and steel cover add aesthetics to any interior.

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Gold

Rosette material: Stainless steel

Rosette width: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Socket material: Brass

Socket length: 50 mm

Socket inner diameter: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Angular
Colour
Gold
Connection diameter
G 1/2"
Cover
Yes
