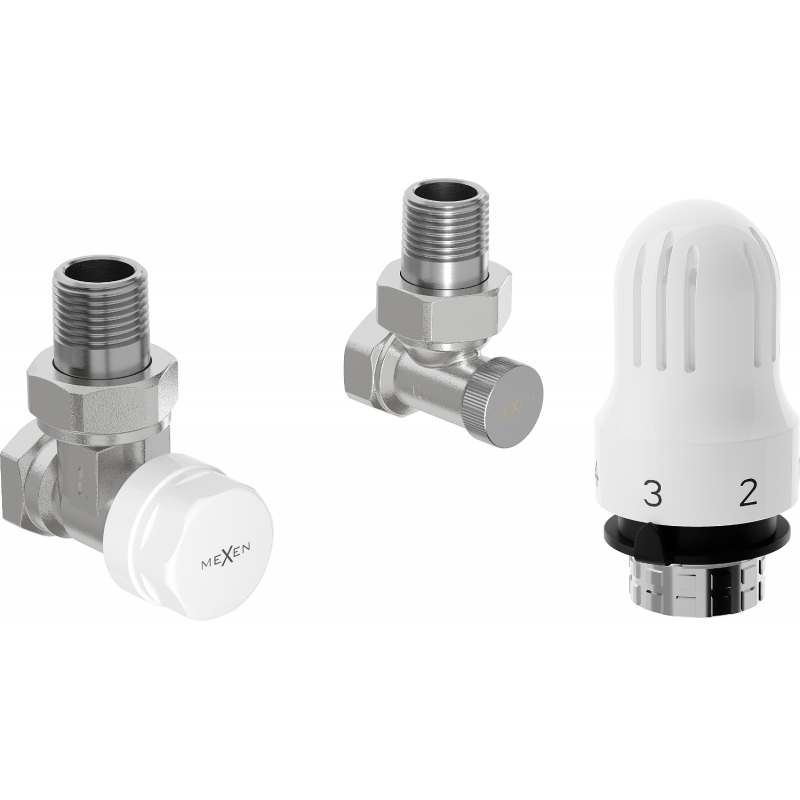

Mexen G04 angled thermostat set, nickel - W913-012-948-01

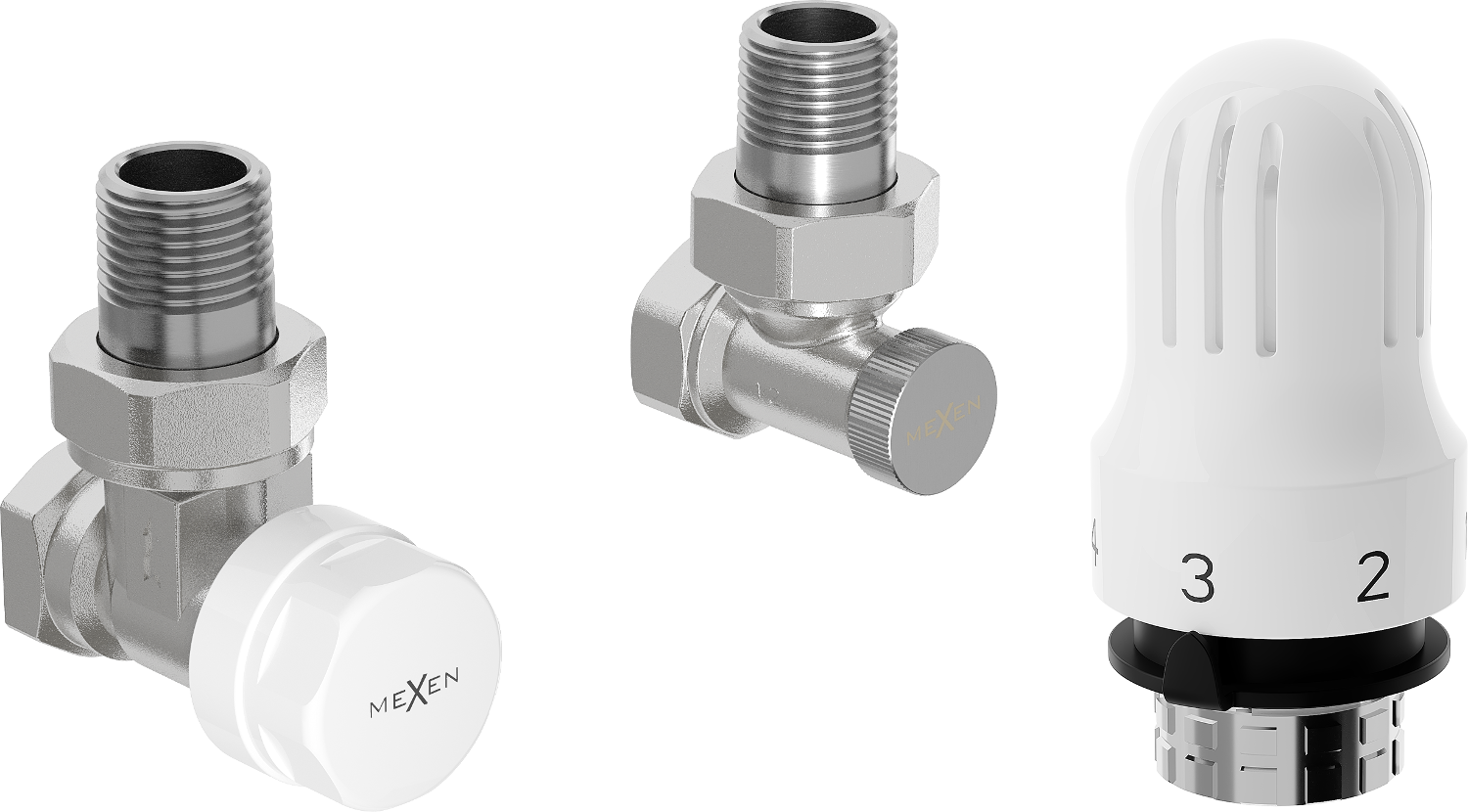

Mexen G04 angled thermostat set, nickel is a high-quality product made of brass, ensuring durability and reliability. It features an elegant nickel finish and is equipped with valves with a G1/2" connection diameter. It operates at temperatures up to 120°C and at a working pressure up to 10 bar. The head with an M30 x 1.5 mm thread is white, and the temperature adjustment range is 0-29°C. The set contains a radiator supply and shut-off valve, providing versatility and functionality.

Technical data:

Valve material: Brass

Valve colour: Nickel

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G04
Type
Angled
Color
Nickel
Connection diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
