Mexen G04 dual-pipe thermostatic kit DN50, straight 1/2"x3/4", nickel - W912-012-948-01
Mexen G04 dual-pipe thermostatic kit DN50, straight 1/2"x3/4", nickel - W912-012-948-01 Mexen G04 dual-pipe thermostatic kit DN50, straight 1/2"x3/4", nickel - W912-012-948-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G04
Ean:
5905315237910
Index:
W912-012-948-01
Connection diameter:
G 1/2"
Connection diameter:
G 3/4"
Type:
Straight
Colour:
Nickel

Mexen G04 dual-pipe thermostatic kit DN50, straight 1/2"x3/4", nickel - W912-012-948-01

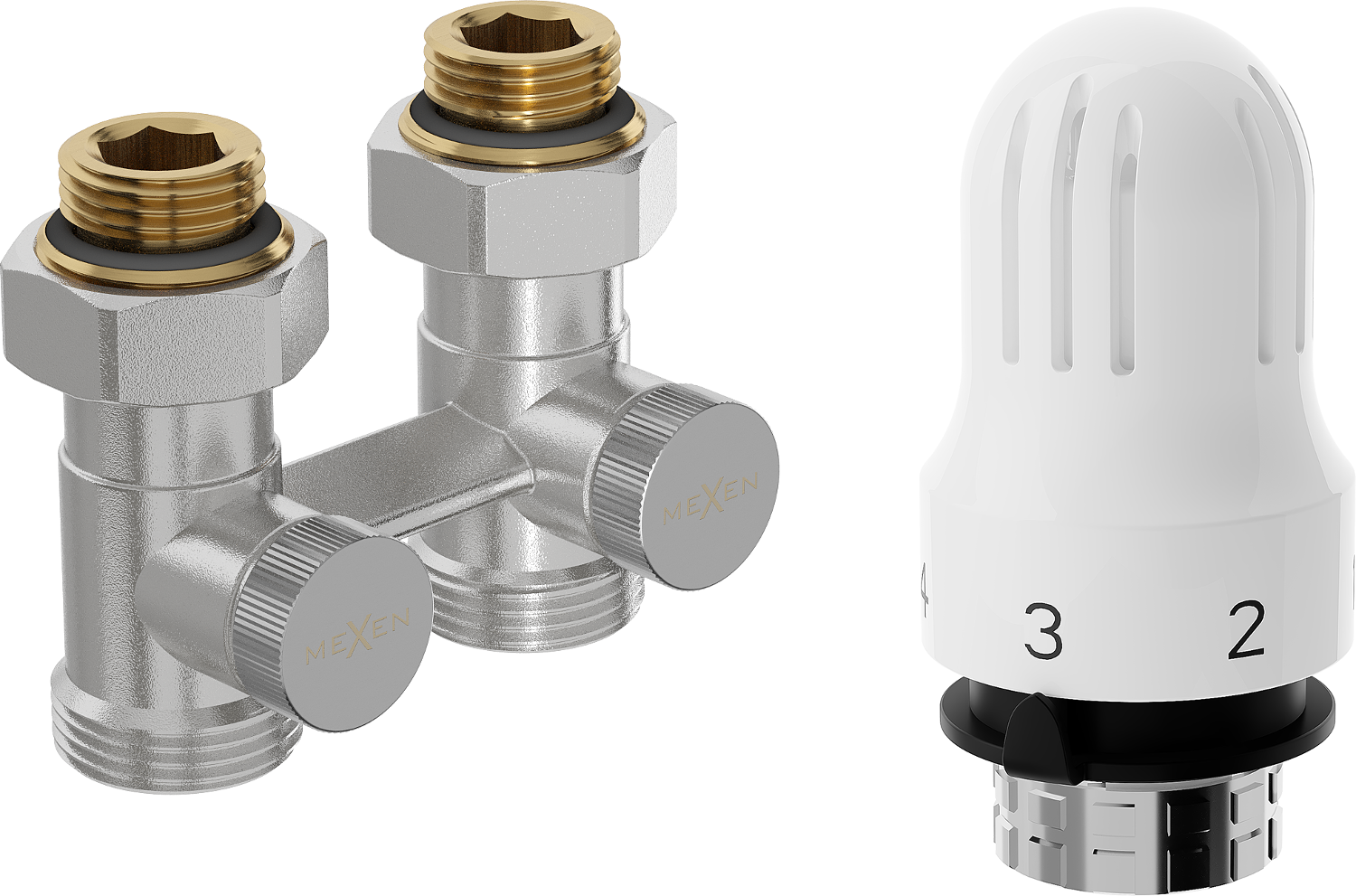

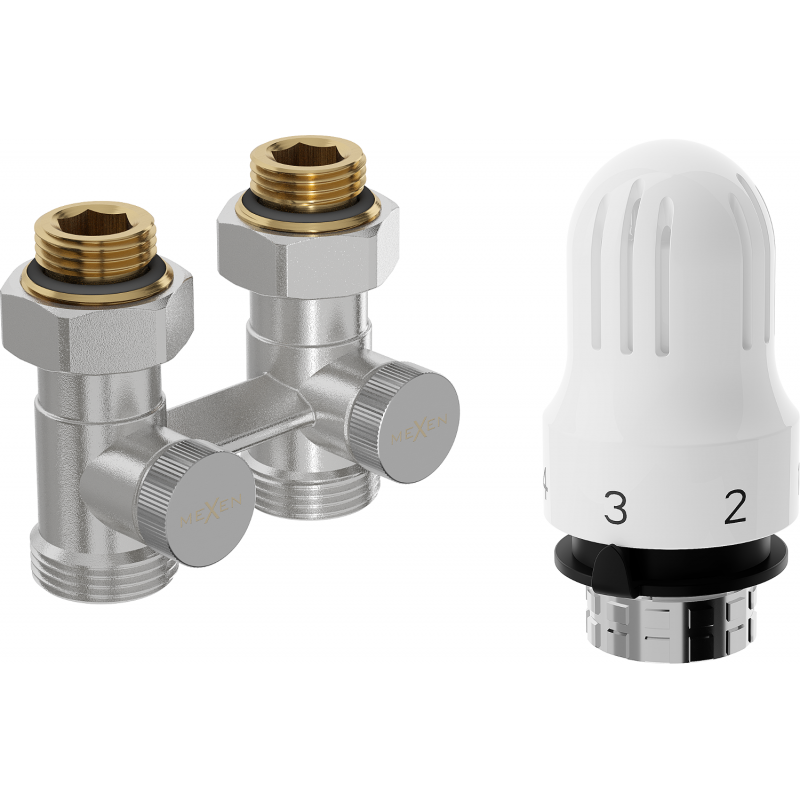

The Mexen G04 dual-pipe thermostatic kit DN50, straight 1/2"x3/4", nickel is characterized by high-quality craftsmanship due to brass valves. Its nickel color fits modern interiors. The set has G 1/2" and G 3/4" connection diameters and operates at a maximum temperature of 120 °C and pressure of 10 bar. Equipped with an adjustment scale of 0-5 and frost protection at 5°C, it ensures convenience and safety in use. Ideal for bottom connections with a 50 mm spacing.

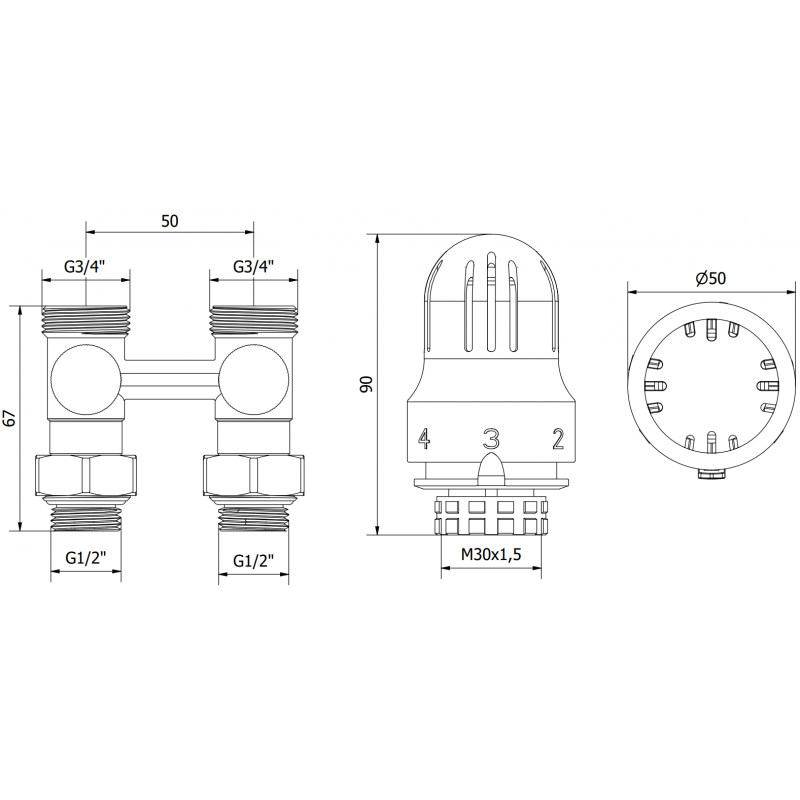

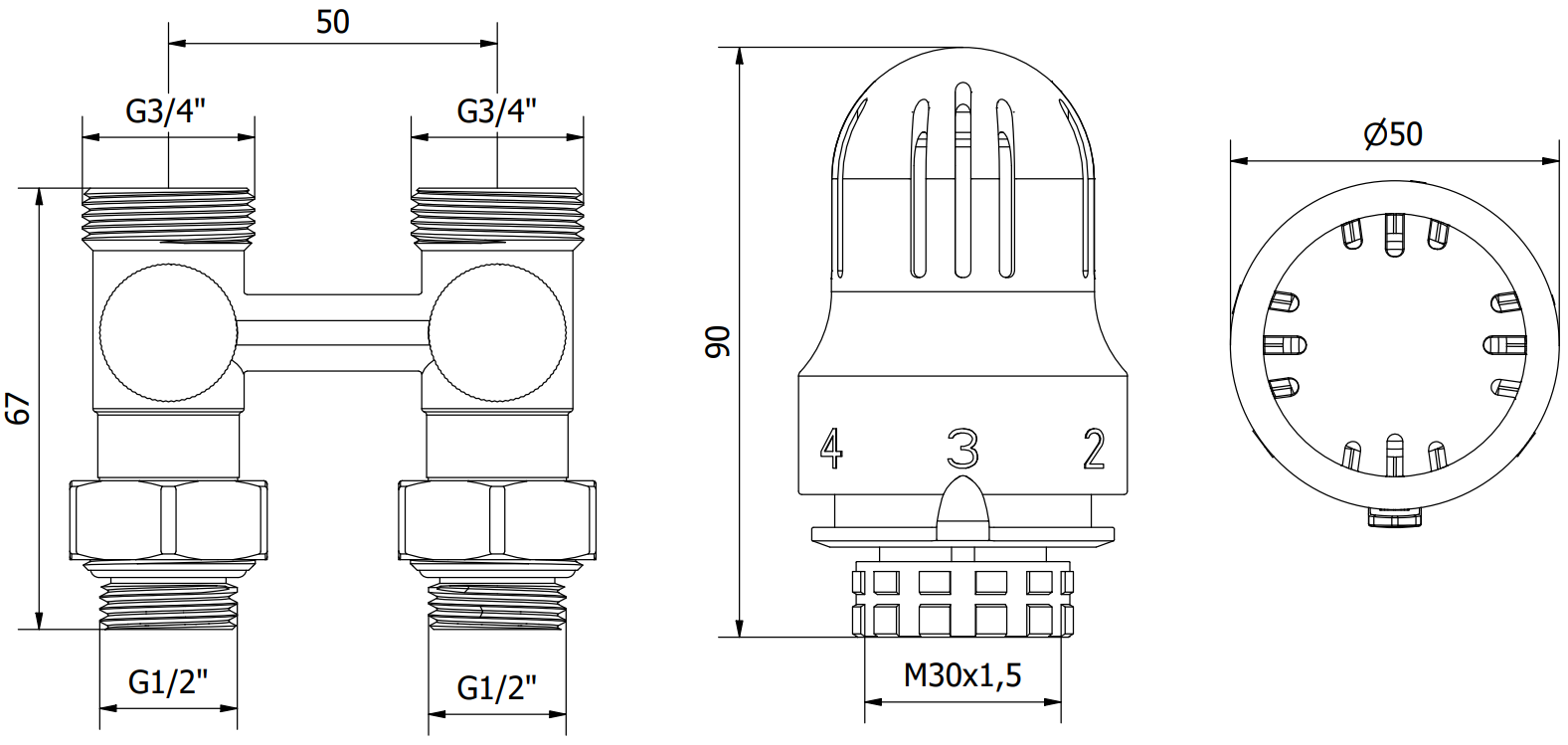

Technical data:

Valve material: Brass

Valve color: Nickel

Valve connection diameter: G 1/2" and G 3/4"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G04
Type
Straight
Colour
Nickel
Connection diameter
G 1/2" , G 3/4"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
