Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01

  • Mexen in Black
Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01
search
  • Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01
  • Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01
Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01
Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01 Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G04
Ean:
5905315237194
Index:
W914-012-948-01
Connection diameter:
G 1/2"
Type:
Straight
Colour:
Nickel
Series:
G04

Mexen G04 Straight Thermostatic Set, Nickel - W914-012-948-01

The Mexen G04 Straight Thermostatic Set, Nickel, is an excellent solution for those who value functionality and design. The set includes valves made of brass, ensuring durability and corrosion resistance. The elegant nickel colour perfectly complements various interior arrangements. The valves have connections with a diameter of G 1/2" and can operate at temperatures up to 120°C and pressure up to 10 bar. The head with white finish offers a temperature adjustment range from 0 to 29°C, with frost protection at 5°C.

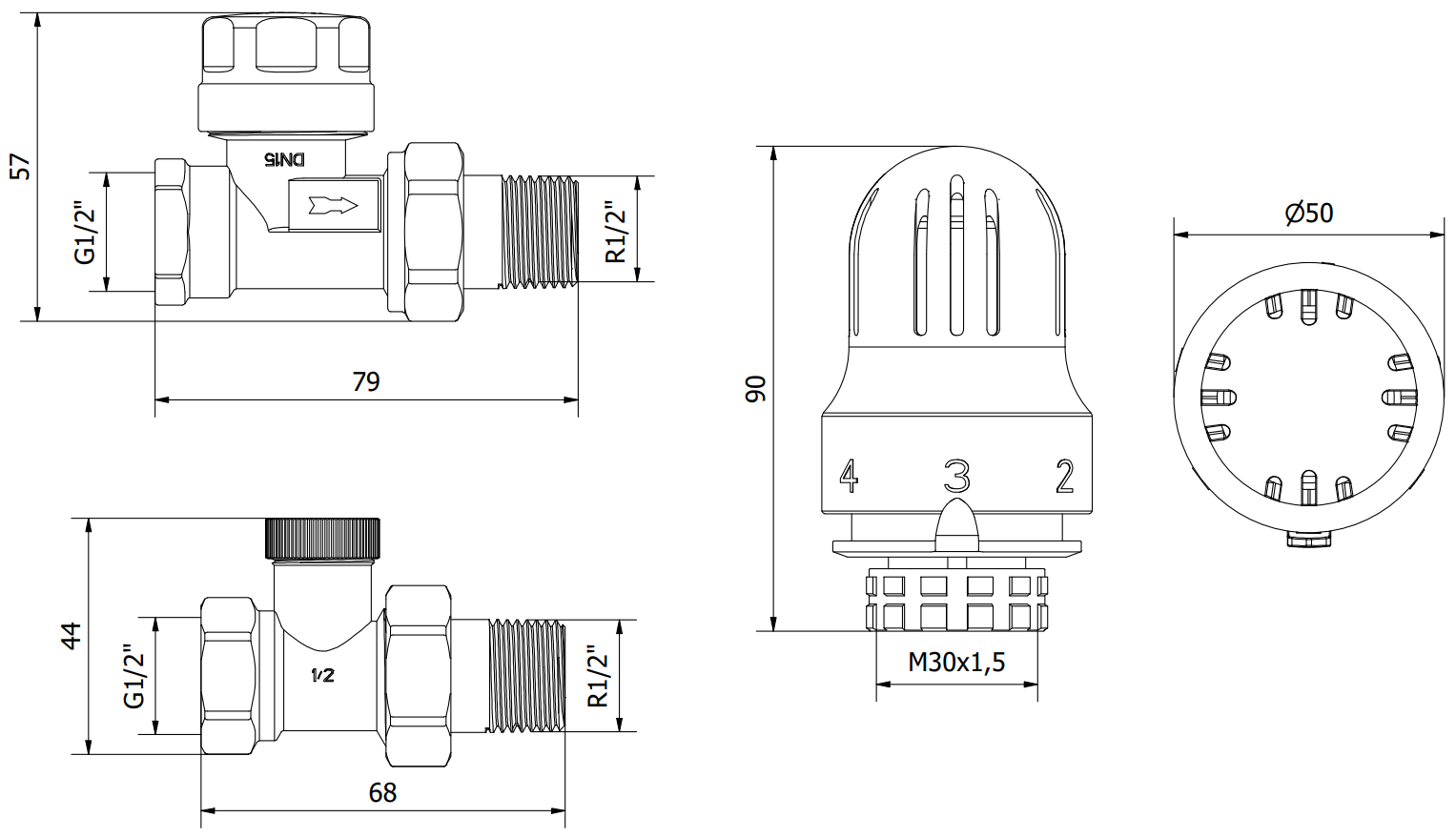

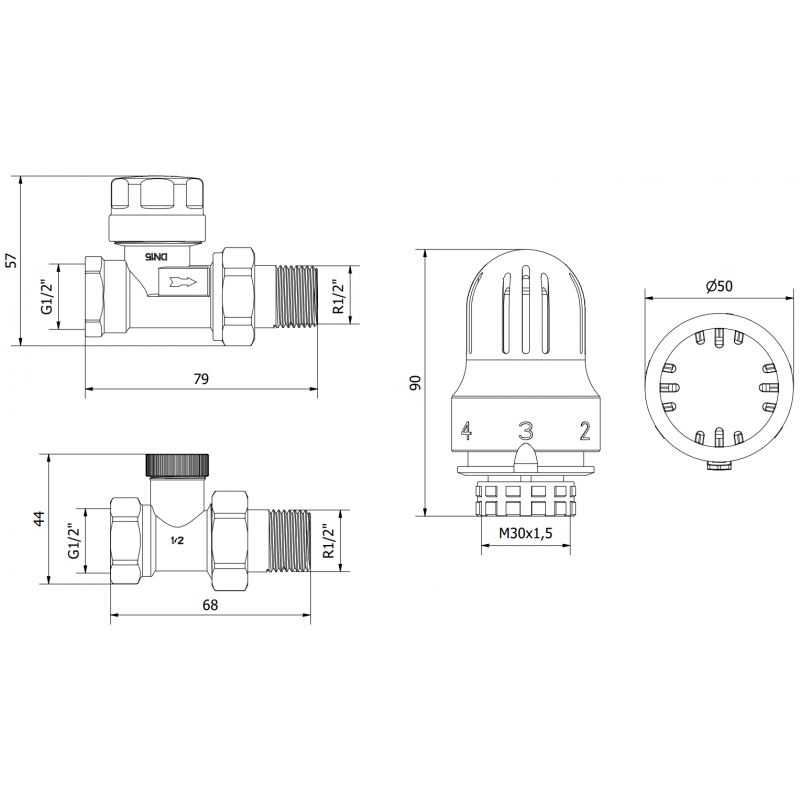

Technical Data:

Valve Material: Brass

Valve Colour: Nickel

Valve Connection Diameter: G 1/2"

Operating Temperature: max 120 °C

Maximum Operating Pressure: 10 bar

Head Thread: M30 x 1.5 mm

Head Colour: White

Adjustment Scale: 0-5

Temperature Adjustment Range: 0-29 °C

Ambient Temperature: max 50 °C

Frost Protection 5°C

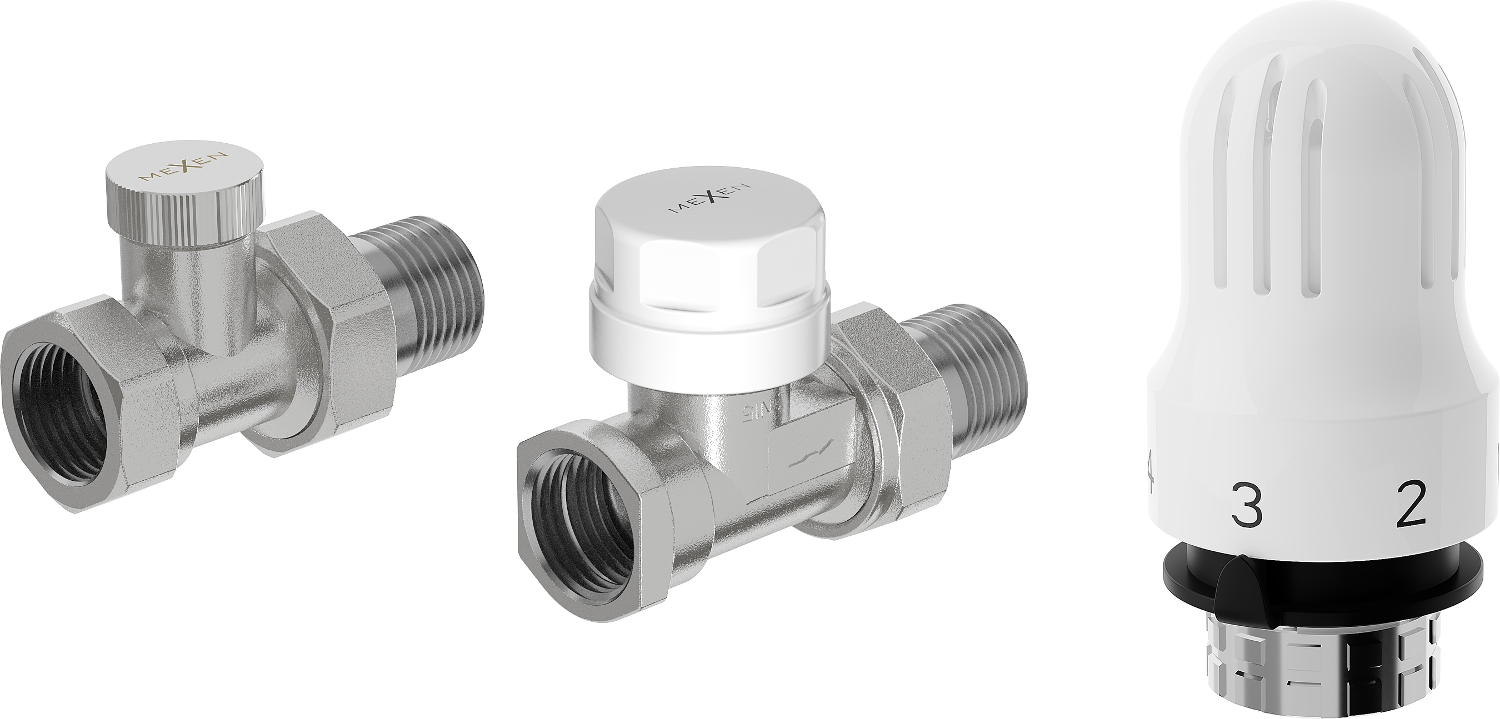

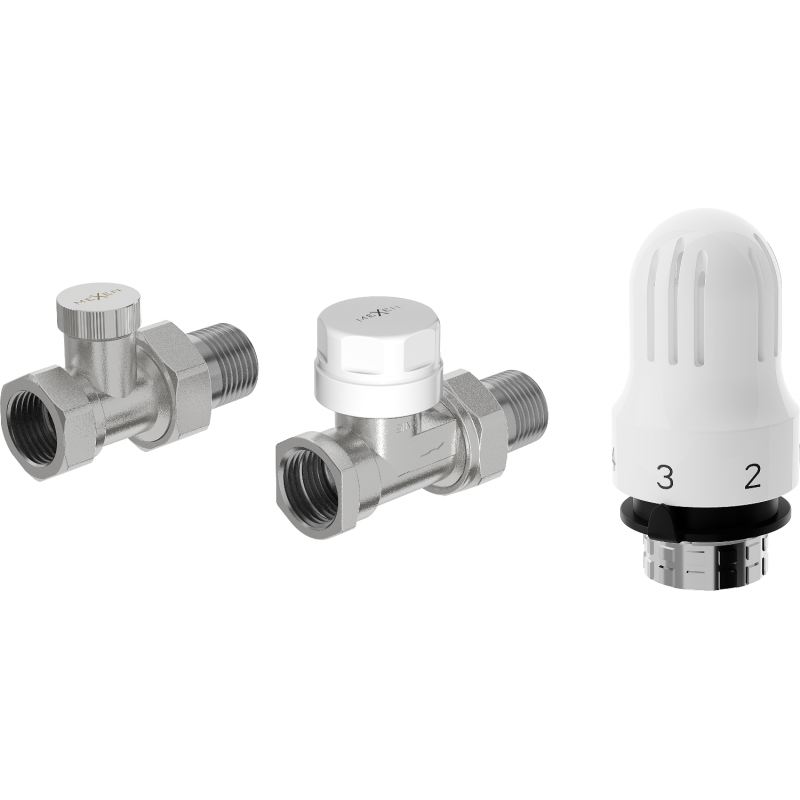

The set includes a supply and cut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G04
Type
Straight
Colour
Nickel
Connection diameter
G 1/2"
Cover
No
