Mexen G02 Thermostatic Dual-Pipe Set DN50, Angled 1/2"x16 mm, Nickel - W911-016-928-01

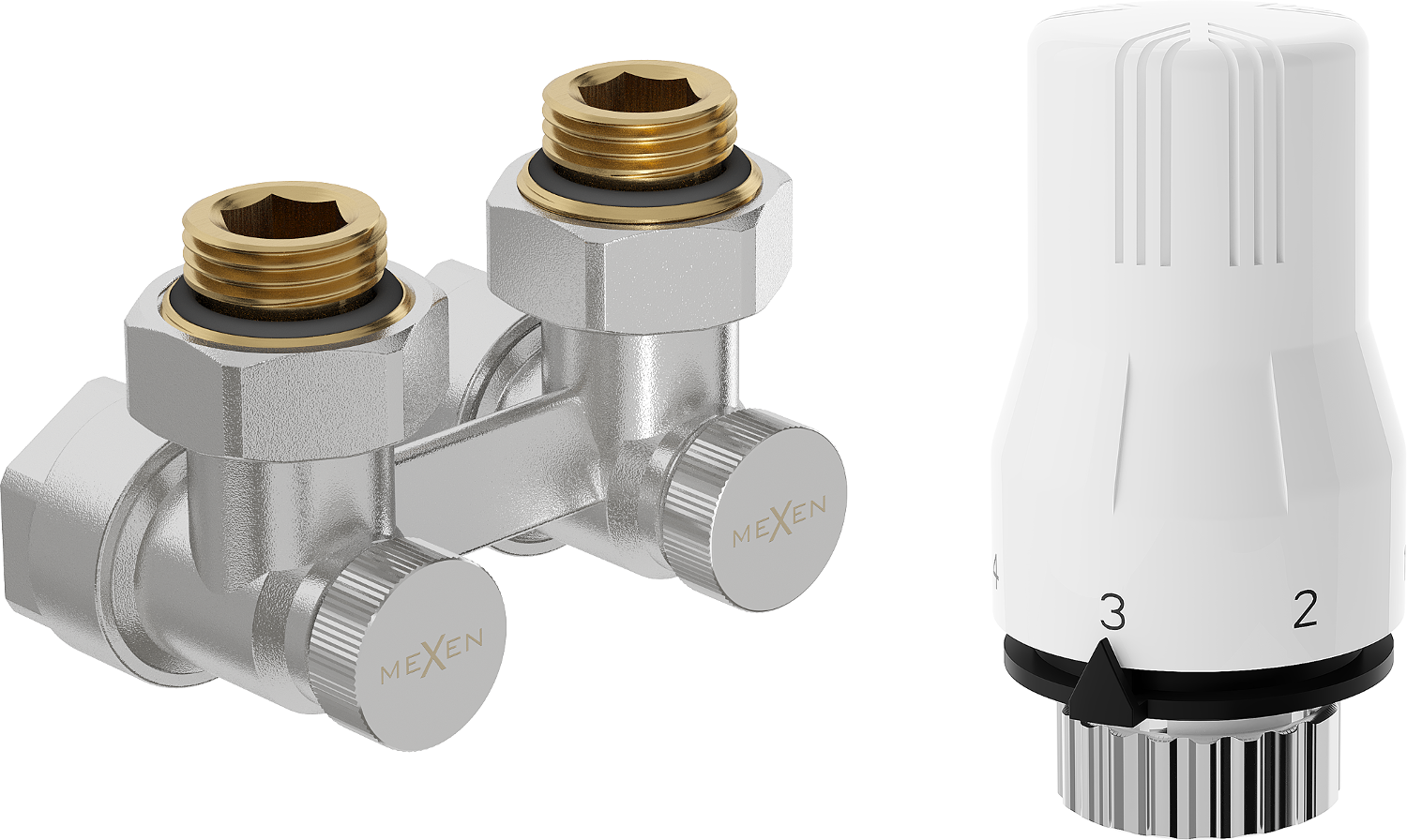

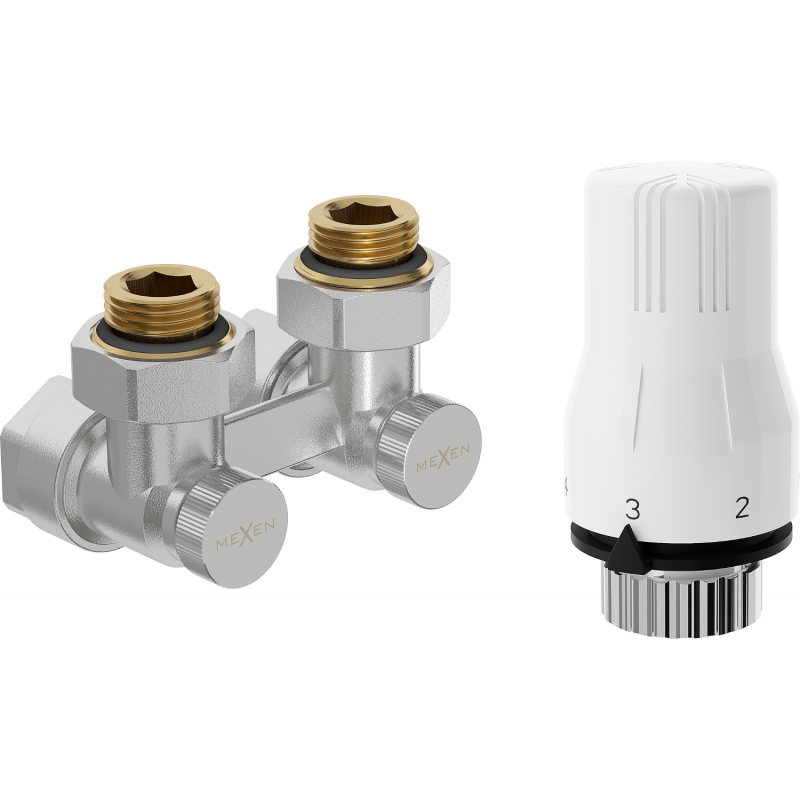

The Mexen G02 thermostatic dual-pipe set DN50 stands out for its high-quality brass construction. With a nickel-plated coating, the set is resistant to corrosion. It ensures precise temperature control in the range of 0-29°C and features a head with frost protection. Compatible with G 1/2" and pex 16x2 mm connections, it operates at a maximum temperature of 120°C and working pressure up to 10 bar. The lower connection with 50 mm spacing and adjustment scale 0-5 are additional advantages of the product.

Technical data:

Valve material: Brass

Valve color: Nickel

Connection diameter: G 1/2" and pex 16x2 mm

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator valve supply and cut-off

Lower connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G02
Type
Angular
Colour
Nickel
Connection diameter
G 1/2"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
