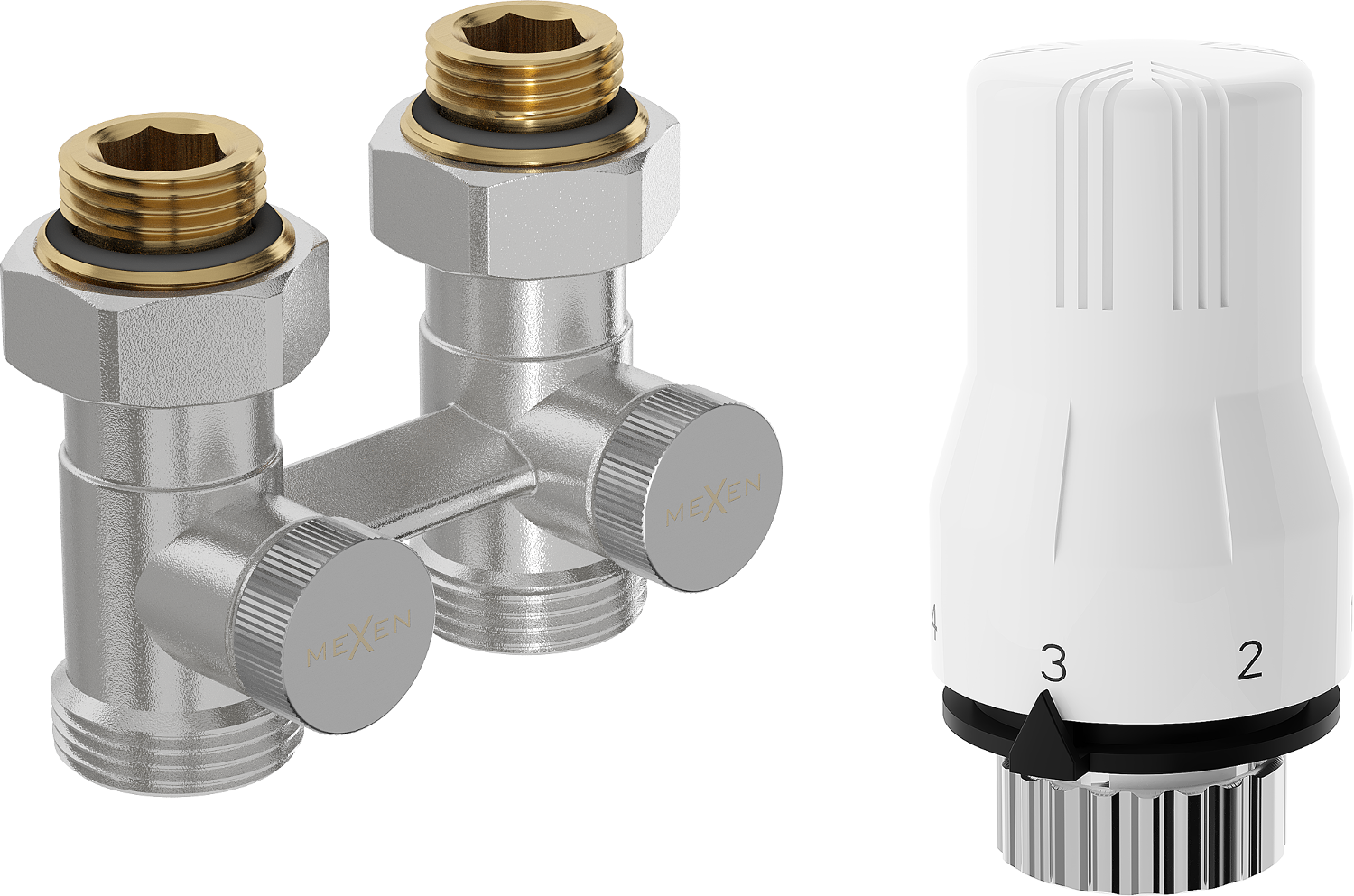

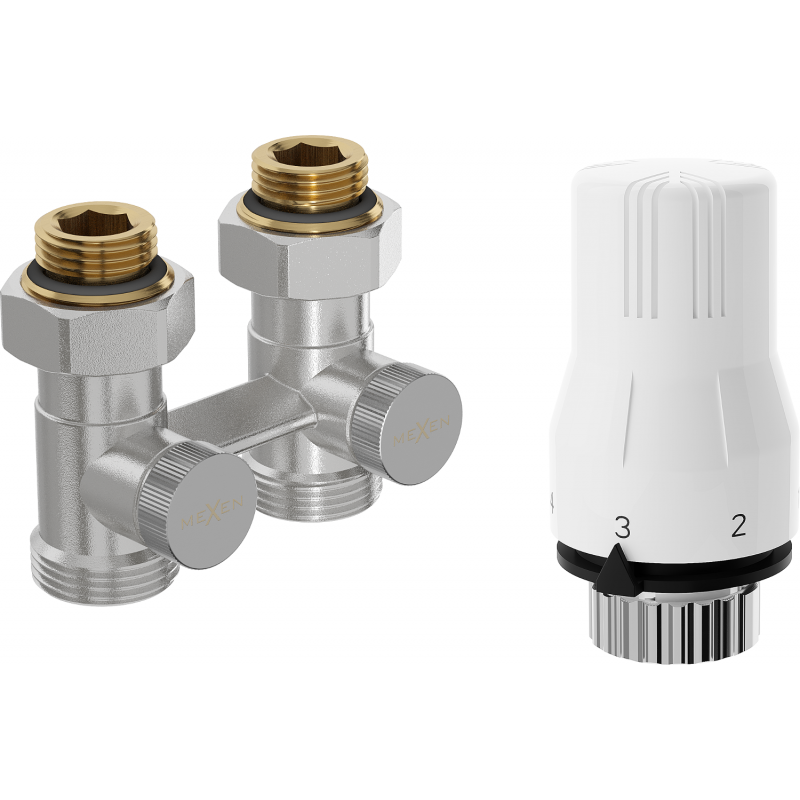

Mexen G02 two-pipe thermostatic set DN50, straight 1/2"x3/4", nickel - W912-012-928-01
The Mexen G02 is a two-pipe thermostatic set DN50, straight, made of brass. The set features a nickel finish, connection diameters of G 1/2" and G 3/4", ensuring durability and reliability. The maximum operating temperature is 120°C, and the working pressure is 10 bars. It includes a supply and cut-off radiator valve, and a bottom connection with 50 mm spacing. It has a white, adjustable thermostat with a range of 0-29°C and frost protection at 5°C.
Technical data:
Valve material: Brass
Valve colour: Nickel
Valve connection diameter: G 1/2" and G 3/4"
Operating temperature: max 120 °C
Maximum operating pressure: 10 bar
Supply and cut-off radiator valve
Bottom connection with 50 mm spacing
Head thread: M30 x 1.5 mm
Head colour: White
Adjustment scale: 0-5
Temperature adjustment range: 0-29 °C
Ambient temperature: max 50 °C
Frost protection 5°C
