Mexen G02 dual-pipe thermostatic set DN50, straight 1/2"x16 mm, nickel - W912-016-928-01

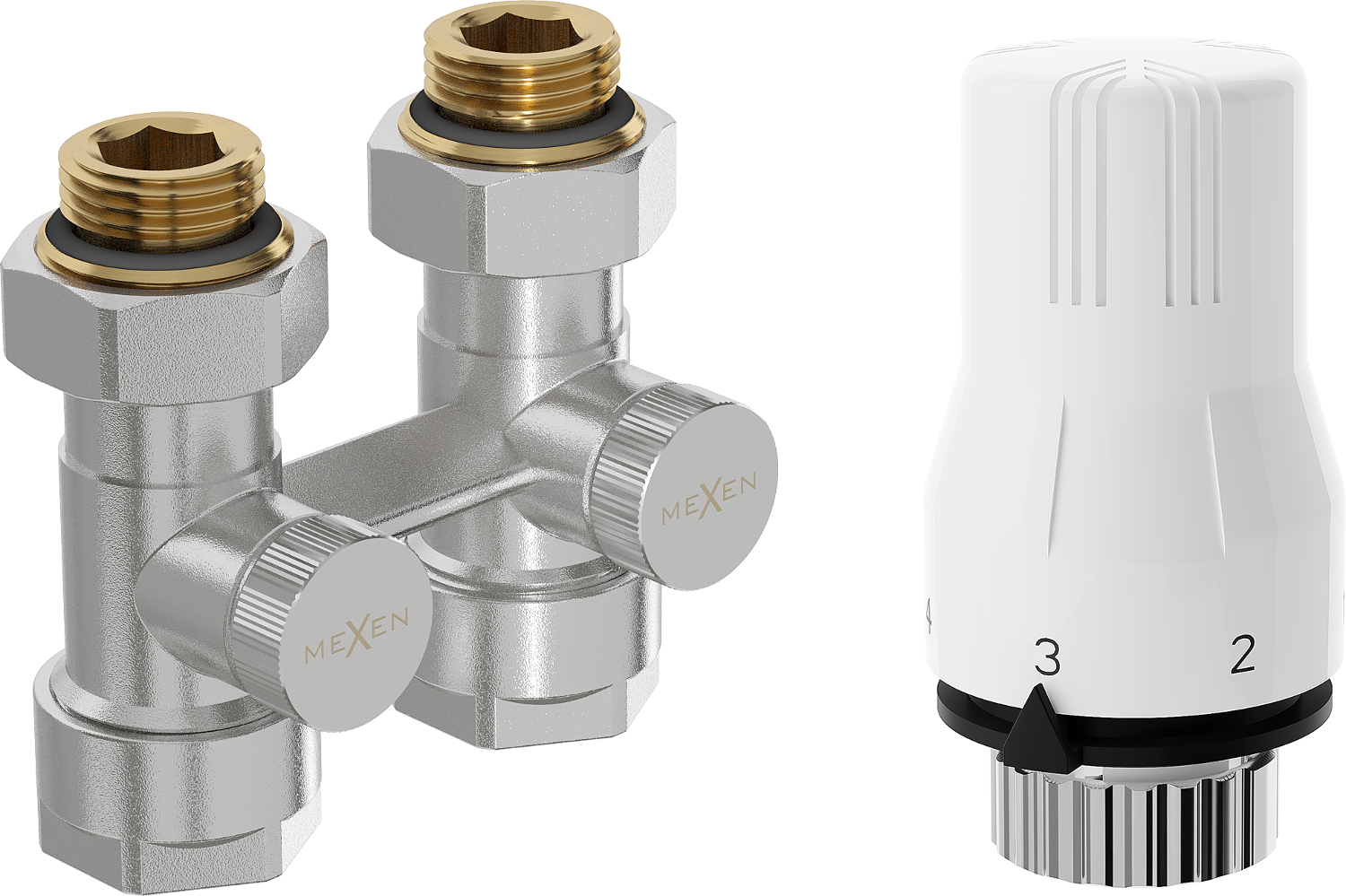

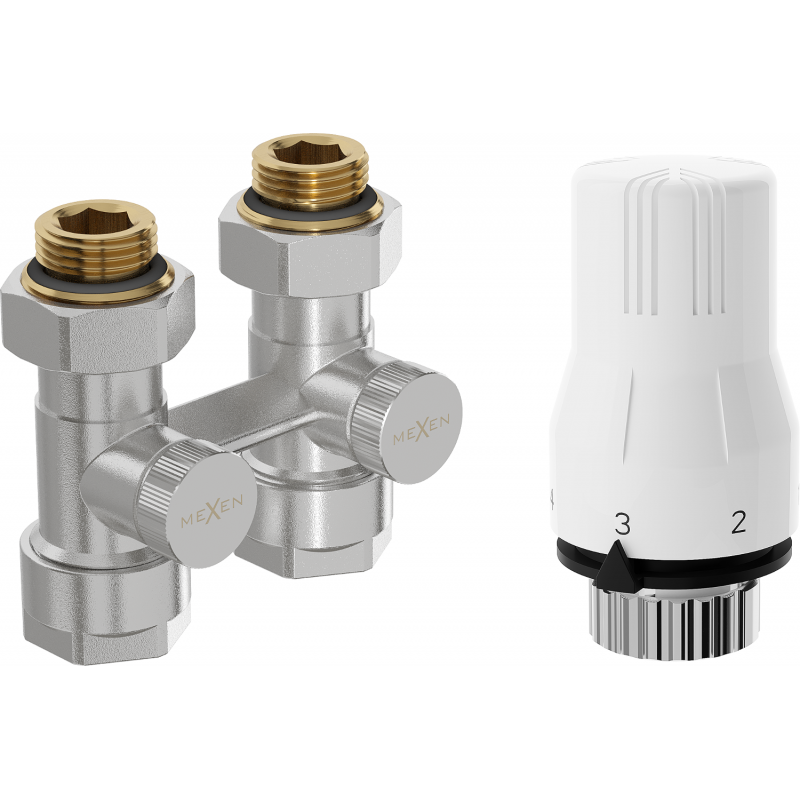

The Mexen G02 dual-pipe DN50 straight thermostatic set 1/2" x 16 mm in nickel is an excellent choice for modern heating systems. Made from high-quality brass and covered with nickel, it ensures durability and aesthetics. It features radiator supply and shut-off valves and an M30 x 1.5 mm head thread. The adjustment scale 0-5 and temperature range from 0 to 29°C provide precise control. The product is resistant to high pressure (up to 10 bar) and temperatures (up to 120°C), increasing safety in use.

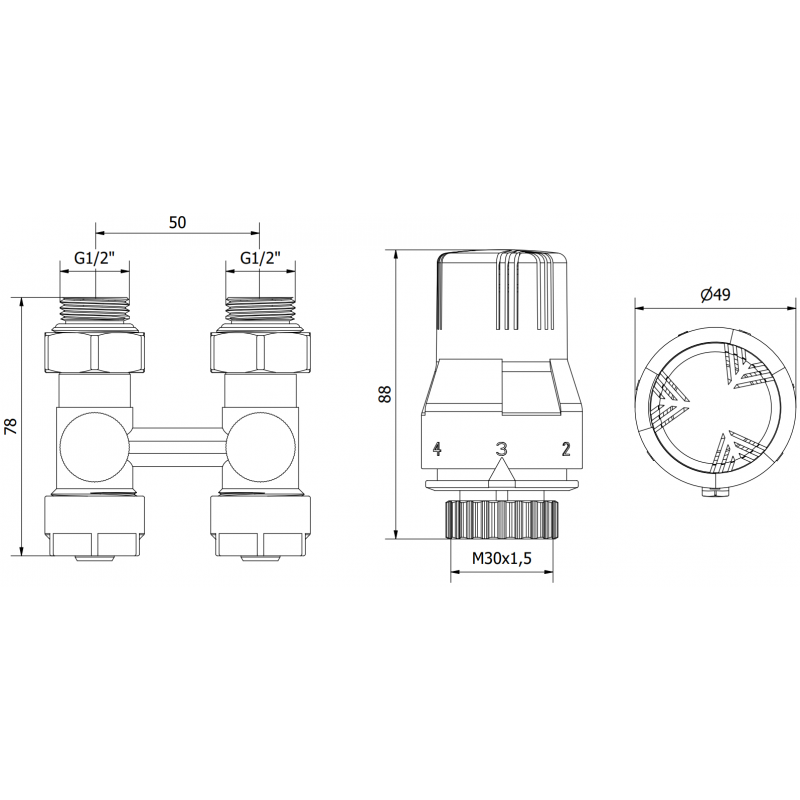

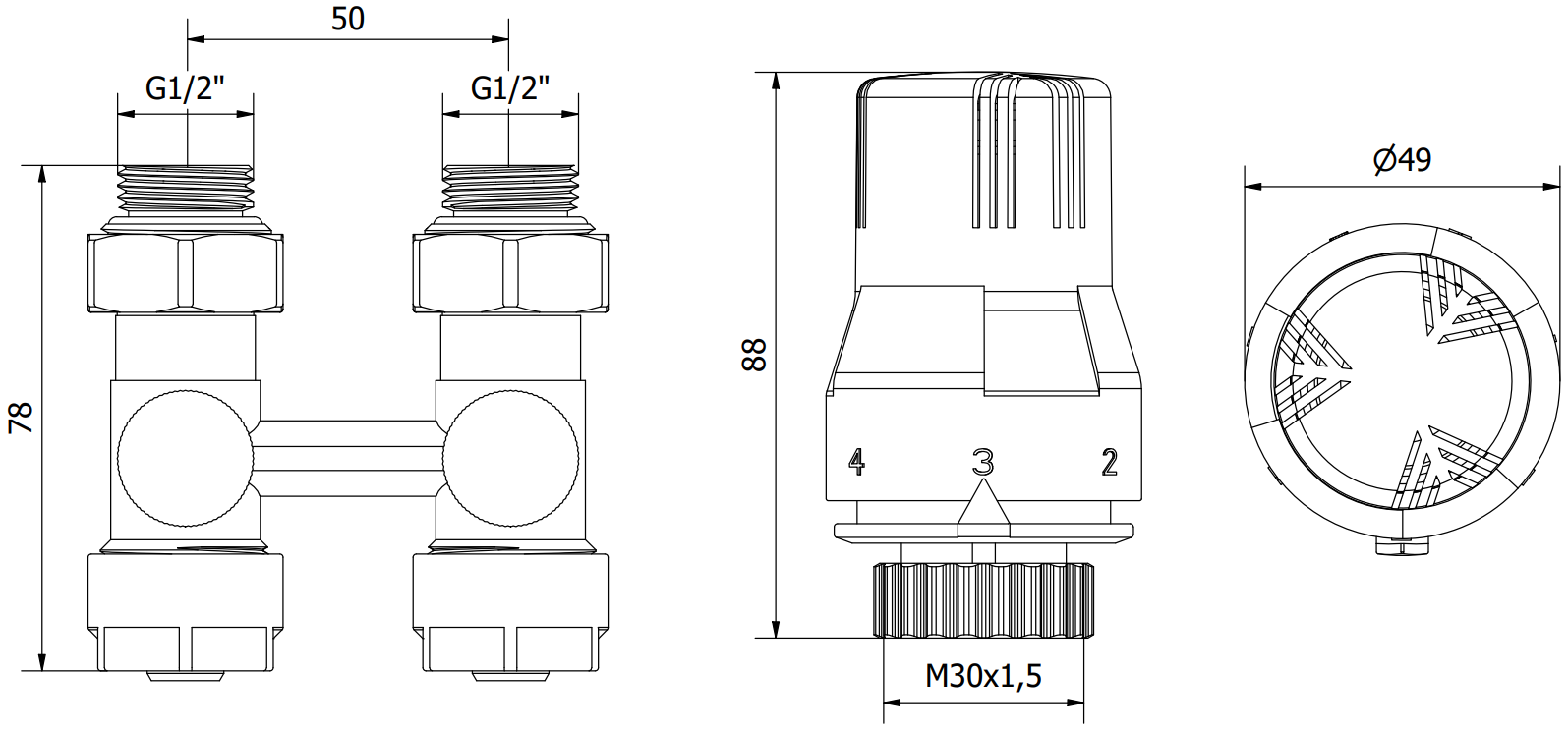

Technical data:

Valve material: Brass

Valve colour: Nickel

Connection diameter: G 1/2" and pex 16x2 mm

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature control range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.
