Mexen CHF20 Hygiene Flat Panel Radiator 500 x 1100 mm, Side Connection, 949 W, White - W420HF-050-110-00
Technical data:
Height (Y): 500 mm
Width (X): 1100 mm
Depth: 103 mm
Connection spacing: 45 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 521 W
- 75/65/20 °C 949 W
- 90/70/20 °C 1175 W
Connectors:
- 4xG ½″ side
High-quality, durable paint finish - DIN 99500
Designed for rooms with increased hygiene standards
The set includes: hangers, assembly kit, sealing plugs, and air vent

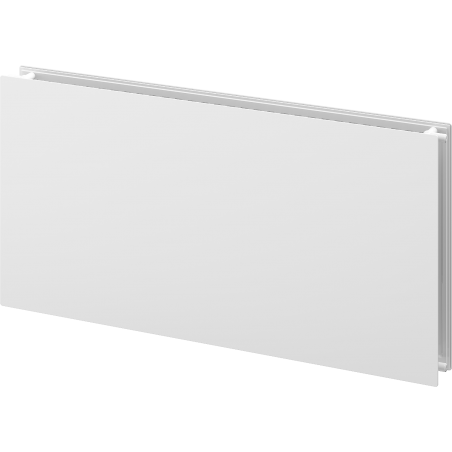

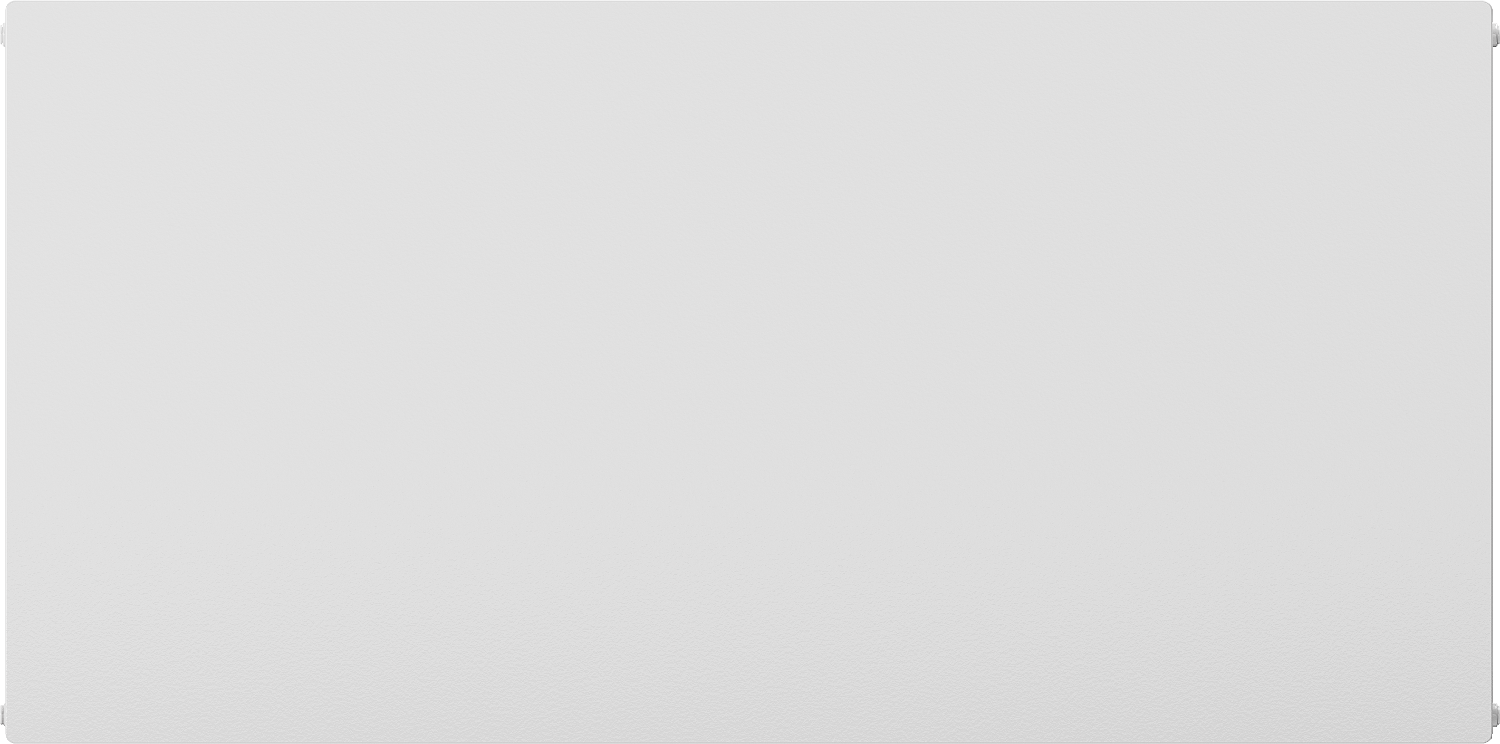

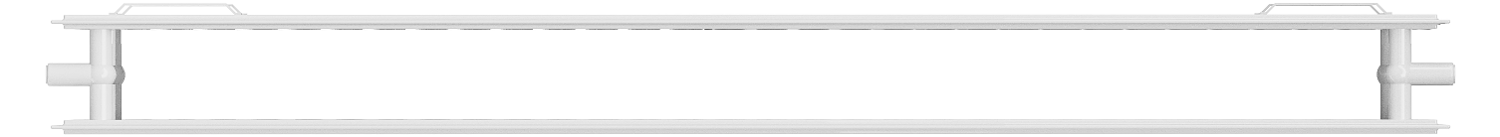

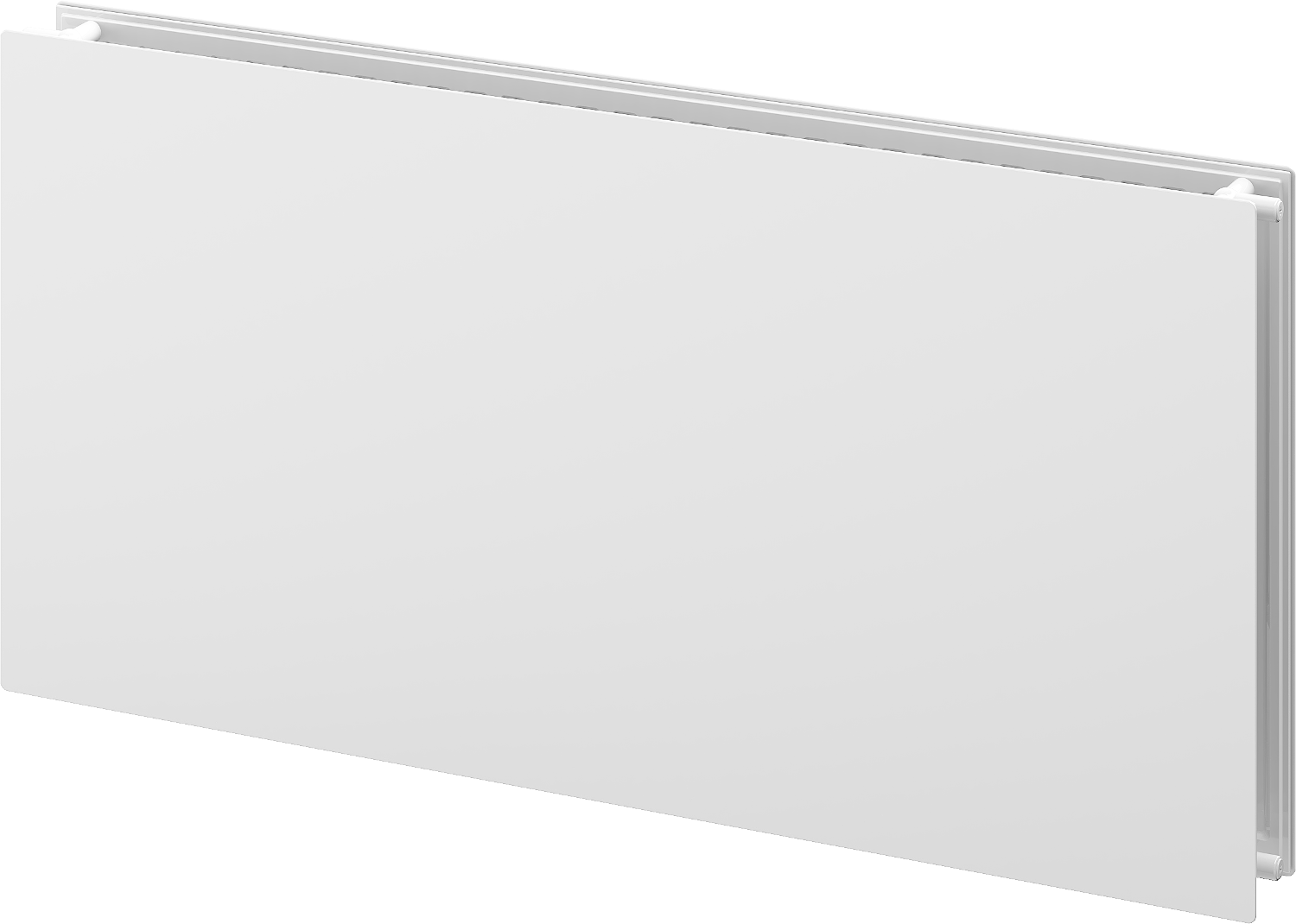

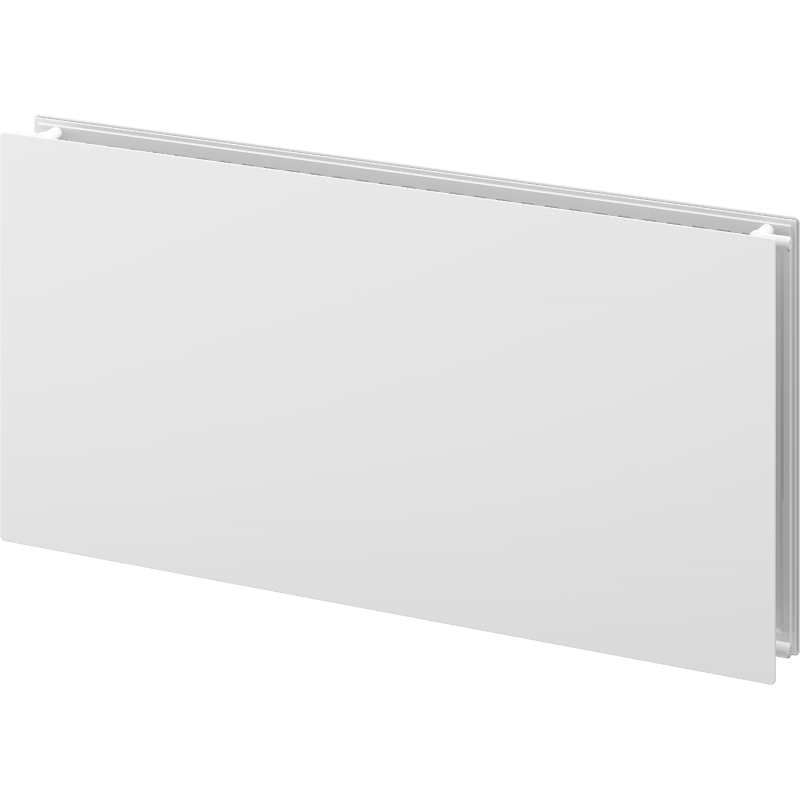

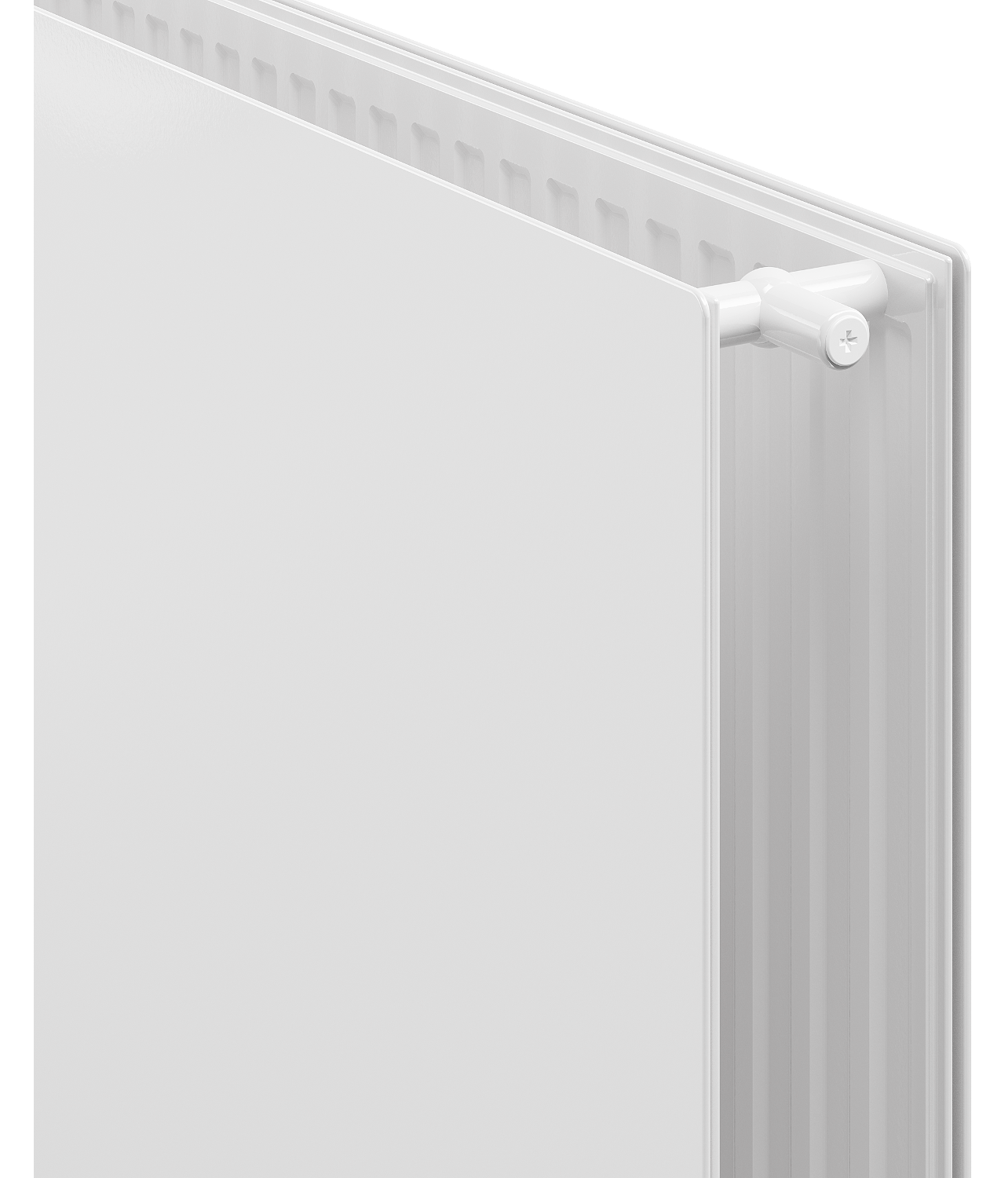

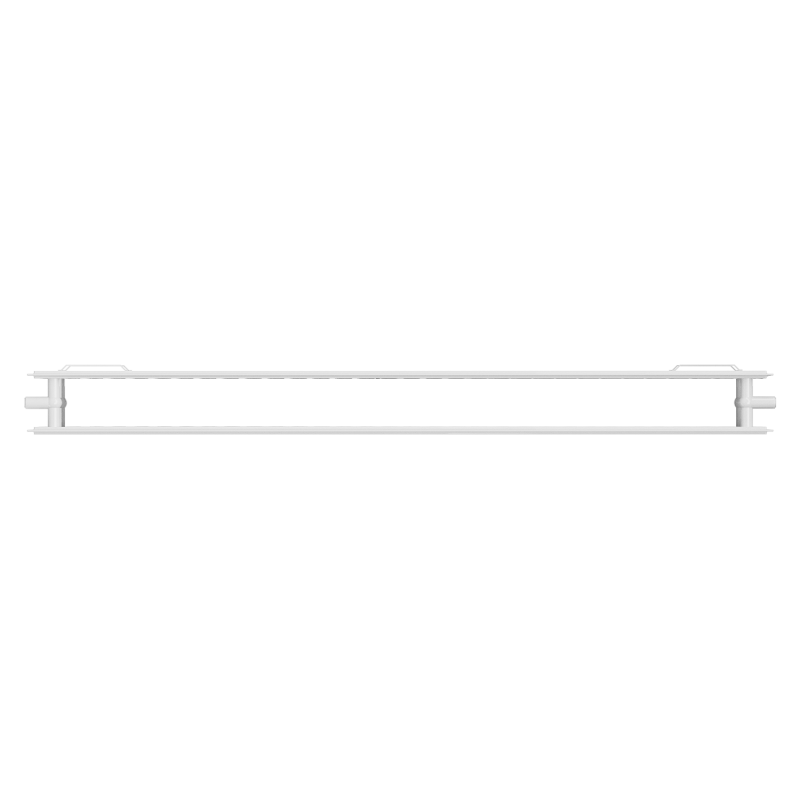

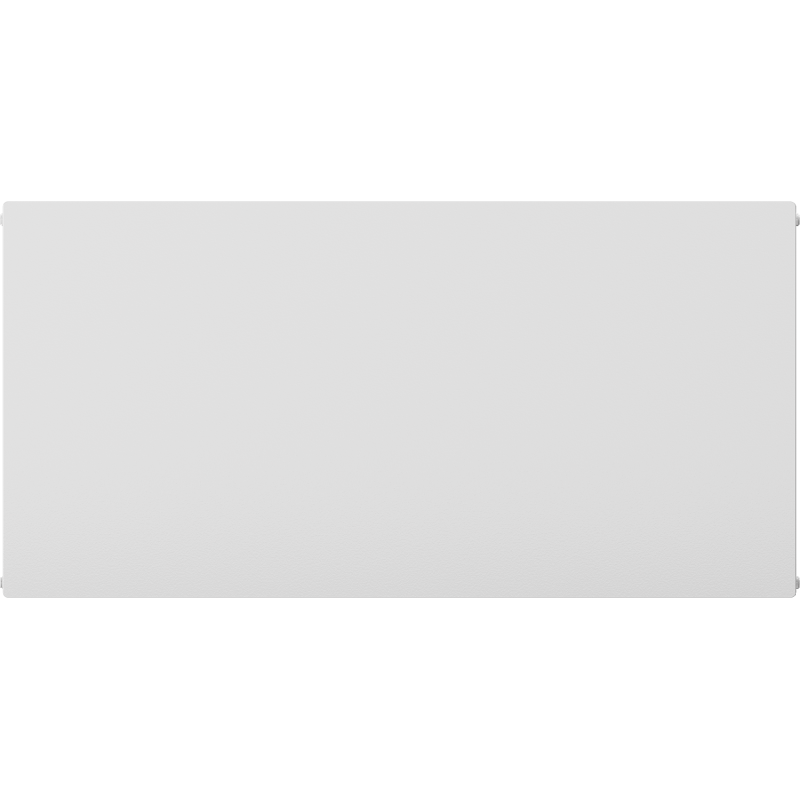

The pictures show the radiator in size 600 x 1200 mm.
