Mexen Ares side bathroom radiator 700 x 500 mm, 286 W, white - W102-0700-500-00-20-S

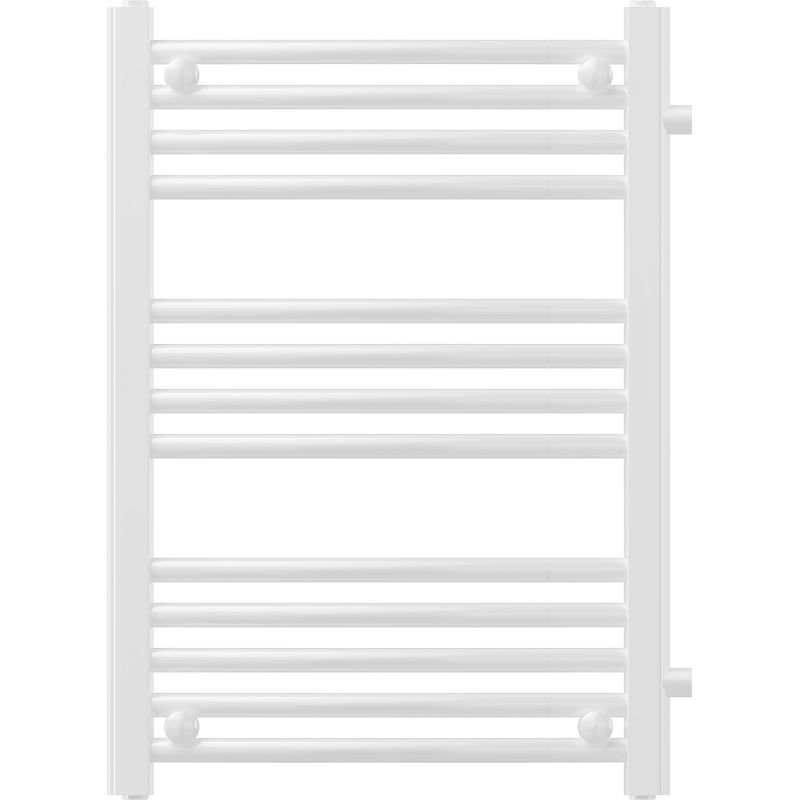

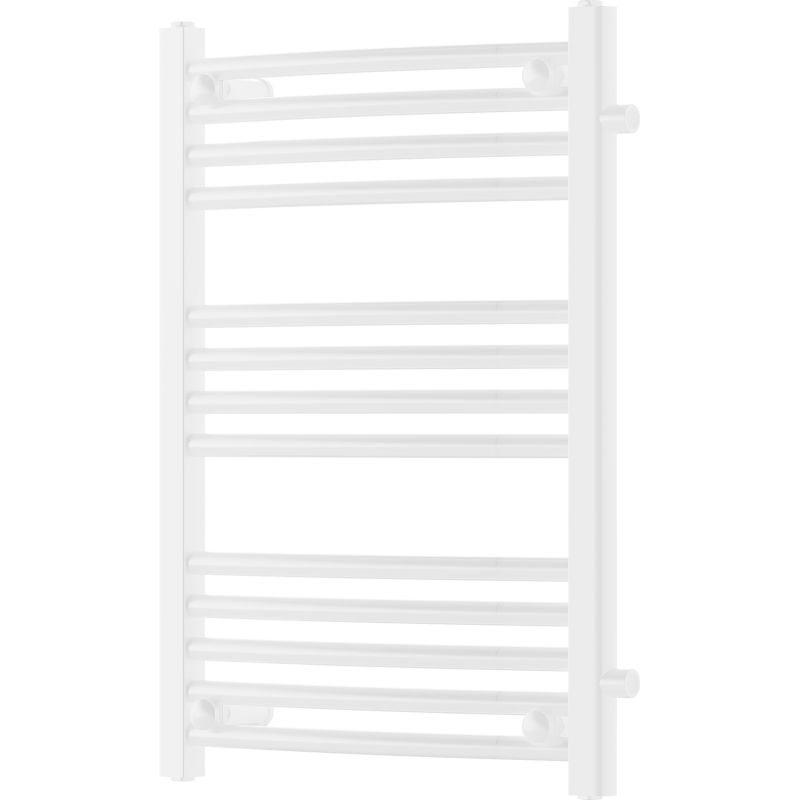

The Mexen Ares bathroom radiator is an elegant and functional option for any bathroom. It features optimal heating power of 286 W at a size of 700 x 500 mm. The side connection allows for convenient installation, and the steel construction ensures durability. The radiator is in white color RAL 9016, with a high-quality paint coating that is resistant to corrosion. The possibility of heater installation increases its versatility. The set includes suspensions, an assembly kit, plugs, and an air vent.

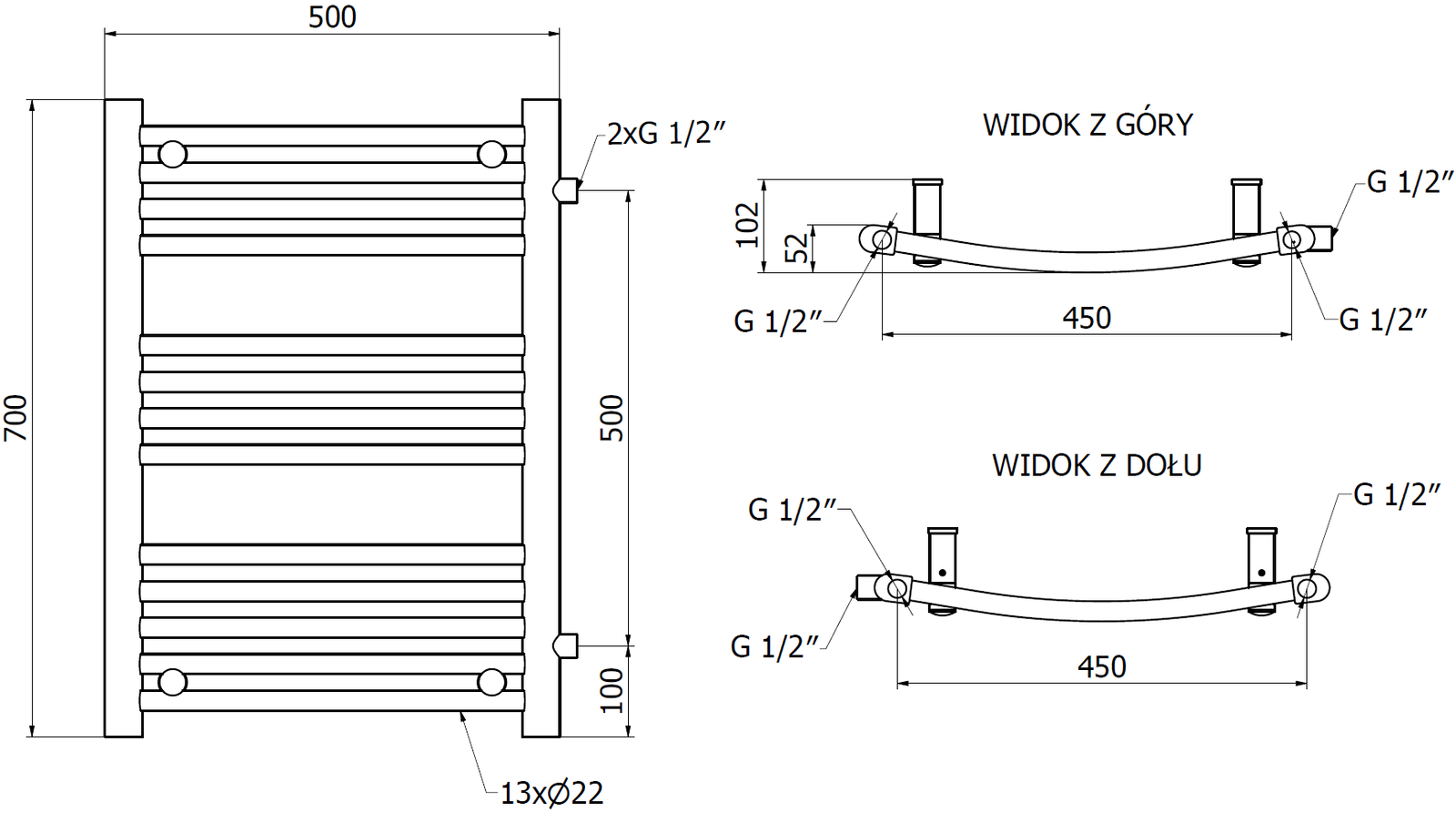

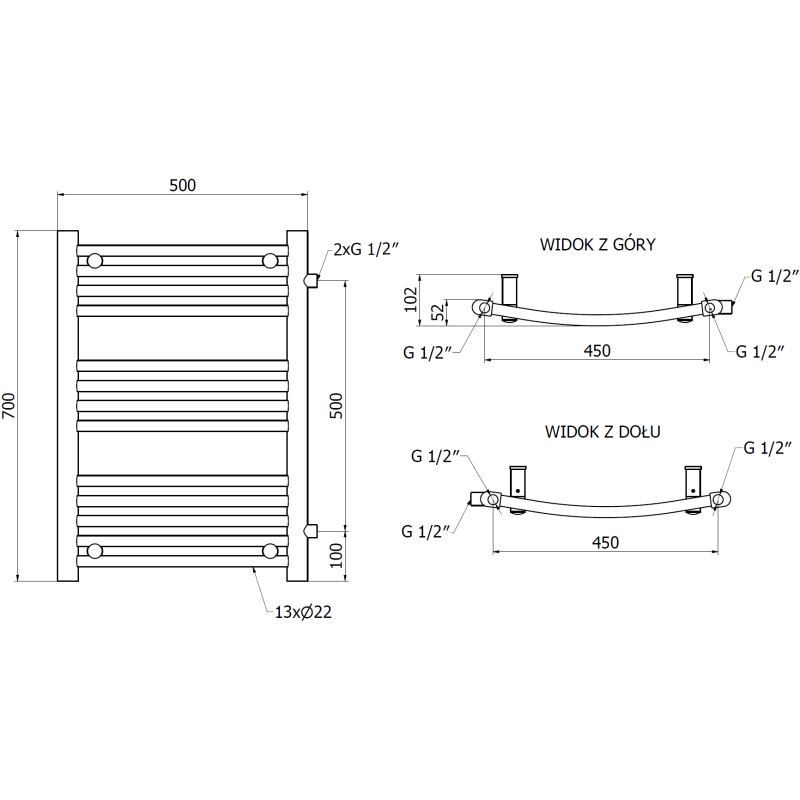

Technical specifications:

Height: 700 mm

Width: 500 mm

Depth: 52 mm

Connection spacing:

- 50 cm (side) or 45 cm (bottom)

Color: White RAL 9016

Material: Steel

Weight: 5.10 kg

Capacity: 3 l

Fire reaction: A1

Operating temperature: max 95 °C

Maximum operating pressure: 0.6 Mpa

Heating power:

- 75/65/20 °C - 286 W

Connections:

- 2xG ½″ side from the right

- 4xG ½″ from the top and bottom on the right or left side

Possibility to install a heater

High-quality, durable paint coating resistant to corrosion

Included: suspensions, assembly kit, blind plugs, and air vent

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

Max. 0.6 Mpa

The maximum operating pressure is 0.6 Mpa (6 bar). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 95°C

The maximum temperature reached by the radiator during operation is 95°C. This allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Ares
Width
500 mm
Height
700 mm
Depth
52 mm
Type
Ladder
Heating power
286 W
Color
White
Material
Steel
Installation Orientation
Right
Connection spacing
45 cm , 50 cm
Connection
Bottom , Side
Orientation
Vertical
