Mexen Flat 360° Slim rotary linear drain 130 cm, black - 1741130

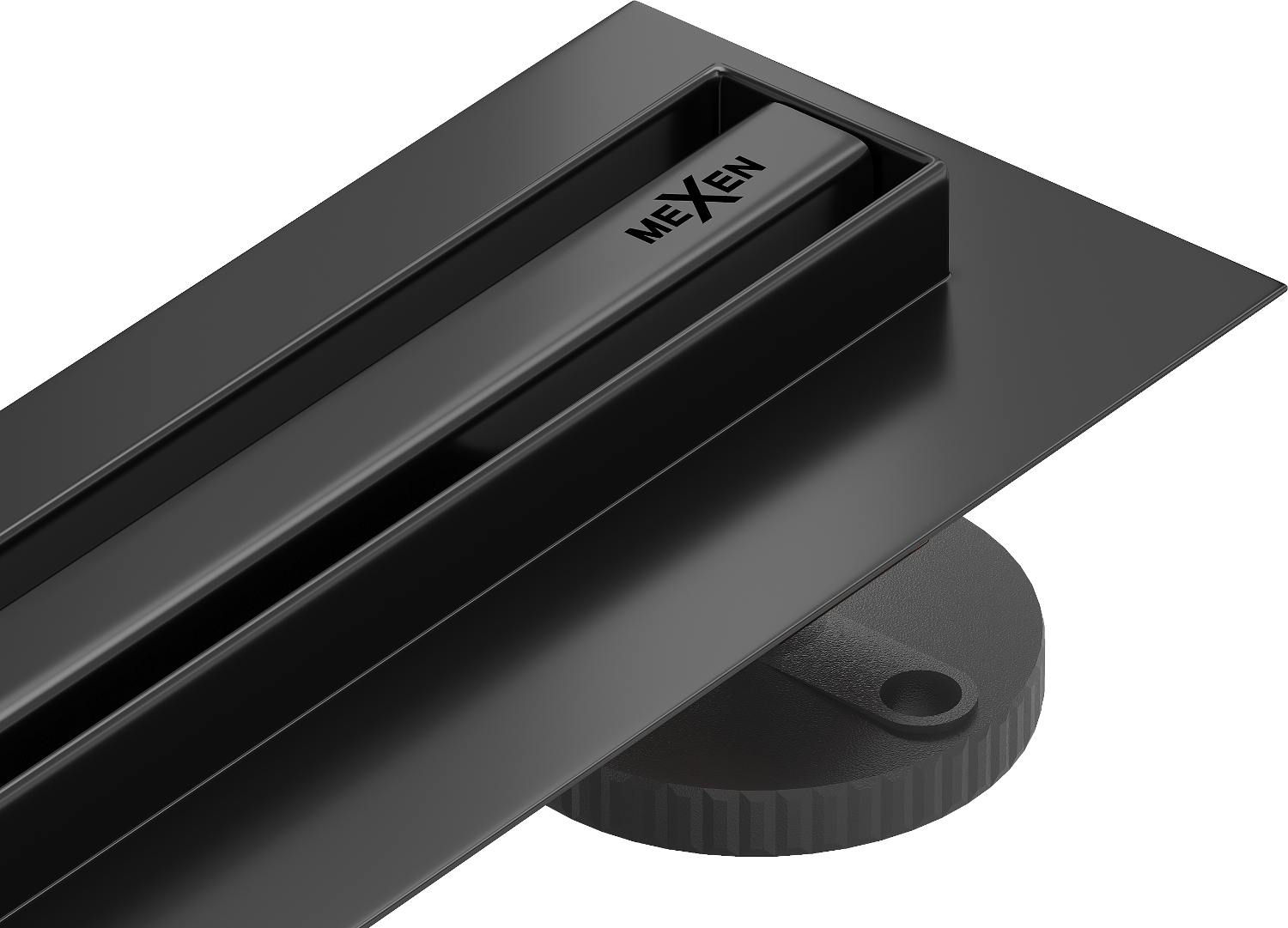

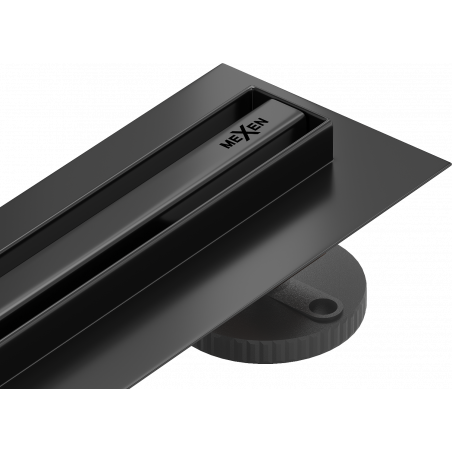

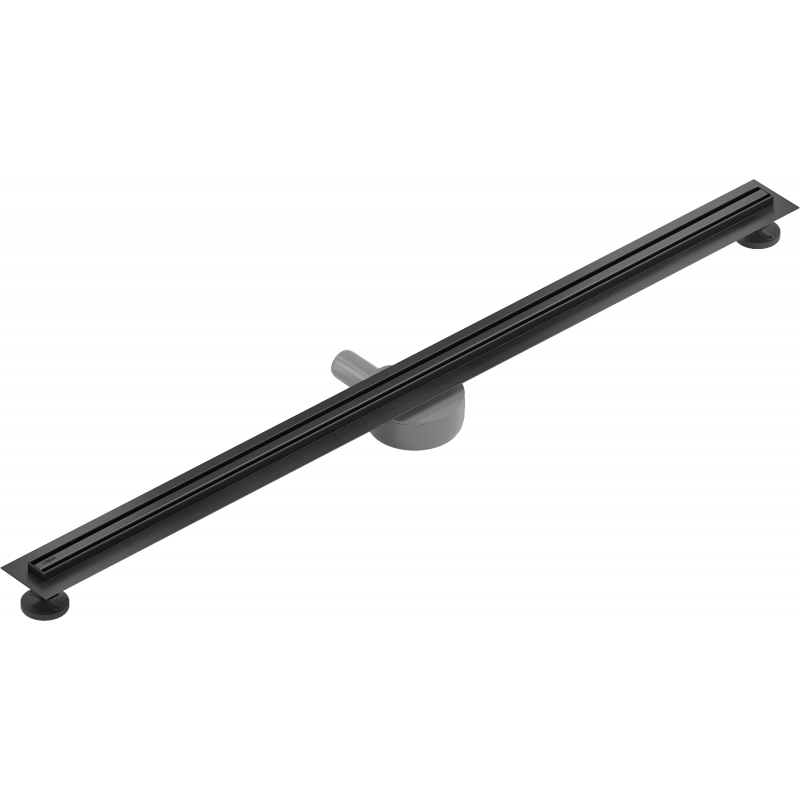

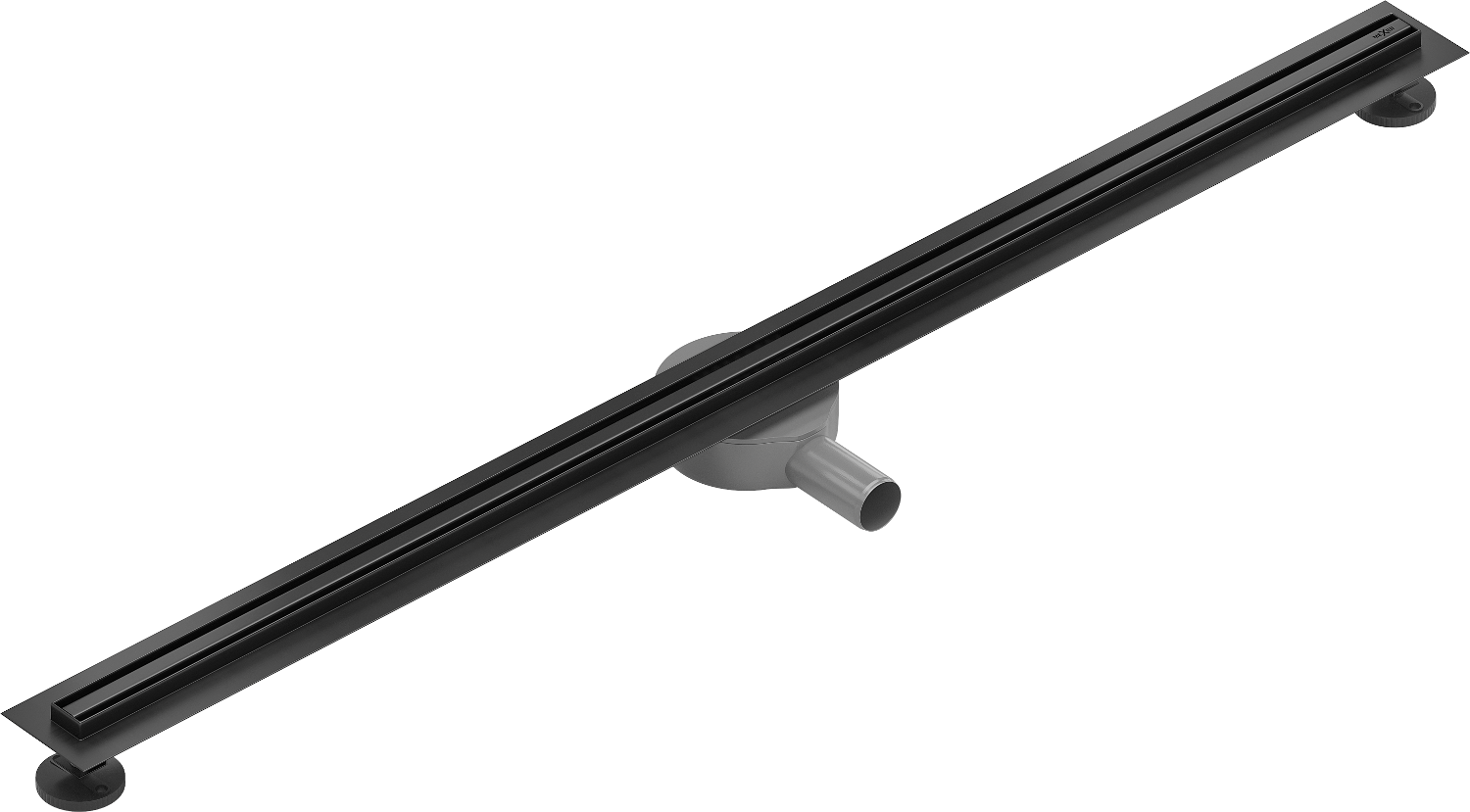

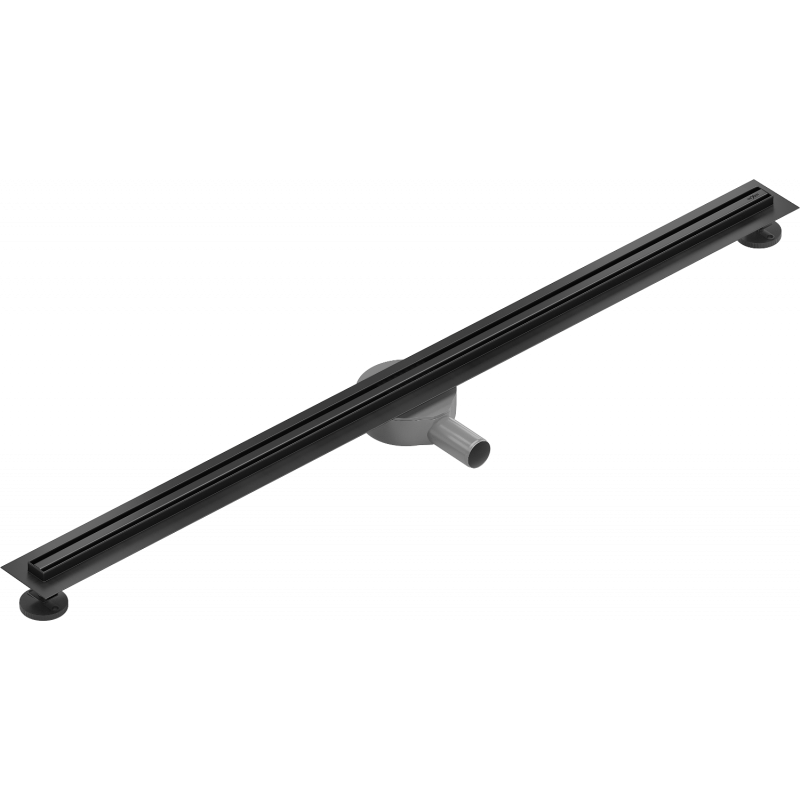

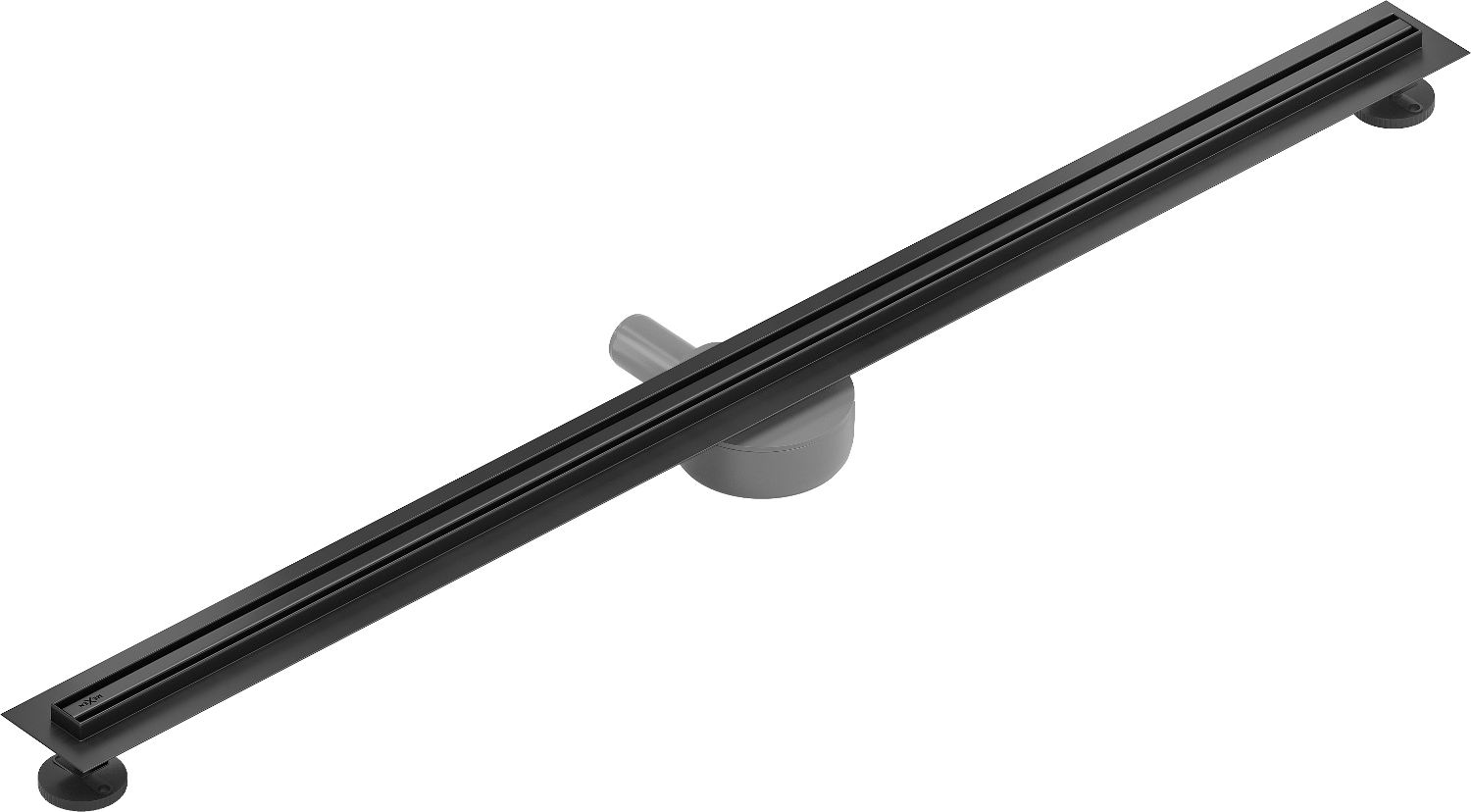

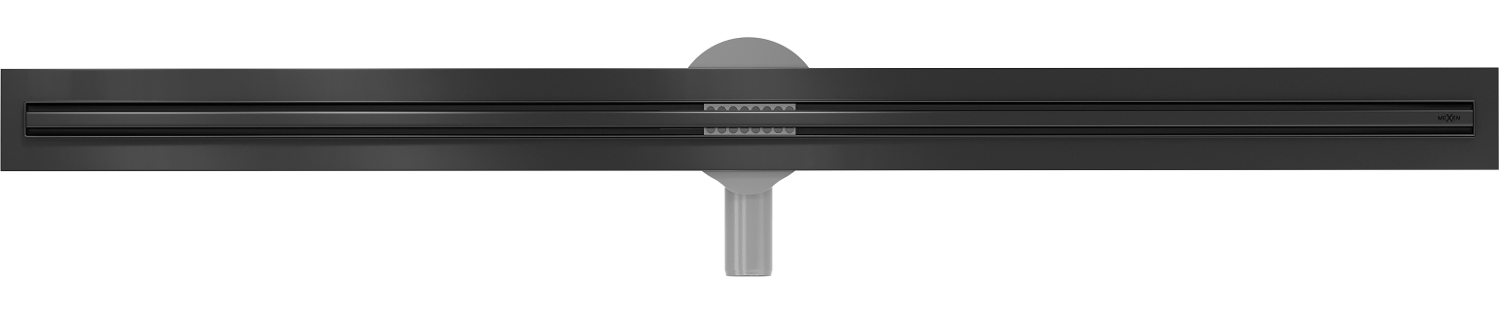

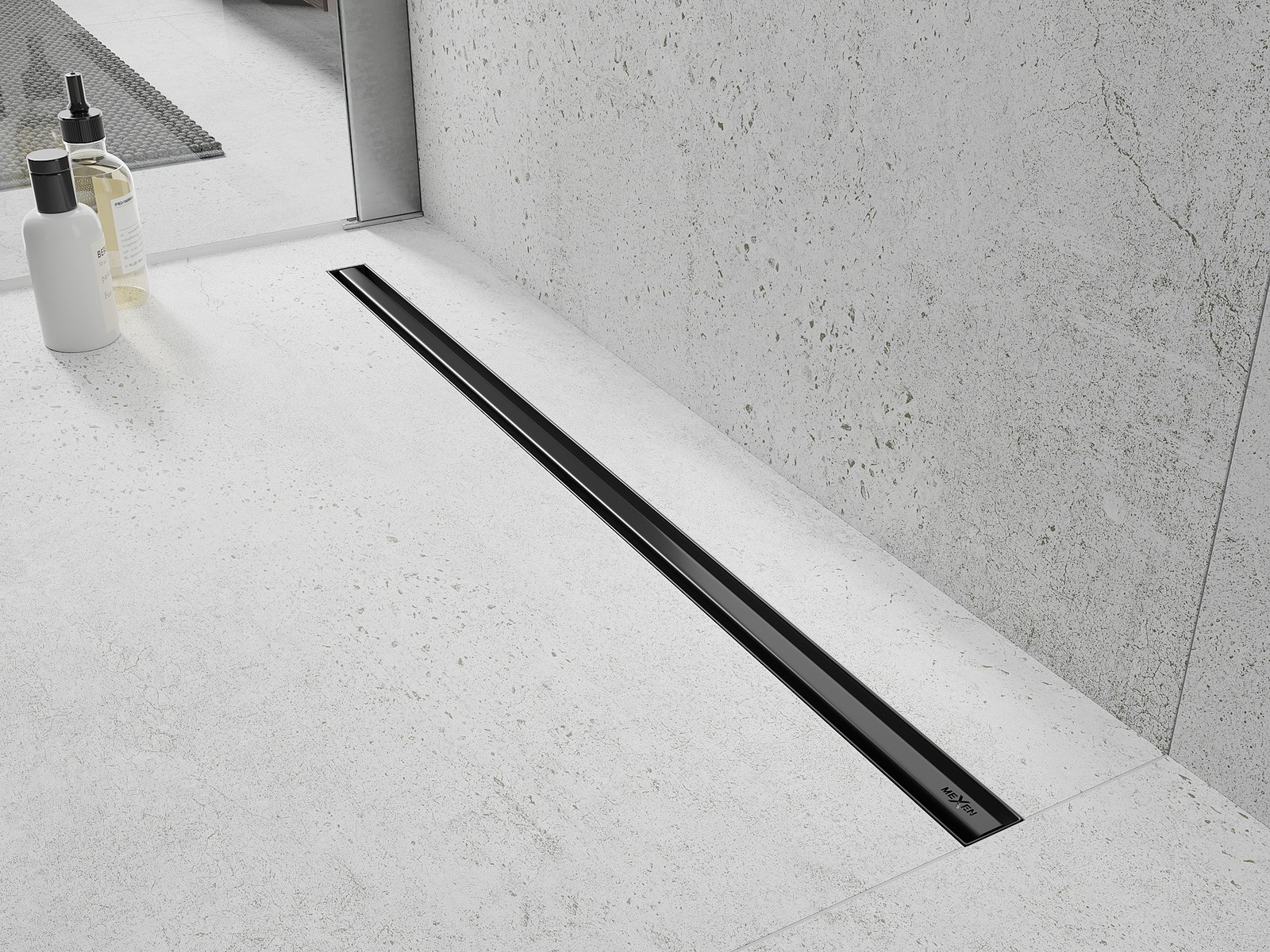

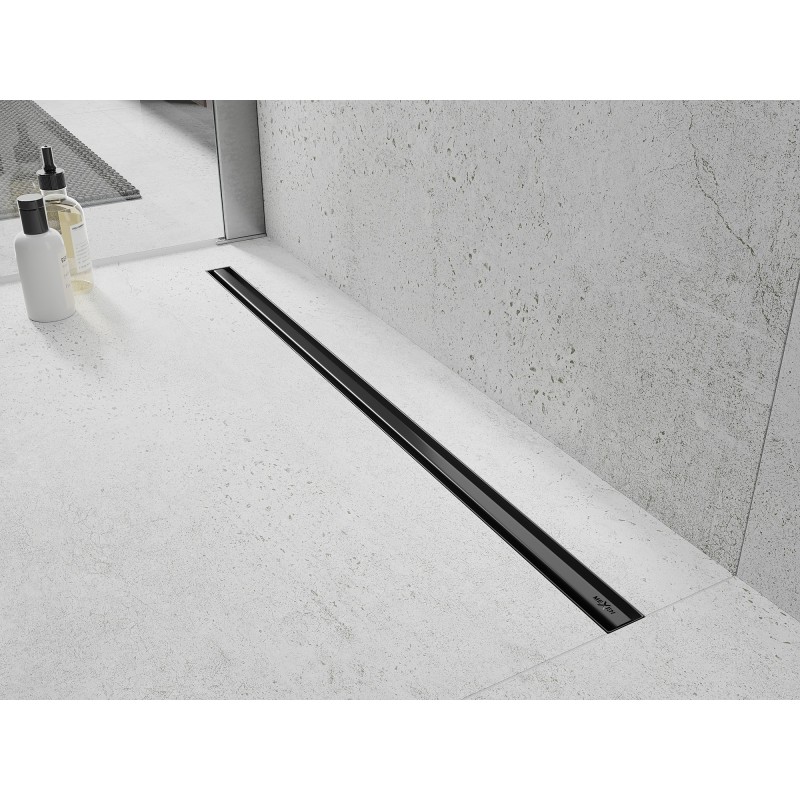

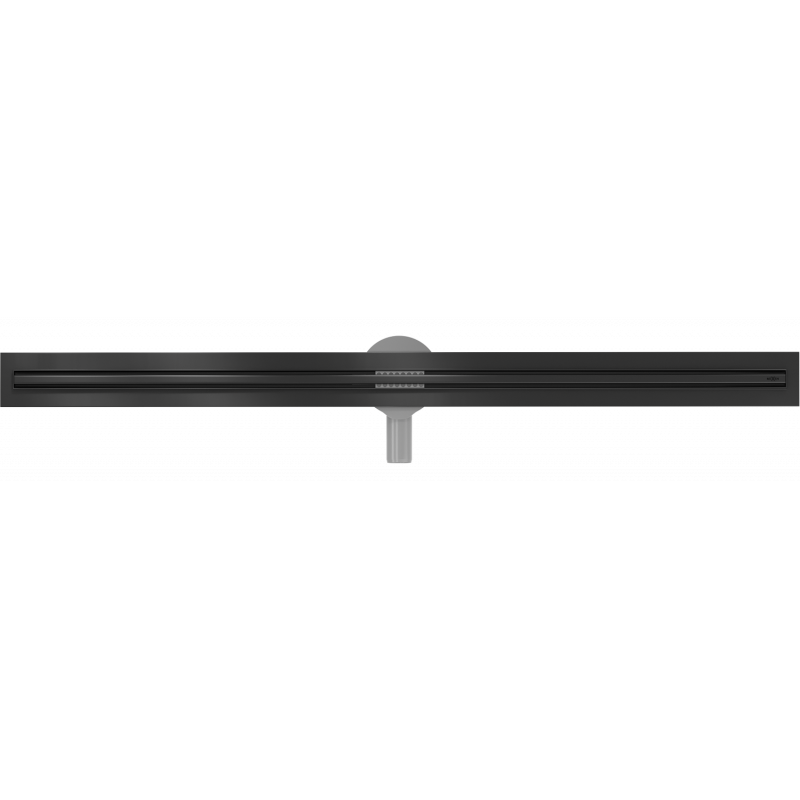

The Mexen Flat 360° Slim rotary linear drain 130 cm, black is the ideal solution for modern bathrooms. Made of high-quality stainless steel AISI 304, it ensures durability and corrosion resistance. Its black finish adds elegance to any interior. The drain is 130 cm wide with a cover width of 31 mm, providing efficient water drainage with a flow rate of 50 l/min. Equipped with a rotary siphon that traps odors and a removable dirt filter, it is practical and easy to maintain. The set also includes a cover with damping spacers, a water-drainage gutter, and adjustable feet for easy installation.

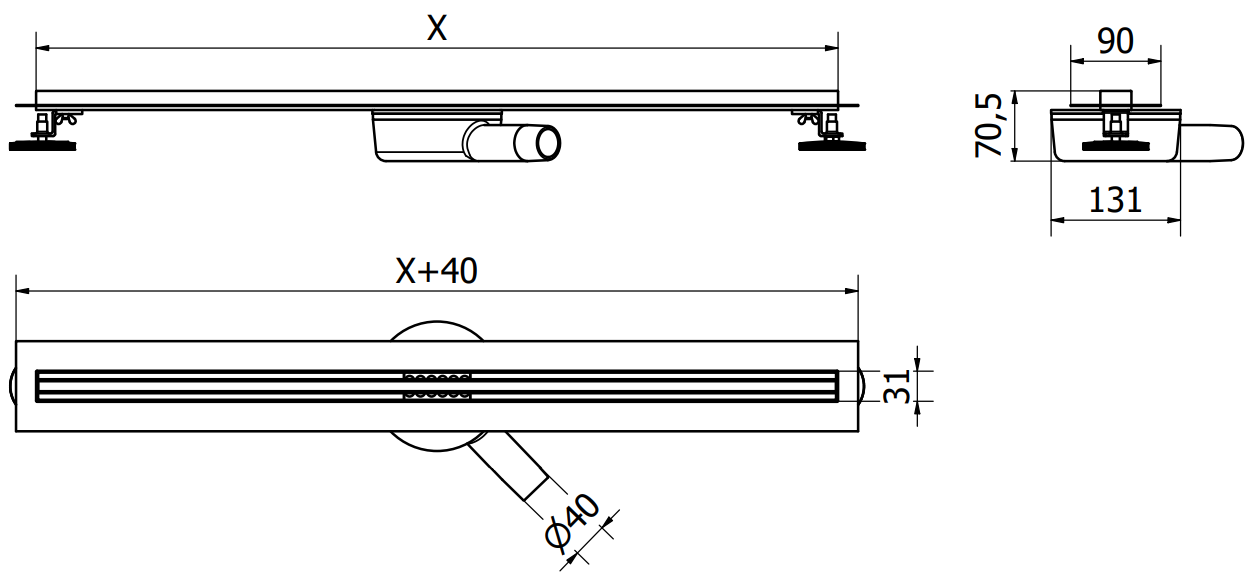

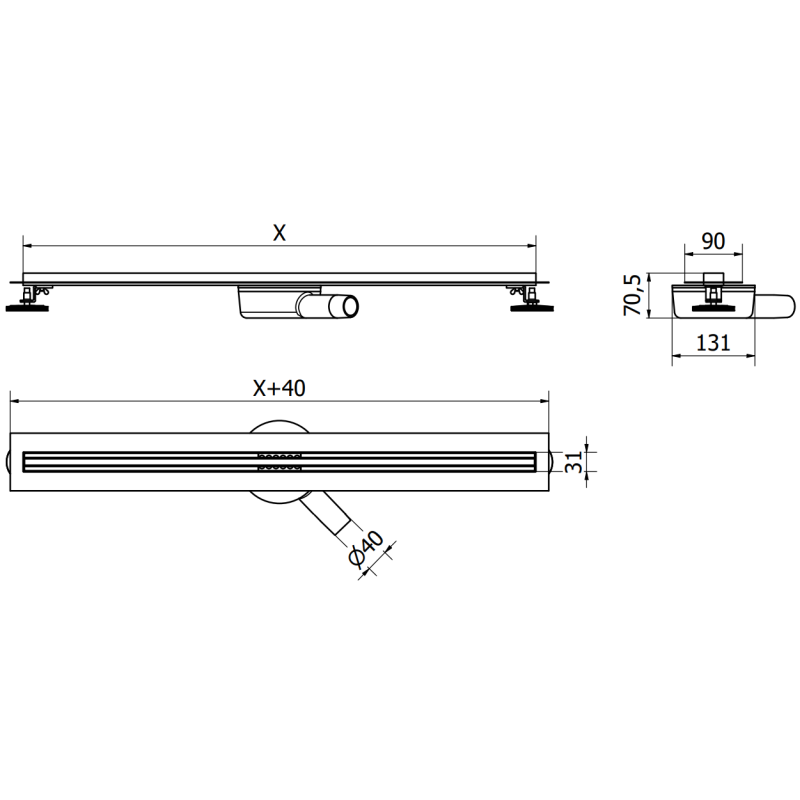

Technical data:

Material: Stainless steel AISI 304

Finish: Black

Width: 130 cm

Cover width: 31 mm

Installation depth: 52 mm

Flow rate: 50 l/min

Surrounding flange - 2 cm

Grating depth - 23.5 mm

Gutter and grate thickness - 1.2 mm

Rotary siphon: Yes

Tiling possibility: No

Included:

Cover with damping spacers

Removable dirt filter

Odor-trap siphon

Water-drainage gutter

Installation stabilizers

Adjustable feet

Reduction 50/40 mm

Sealing cuff

Hook for removing the cover

Innovative solutions used in this product

Stainless Steel

This product is made from the highest quality AISI 304 stainless steel, known for its high resistance to corrosion and damage. It is a robust material that ensures long-lasting, reliable use.

Slim

The linear drain grate is exceptionally narrow and is only 31 mm wide. The thin design fits perfectly into a modern bathroom interior, giving a sense of lightness. An excellent choice for minimalist arrangements.

Low installation

The linear drain is mounted at a depth of only 52 mm. The shallow depth allows for easier preparation of the surface for the drain installation and easy leveling, ensuring high aesthetics and effective water drainage.

High throughput

Throughput of 40l/min, which means that drainage in one minute is able to discharge up to 50 litres of water. This allows the user to enjoy the comfort of a shower without worrying about an excessive amount of accumulated water.

Rotary siphon

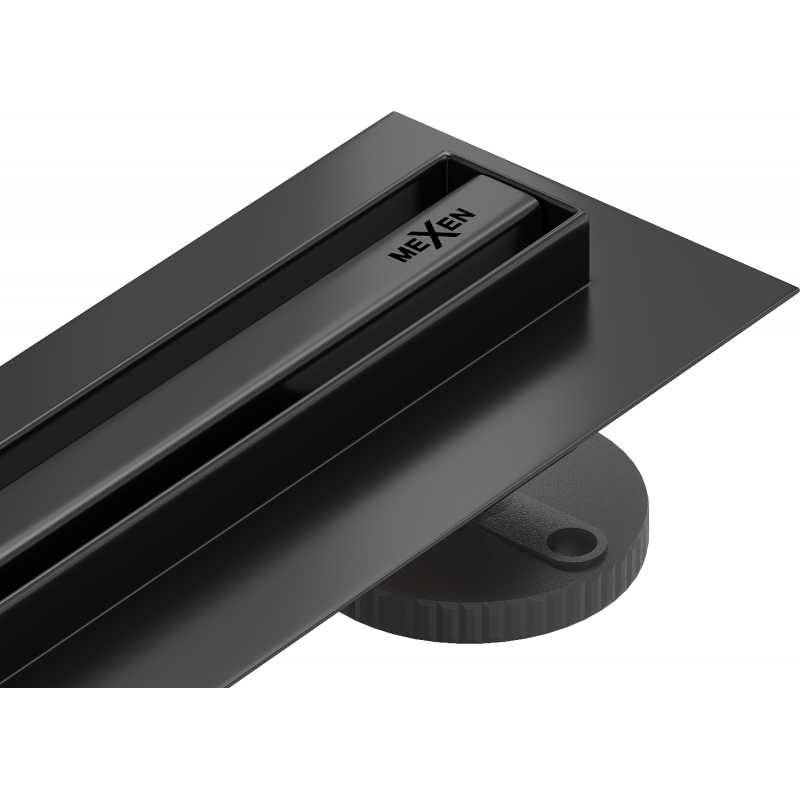

The outlet is equipped with a rotary siphon (in a 360° range). It provides greater installation flexibility, allowing easy adjustment to drainage pipes even in hard-to-reach areas. A tailored and convenient installation in any location.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

Damping spacers

Damping spacers ensure the grille is evenly positioned, providing an aesthetic appearance. They effectively prevent the grate from rubbing against the housing and reduce the noise generated when water falls directly onto the drain.

Adjustable Feet

The drain is equipped with adjustable feet, which allow for setting the appropriate height of the drain and leveling on an uneven surface. This way, the drain is even better suited to the conditions of the particular bathroom.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Series
Flat 360° Slim
Size
130 cm
Color
Black
Included in the set
Complete set
Slim version
Yes
Rotary siphon
Yes
Possibility of pasting a tile
No
