Mexen CF22 Flat panel radiator 300 x 1000 mm, side connection, 901 W, white - W422F-030-100-00
Mexen Flat CF22 is a modern panel radiator with dimensions of 300 x 1000 mm, featuring a side connection and heating power up to 901 W. Made from durable steel, it is covered with a white coating RAL 9016 according to DIN 99500 standard, ensuring long lifespan and aesthetic appearance. With different power levels (474 W at 55/45/20 °C and 1133 W at 90/70/20 °C), Mexen Flat CF22 is ideal for various thermal conditions. The kit includes brackets, installation set, blanking plugs, and air vent.

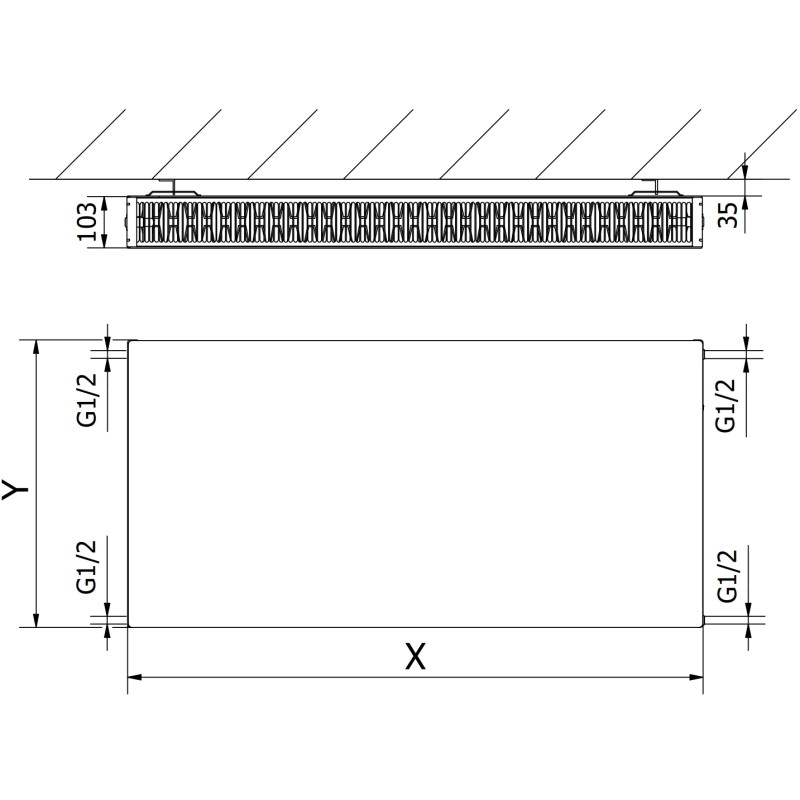

Technical data:

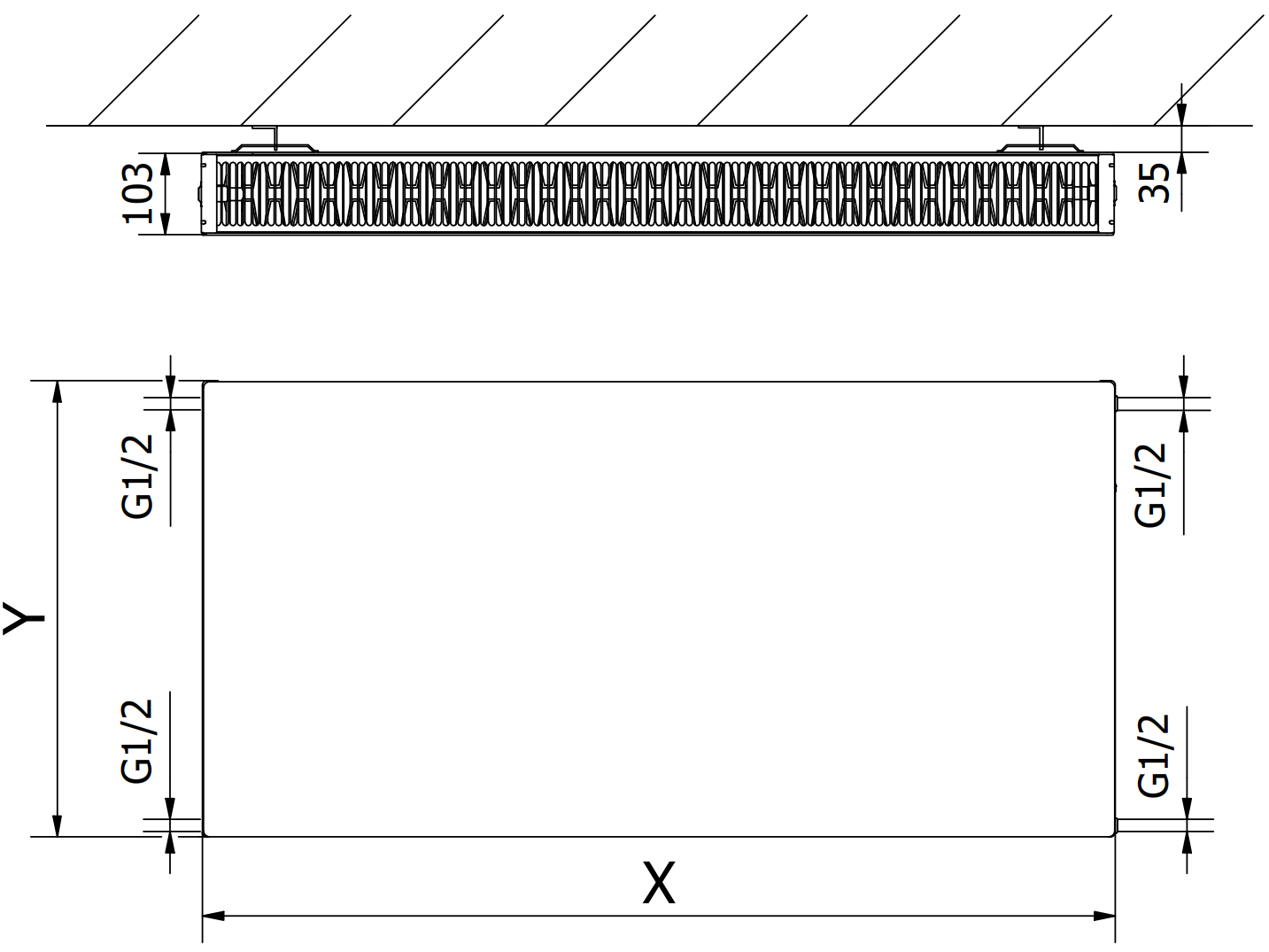

Height (Y): 300 mm
Width (X): 1000 mm
Depth: 103 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 474 W
- 75/65/20 °C 901 W
- 90/70/20 °C 1133 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Includes: brackets, installation kit, blanking plugs, and air vent

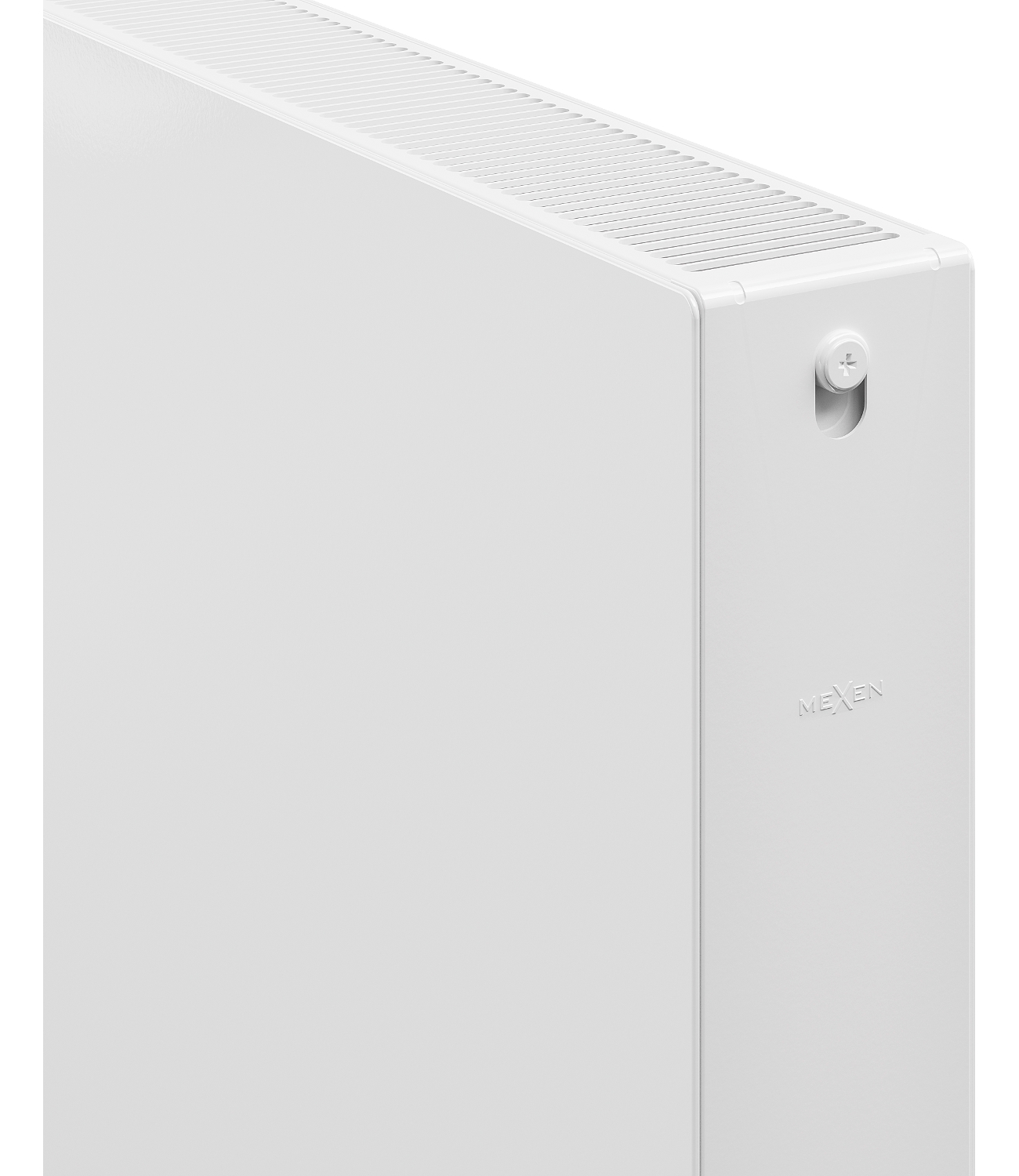

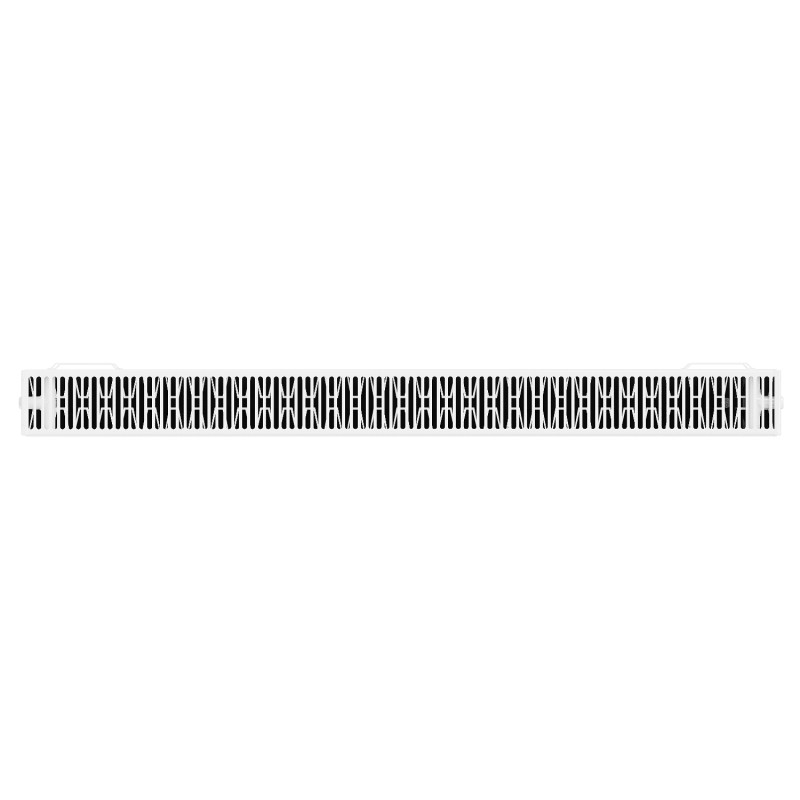

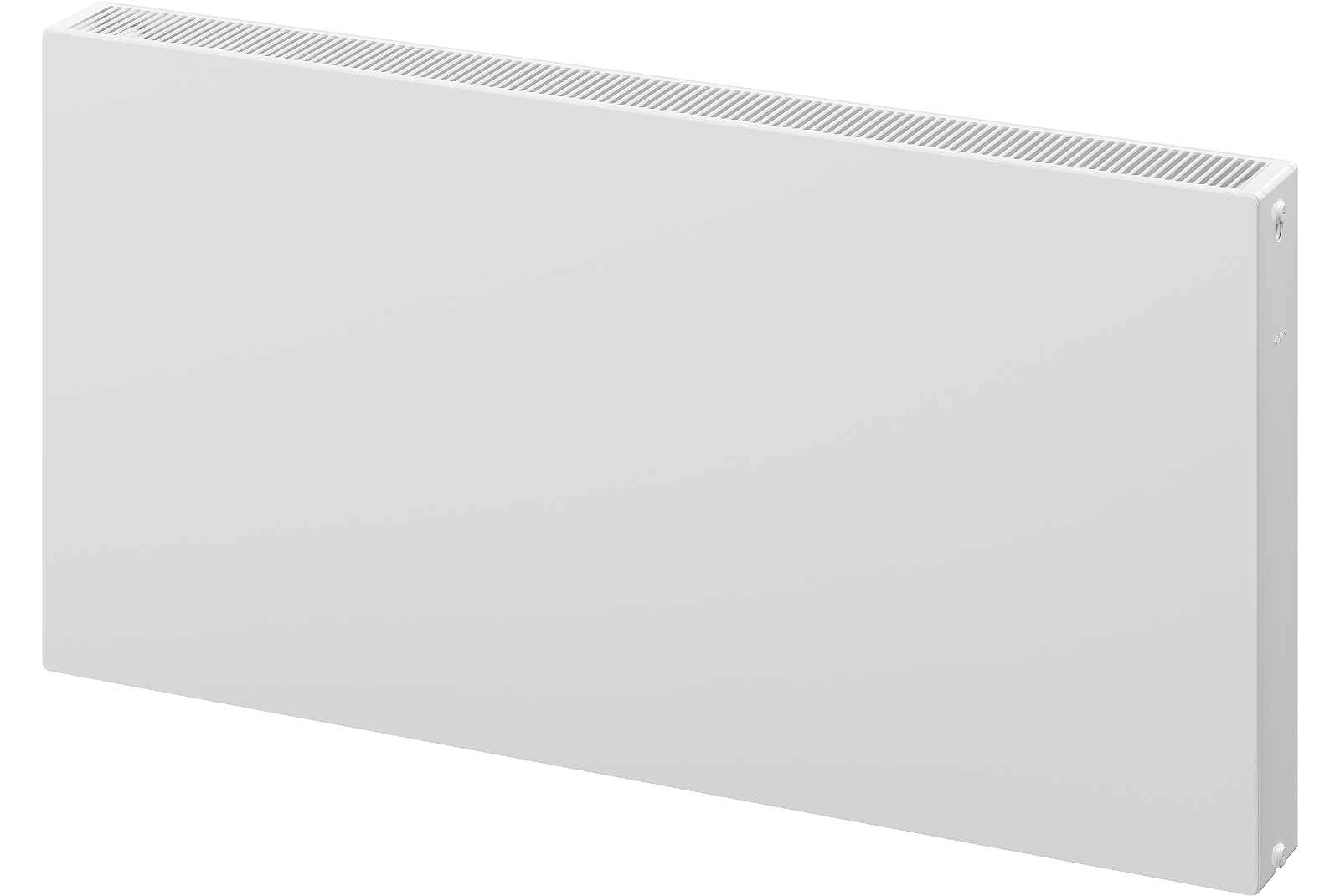

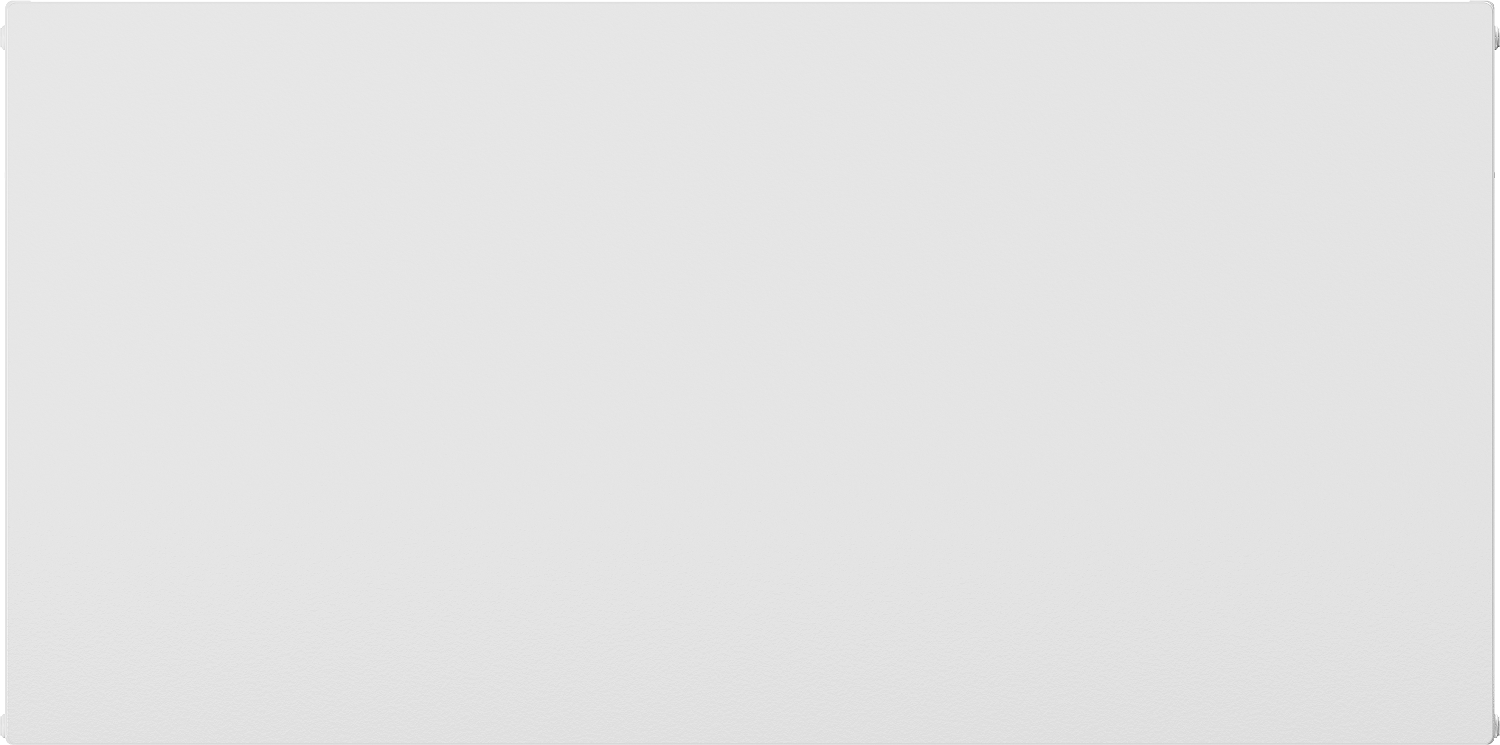

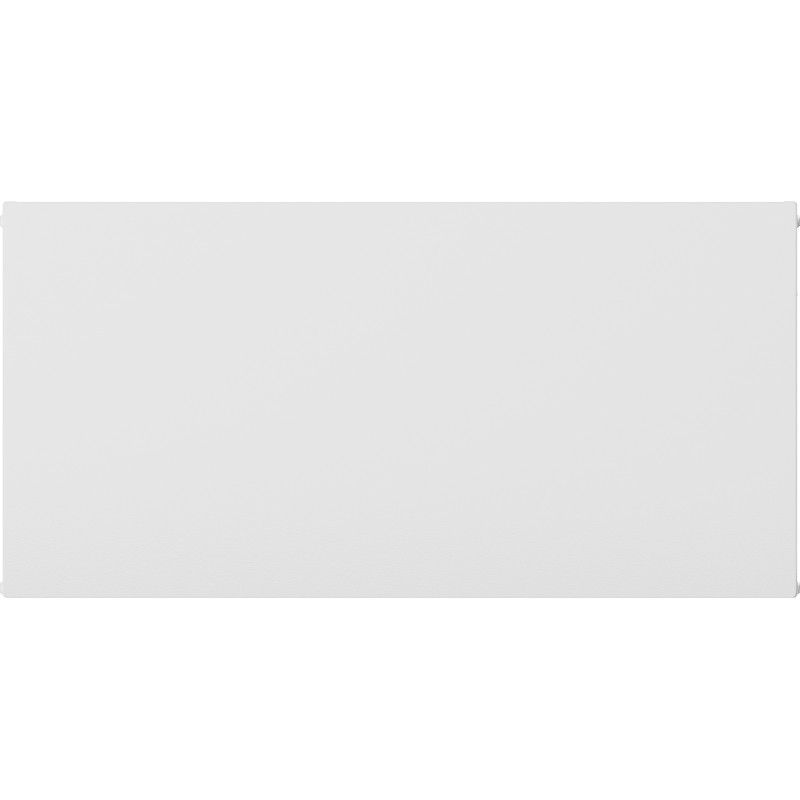

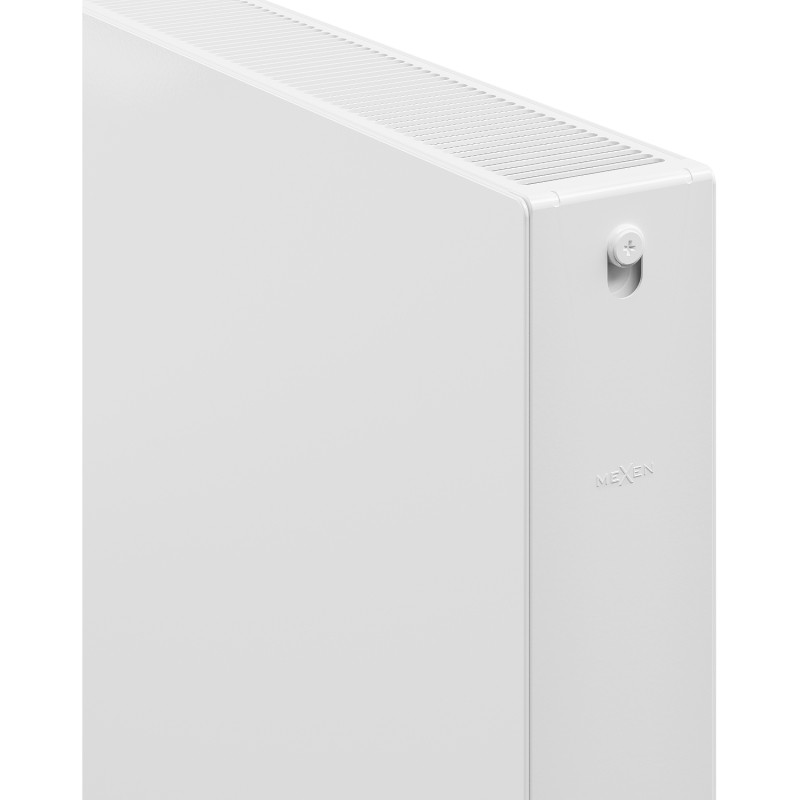

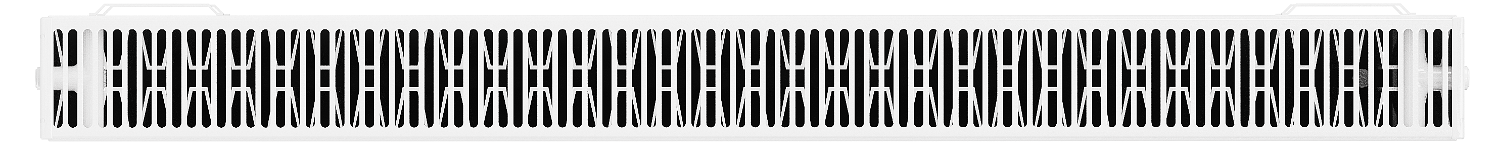

Images show the radiator in size 600 x 1200 mm.
