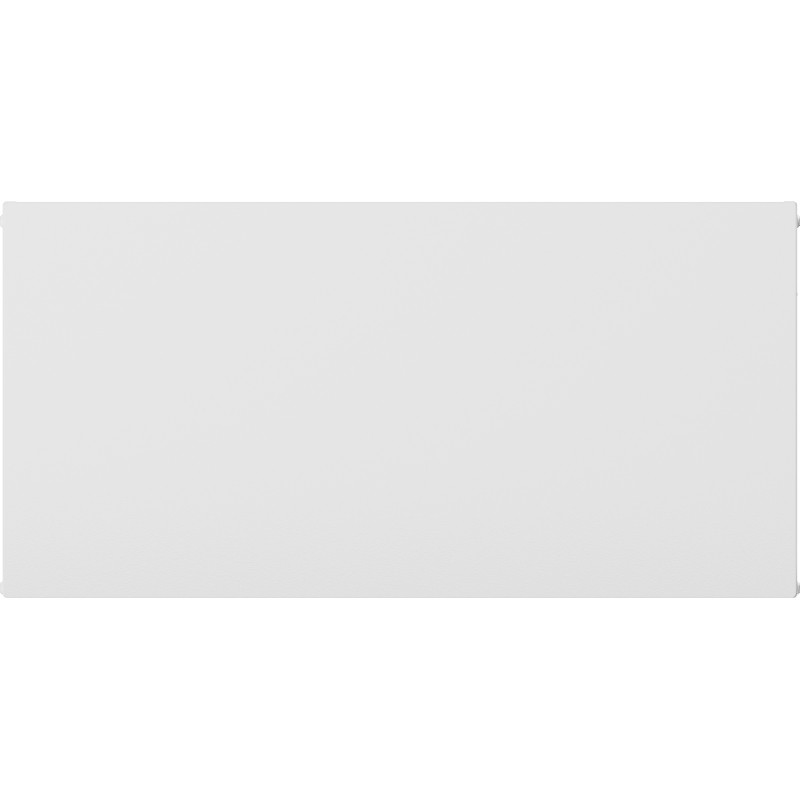

Mexen CF22 Flat panel radiator 300 x 500 mm, side connection, 450 W, white - W422F-030-050-00
Mexen Flat CF22 is an exceptional panel radiator with dimensions of 300 x 500 mm, combining elegance with efficiency. With side connection and heating power up to 450 W, it is perfect for any condition. Made from high-quality steel and featuring a white RAL 9016 coating, it ensures durability and aesthetics. It features a connection spacing of 25 cm, a maximum operating temperature of 110°C, and an operating pressure up to 10 bar. The package includes assembly accessories and an air vent.
Technical data:

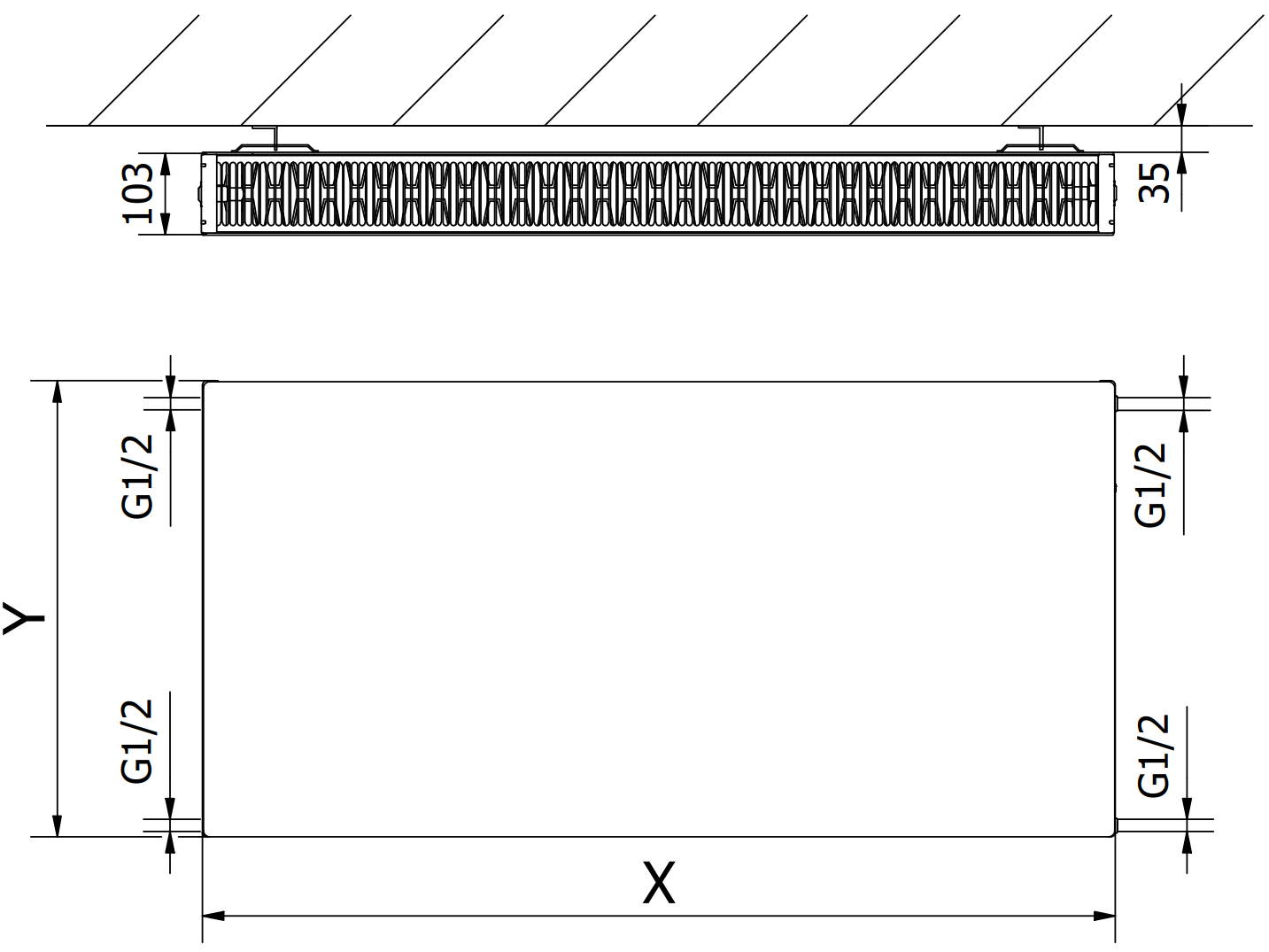

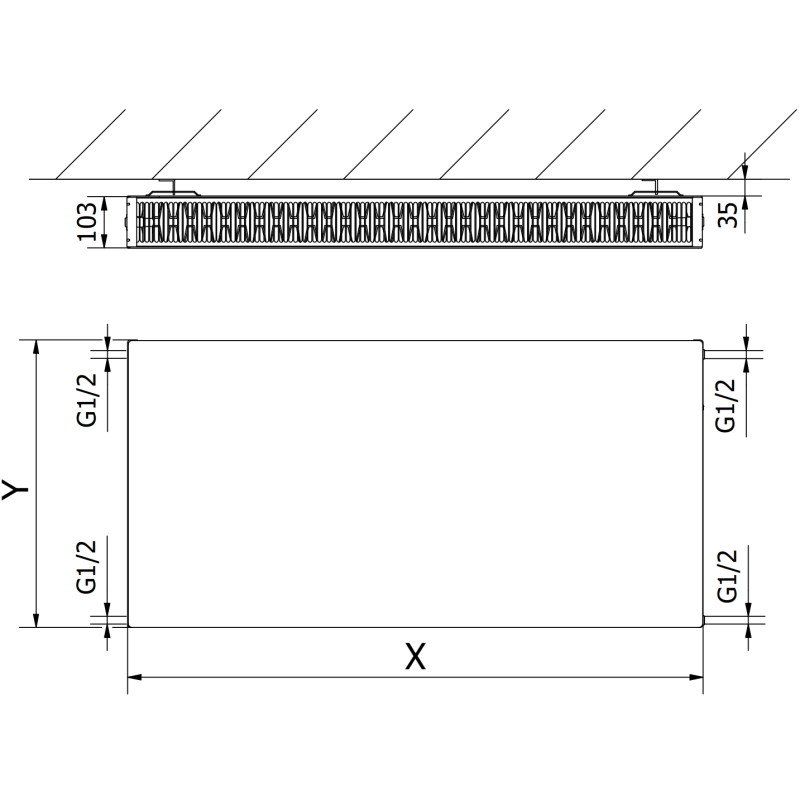

Height (Y): 300 mm
Width (X): 500 mm
Depth: 103 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 237 W
- 75/65/20 °C 450 W
- 90/70/20 °C 566 W
Connections:
- 4xG ½″ side
High quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Package includes: brackets, assembly set, end plugs, and air vent

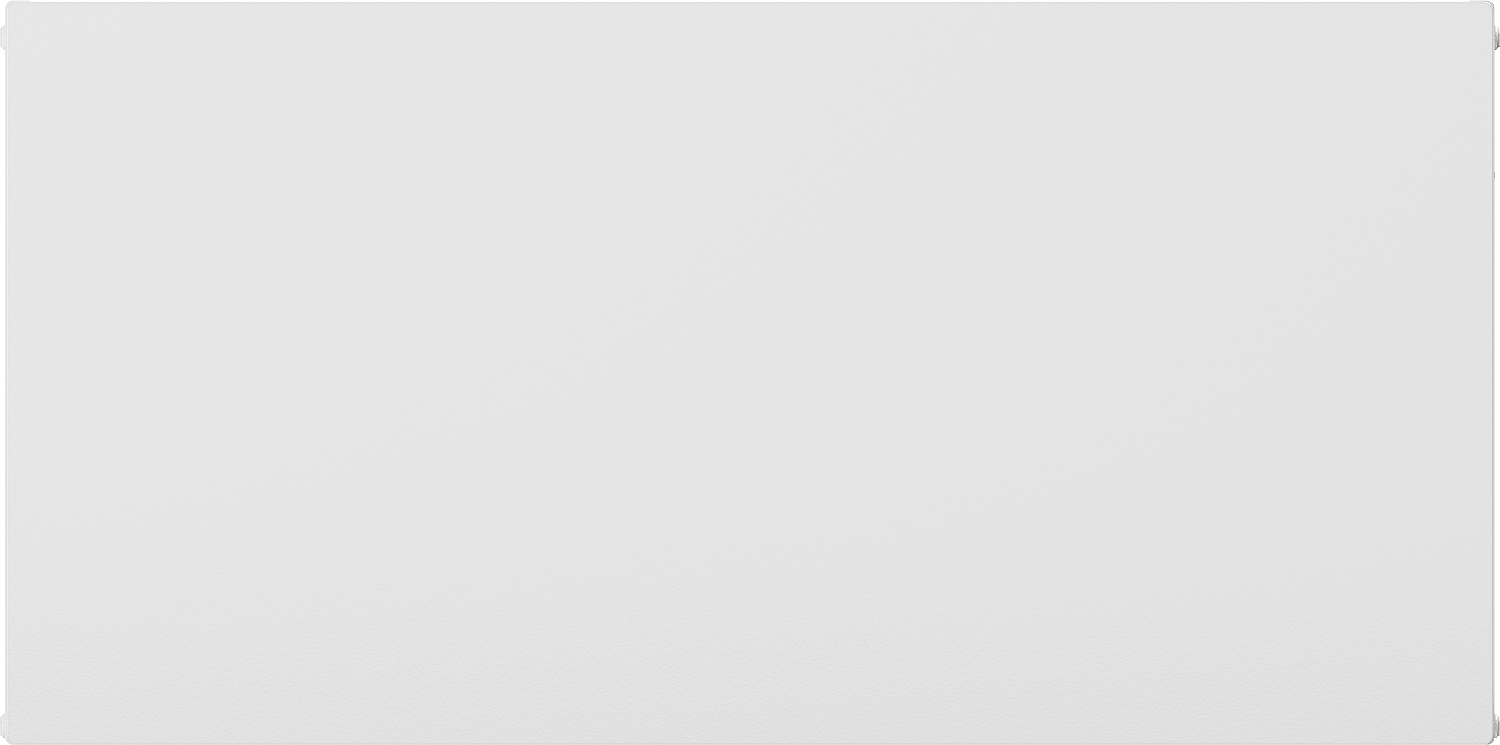

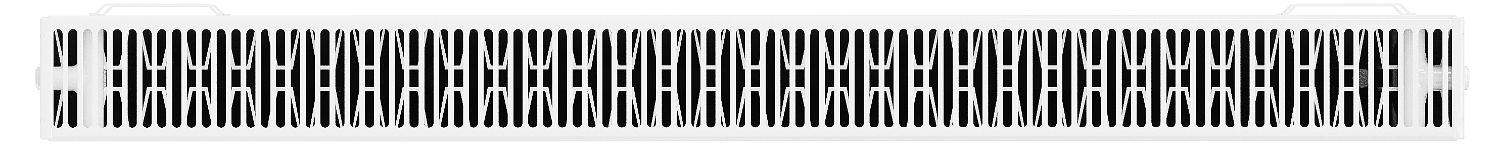

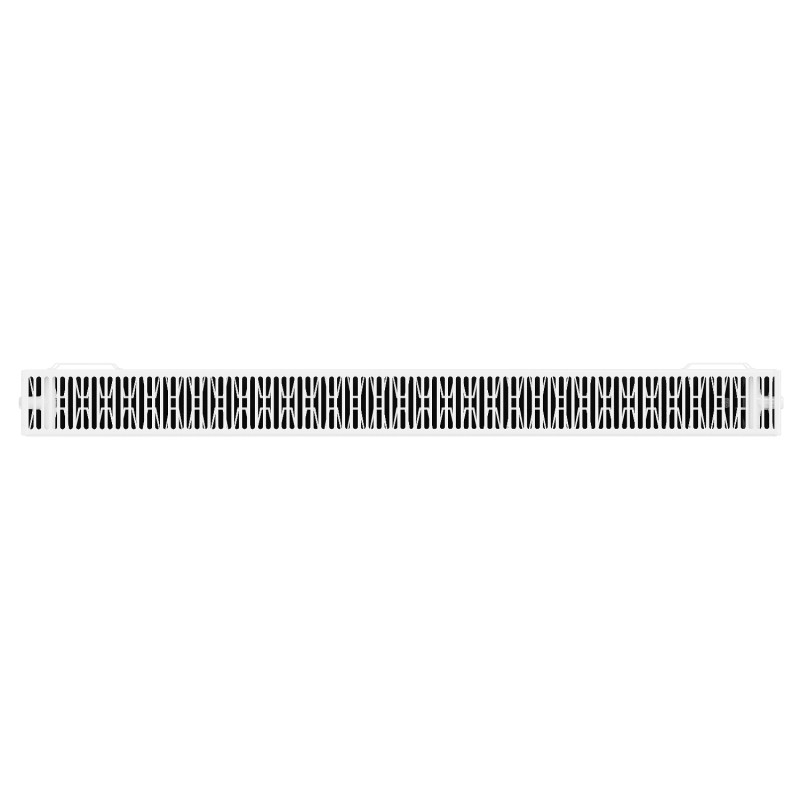

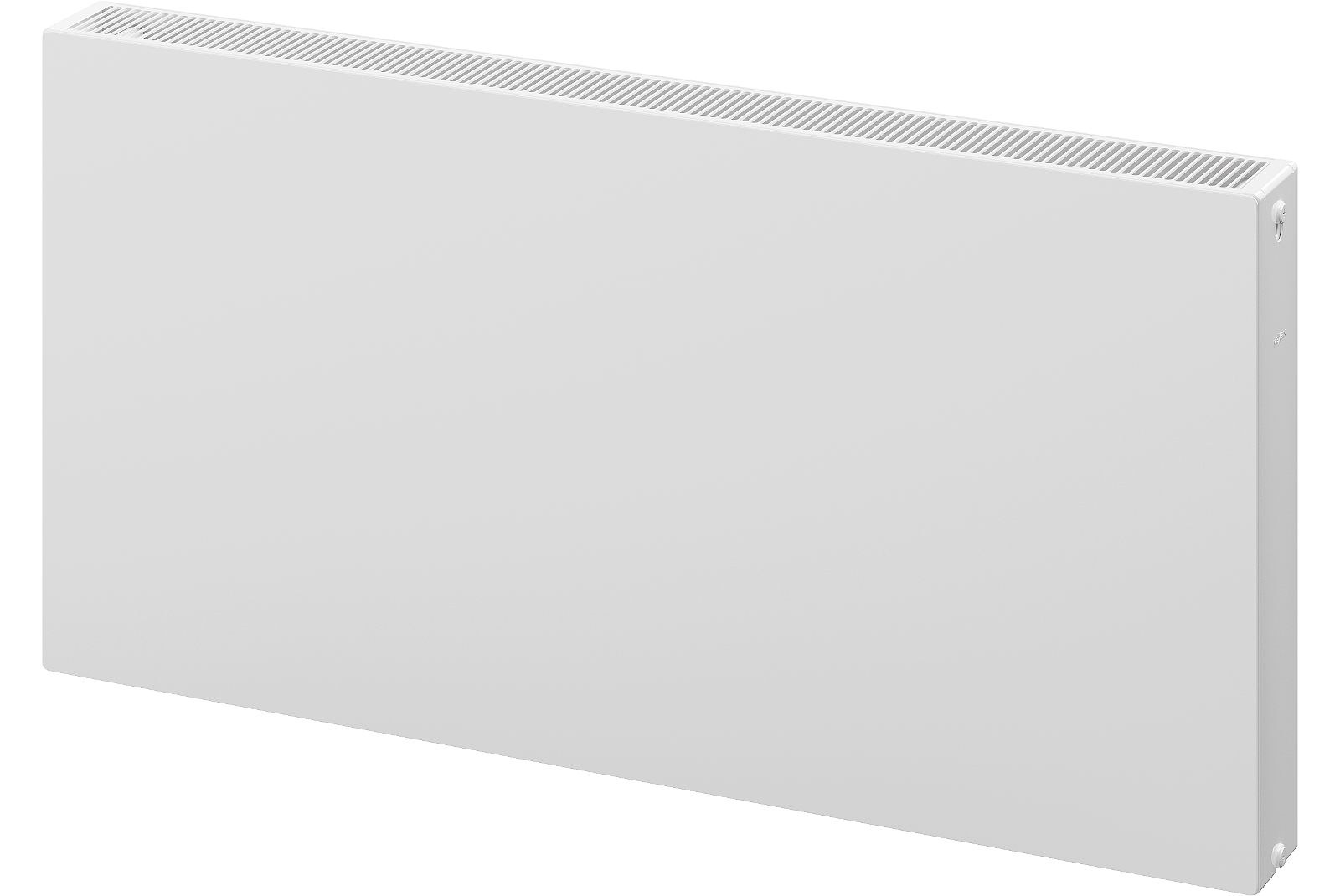

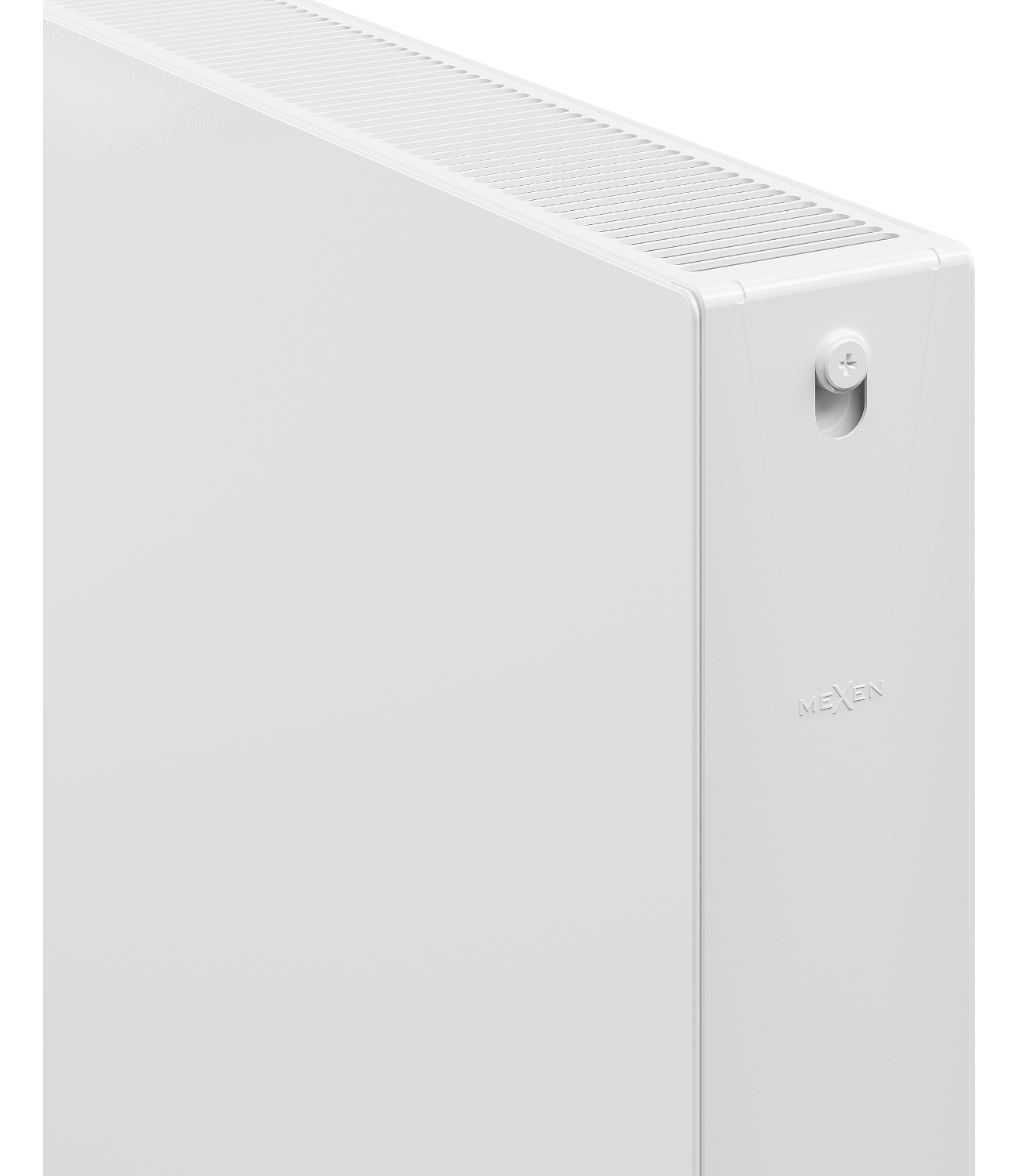

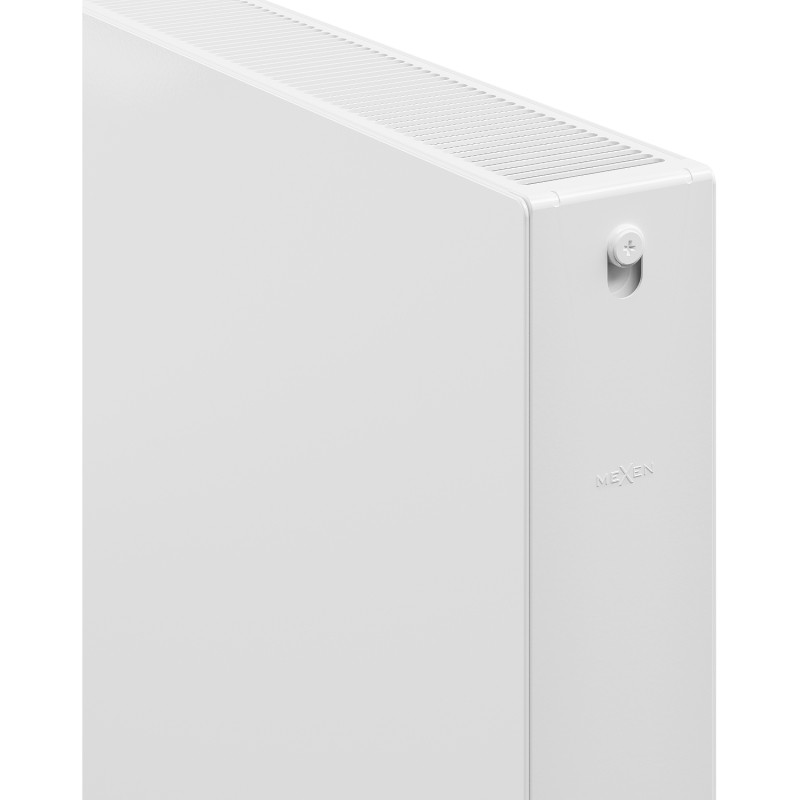

Photos show the radiator in the 600 x 1200 mm size.
