Mexen CF22 Flat Panel Radiator 300 x 1500 mm, Side Connection, 1351 W, White - W422F-030-150-00
The Mexen Flat CF22 300 x 1500 mm panel radiator is a modern and efficient solution for any interior. With an impressive heating power of 1351 W at 75/65/20 °C, it provides quick and effective heating. Made of steel and coated with a durable white finish (RAL 9016), it complements modern decor perfectly. Compact dimensions (height 300 mm, width 1500 mm, depth 103 mm) and 4xG ½'' side connections ensure easy installation and use. Additionally, the radiator features a side cover and a removable top cover. The set includes hangers, installation kit, end caps, and vent.
Technical data:
Height (Y): 300 mm
Width (X): 1500 mm
Depth: 103 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 711 W
- 75/65/20 °C 1351 W
- 90/70/20 °C 1699 W
Connections:
- 4xG ½″ side
High-quality, durable coating - DIN 99500
Includes a side cover and removable top cover
Set includes: hangers, installation kit, end caps, and vent

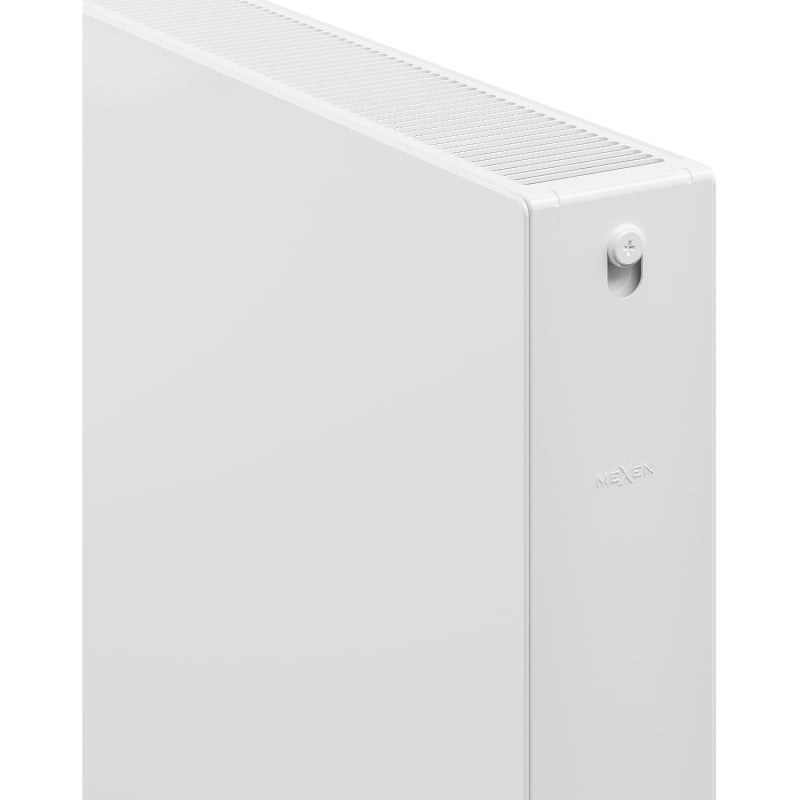

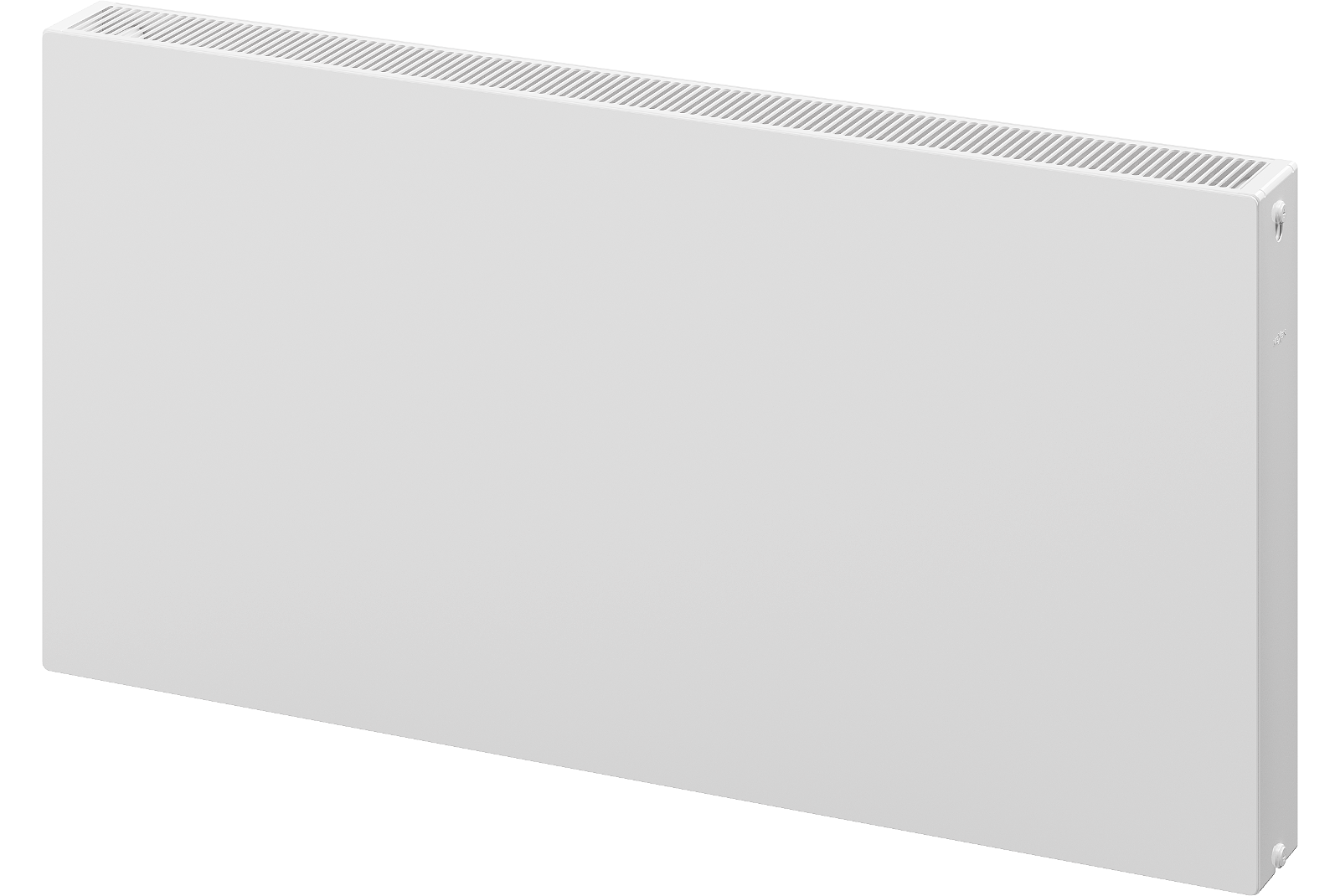

Photos show the radiator in size 600 x 1200 mm.
