Mexen CF22 Flat panel radiator 300 x 1200 mm, side connection, 1081 W, white - W422F-030-120-00
The Mexen Flat CF22 is an elegant, white panel radiator measuring 300 x 1200 mm with a side connection, ideal for modern interiors. Made of steel, with a durable paint coating meeting DIN 99500, the radiator offers high heating efficiency: 569 W at 55/45/20 °C, 1081 W at 75/65/20 °C, and 1359 W at 90/70/20 °C. The set includes hangers, a mounting kit, sealing plugs, and an air vent. The maximum working temperature is 110°C, and the maximum working pressure is 10 bar. The radiator features a side cover and a removable top cover, highlighting its functionality and modern design.
Technical data:

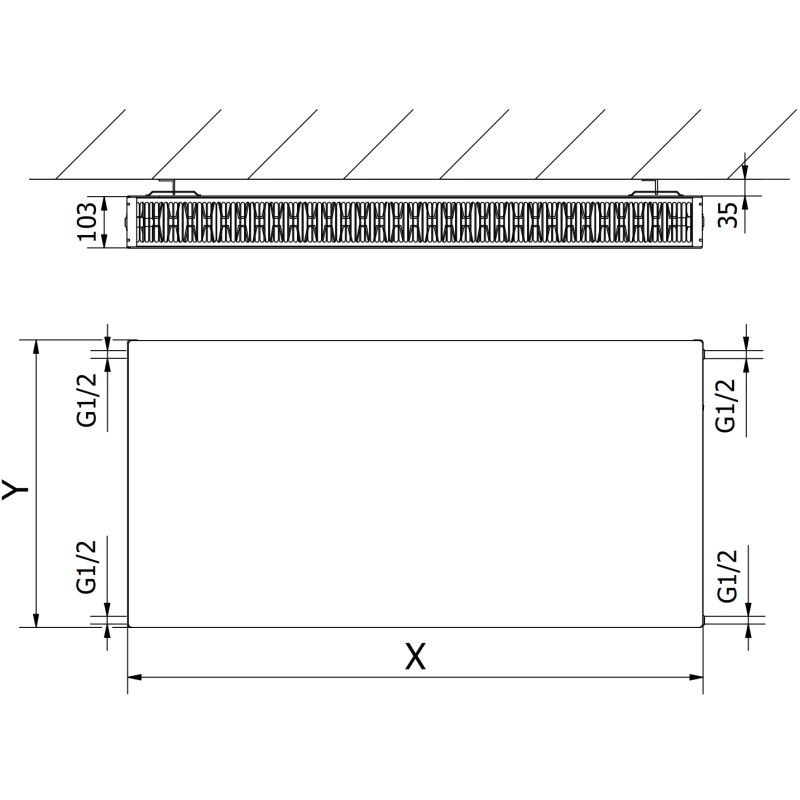

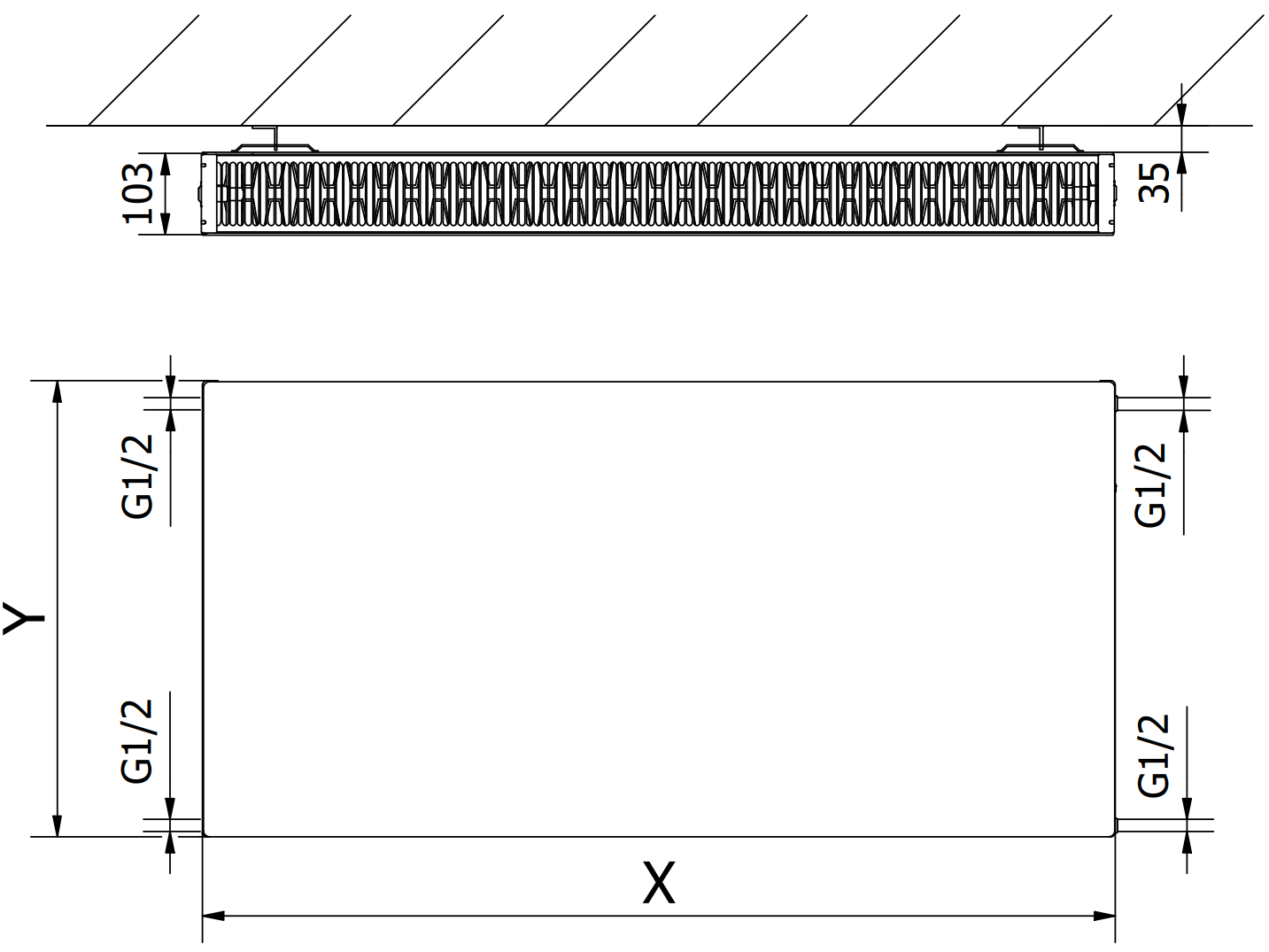

Height (Y): 300 mm
Width (X): 1200 mm
Depth: 103 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 569 W
- 75/65/20 °C 1081 W
- 90/70/20 °C 1359 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500

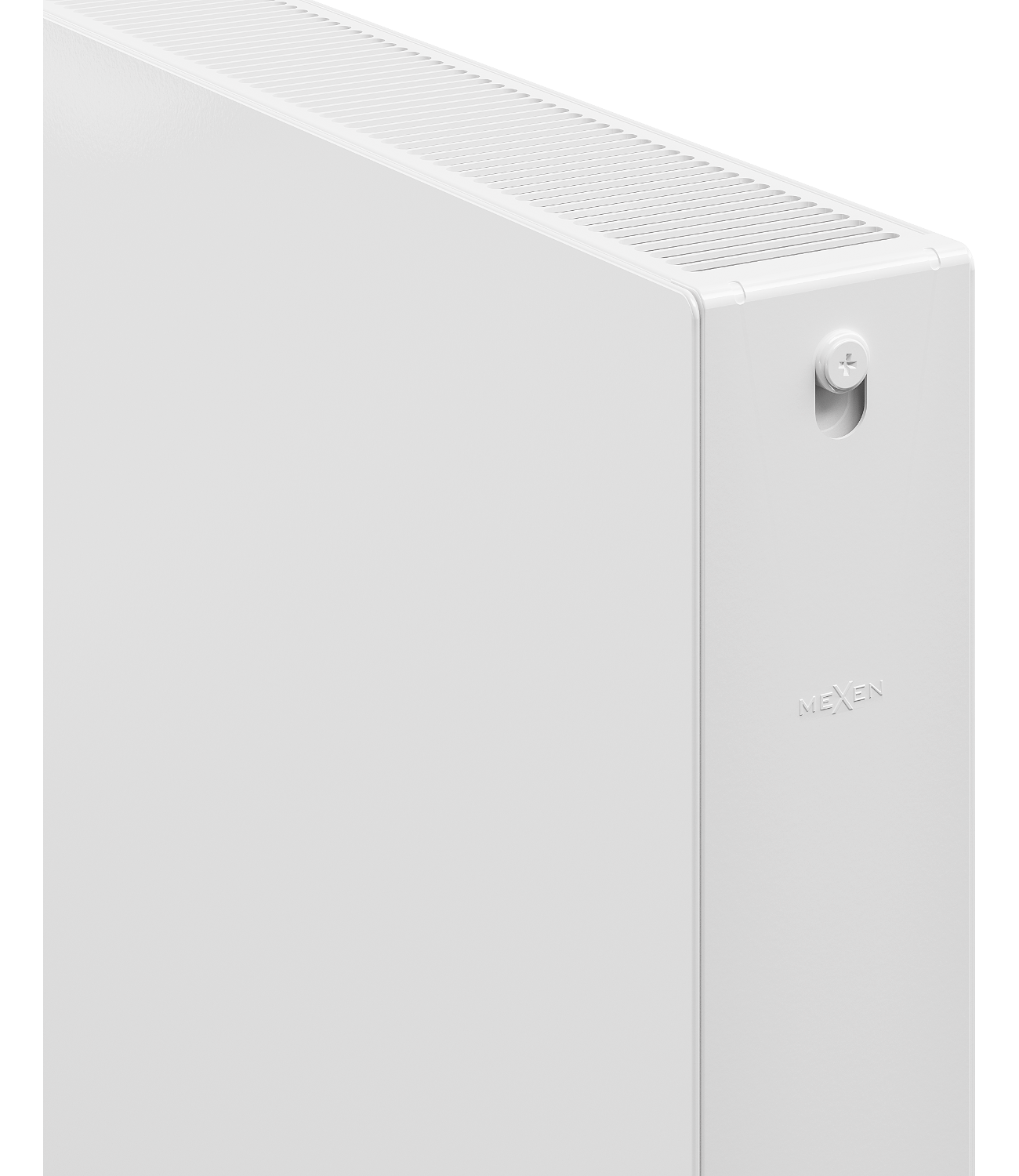

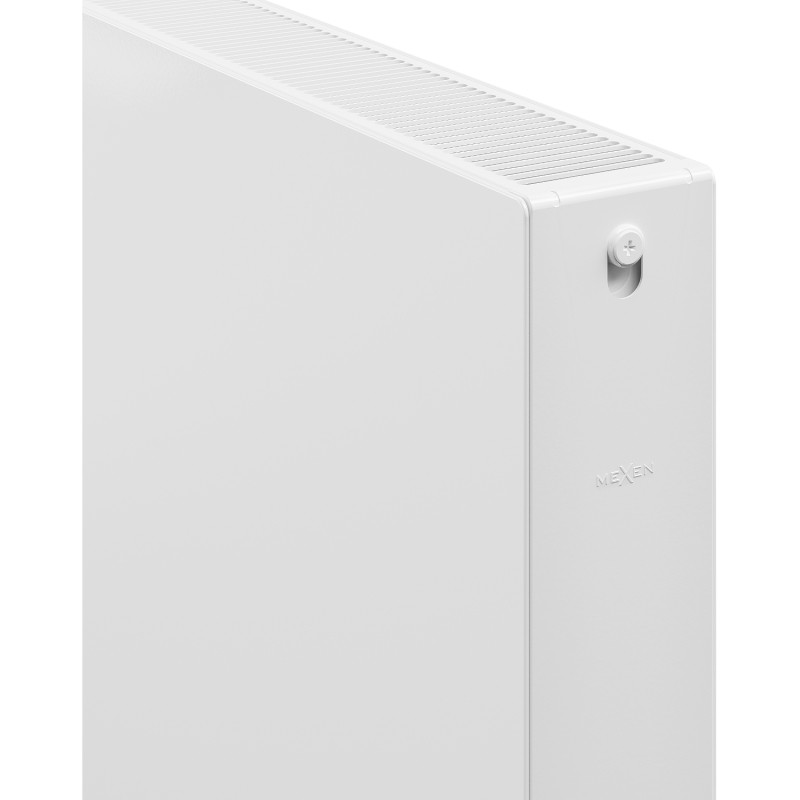

Features a side cover and a removable top cover
Included: hangers, mounting kit, sealing plugs, and air vent

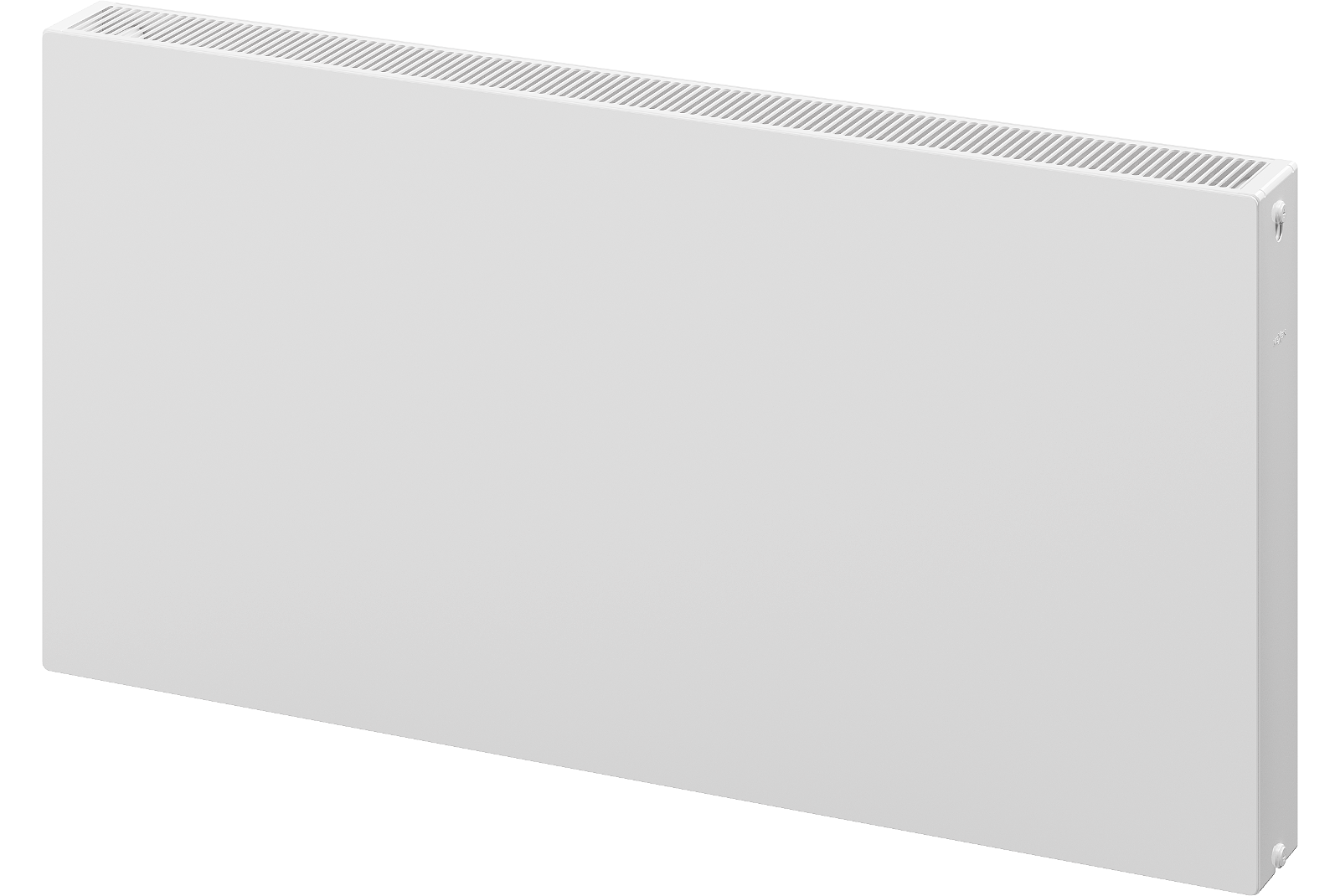

Photos show the radiator in size 600 x 1200 mm.
