Mexen Uni-Term radiator valve angled/straight, Duplex, DN50, white - W908-000-20

The Mexen Duplex DN50 white angled/straight radiator valve offers versatility with the ability to connect to both angled and straight connections, regardless of location in the wall or floor. Made of durable brass with an M30 x 1.5 mm head thread, it supports working pressure up to 10 bar and temperature up to 120°C. The set includes connectors for multi-layer and copper pipes, enhancing its functionality and ease of installation.

Technical data:

Material: Brass

Colour: White

Connection diameter: G 1/2"

Thread for head: M30 x 1.5 mm

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

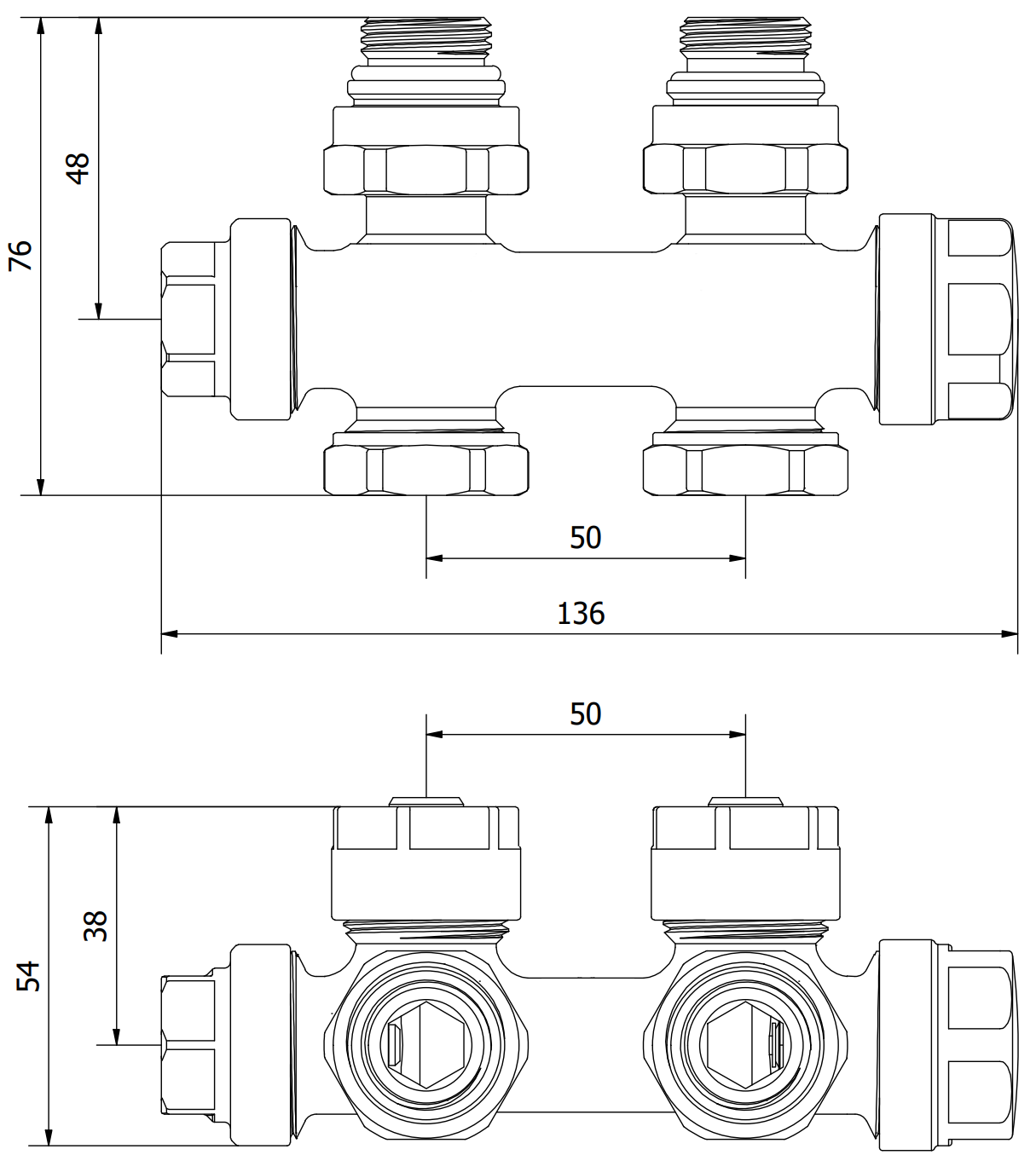

Bottom connection with 50 mm spacing

Possibility to connect the head from the left or right side

Includes connectors for 16x2 mm multi-layer pipes and 15 mm copper pipes

Universal supply and cut-off valve for angled and straight connections, regardless of whether the connection is in the wall or floor

Innovative solutions used in this product

Brass

Making the product from brass ensures its durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and fluctuating temperatures.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Standard Connection

A 1/2" threaded connection is a commonly used standard component in internal water installations. This makes connecting and installing additional installation components much easier and more intuitive.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
Uni-Term
Type
Straight , Angular
Colour
White
Connection diameter
G 1/2"
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
