Mexen CVF22 Flat panel radiator 300 x 2000 mm, bottom connection, 1801 W, black - W622F-030-200-70

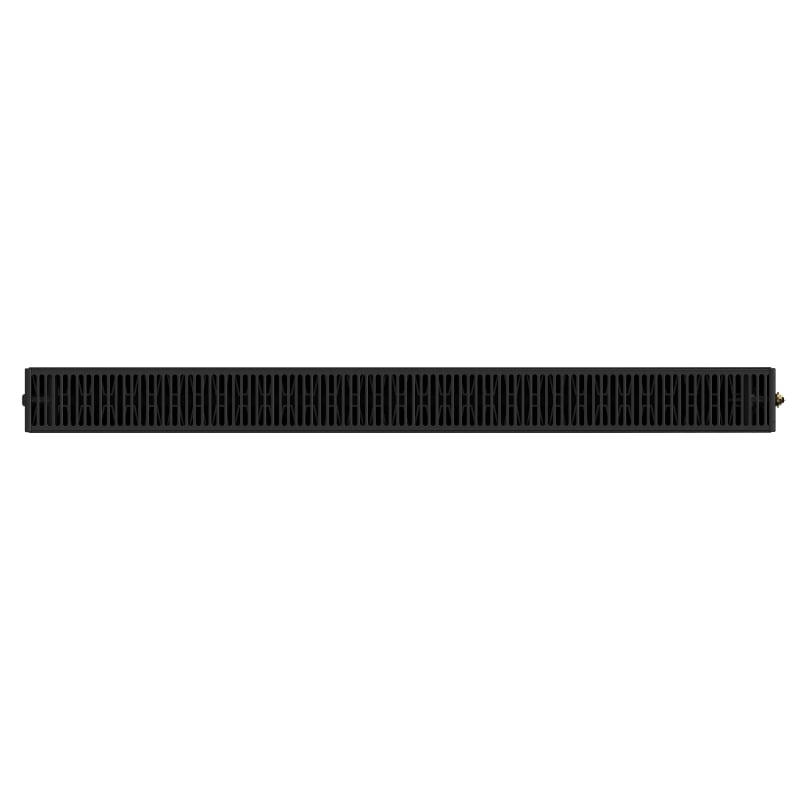

Mexen Flat is an elegant black panel radiator with dimensions of 300 x 2000 mm, which fits perfectly into modern interiors. With bottom connection and heating power of 1801 W at 75/65/20 °C, it provides efficient room heating. Made of durable steel, it withstands temperatures up to 110 °C and operating pressure of 10 bar. Additionally, its durable coating meets DIN 99500 standard. The radiator is equipped with a side cover and removable top cover, and the set includes necessary mounting accessories.

Technical data:

Height (Y): 300 mm

Width (X): 2000 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Max operating pressure: 10 bar

Max test pressure: 13 bar

Heating power:

- 55/45/20 °C 948 W

- 75/65/20 °C 1801 W

- 90/70/20 °C 2265 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ side

High-quality, durable coating - DIN 99500

Includes side cover and removable top cover

Includes: brackets, mounting kit, blind plugs, air vent, and valve insert

The photos show a radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF22
Width
2000 mm
Height
300 mm
Depth
103 mm
Type
Plate / Panel
Heating power
1801 W
Color
Black
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
