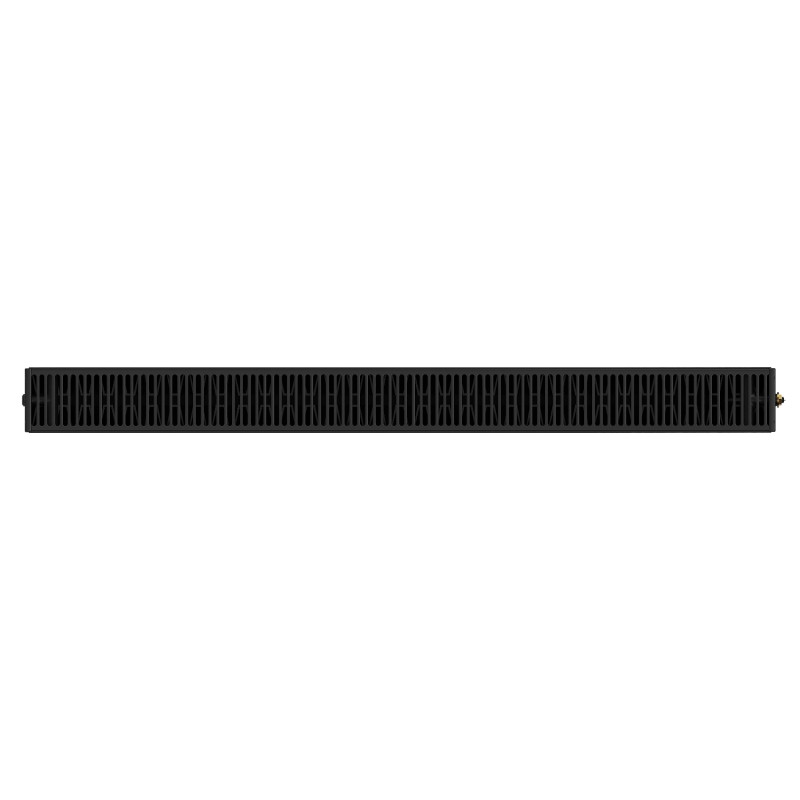

Mexen CVF22 Flat panel radiator 900 x 2000 mm, lower connection, 4399 W, black - W622F-090-200-70

Mexen Flat CVF22 is a flat panel radiator with an elegant design and impressive parameters. With a height of 900 mm and width of 2000 mm, it combines functionality with aesthetics. Heating power of 4399 W, adaptable to various temperatures, ensures quick and efficient heating. Made of steel in black RAL 9005, it has a modern look. Thanks to a maximum operating temperature of up to 110 °C and pressure up to 10 bar, it is exceptionally durable. The set includes necessary mounting accessories, making it a complete solution for any interior.

Technical data:

Height (Y): 900 mm

Width (X): 2000 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 2271 W

- 75/65/20 °C 4399 W

- 90/70/20 °C 5570 W

Connections:

- 2xG ½″ from bottom right or left side

- 4xG ½″ side

High-quality, durable lacquer coating - DIN 99500

Features side cover and removable top cover

Includes: hangers, installation kit, sealing plugs, air vent, and valve insert

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF22
Width
2000 mm
Height
900 mm
Depth
103 mm
Type
Plate / Panel
Heating power
4399 W
Color
Black
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
