Mexen G00 axial thermostatic set with R cover, chrome - W903-900-904-01
Mexen G00 axial thermostatic set with R cover, chrome - W903-900-904-01 Mexen G00 axial thermostatic set with R cover, chrome - W903-900-904-01 Mexen G00 axial thermostatic set with R cover, chrome - W903-900-904-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G00
Ean:
5905315236975
Index:
W903-900-904-01
Colour:
Chrome
Connection diameter:
G 1/2"
Type:
Axial
Series:
G00
Colour - Chrome - ()

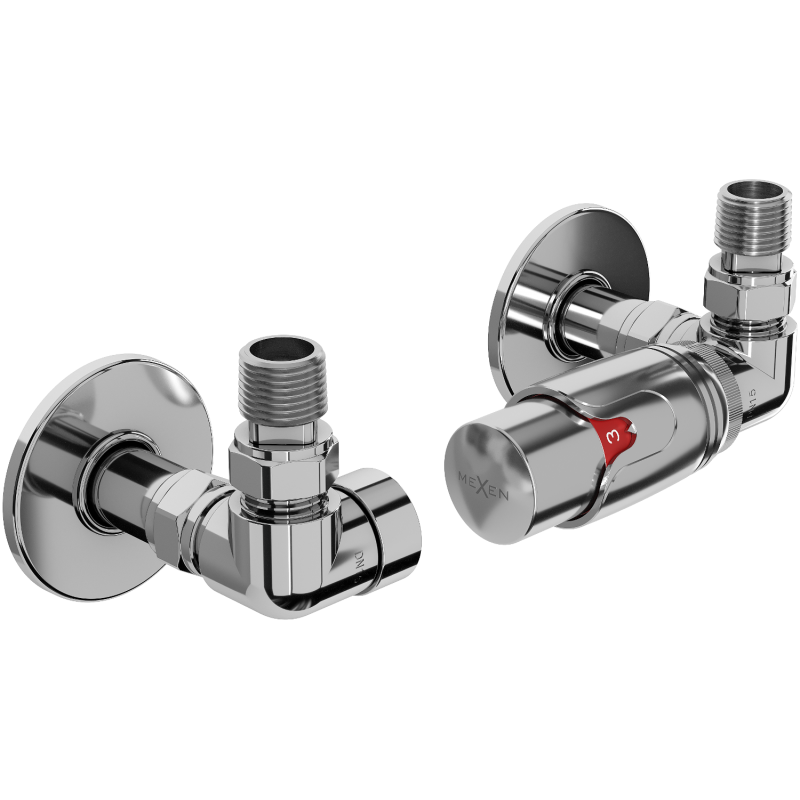

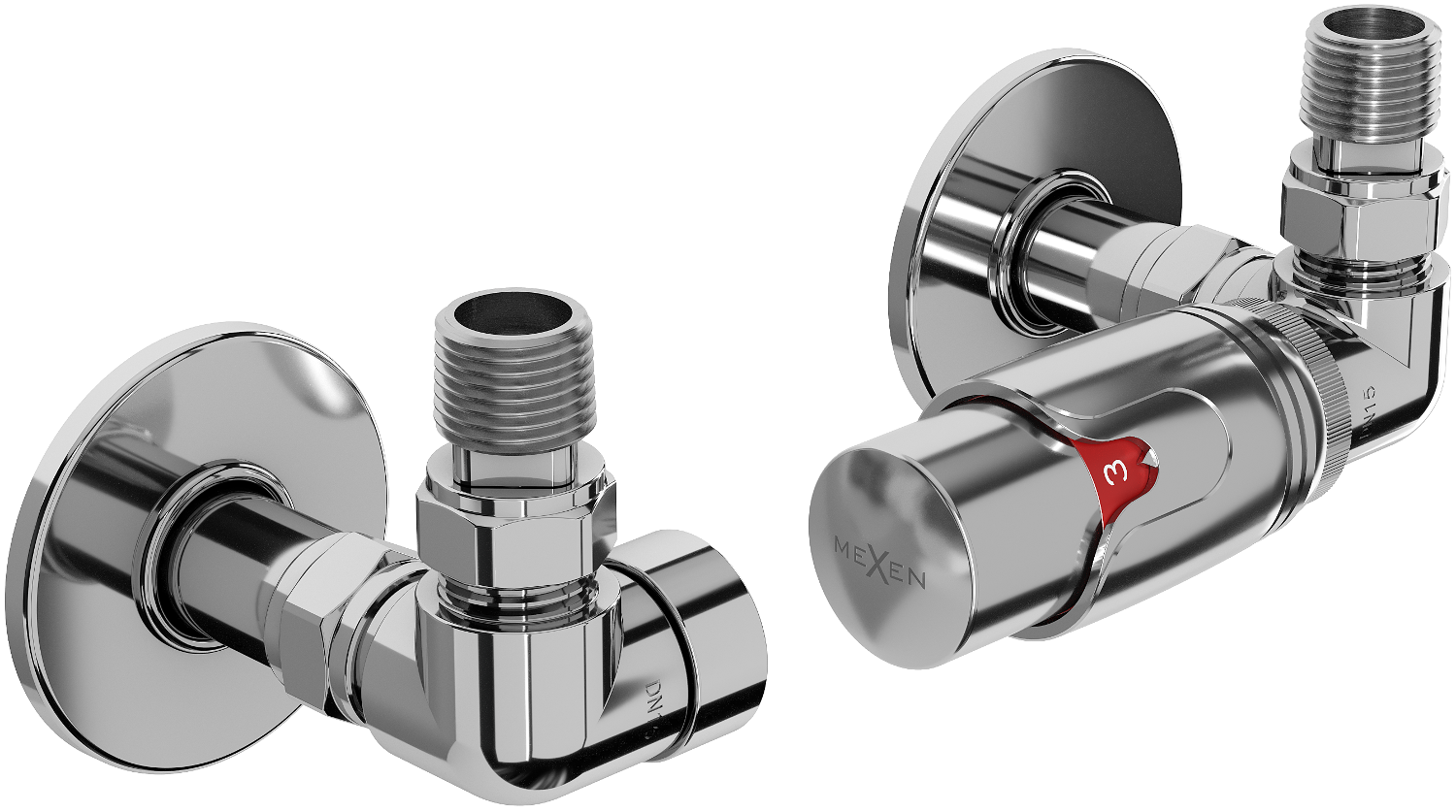

Mexen G00 axial thermostatic set with R cover, chrome - W903-900-904-01

The Mexen G00 axial thermostatic set with R cover, chrome, is an ideal choice for modern heating installations. Made of brass and finished in elegant chrome, it ensures high durability and aesthetics. The set includes a supply and shut-off radiator valve, as well as stainless steel covers. Its design allows for easy temperature adjustment in the range of 0-29°C, with a maximum working pressure of 10 bar. Additionally, it has frost protection at 5°C.

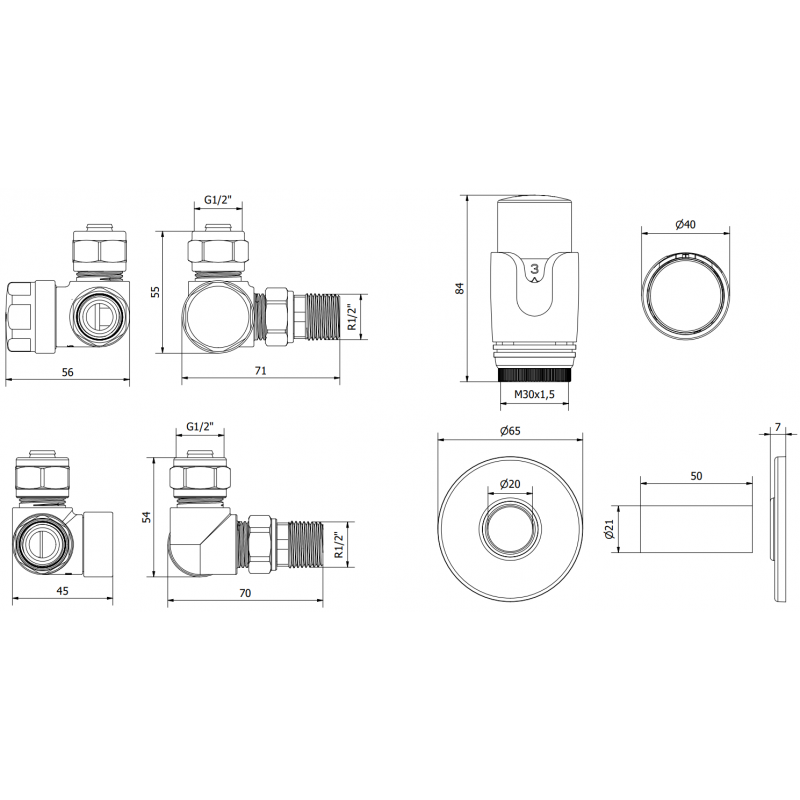

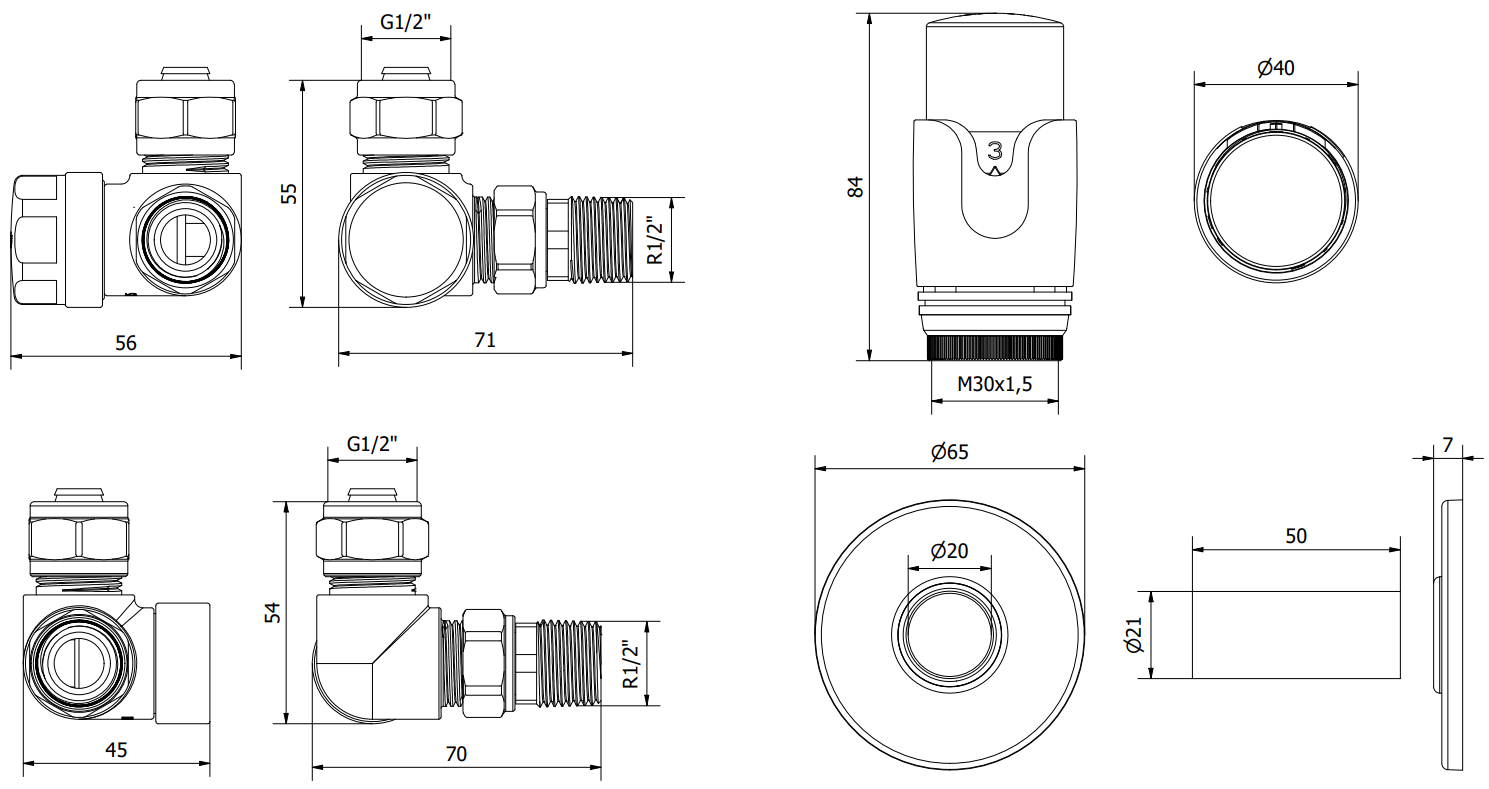

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Chrome

Rosette material: Stainless steel

Outer diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Length of sleeves: 50 mm

Internal diameter of sleeves: 20 mm

The cover consists of two individual rosettes and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Axial
Colour
Chrome
Connection diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
