Mexen G00 axial thermostatic set with R cover, anthracite - W903-900-904-66
Mexen G00 axial thermostatic set with R cover, anthracite - W903-900-904-66 Mexen G00 axial thermostatic set with R cover, anthracite - W903-900-904-66 Mexen G00 axial thermostatic set with R cover, anthracite - W903-900-904-66
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G00
Ean:
5905315237002
Index:
W903-900-904-66
Type:
Axial
Series:
G00
Color:
Anthracite
Connection diameter:
G 1/2"
Select Color - Anthracite - ()

Mexen G00 axial thermostatic set with R cover, anthracite - W903-900-904-66

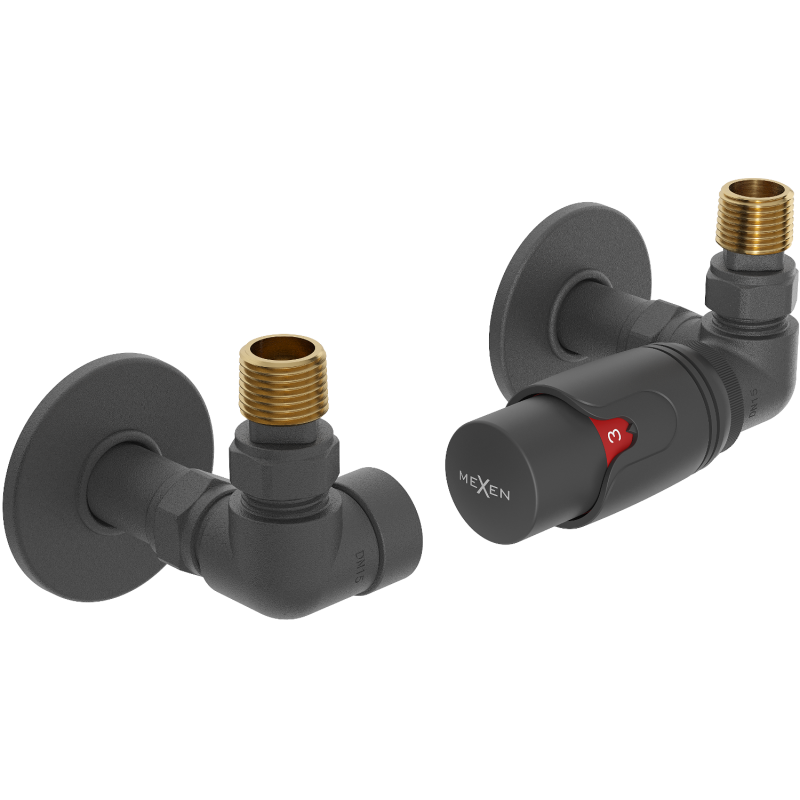

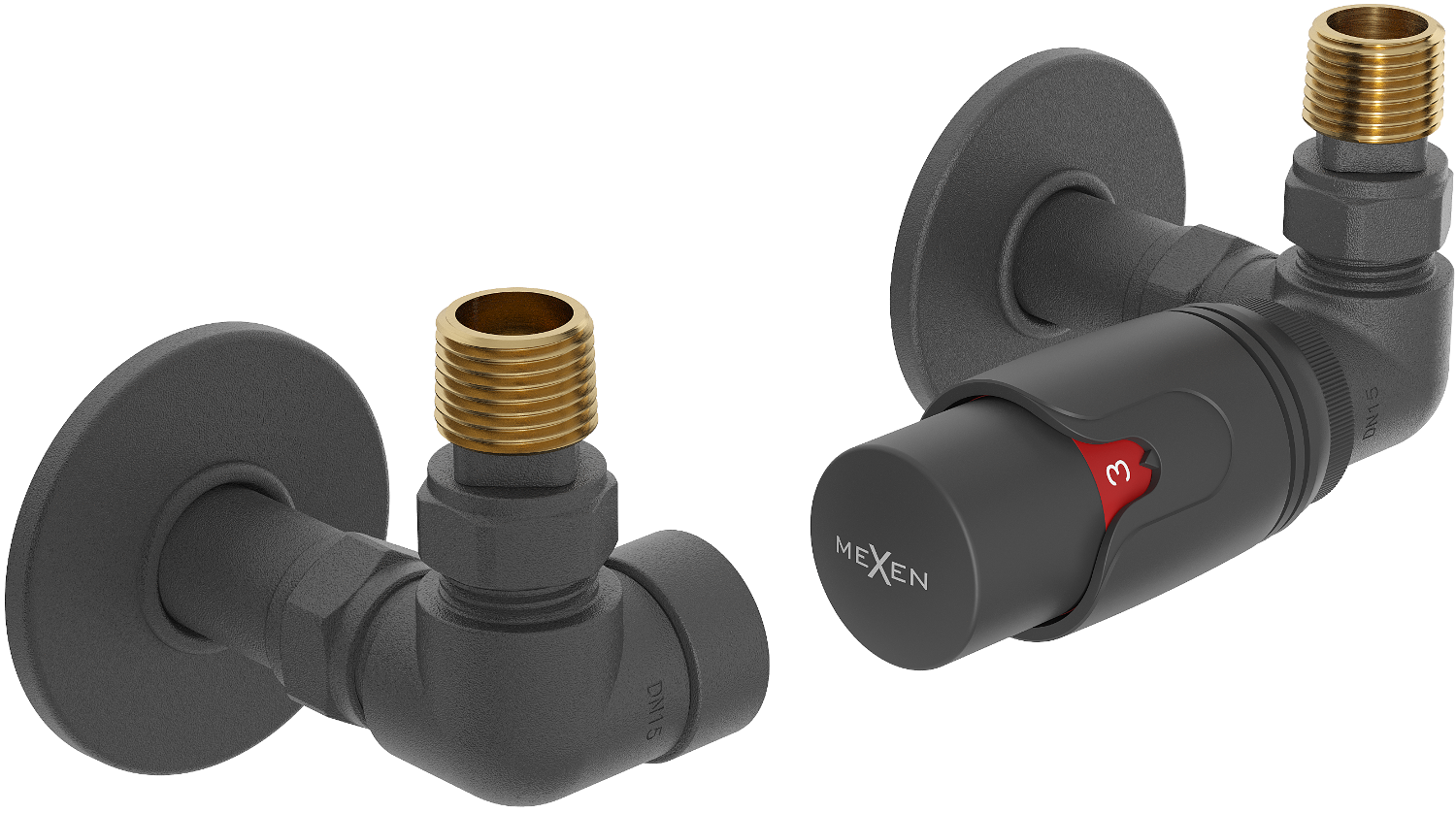

Mexen G00 axial thermostatic set with R cover in anthracite colour is an excellent choice for demanding users. Made of brass with a connection diameter of G 1/2", it ensures high durability and strength. Maximum operating temperature is 120°C, and working pressure is 10 bar. The set includes a radiator supply and cut-off valve and a cover made of stainless steel, which guarantees a safe and aesthetic finish to the installation.

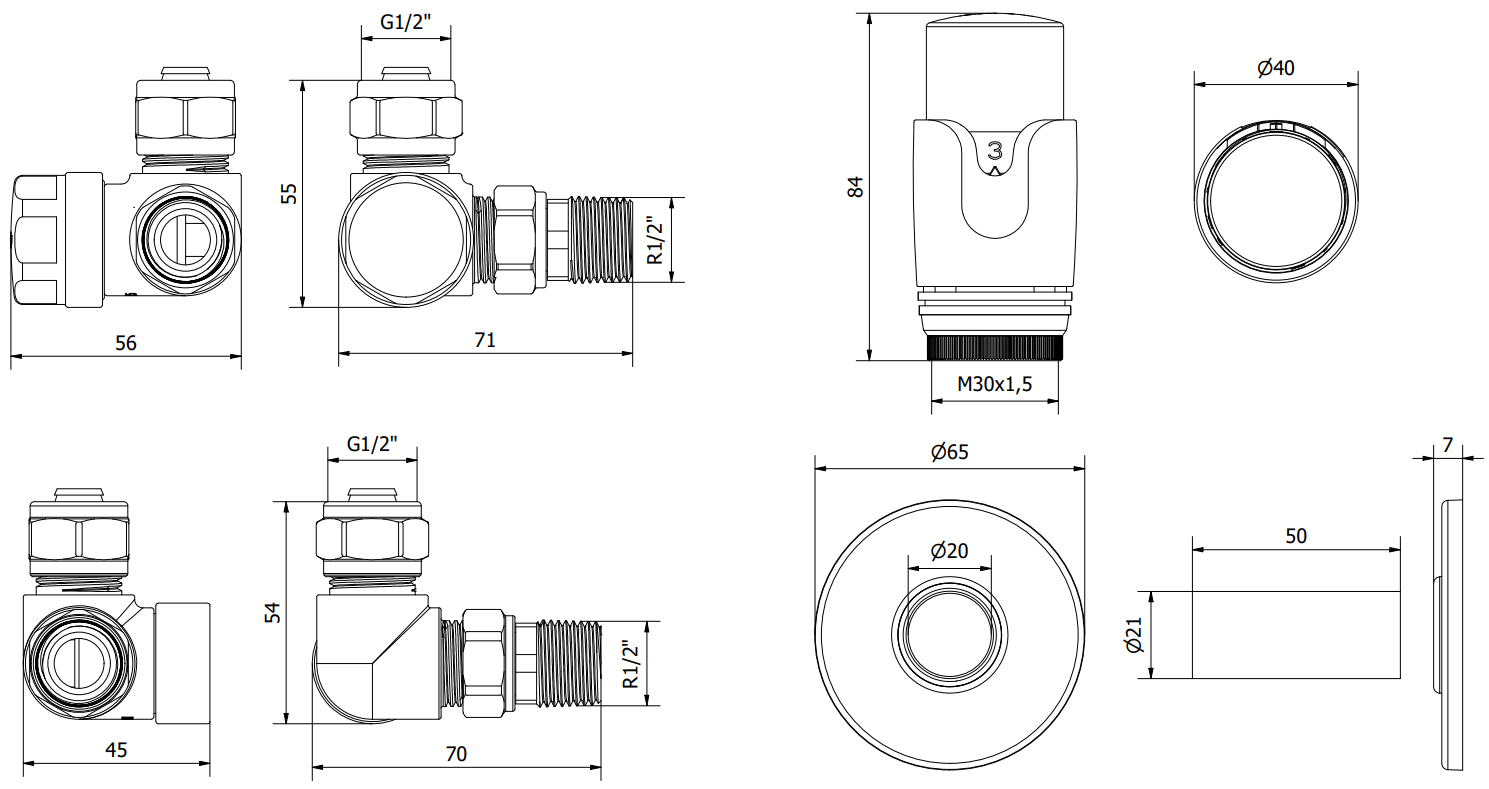

Technical data:

Valve material: Brass

Valve colour: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Anthracite

Rosette material: Stainless steel

External diameter of rosettes: 65 mm

Rosette height: 7 mm

Internal diameter of hole: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal diameter of sleeves: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes a radiator supply and cut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bar). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G00
Type
Axial
Color
Anthracite
Connection diameter
G 1/2"
Cover Panel
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
Manufacturer
See
