Mexen G00 angled thermostatic set with R cover, Duplex, DN50, chrome - W907-900-905-01

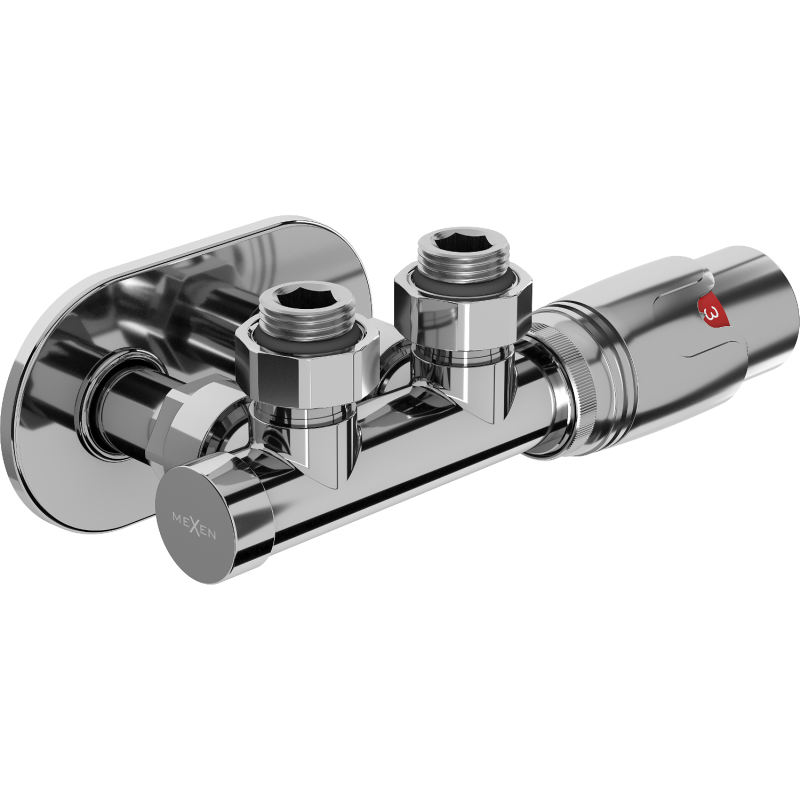

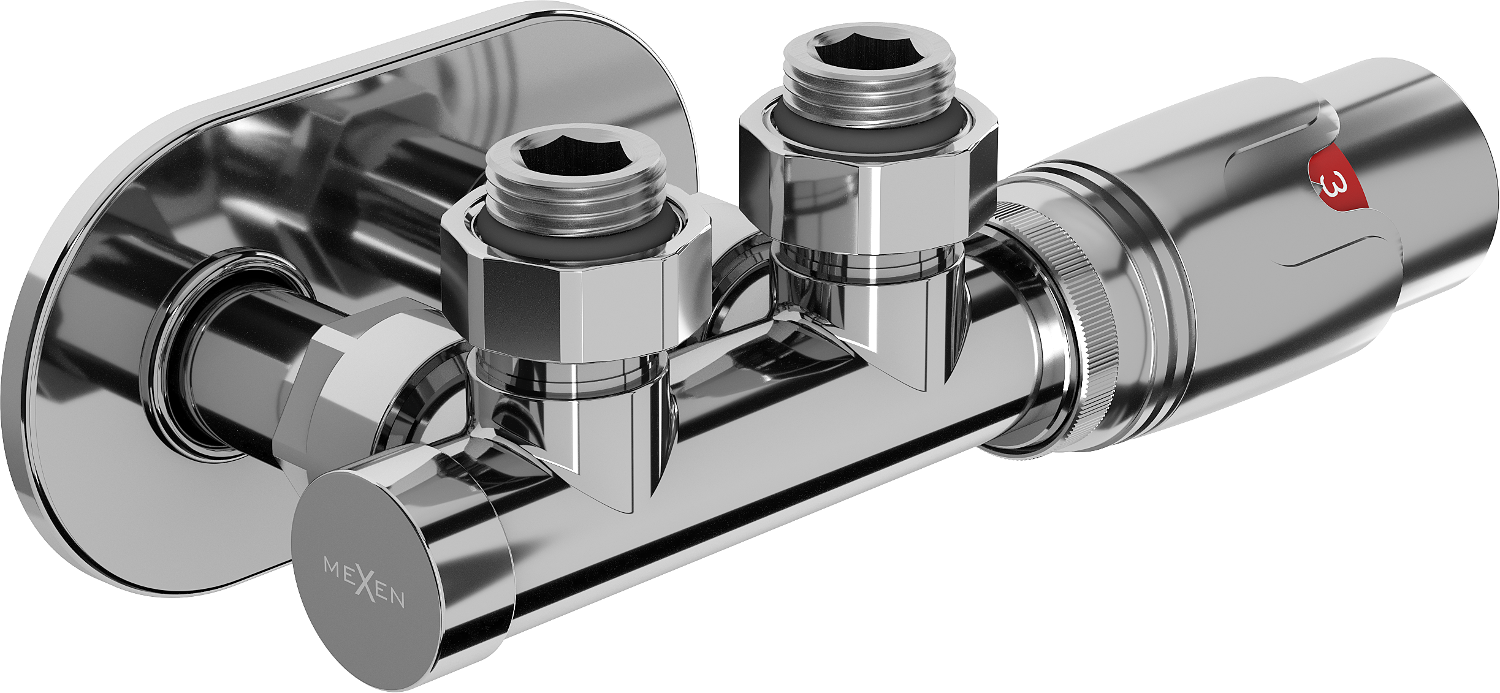

The Mexen G00 angled thermostatic set with R cover is a unique product characterized by high-quality craftsmanship. The valve material is brass, ensuring durability and resistance to corrosion. Its chrome appearance and elegant cover give it a modern look. The valve features a G 1/2" connection diameter and can operate at a maximum temperature of 120°C and pressure of 10 bar. Additionally, the ability to adjust temperature and freeze protection make it a functional and safe product to use.

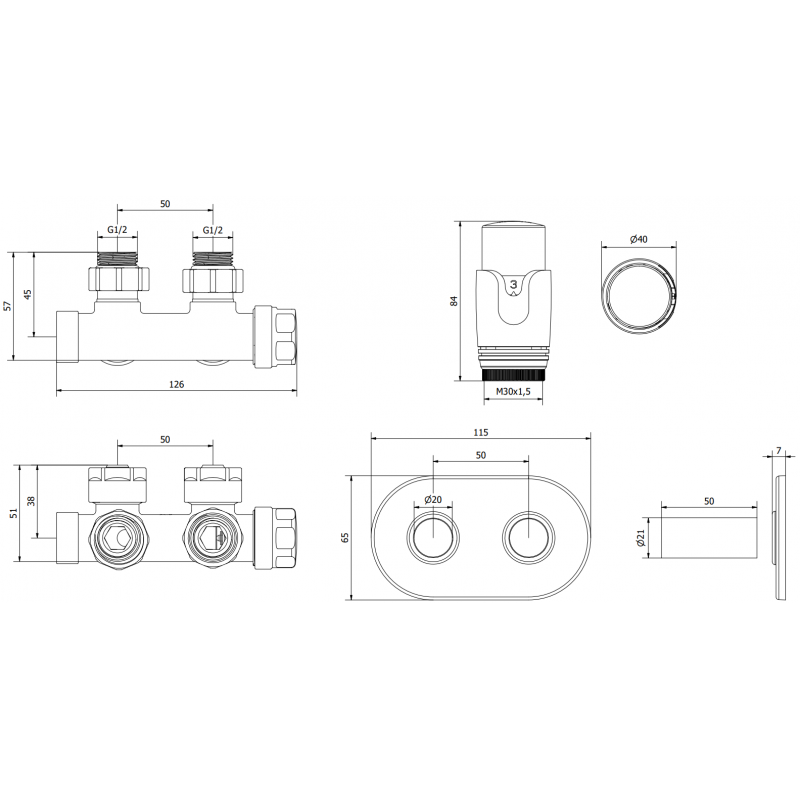

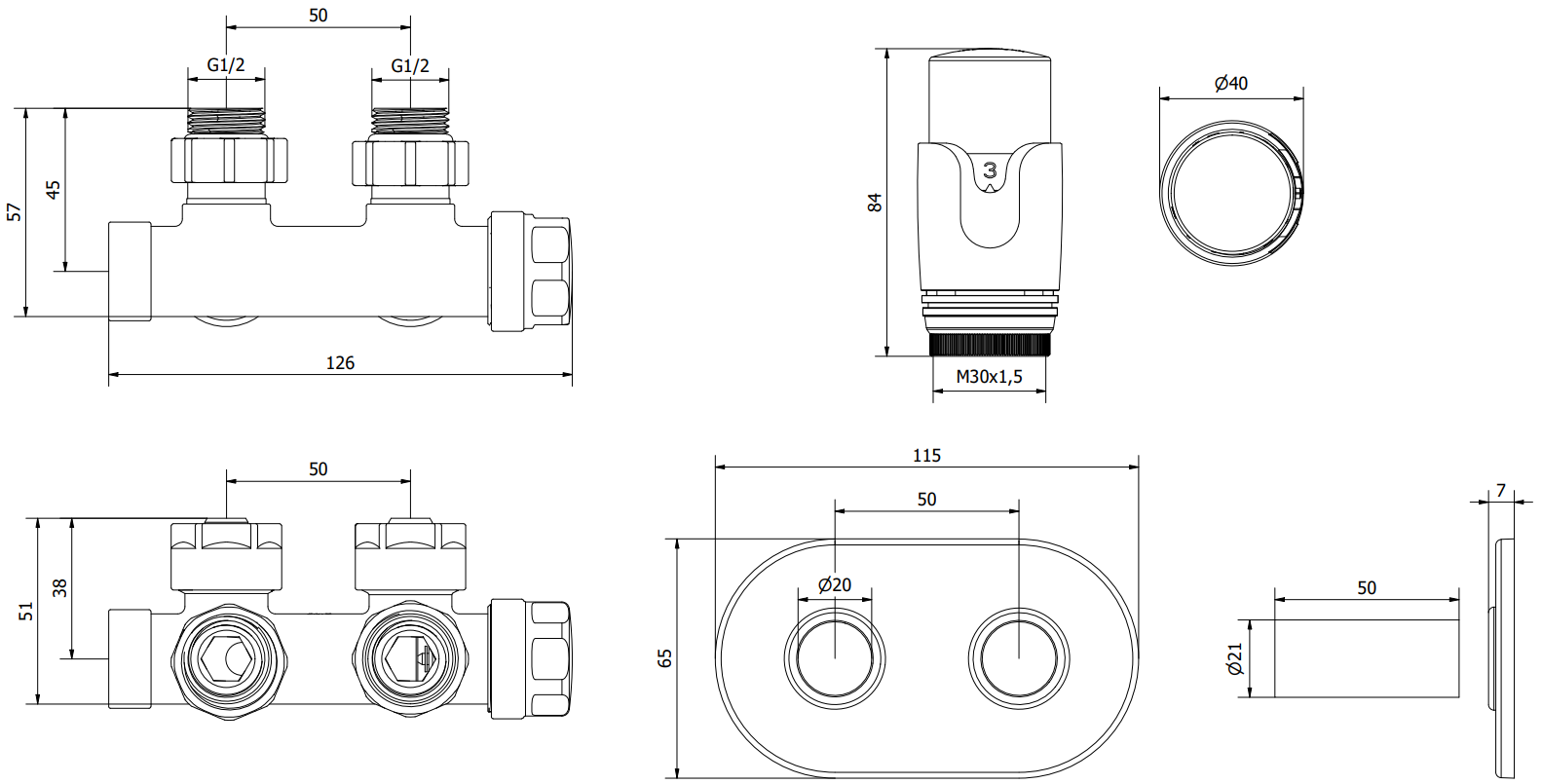

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head from the left or right side of the valve

Cover color: Chrome

Finish material: Stainless steel

Finish width: 115 x 65 mm

Finish height: 7 mm

Inner hole diameter: 21 mm

Socket material: Brass

Socket length: 50 mm

Socket inner diameter: 20 mm

Hole spacing for radiator connections: 50 mm

The cover consists of a double finish and two sleeves

Includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Angular
Colour
Chrome
Connection diameter
G 1/2"
Cover
Yes
