Mexen G00 Thermostatic Set Angled/Straight with R Cover, Duplex, DN50, White - W908-900-905-20

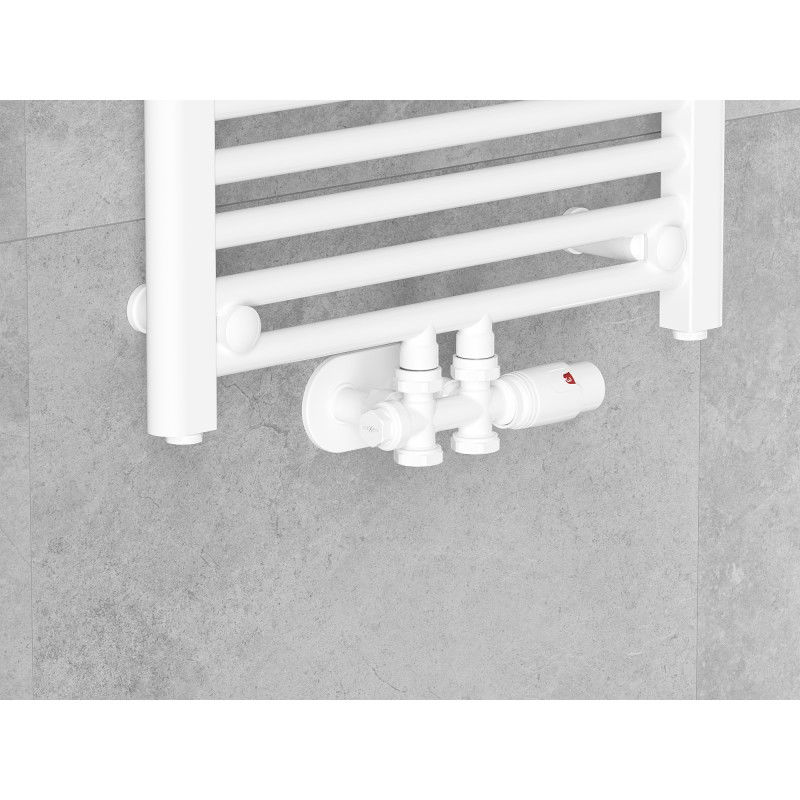

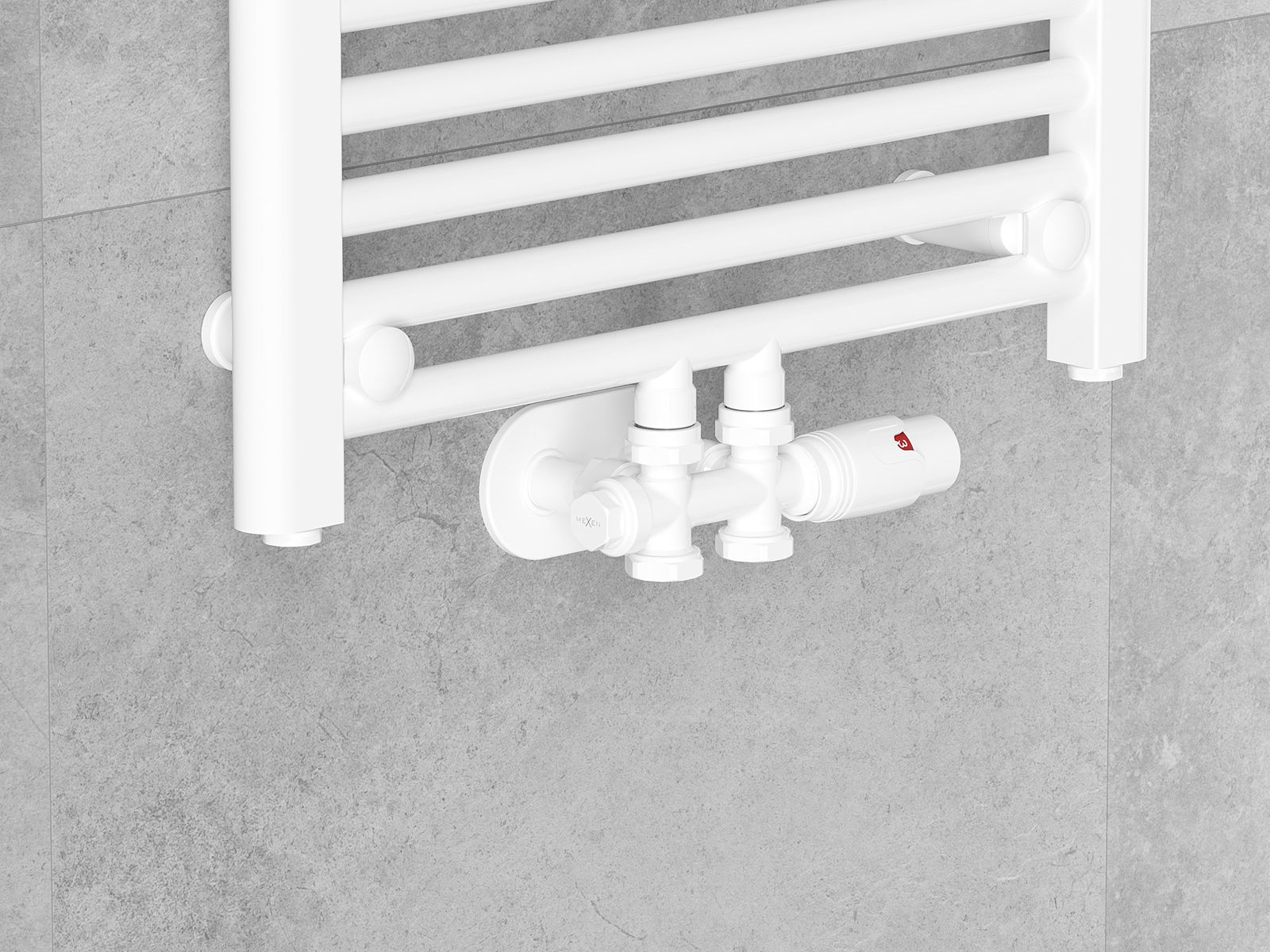

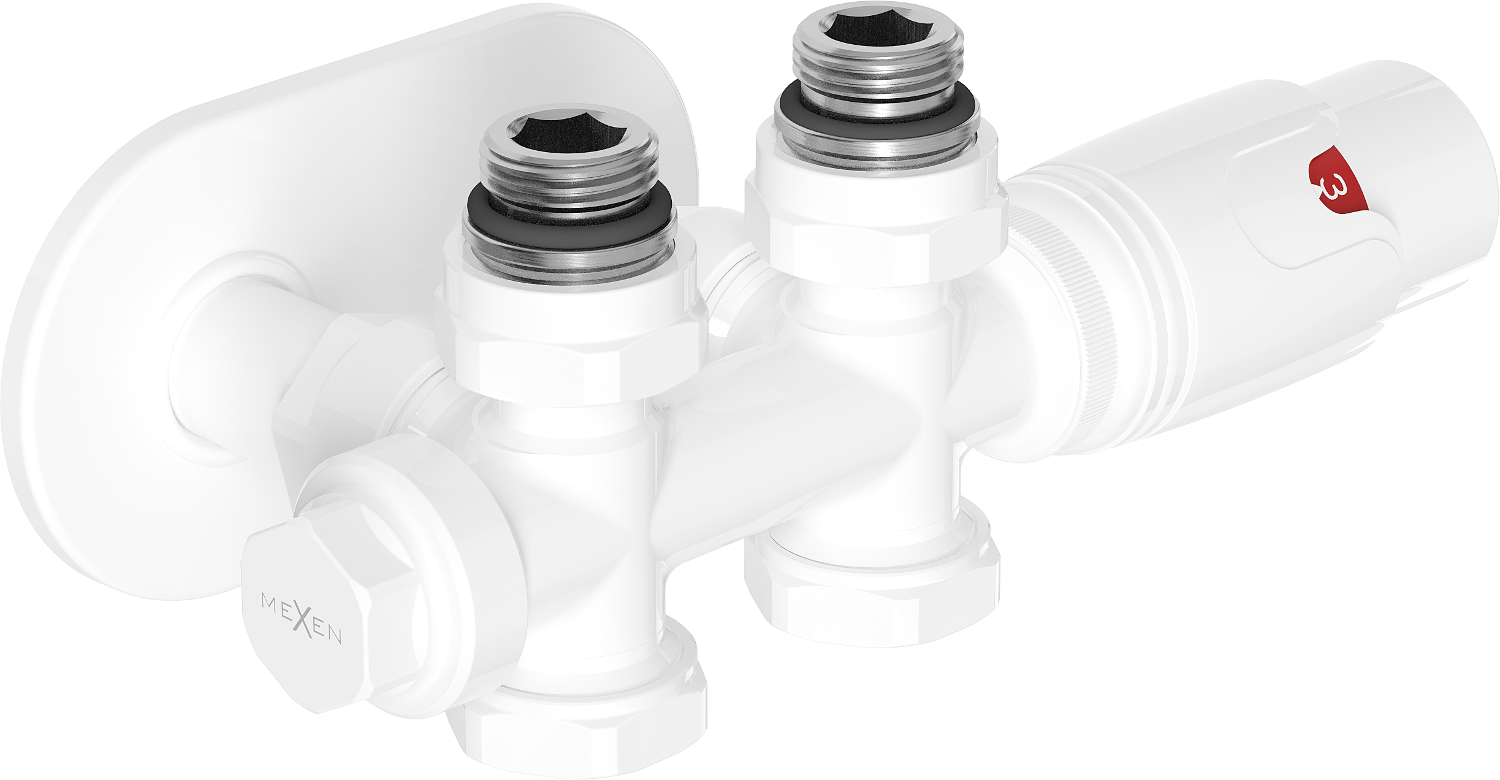

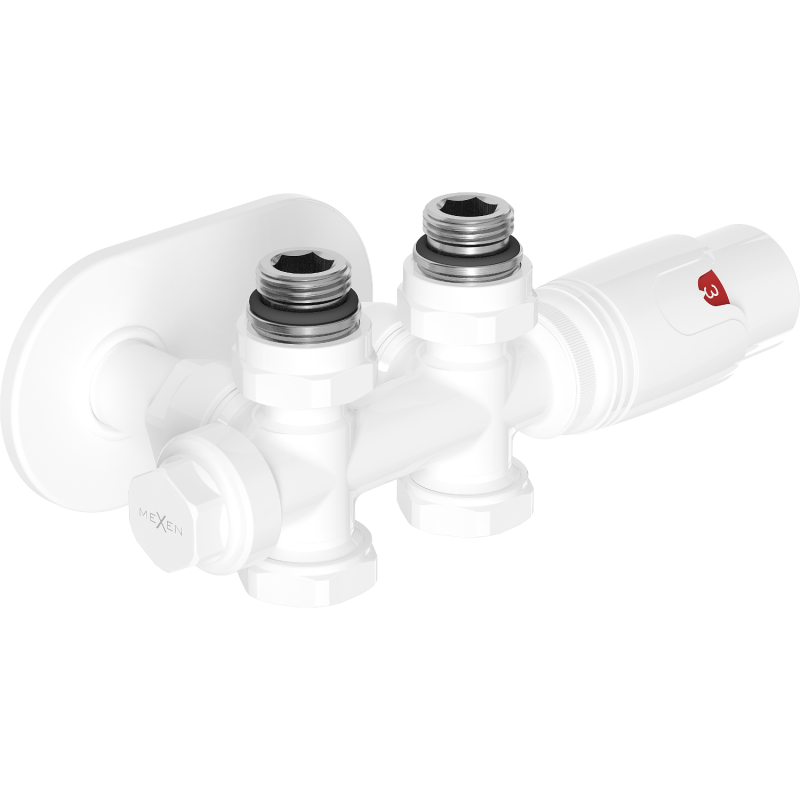

Mexen G00 is an angled/straight thermostatic set with a cover, ideal for various installations. Made from high-quality brass and stainless steel, it guarantees durability and reliability. The white colour blends perfectly with most interiors. Allows temperature regulation from 0-29°C, with a maximum operating temperature of 120°C. The set is easy to install thanks to universal angled and straight valves, as well as included connectors for multilayer and copper pipes.

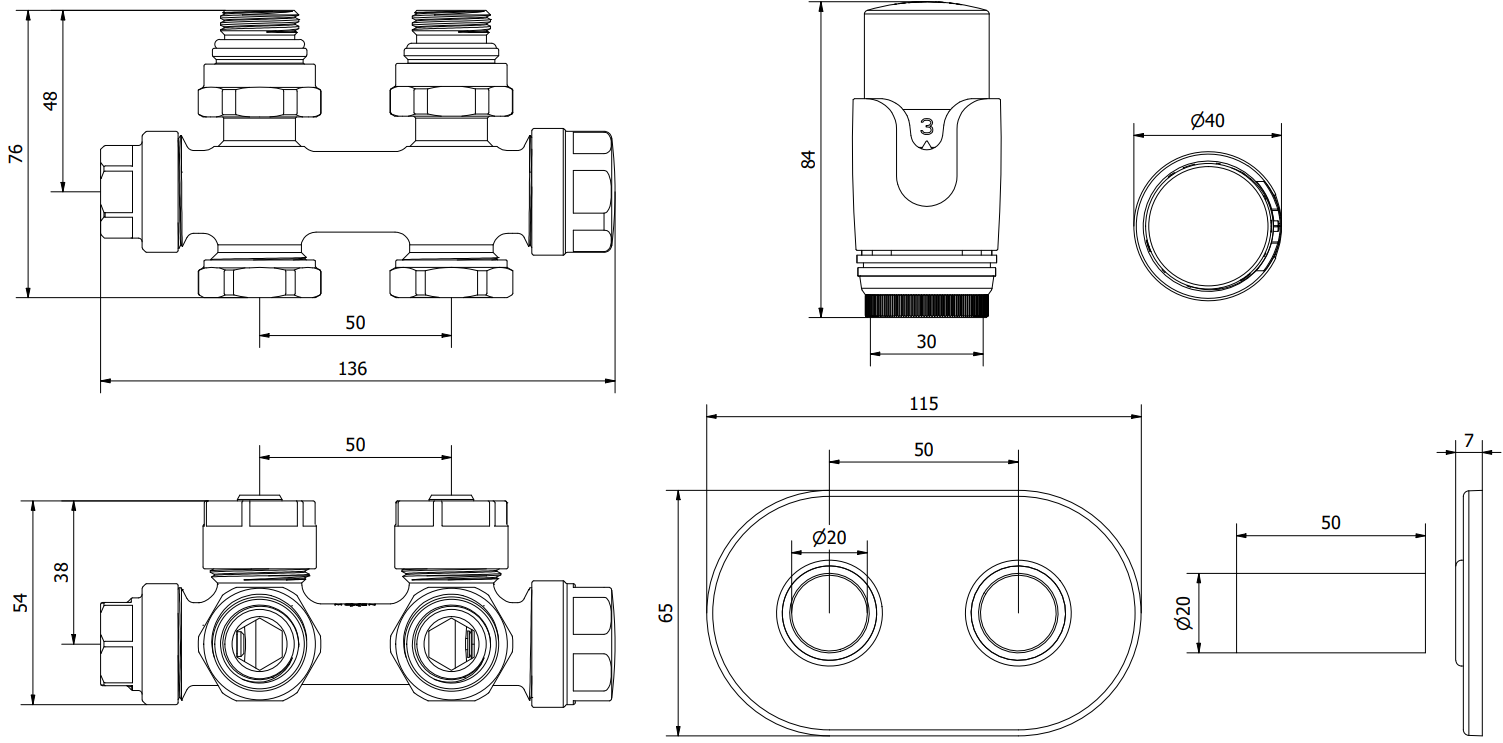

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Head can be connected on the left or right side of the valve

Cover colour: White

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner diameter of bushings: 20 mm

Spacing of radiator connection holes: 50 mm

Cover consists of a double rosette and two sleeves

Includes additional connectors for 16x2 mm multilayer pipes and 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections, regardless of connection being in the wall or floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Straight , Angular
Colour
White
Connection diameter
G 1/2"
Cover
Yes
