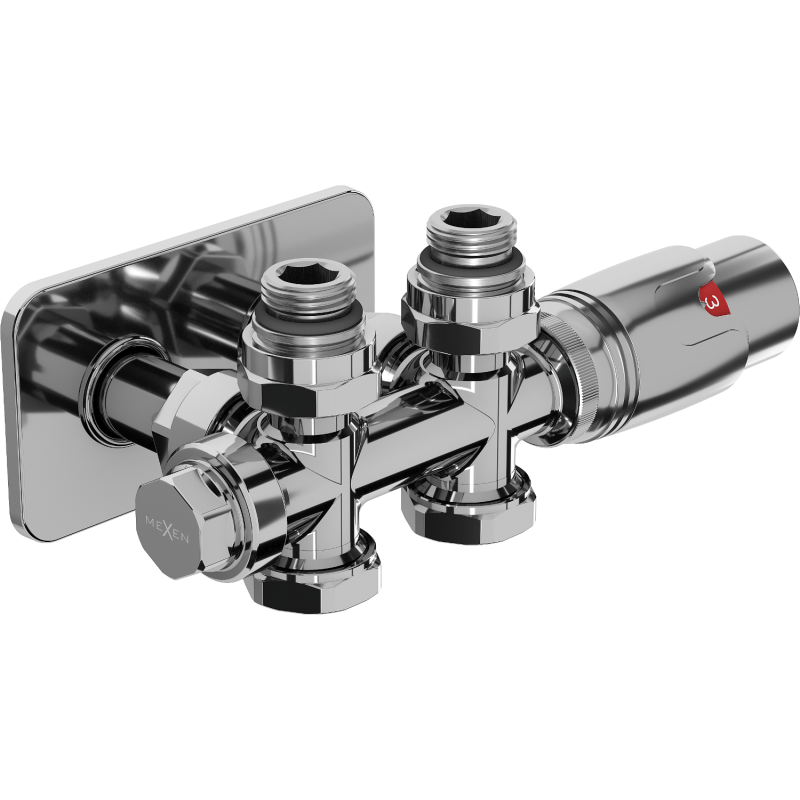

Mexen G00 angled/straight thermostatic set with S cover, Duplex, DN50, chrome - W908-900-910-01

Mexen G00 angled/straight thermostatic set with S cover, Duplex, DN50, chrome is distinguished by its high-quality workmanship and versatile application. Thanks to its brass valve material and chrome finish, it is durable and elegant. The valve's versatility allows it to be used in various configurations of angled and straight connections. Additional advantages include easy installation, frost protection, and the ability to adjust the temperature range from 0-29°C.

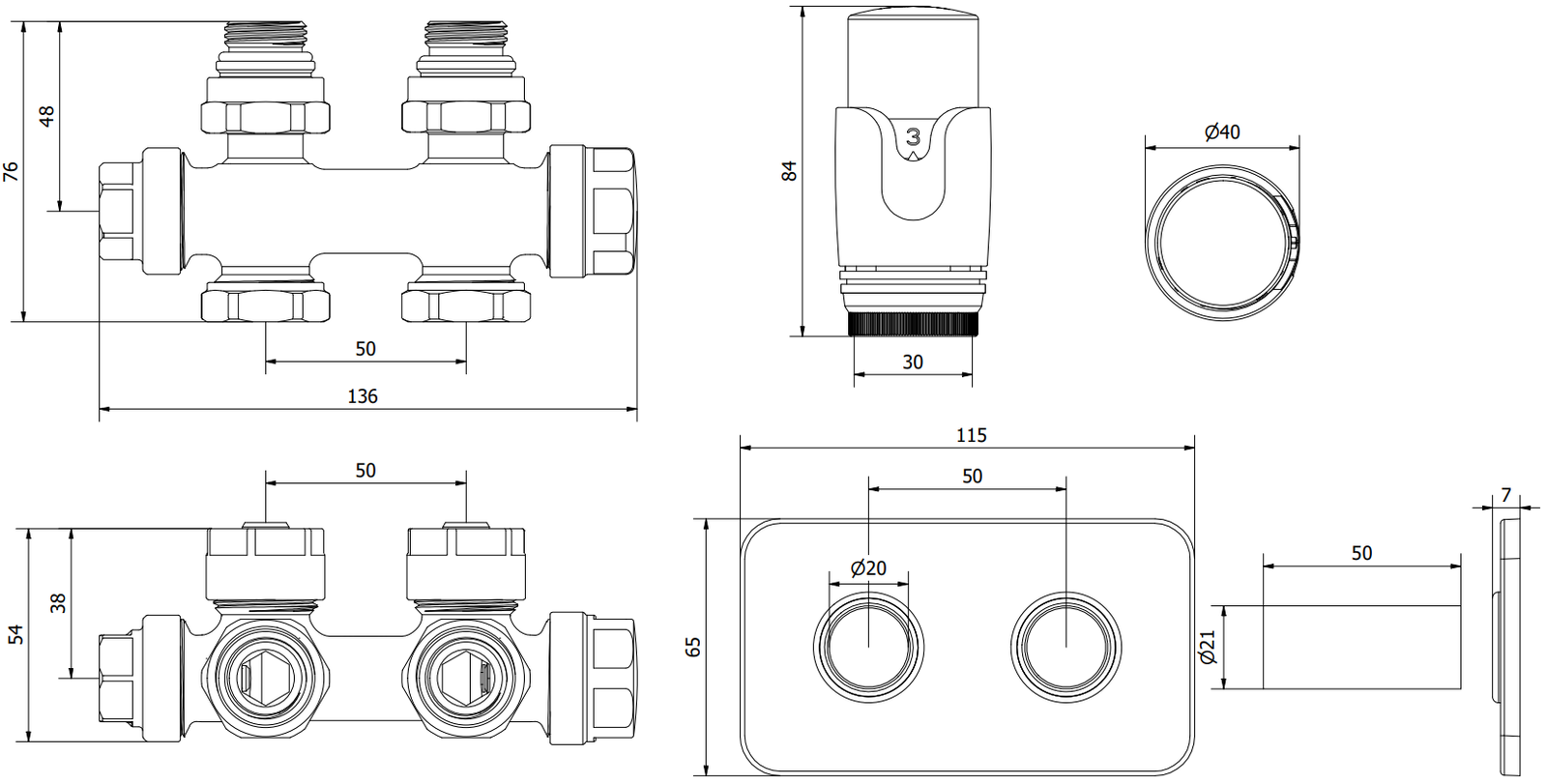

Technical data:

Valve material: Brass

Valve colour: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

50 mm bottom connection spacing

Head thread: M30 x 1.5 mm

Head colour: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Option to connect the head on the left or right side of the valve

Cover colour: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner diameter of bushings: 20 mm

Spacing of radiator connection holes: 50 mm

The cover consists of a double rosette and two bushings

Includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and shut-off valve for both angled and straight connections, regardless of whether the connection is in the wall or the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Straight , Angular
Colour
Chrome
Connection diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
