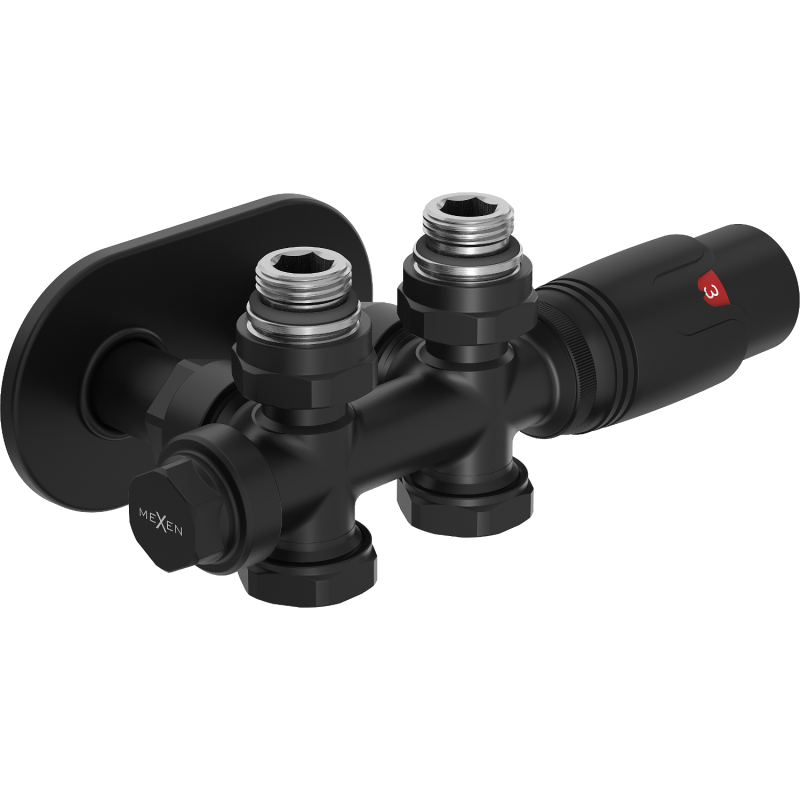

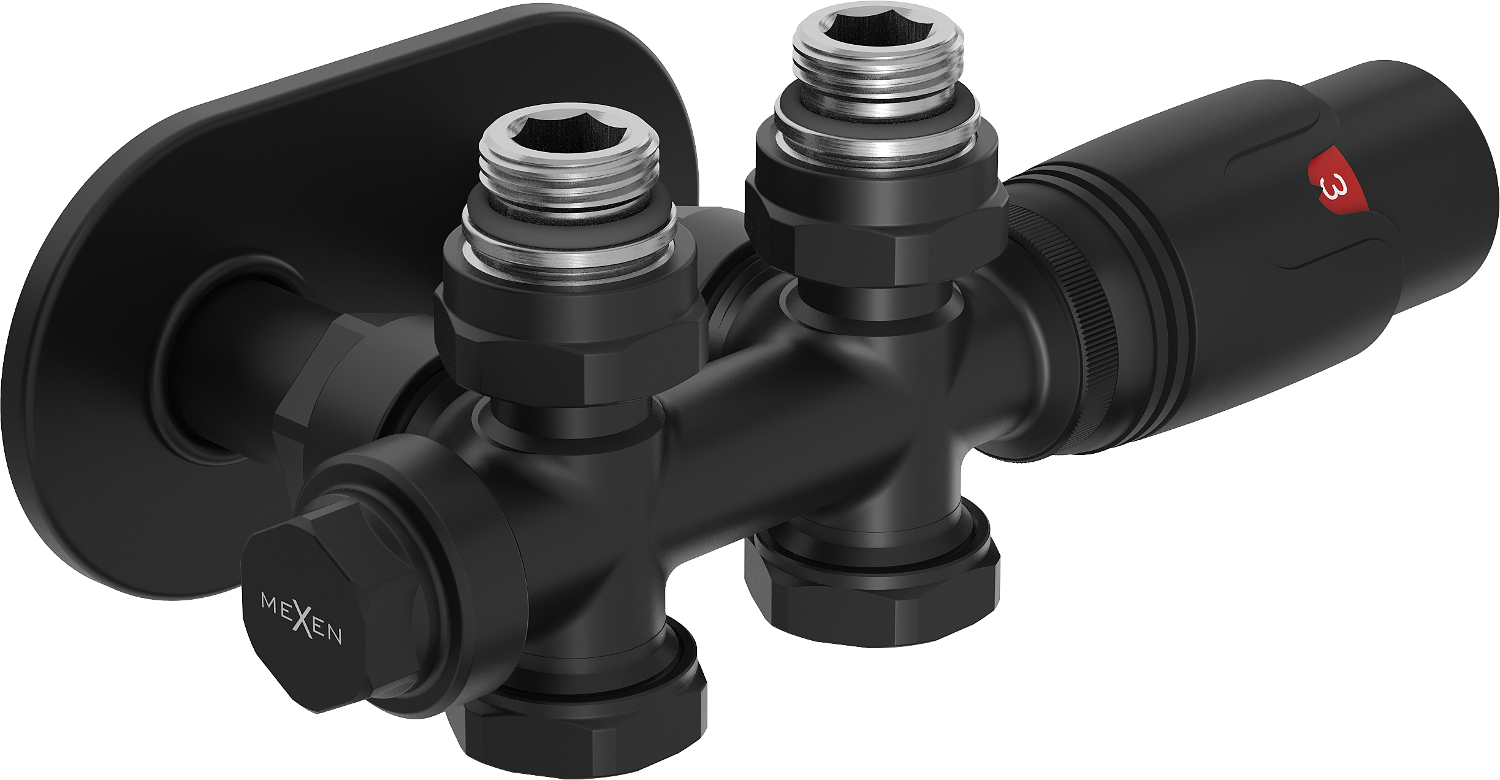

Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70

  • Mexen in Black
Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70
search
  • Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70
  • Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70
  • Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70
Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70
Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70 Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70 Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G00
Ean:
5905315237118
Index:
W908-900-905-70
Colour:
Black
Connection diameter:
G 1/2"
Type:
Straight
Type:
Angular
Colour - Black - ()

Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50, black - W908-900-905-70

Mexen G00 angled/straight thermostatic kit with R cover, Duplex, DN50 is an excellent choice for demanding users. Made of brass, it ensures durability and corrosion resistance, while the black colour gives it an elegant appearance. It supports a maximum operating temperature of up to 120°C and pressure up to 10 bar. A universal bottom connection with a spacing of 50 mm and the possibility of connecting the head from the left or right side of the valve increases its functionality. The set includes additional connectors for pipes.

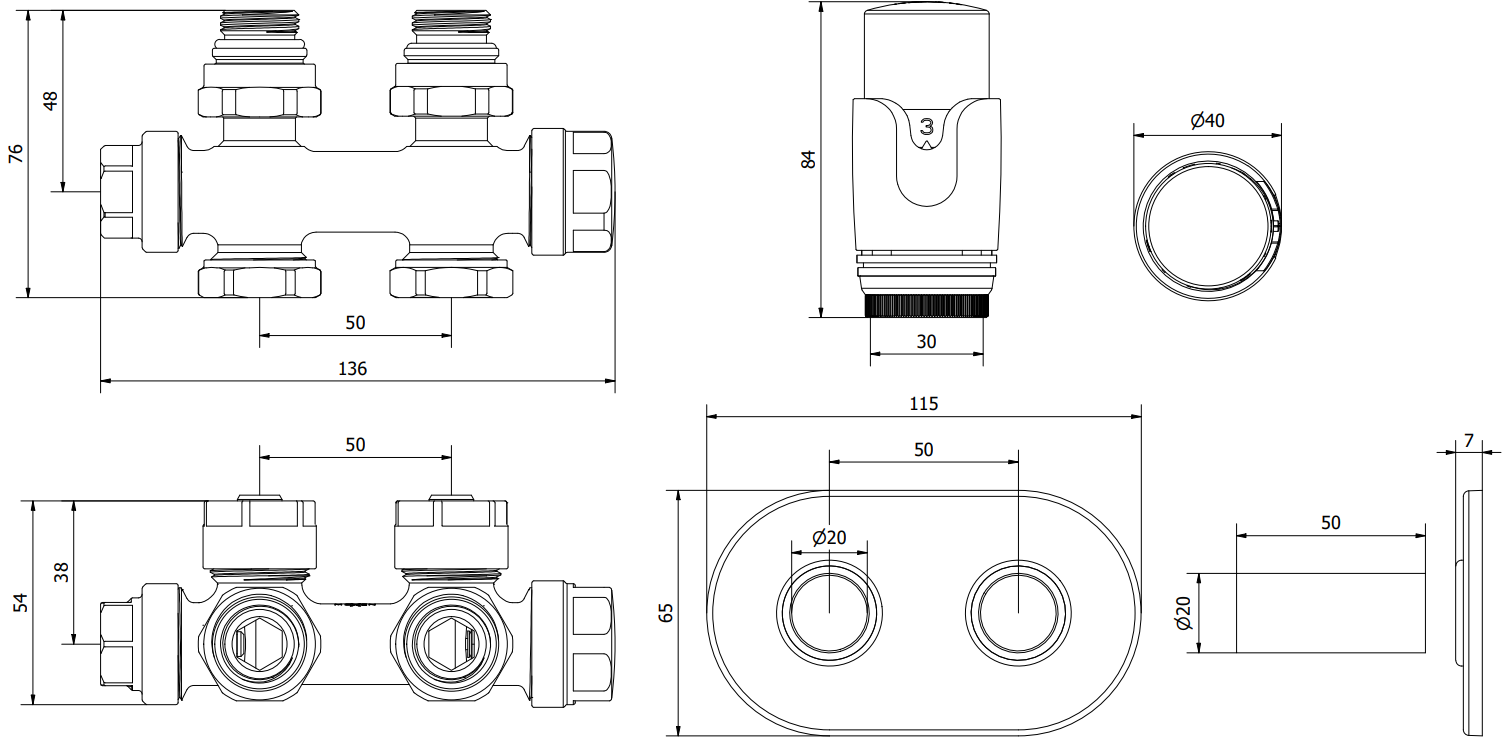

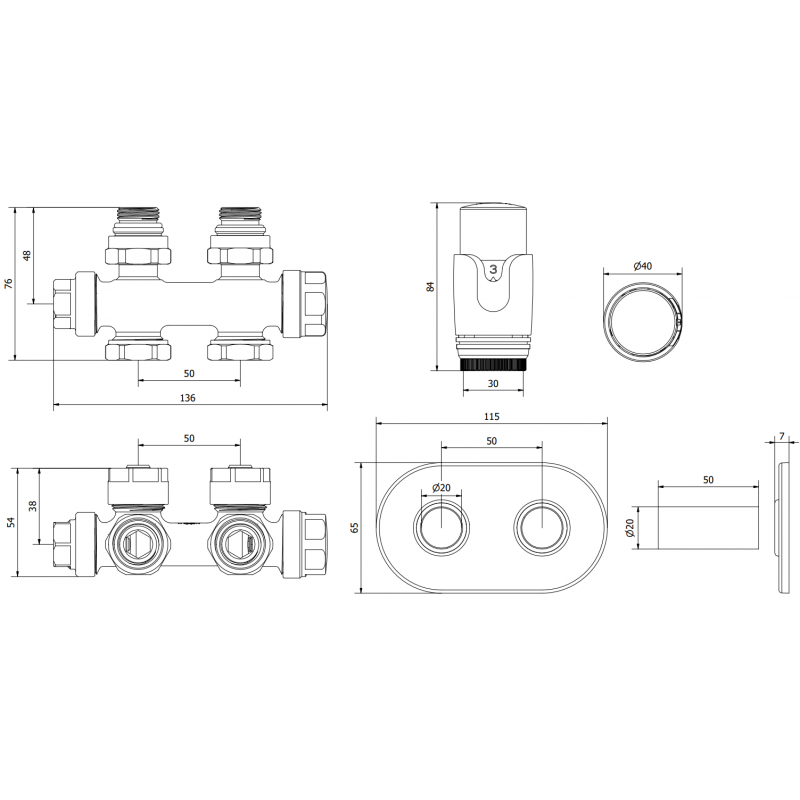

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover colour: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal diameter of the hole: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal diameter of the sleeves: 20 mm

Spacing of the holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Straight , Angular
Colour
Black
Connection diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
