Mexen G00 angled/straight thermostatic set with R cover, Duplex, DN50, chrome - W908-900-905-01

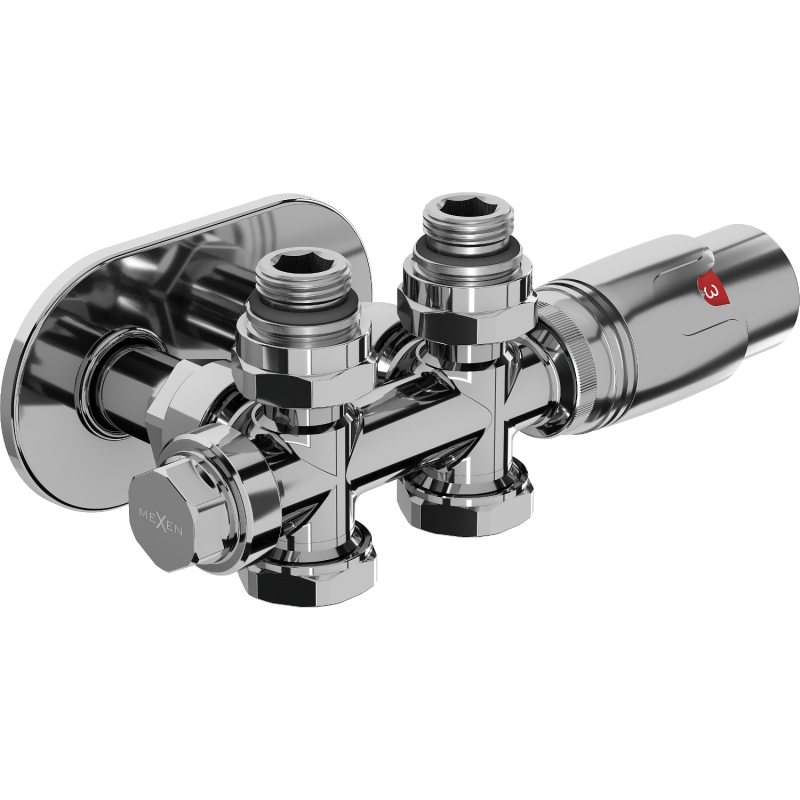

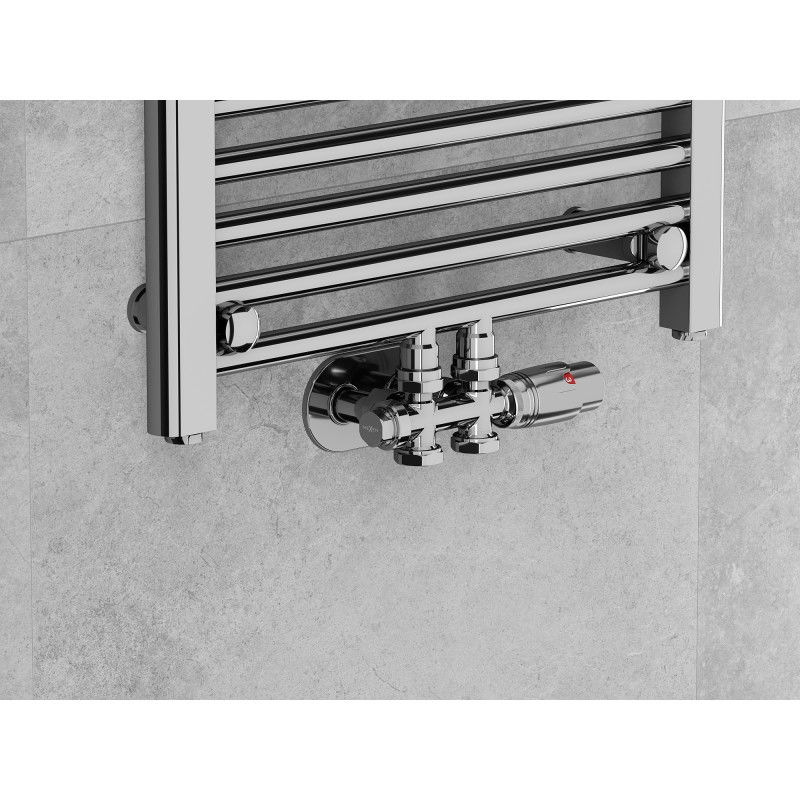

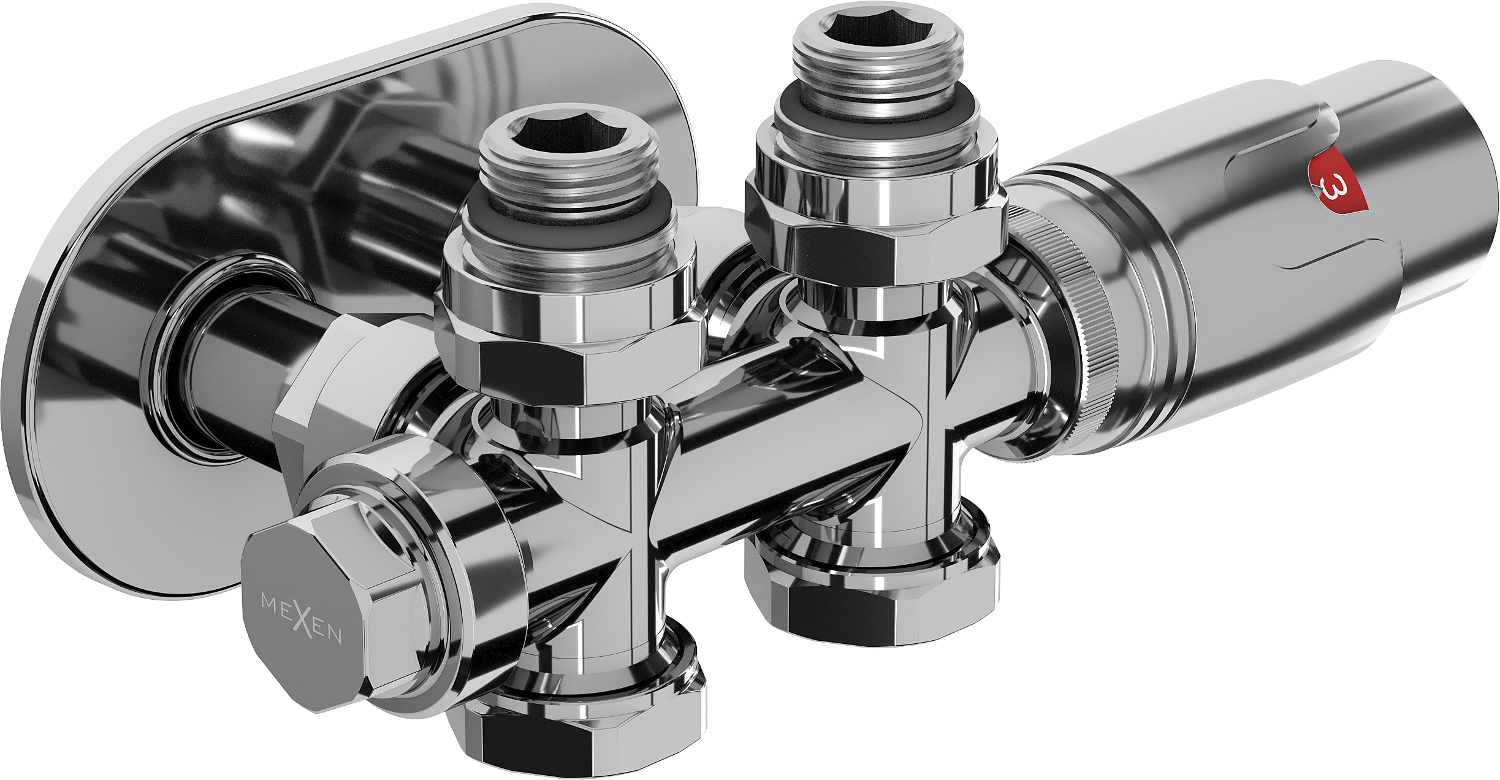

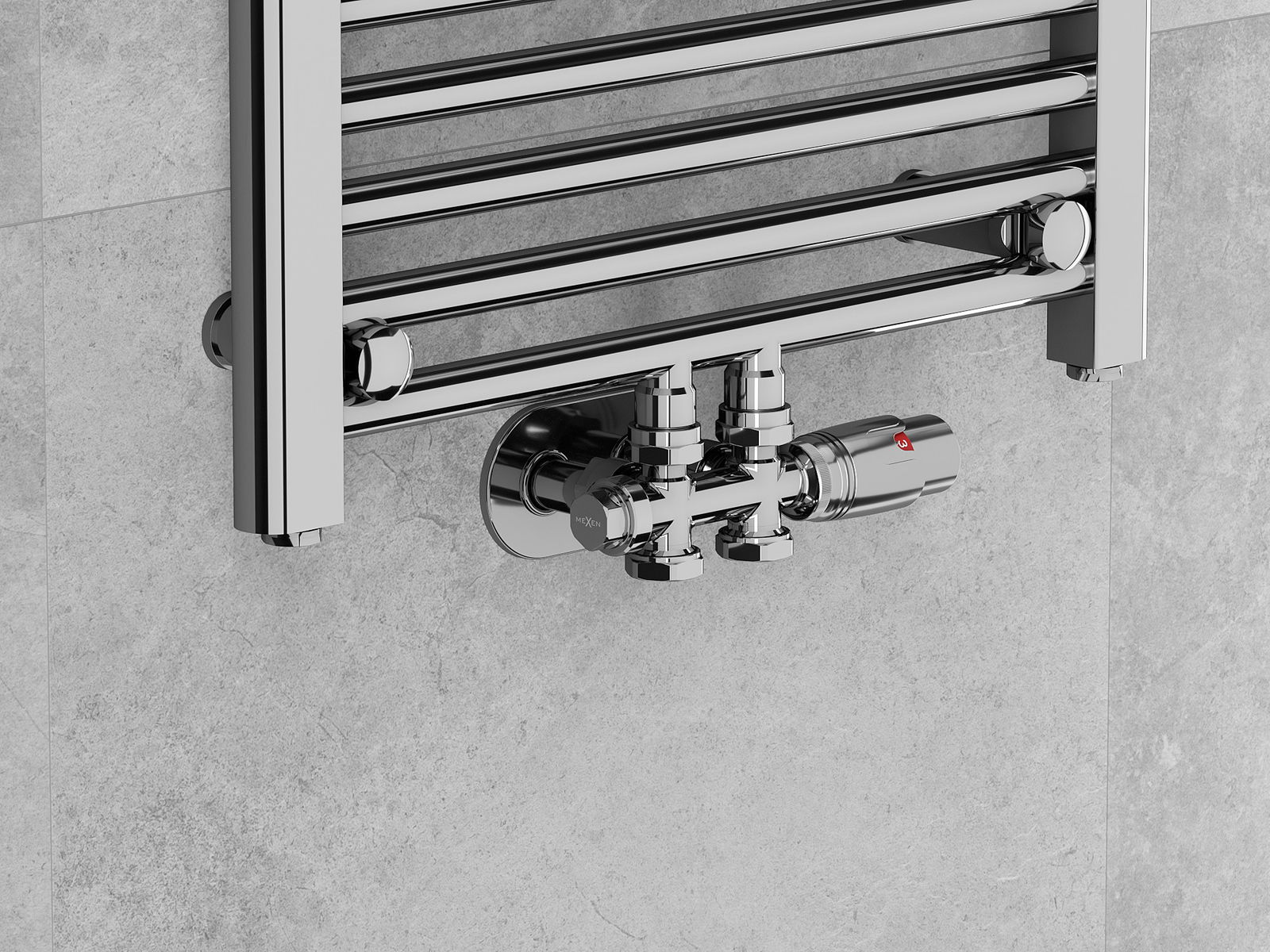

Mexen G00 is an advanced angled/straight thermostatic set with a cover. Made of brass, in an elegant chrome finish, it ensures high quality and durability. The valve has a connection diameter G 1/2", a maximum operating temperature of up to 120°C, and a working pressure of 10 bar. Thanks to the 50 mm connection spacing and the possibility to mount the head on the left or right side, Mexen G00 is universal and easy to install. Additionally, it features frost protection and comes with essential connectors.

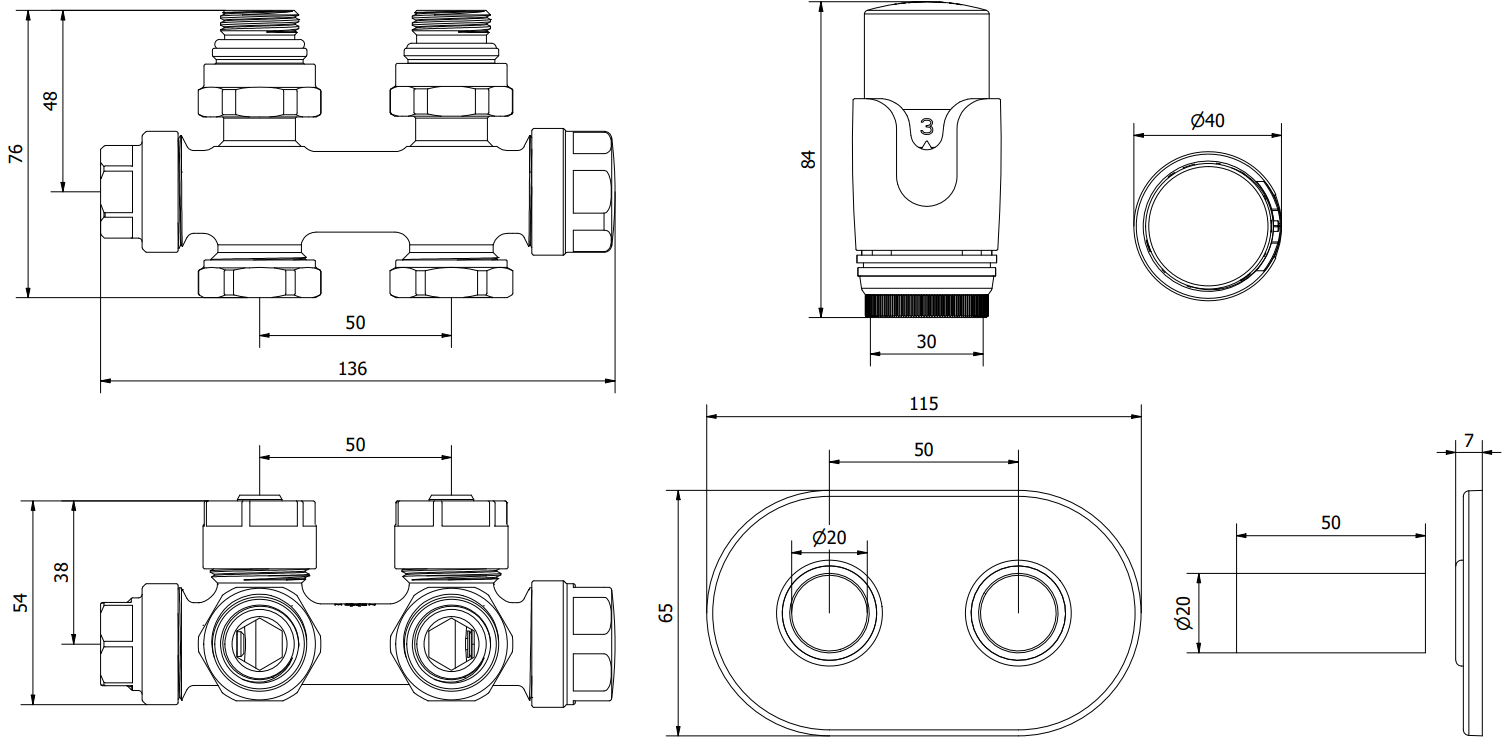

Technical data:

Valve material: Brass

Valve colour: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection spacing 50 mm

Head thread: M30 x 1.5 mm

Head colour: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Cover colour: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Diameter of the internal hole: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal diameter of sleeves: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional connectors for multi-layer pipes 16x2 mm and connectors for copper pipes 15 mm

Universal supply and shut-off valve for angled and straight connections, whether the connection is in the wall or the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.
