Mexen G00 angled/straight thermostatic set with S cover, Duplex, DN50, gold - W908-900-910-50

Mexen G00 thermostatic set offers exceptional functionality by combining a straight and angled valve, providing installation versatility. Made of brass and finished in an elegant gold colour, it gives the interior a luxurious look. The set includes a cover with a stainless steel rosette, which adds aesthetics. The product supports connections with a G 1/2" diameter and operates within a wide range of temperatures (0-29°C) and pressures. The thermostatic valve protects against freezing and allows for precise temperature regulation, offering safety and comfort.

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

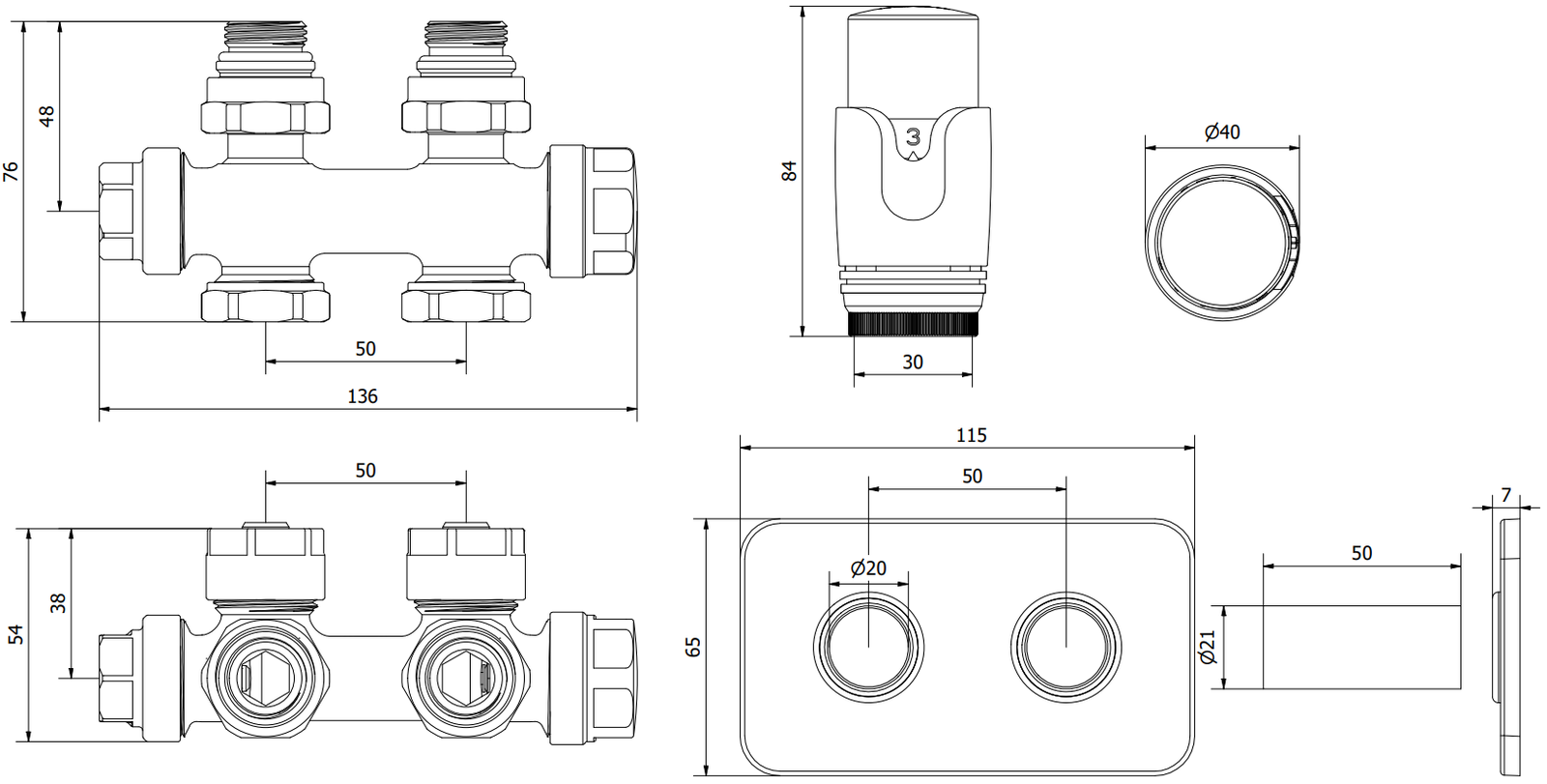

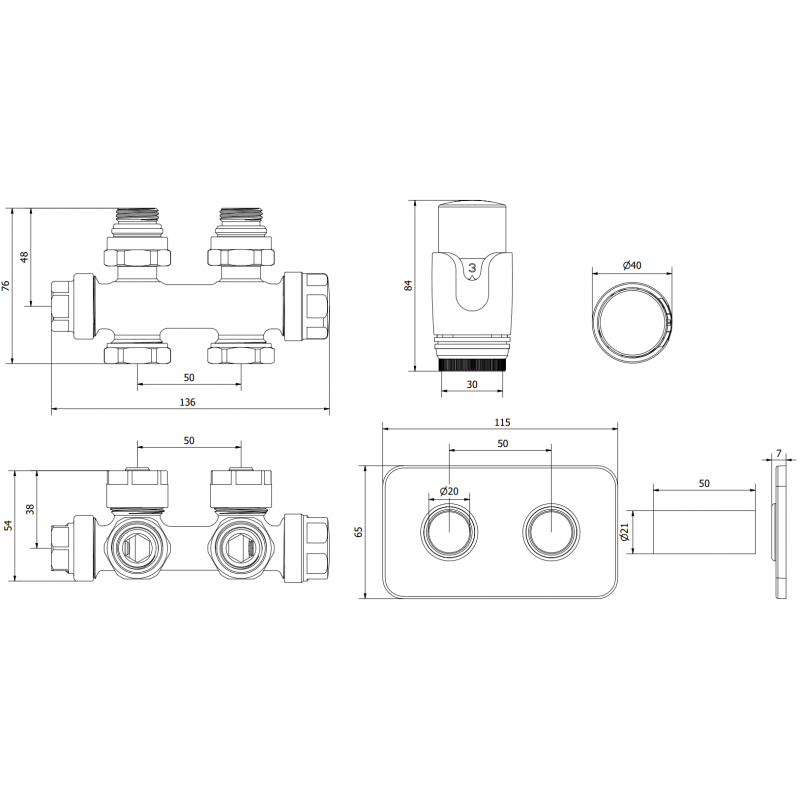

Bottom connection distance: 50 mm

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head on the left or right side of the valve

Cover colour: Gold

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner diameter of the sleeves: 20 mm

Spacing of the holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for multi-layer pipes 16x2 mm and connectors for copper pipes 15 mm

Universal supply and cut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.
