Mexen G00 axial thermostatic set with S cover, black - W903-900-909-70
Mexen G00 axial thermostatic set with S cover, black - W903-900-909-70 Mexen G00 axial thermostatic set with S cover, black - W903-900-909-70 Mexen G00 axial thermostatic set with S cover, black - W903-900-909-70
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G00
Ean:
5905315237262
Index:
W903-900-909-70
Colour:
Black
Connection diameter:
G 1/2"
Type:
Axial
Series:
G00
Colour - Black - ()

Mexen G00 axial thermostatic set with S cover, black - W903-900-909-70

The Mexen G00 axial thermostatic set with S cover, black, stands out for its durability due to its brass and stainless steel construction. The black colour of the valves and cover adds elegance. The set offers precise temperature control from 0-29°C, with frost protection. The maximum operating temperature is 120°C, and the working pressure is 10 bars. The set includes a radiator supply and shut-off valve, providing a comprehensive solution for your heating system.

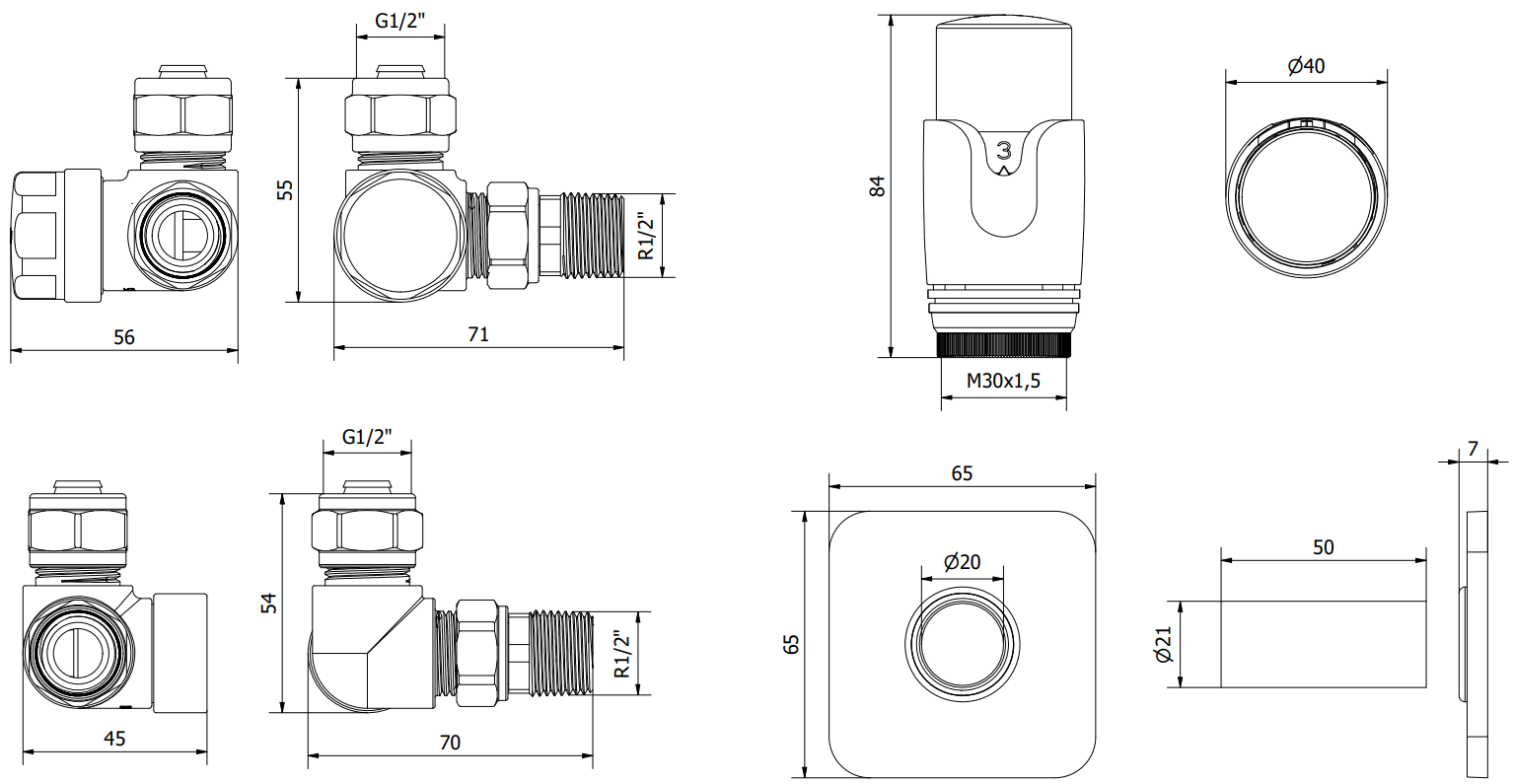

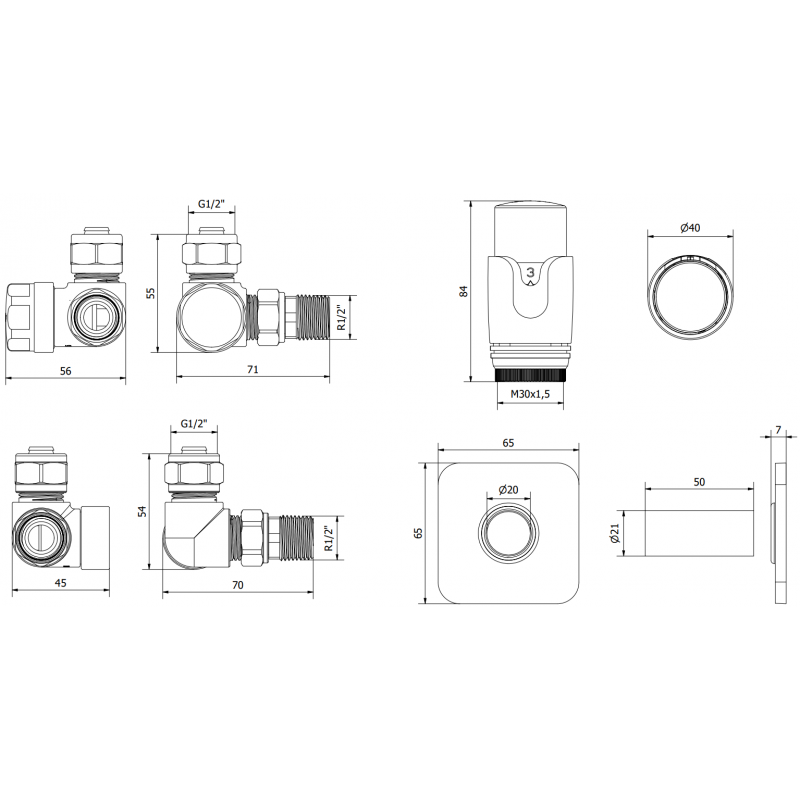

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Black

Rosette material: Stainless steel

Rosette width: 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Ferrule material: Brass

Ferrule length: 50 mm

Ferrule internal diameter: 20 mm

The cover consists of two single rosettes and a ferrule

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Axial
Colour
Black
Connection diameter
G 1/2"
Cover
Yes
