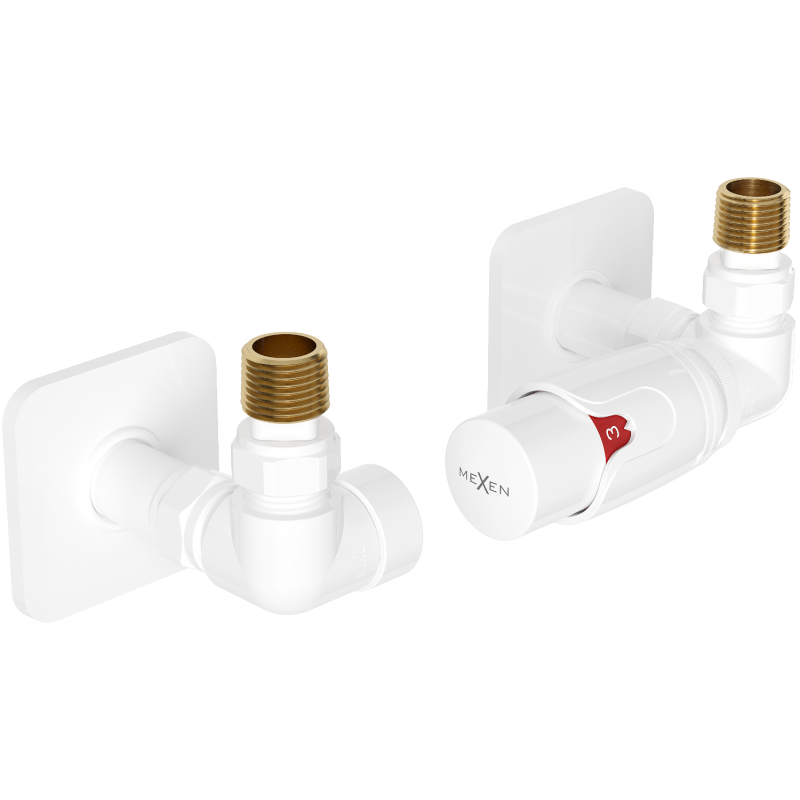

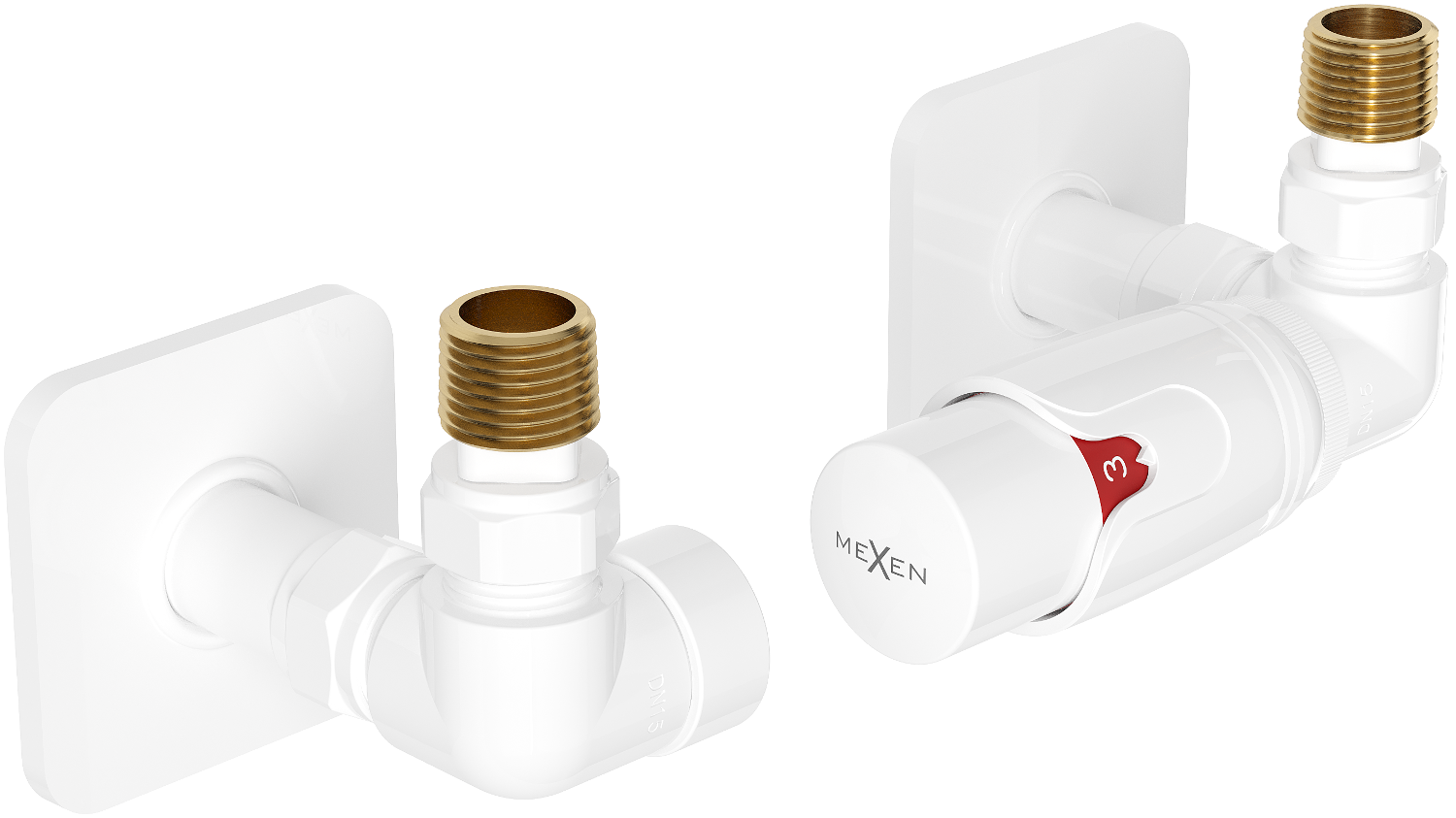

Mexen G00 axial thermostat set with S cover, white - W903-900-909-20

The Mexen G00 axial thermostat set with S cover, white, is the perfect solution for modern interiors. Made from brass, it ensures durability and resistance to high temperatures (up to 120°C) and pressure (up to 10 bar). The white colour of the valves and cover blends well with any decor. The M30 x 1.5 mm head thread and easy temperature adjustment in the range of 0-29°C enhance functionality. Additional frost protection at 5°C guarantees trouble-free use in all conditions.

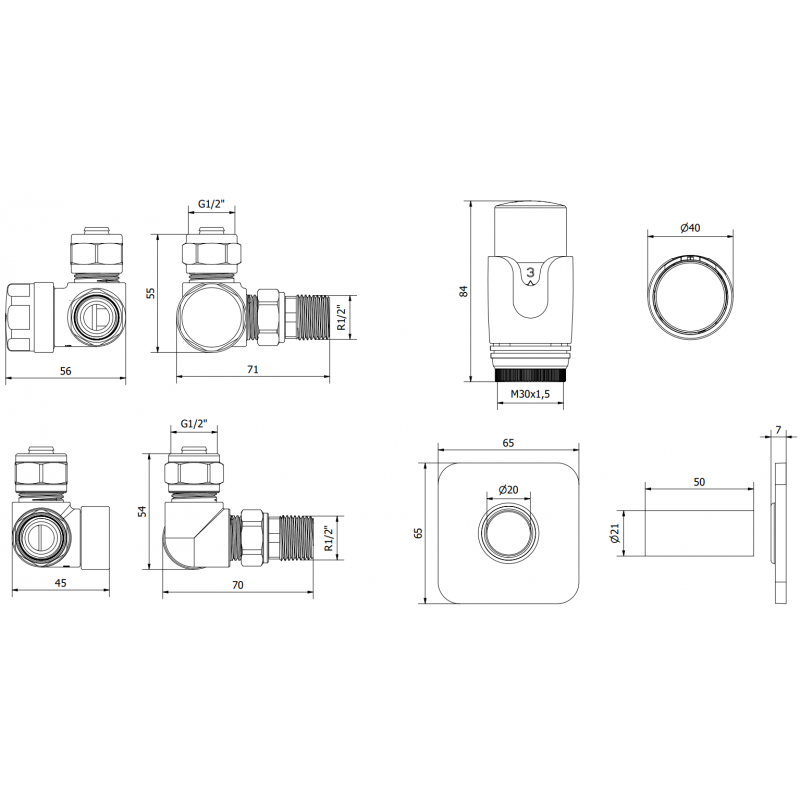

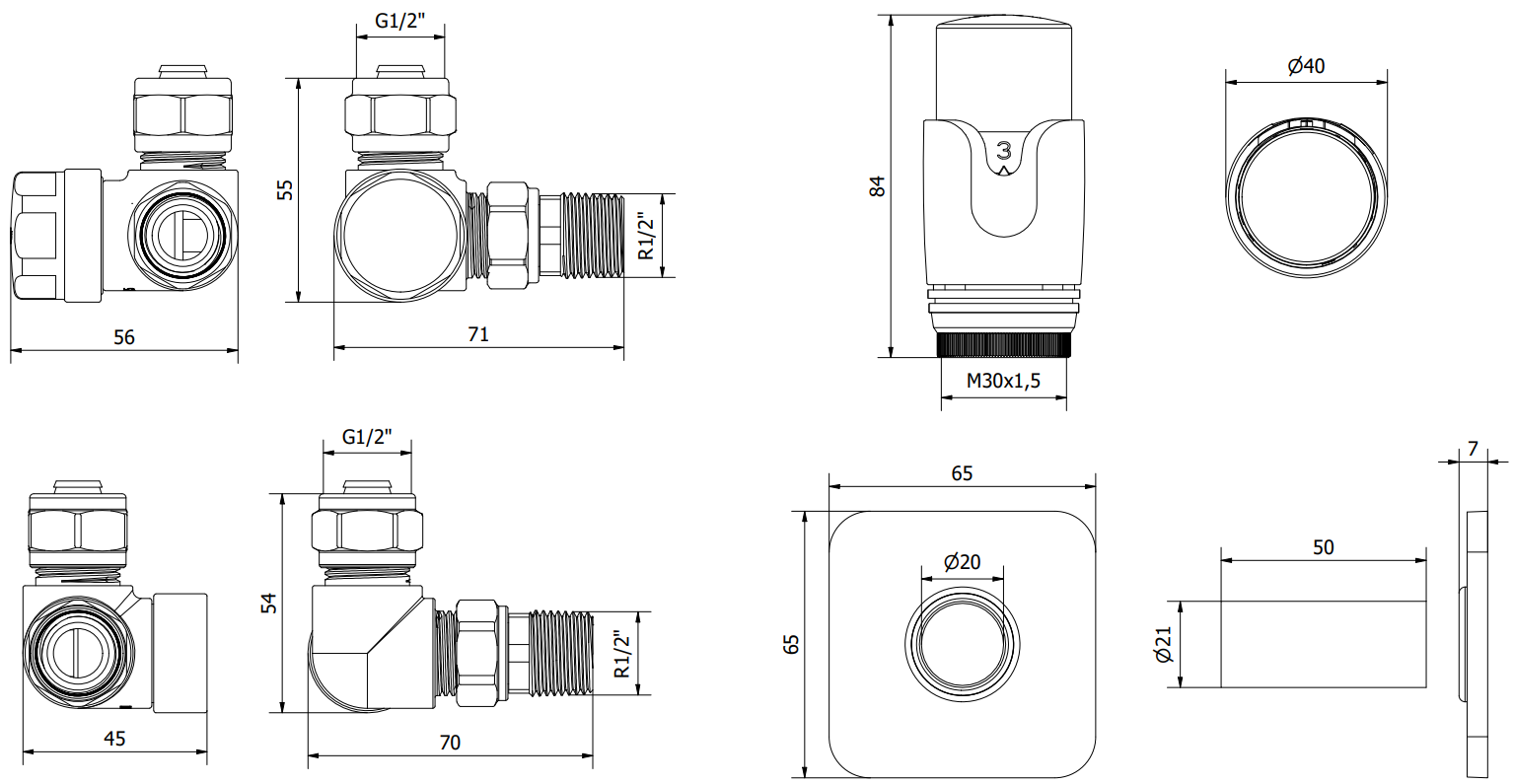

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: White

Rosette material: Stainless steel

Rosette width: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

The cover consists of two single rosettes and sleeves

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Axial
Colour
White
Connection diameter
G 1/2"
Cover
Yes
