Technical data:

Height (Y): 2000 mm

Width (X): 500 mm

Depth: 80 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 616 W

- 75/65/20 °C 1181 W

- 90/70/20 °C 1490 W

Connections:

- 2xG ½” bottom middle

- 4xG ½” side

High quality, durable paint coating - DIN 99500

Included: hangers, mounting set, sealing plugs, and air vent

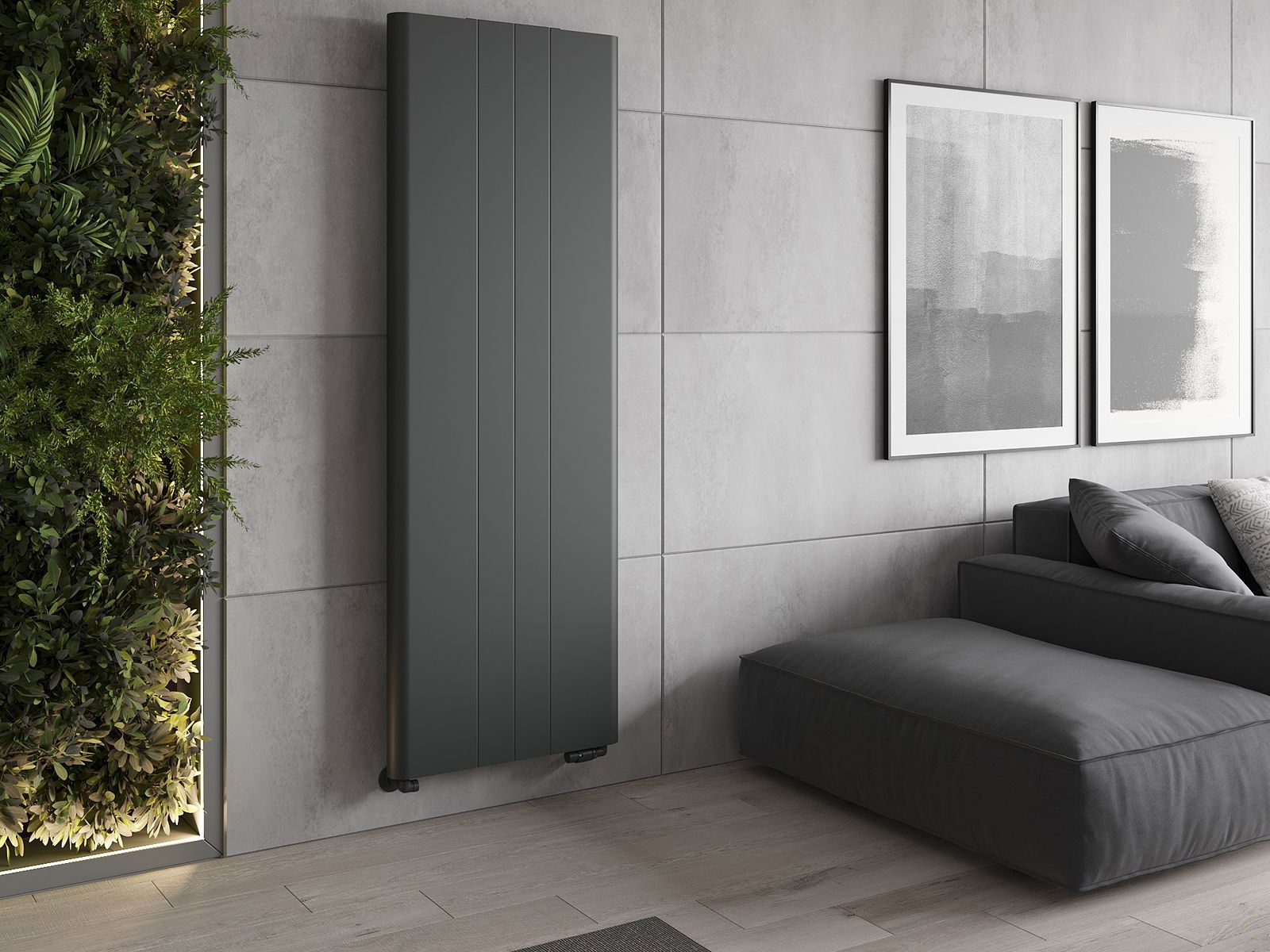

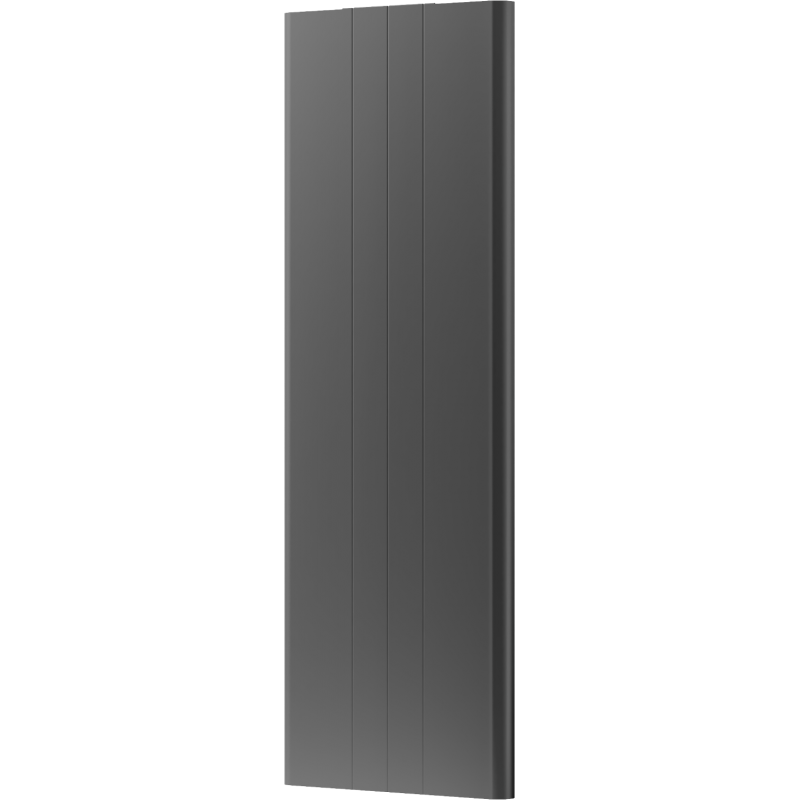

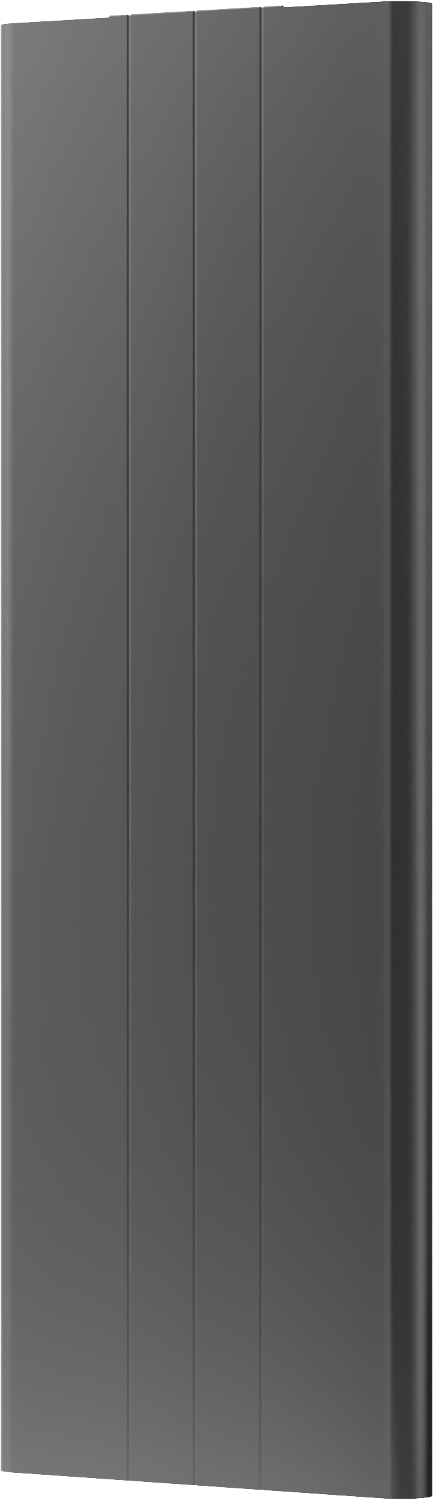

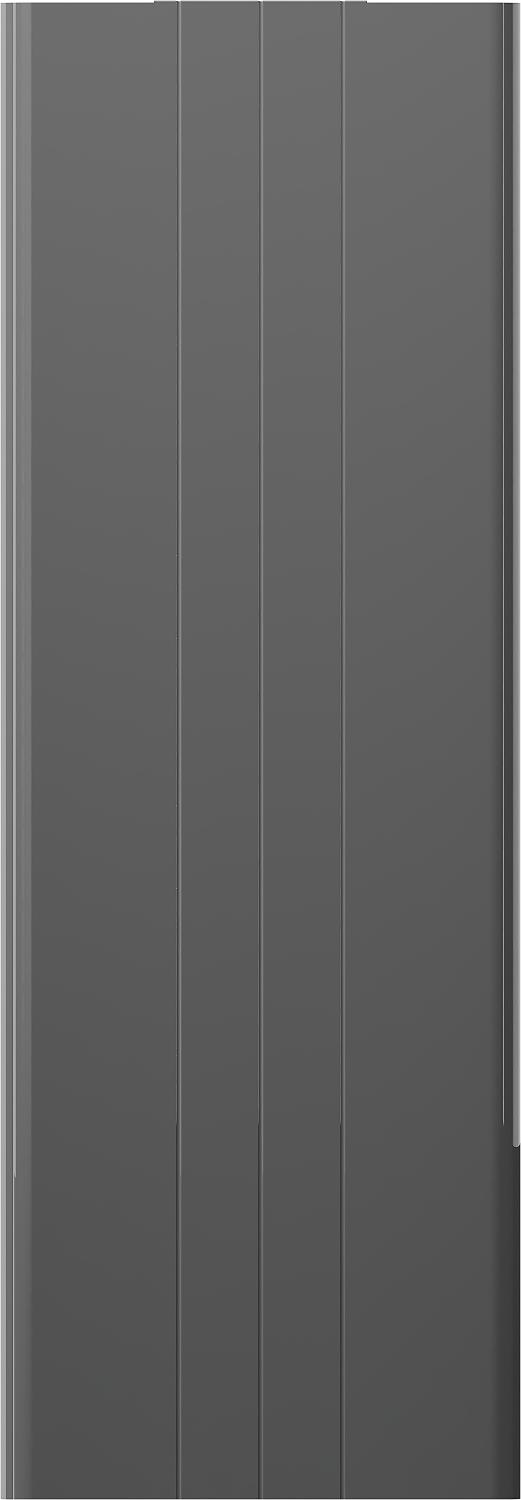

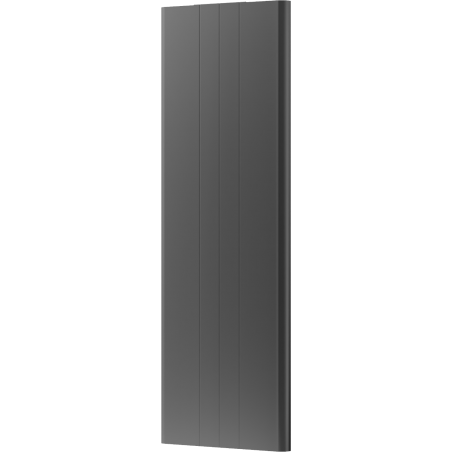

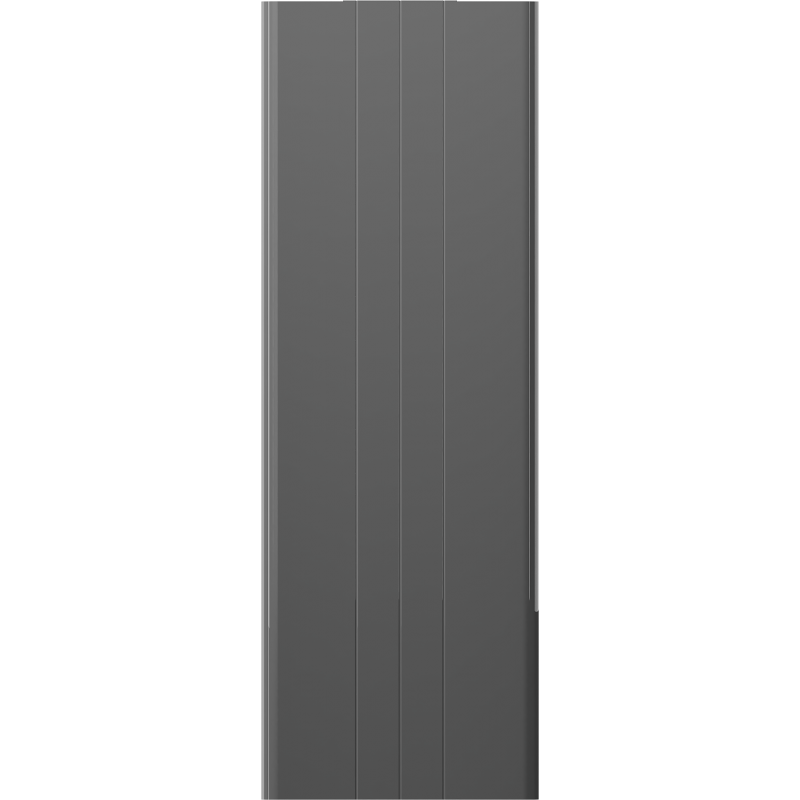

Images depict the heater in the size of 600 x 1800 mm.

Innovative solutions used in this product

steel

The product was made of high quality low -carbon steel, which not only affects the long life of the device and corrosion resistance, but also allows you to quickly heat the room and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technologies, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, which increases the comfort of use.

Paint coating: DIN 99500

The high-quality, durable paint finish combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

1 MPa

The maximum working pressure is 1 MPa (10 bar). This means that the radiator can work safely and effectively in standard conditions of use. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110 ° C

The maximum temperature achieved by the radiator during operation is 110 ° C. It allows for effective and efficient heating of the room, while ensuring the safety of users and the surface of the surrounding radiator.

Resistance to matting and corrosion

The product is made of high quality materials resistant to matting and corrosion, thanks to which it maintains its attractive appearance and functionality for a long time, regardless of the level of humidity in the room.

10 years of warranty

The product is covered by a 10-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Width
500 mm
Height
2000 mm
Type
Panel / Panel
Heating power
1181 W
Color
Anthracite
Material
Steel
Type
20
Strength
Universal
Depth
80 mm
Connection spacing
5 cm
Connection
Lower Middle
Orientation
Vertical
