Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66
Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66 Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66 Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66 Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66 Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66 Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66 Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66
Ceramic Head Ceramic Head
Thermostat Thermostat
Block 38°C Block 38°C
Brand:
Mexen
Series:
Cube
Ean:
5907709136441
Index:
77502DR0230-66
Shape:
Square
Color:
Brushed Gun Gray
With thermostat:
Yes
Battery:
2-output
Color - Brushed Gun Gray - ()

Mexen Cube DR02 concealed shower set with a 30 cm rain showerhead, graphite - 77502DR0230-66

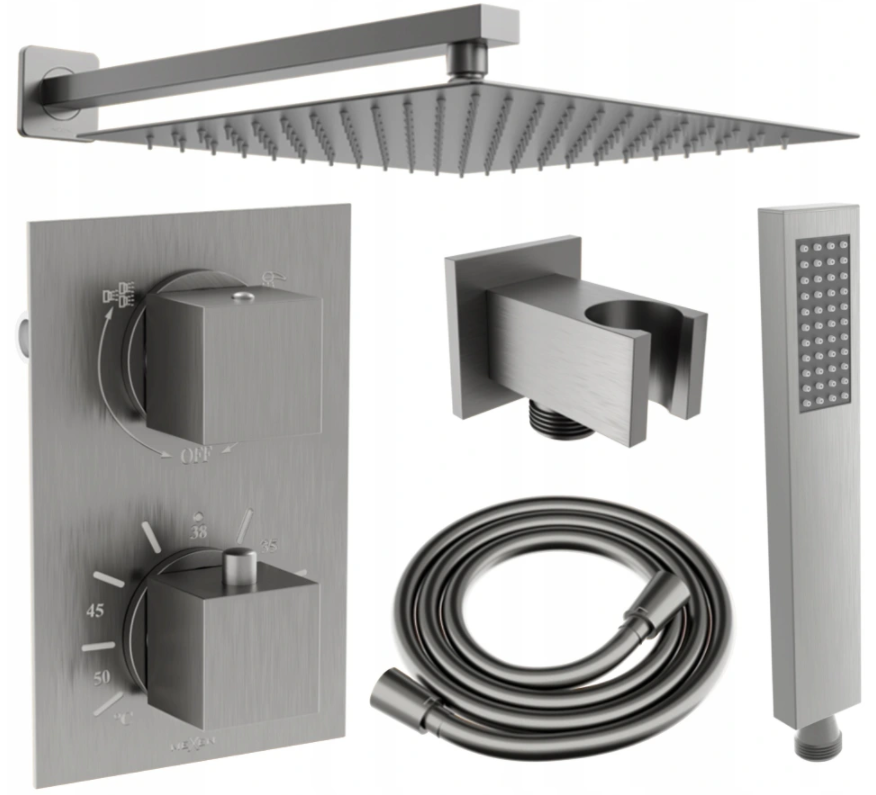

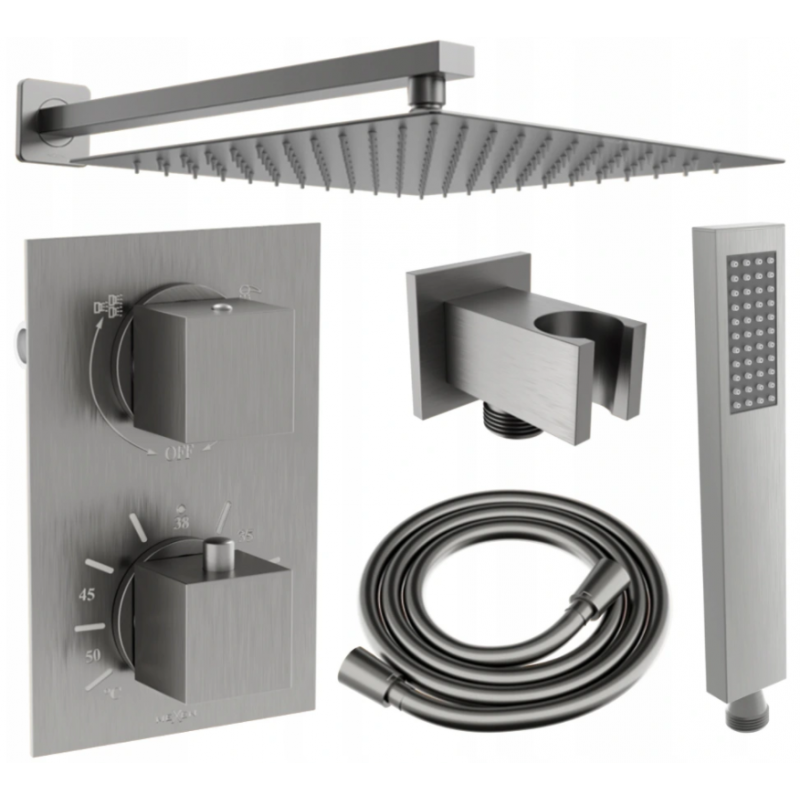

The Mexen Cube DR02 shower set with a 30 cm rain showerhead in brushed gun gray combines elegance and functionality. With a brass thermostat valve that prevents hot water above 38°C and a complete installation-ready package, it requires no additional underplaster system. The rain showerhead, crafted from S304 stainless steel, features rubber nozzles to resist limescale. Combined with a sleek shower arm and hose, both offering corrosion and tarnish resistance, the set ensures durability and style.

Product Specification:

Faucet material: Brass

Cartridge: Thermostatic

Finish: Graphite

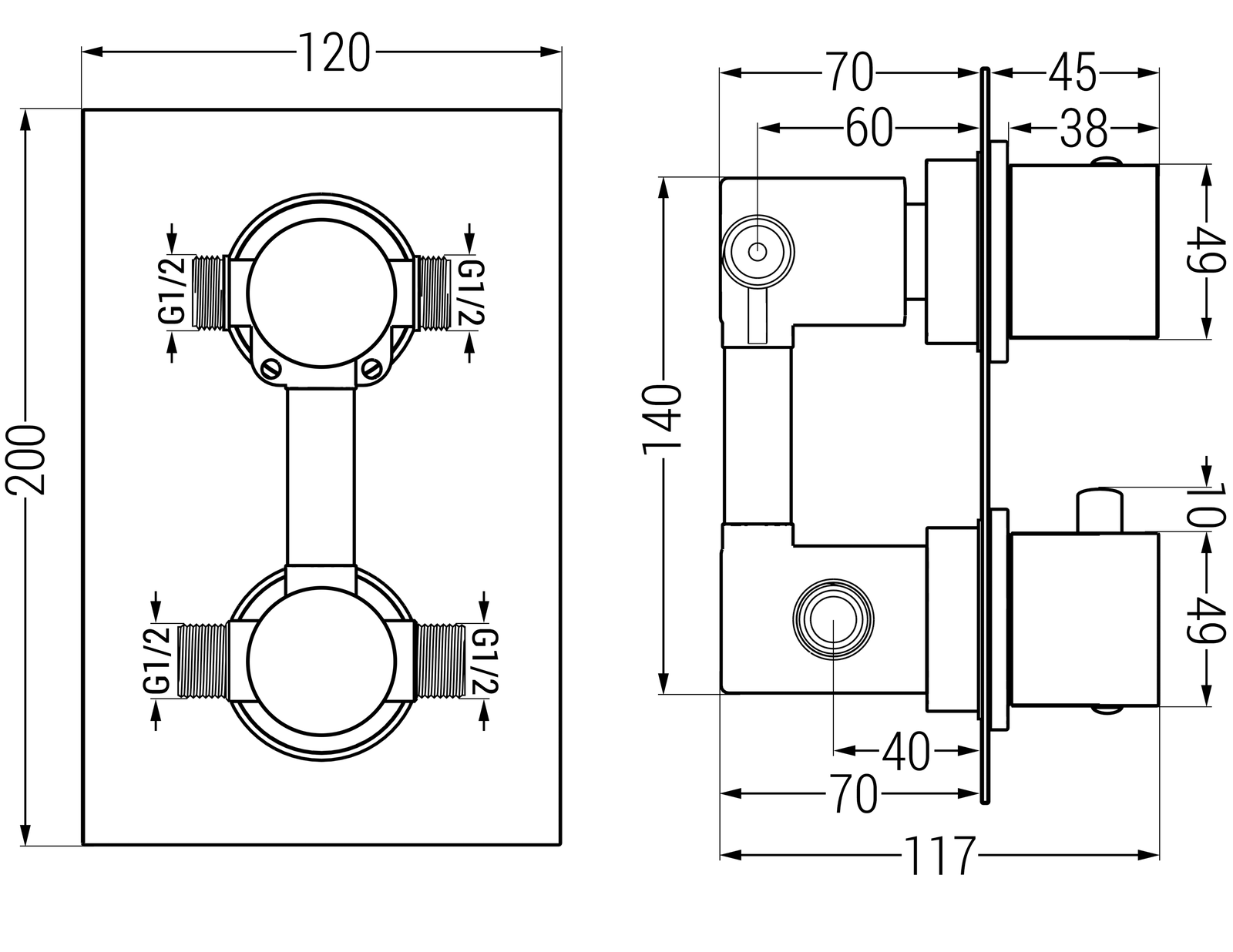

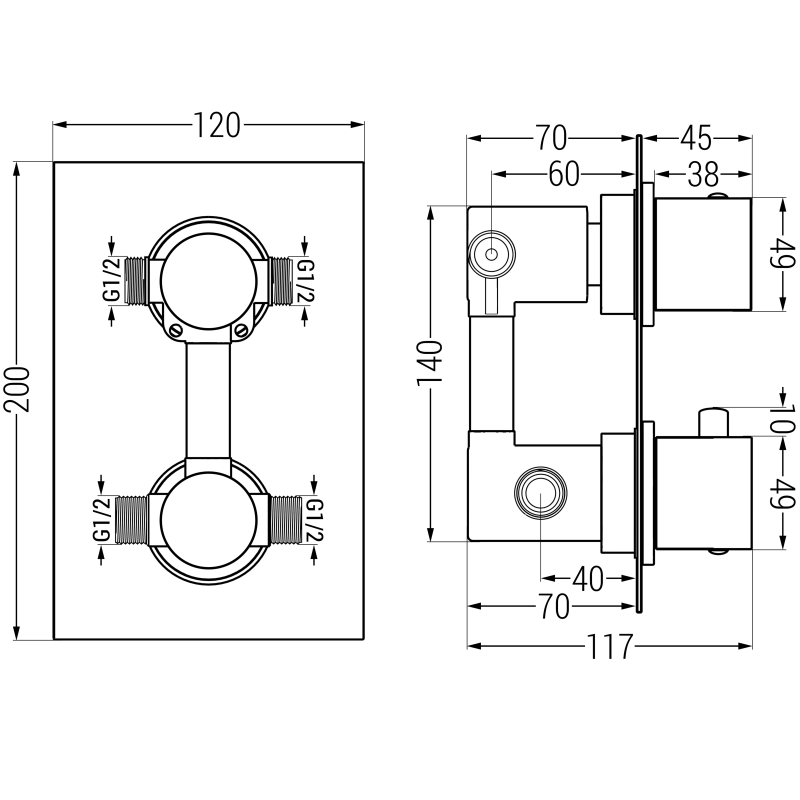

Connection: 2x Inlet 1/2" and 2x Outlet 1/2"

Hot water lock at 38° C

Set: Concealed part and exposed part

The faucet is ready for installation, no need to purchase a concealed system

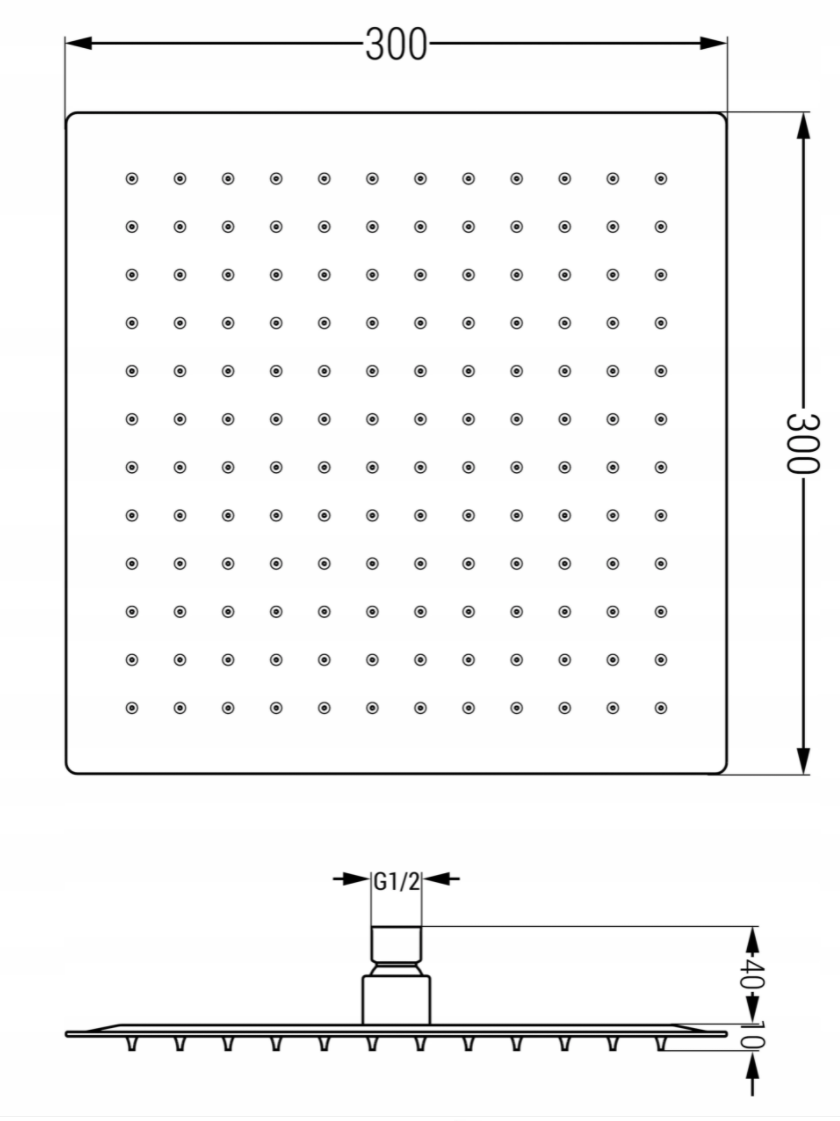

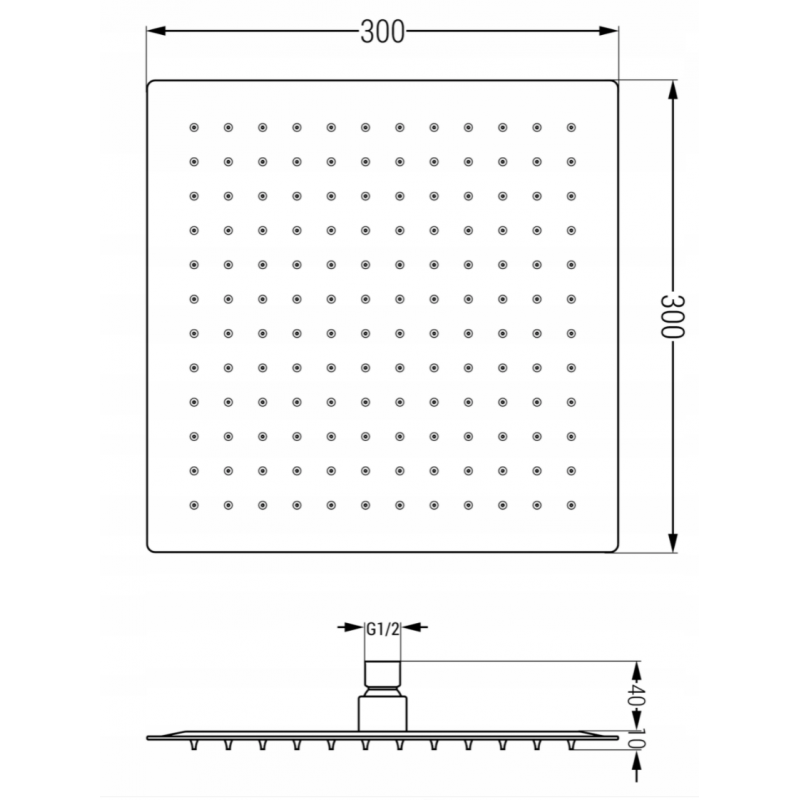

Rain showerhead material: Stainless steel S304

Finish: Graphite

Dimensions: 30 x 30 cm

Standard 1/2" Connection

Thickness: 2 mm

The surface of the disc is resistant to tarnishing and corrosion

The rain showerhead has rubber nozzles that prevent lime scale build-up

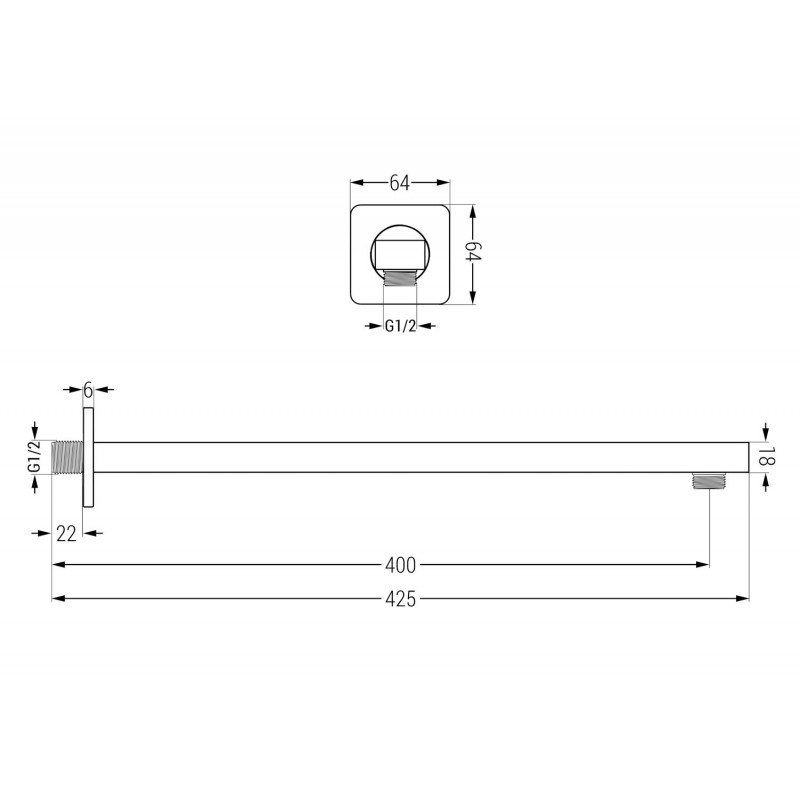

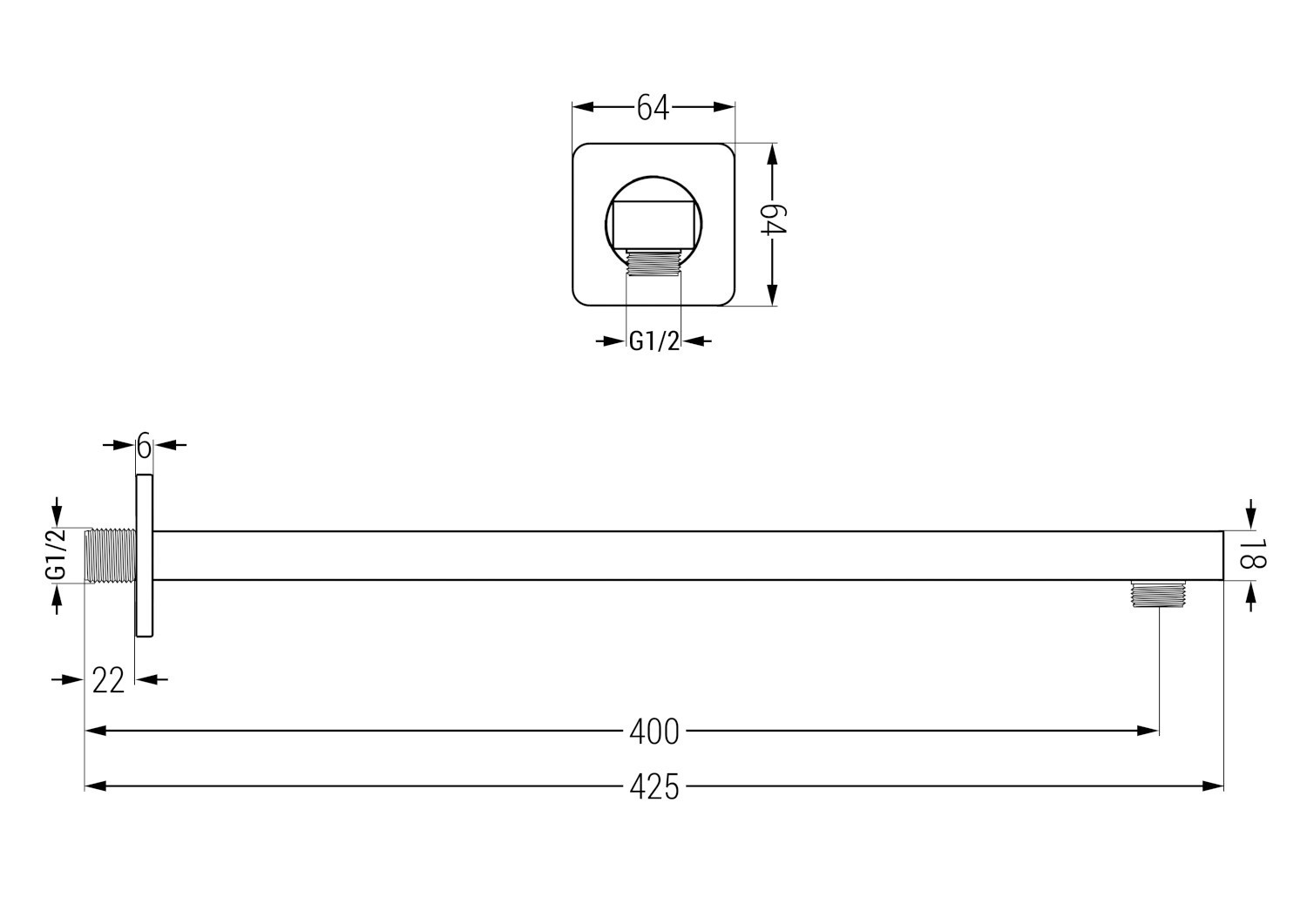

Arm material: Stainless steel S304

Finish: Graphite

Mount type: Wall

Length: 40 cm

Width: 30 x 18 mm

Standard 1/2" connection

Arm bend angle: 90°

The surface is resistant to tarnishing and corrosion

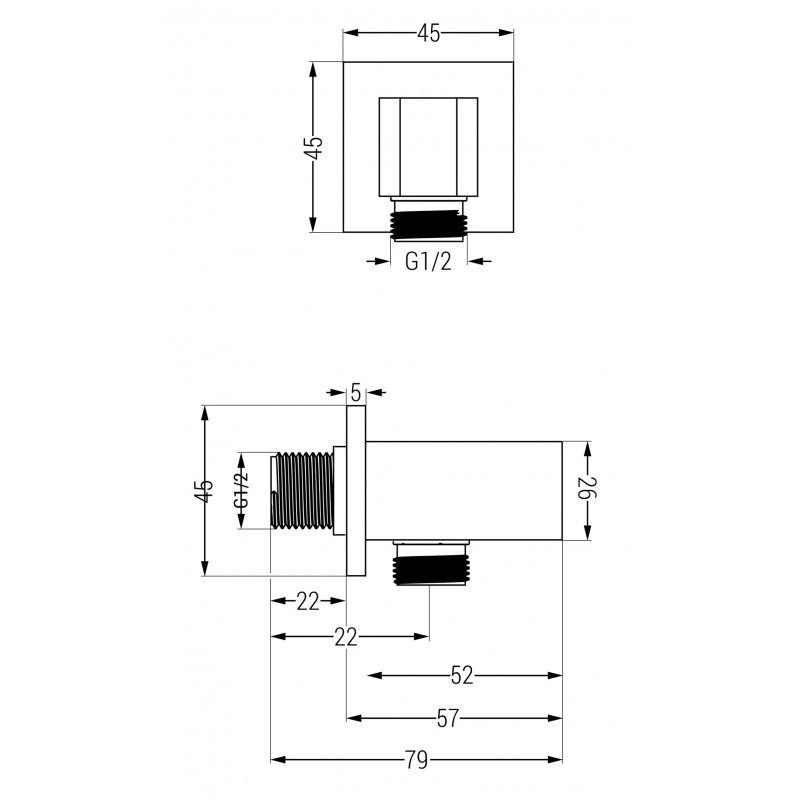

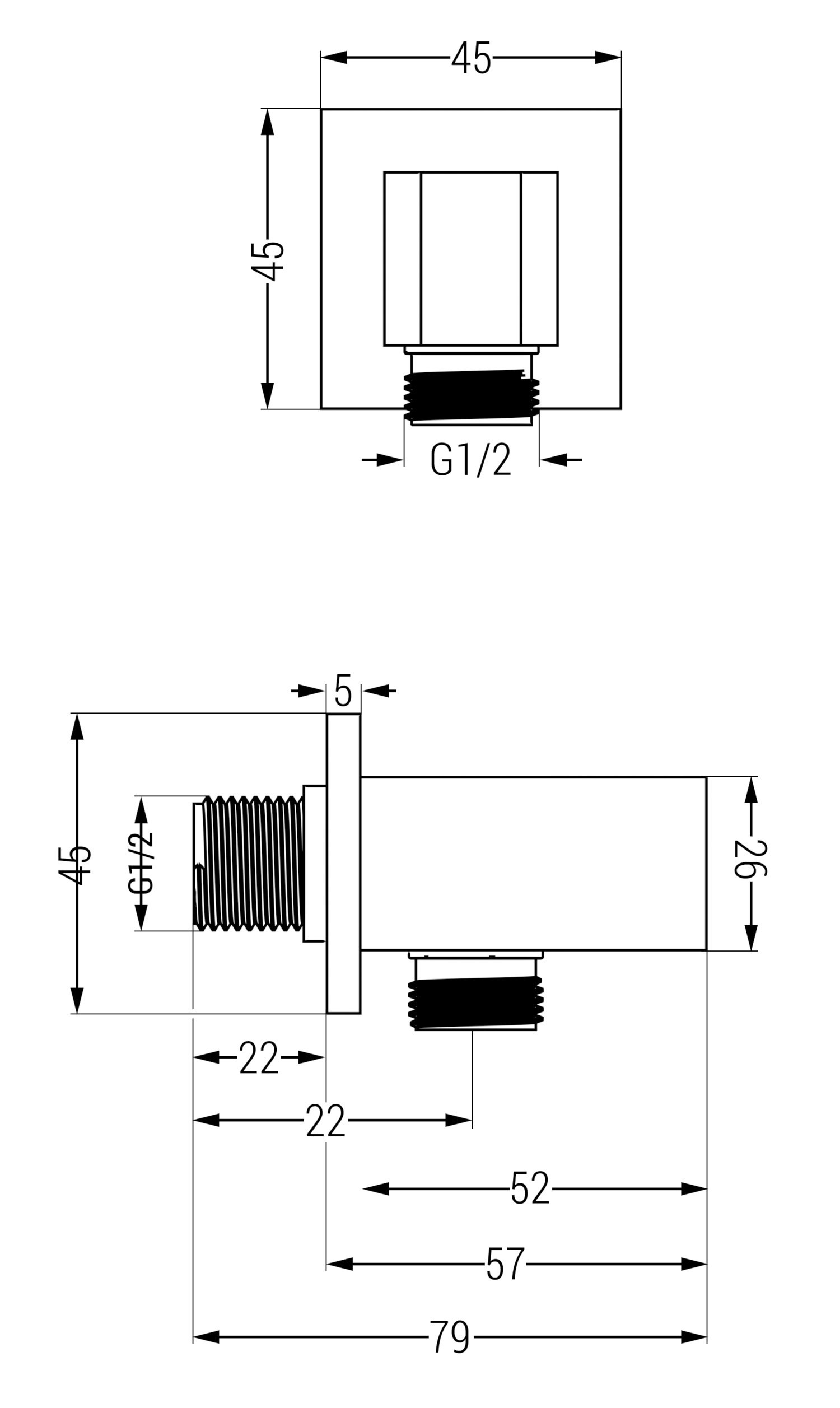

Connection material: Brass

Finish: Graphite

Mount type: Wall

Rosette dimensions: 45x45 mm

Distance from the wall: 57 mm

Standard 1/2" connection

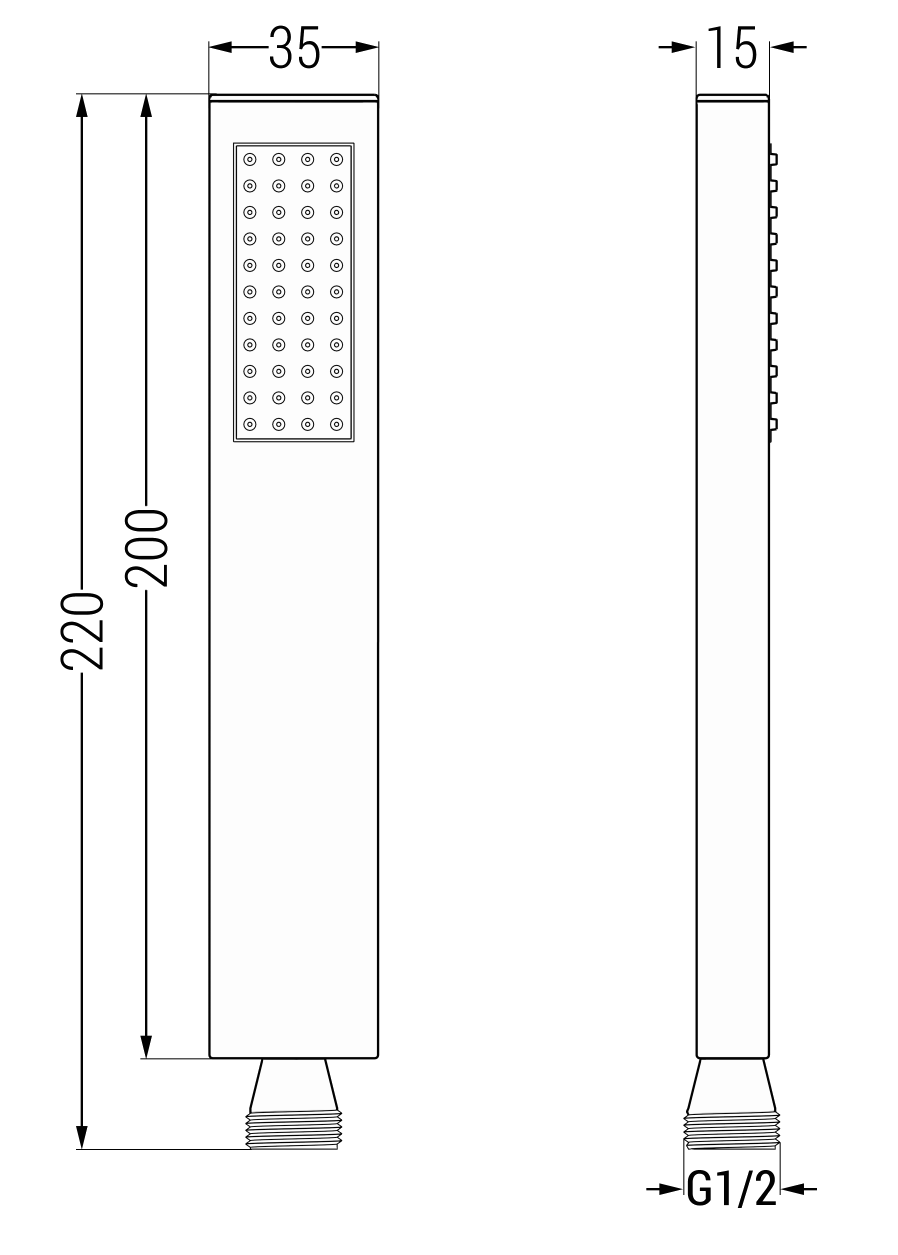

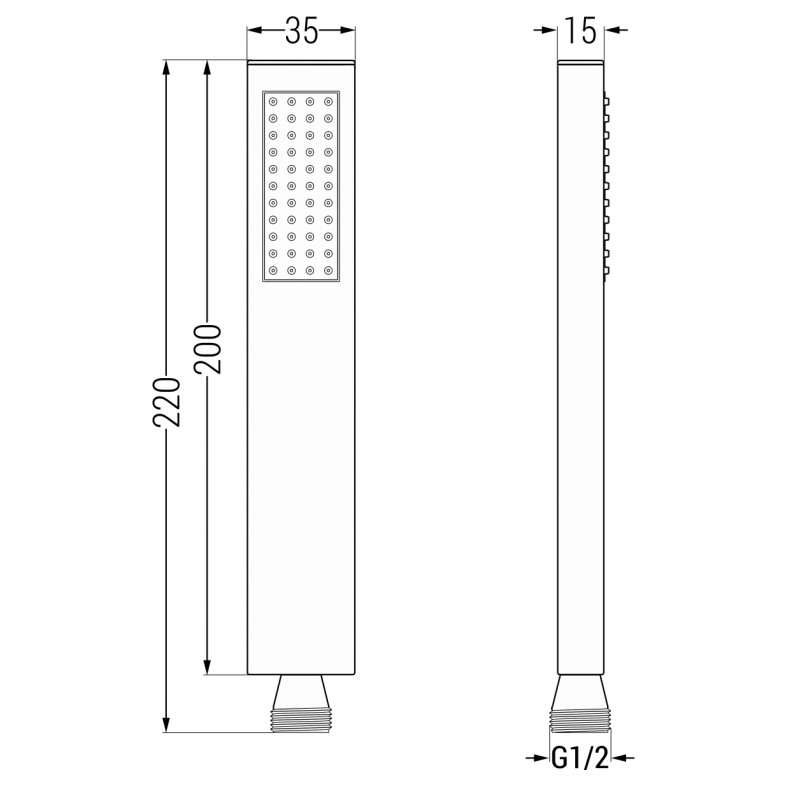

Handset material: Brass

Finish: Graphite

Number of functions: 1

Connection: G 1/2"

Height: 200 mm

Width: 35 mm

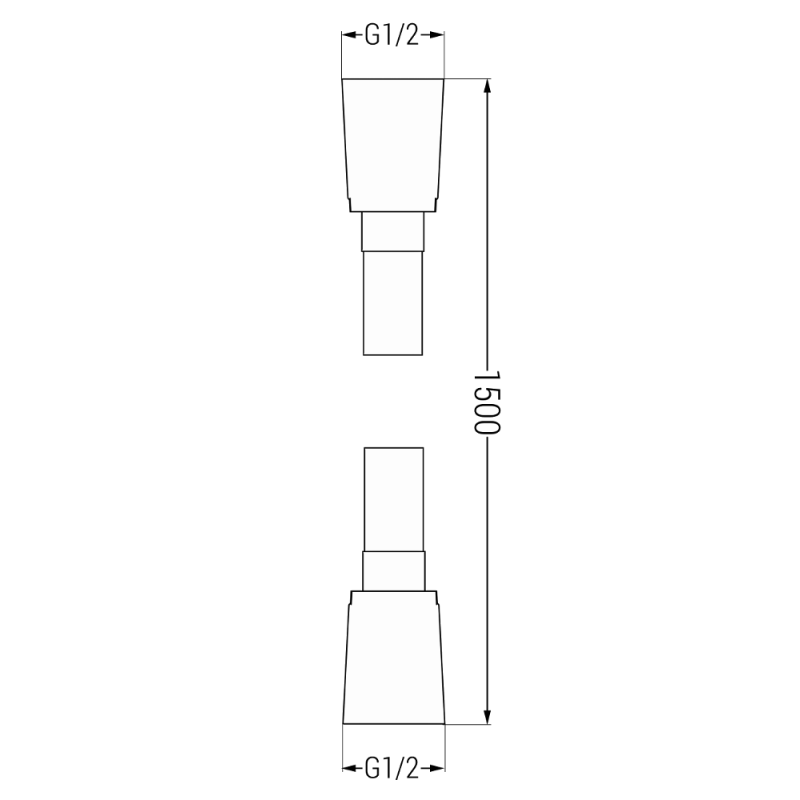

Hose material: PVC

Finish: Graphite

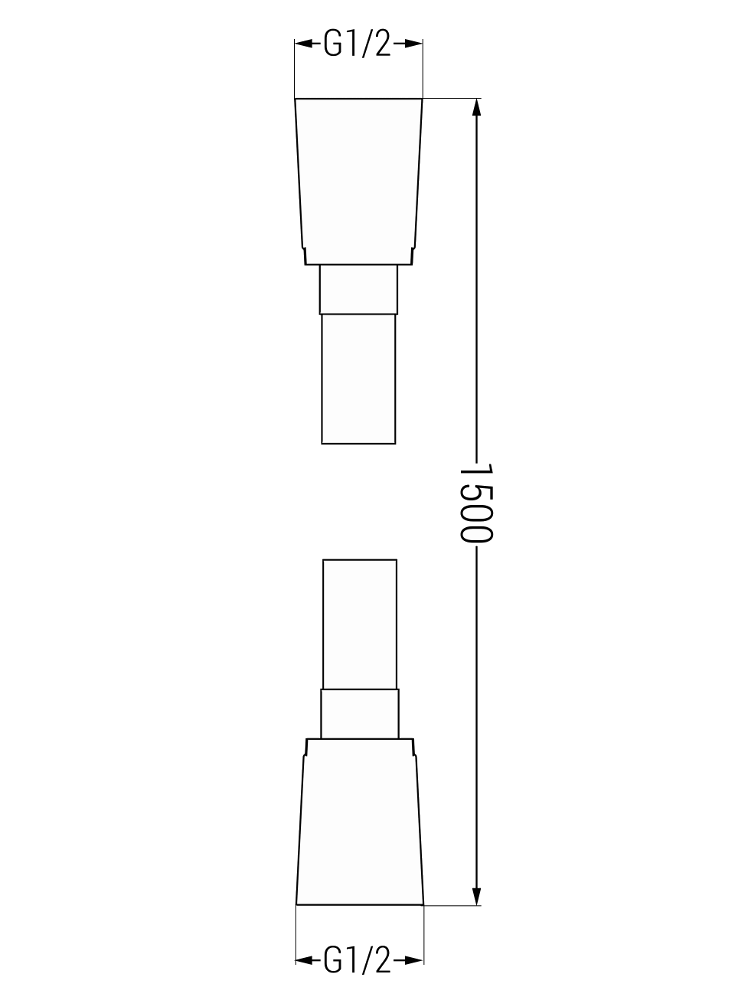

Hose length: 150 cm

Connection: 1/2"

Brass fittings

Smooth surface makes it easy to keep clean

Rotating fittings prevent twisting

Flexible material resistant to stretching and bending

Innovative solutions used in this product

Ceramic Head

The tap features a high-quality ceramic head that mixes water and provides smooth flow regulation. It ensures high comfort for a long time, maintaining ease and precision in adjustment.

Thermostat

A thermostat allows you to set the water temperature, which it maintains during a bath. It is an innovative solution that not only provides comfort but also helps avoid sudden temperature spikes and unpleasant burns.

Block 38°C

The battery has a lock at 38°C, ensuring safety, particularly for small children, who will not get scalded during bathing. It allows free use of water without the worry of sudden temperature changes.

Concealed system

The entire water installation of the product is located within the wall, and the absence of visible mounting elements gives the interior a modern and minimalist appearance. An excellent solution for small spaces where every extra centimetre is valuable.

AntiCalc

The system is characterized by the use of silicone bands, which reduce the buildup of scale and facilitate cleaning – simply wipe with a finger or a cloth. In this way, clogging of the nozzles can be prevented and the durability of the product can be extended.

Standard Connection

A 1/2" threaded connection is a commonly used standard element in internal water installations. This makes connecting and installing subsequent shower elements much easier and more intuitive.

Rain Simulation in Your Home

The stream from the shower head mimics natural rain. It makes water droplets fall evenly over the entire body, rinsing off used cosmetics, as well as alleviating stress and muscle tension. Daily relaxation in harmony with nature.

Slim

The shower head plate is only 8 mm thick, giving it an exceptionally slim appearance. The thin design perfectly matches a modern bathroom interior, giving an impression of lightness. An excellent choice for minimalist arrangements.

1-function

The shower head has one type of stream – rain. This function mimics natural rain, flowing evenly over the body. It provides a gentle and relaxing sensation during a shower, making it a true moment of relaxation.

Rain

A standard water stream that mimics natural rain. The droplets flow evenly over the body, enveloping it with a pleasant sensation of moisturisation and allowing you to immerse yourself in a relaxing and soothing sensory experience during your daily bath.

PVC Cover

The shower hose is made from a very durable and flexible PVC material. It is resistant to high temperatures and high water pressure, and its soft and smooth structure does not scratch the surface of the bathtub or shower.

Non-twisting

Thanks to the use of innovative rotating tips, the shower hose does not twist, regardless of the position. This practical solution ensures comfort during bathing, without worries about interrupting the continuity of the water stream.

PerfectClean

The product has a smooth surface that impresses with its shine and emphasizes an aesthetic look. Daily care and cleaning of the surface from dirt is much easier and does not require the use of strong detergents.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

PZH Hygiene Certificate

The product has a PZH Hygiene Certificate confirming its compliance with safety standards, indicating that it in no way negatively impacts human health or the natural environment. No. B.BK.60110.1537.2023 valid until 31.01.2027

Series
Cube
Color
Brushed Gun Gray
Shape
Square
With thermostat
Yes
Battery
2-output
Side Jets
No
Warranty conditions
Download
PZH Certificate
Download
User manual
Download
Safety information
Download
Manufacturer
