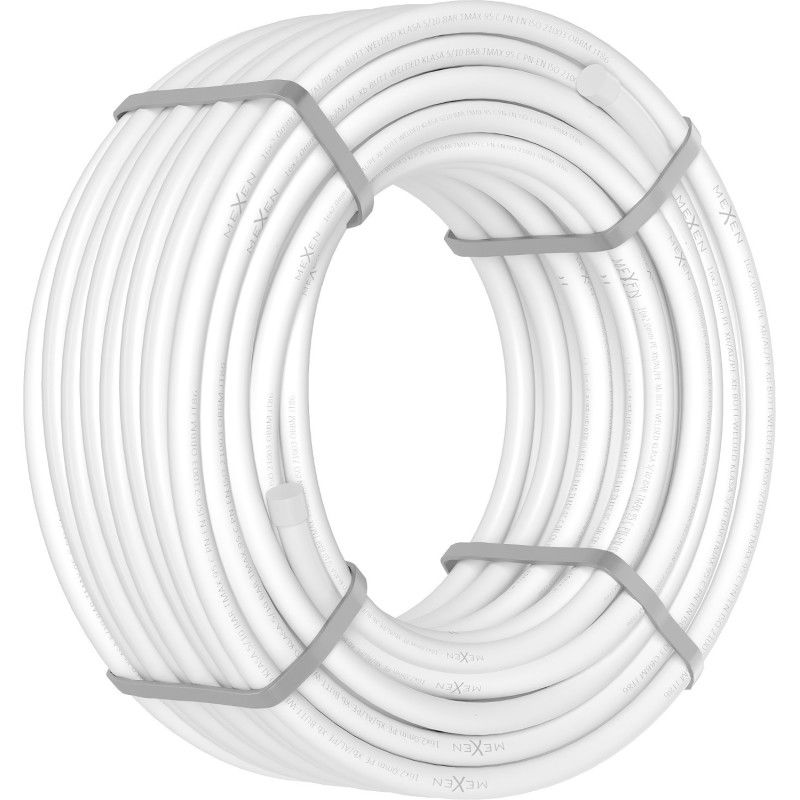

Mexen AL-L PE-Xb/AL/PE-Xb Pipe 25 x 2.5 mm, 50 m - W97100-2025-50
Technical data:
Length: 50 m
Outer diameter: 25 mm
Wall thickness: 2.5 mm
Intermediate layer thickness: 0.25 mm

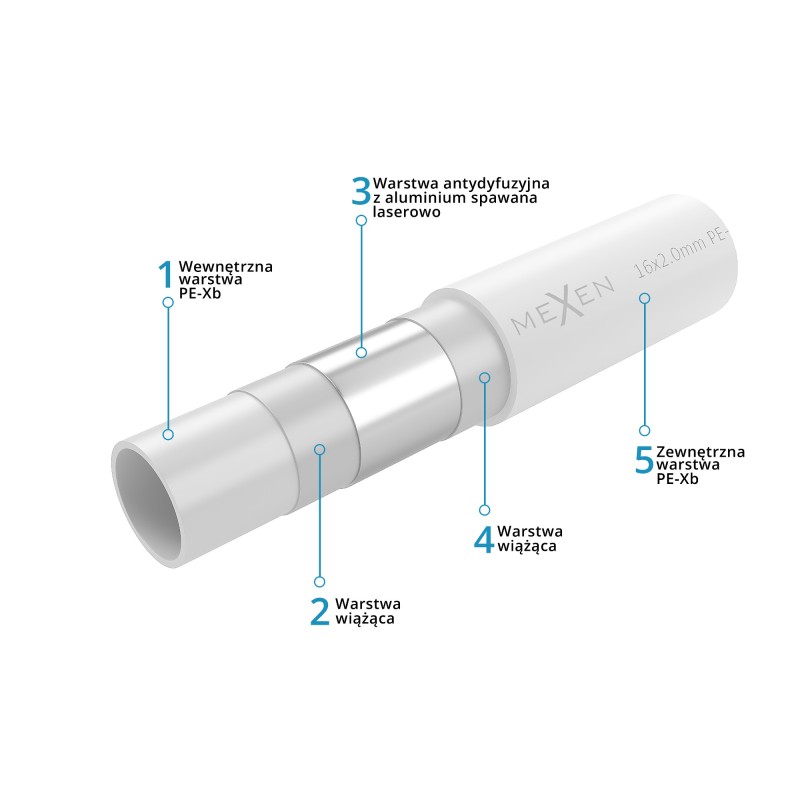

Number of layers: 5
Outer layer: Cross-linked Polyethylene

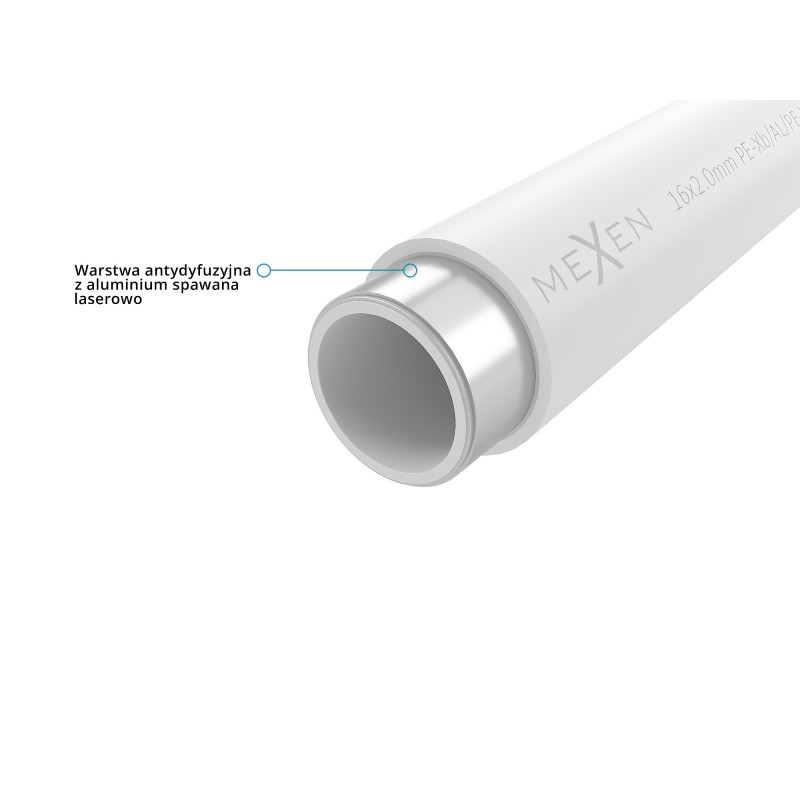

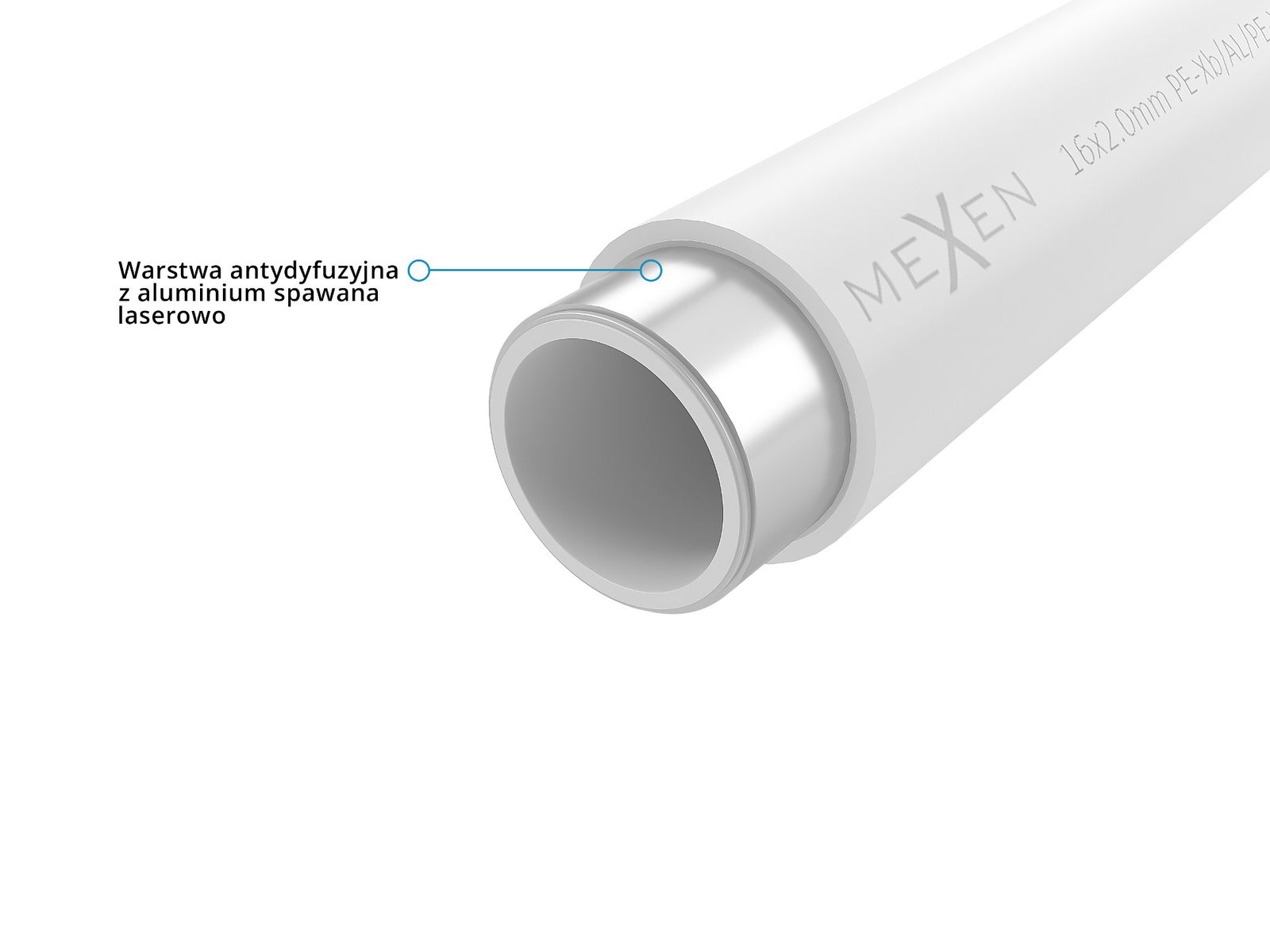

Intermediate layer: Aluminium
Inner layer: Cross-linked Polyethylene
Connection type: Laser butt welded
Operating temperature: max 95 °C
Maximum working pressure at 20°C: 10 bar
Resistance to gas penetration and corrosion: 100% Antidiffusion
Coefficient of linear expansion: 0.024mm/(m·K)
Thermal conductivity: 0.43 W/(m²K)
Reaction to fire: Class E
Minimum manual bending radius: 125 mm
Minimum bending radius with spring: 88 mm
Application:
- central heating
- underfloor heating
- cold and hot drinking water
