Mexen AL-L PE-Xb/AL/PE Pipe 20 x 2 mm, 100 m - W97101-1620-100

Technical Data:

Length: 100 m

Outside Diameter: 20 mm

Wall Thickness: 2 mm

Intermediate Layer Thickness: 0.23 mm

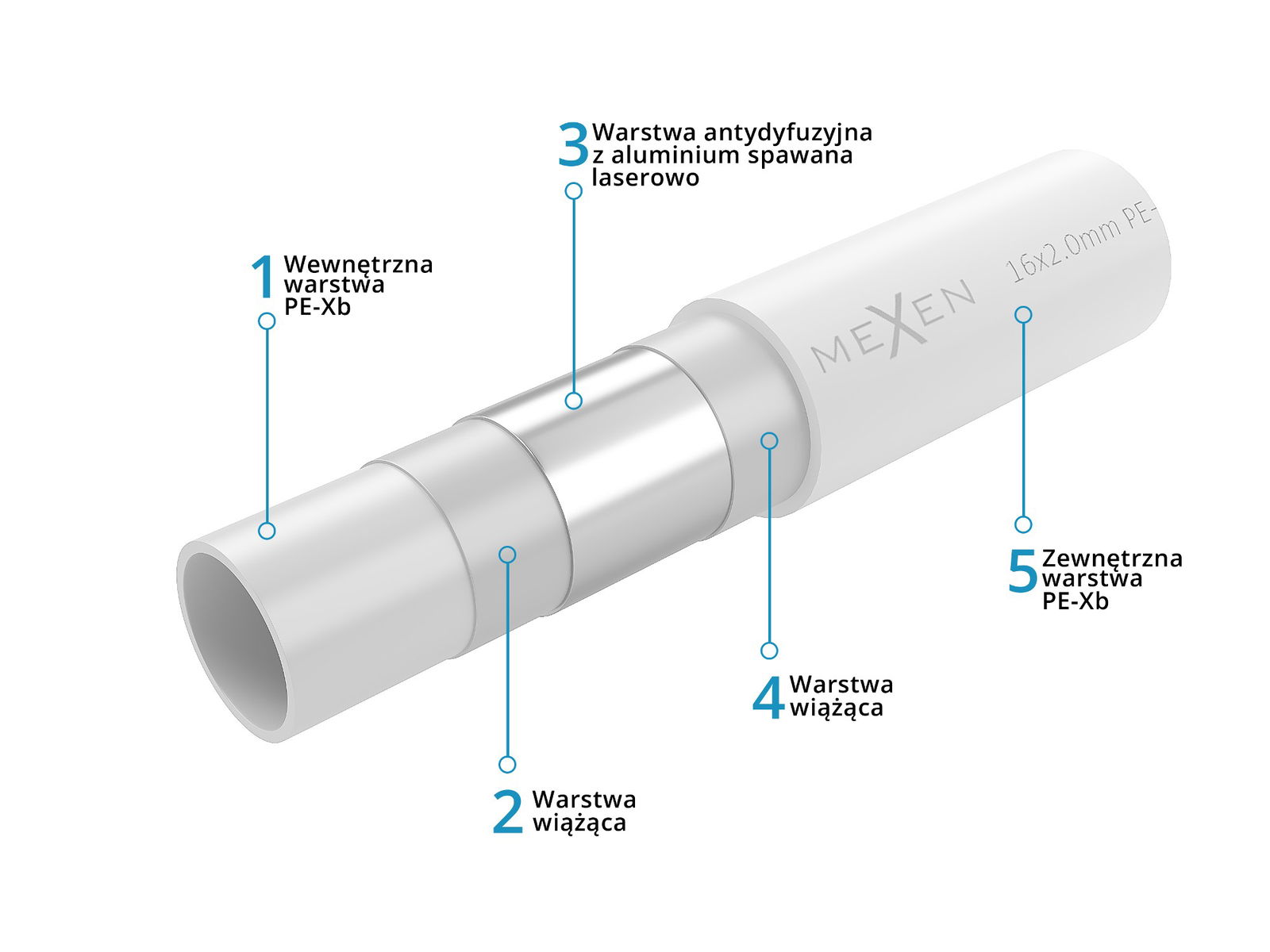

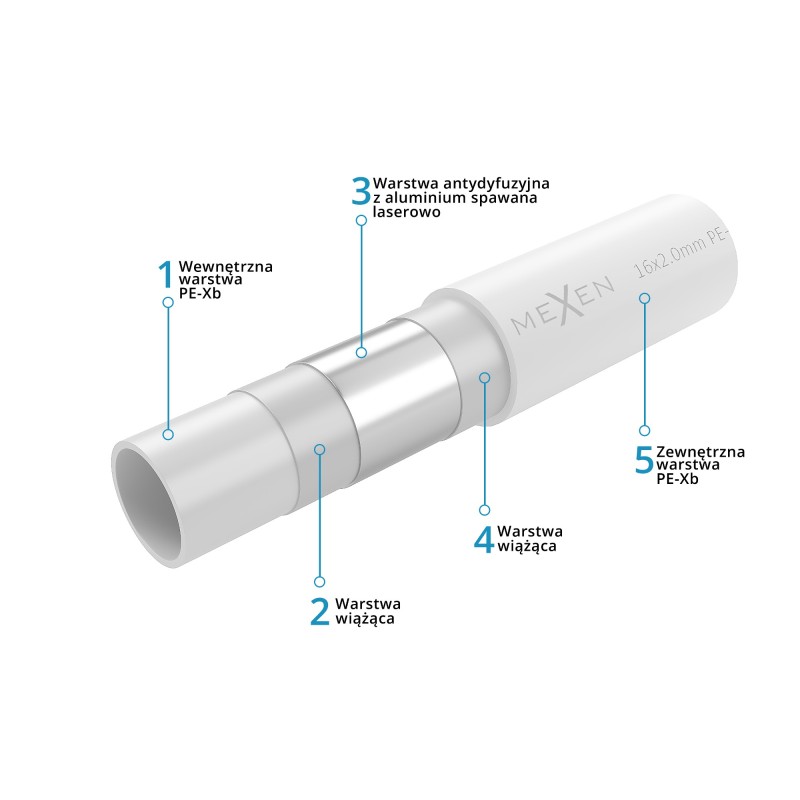

Number of Layers: 5

Outer Layer: Polyethylene

Intermediate Layer: Aluminium

Inner Layer: Cross-linked Polyethylene

Connection Type: Laser Butt-welded

Operating Temperature: max 95 °C

Maximum Working Pressure at 20°C: 10 bar

Resistance to Gas Permeation and Corrosion: 100% Antidiffusion

Coefficient of Linear Expansion: 0.024mm/(m⋅K)

Thermal Conductivity: 0.43 W/(m²K)

Reaction to Fire: Class E

Minimum Hand Bending Radius: 100 mm

Minimum Bending Radius with Spring: 70 mm

Applications:

- Central Heating

- Underfloor Heating

- Cold and Hot Water Usage

Innovative solutions used in this product

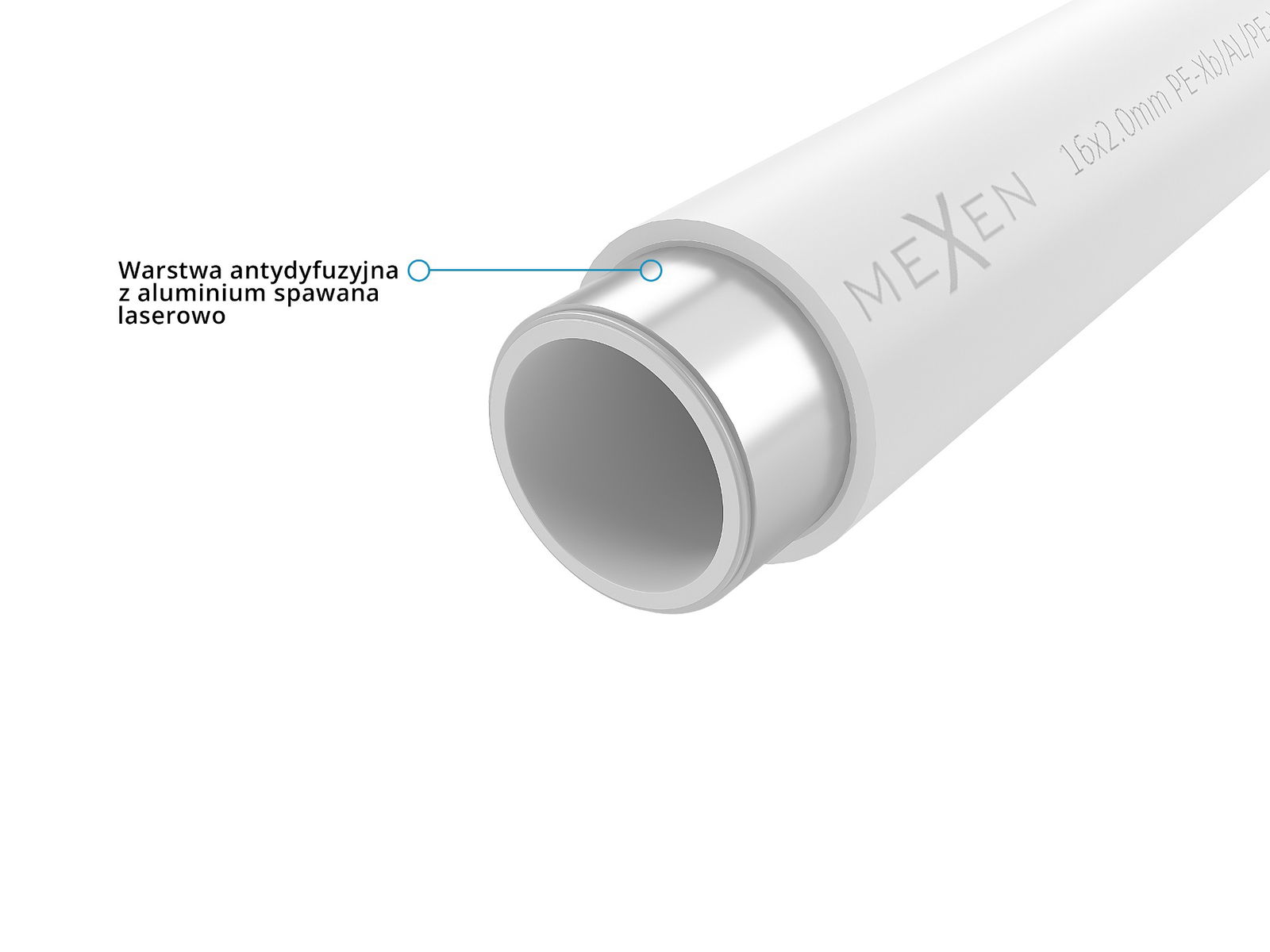

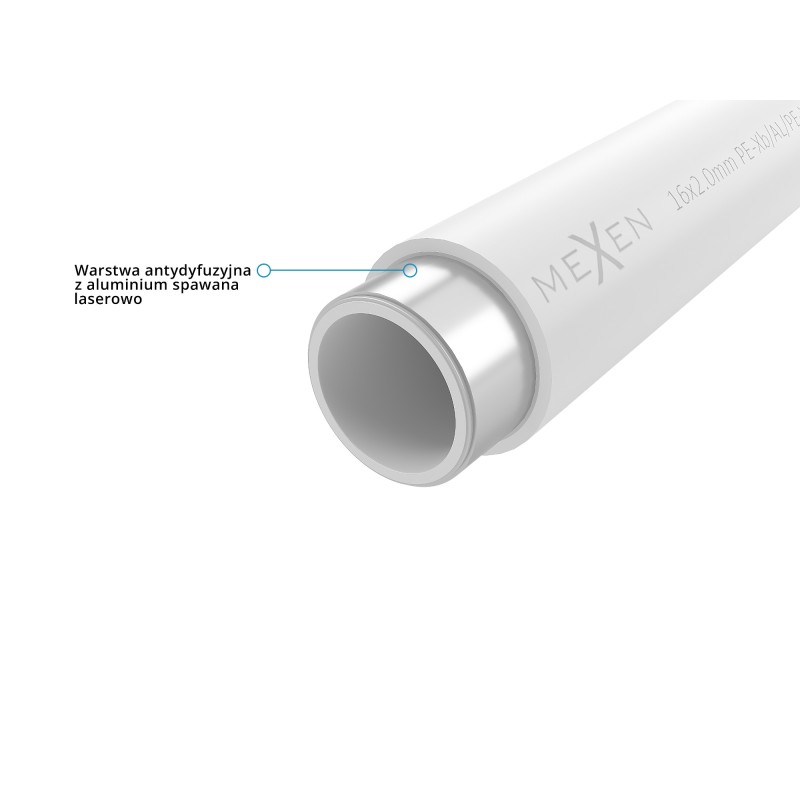

100% Anti-Diffusion

The pipe features a special layer that blocks the penetration of oxygen into the interior of the installation. This prevents corrosion of metal components in the heating system, such as radiators or heat exchangers. Such a pipe is particularly recommended for central heating and underfloor heating installations.

Versatile application

The product is used in water supply installations for transporting cold and hot drinking water, as well as in central heating systems. They are also used in industrial installations for transporting chemically aggressive liquids and in air conditioning systems.

Resistance to high temperature

The product is characterised by extraordinary resistance to high temperatures, not deforming even with prolonged exposure to hot water. The material is also resistant to damage and cracks caused by sudden temperature changes.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it does not adversely affect human health or the natural environment in any way. nr B.BK.60110.1252.2024 valid until 31.03.2028
