Mexen AL-L PE-RT/AL/PE-RT Pipe 16 x 2 mm, 200 m - W97102-1216-200

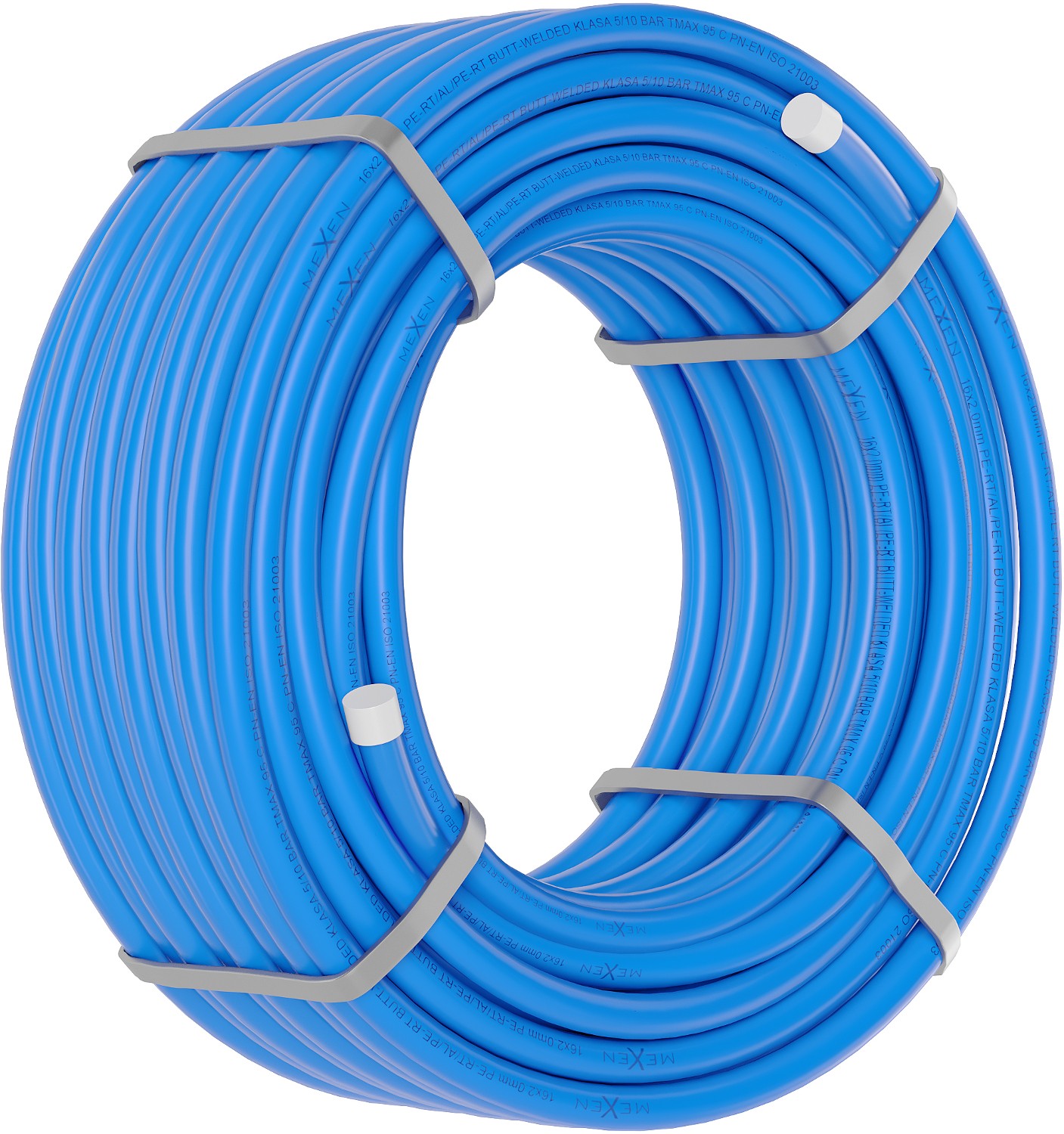

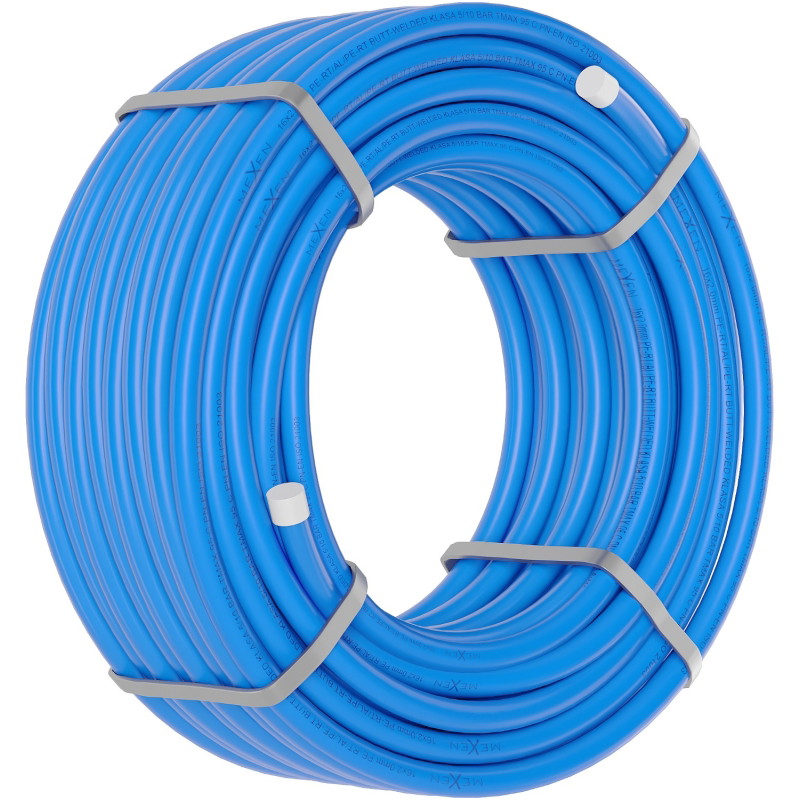

The Mexen AL-L PE-RT/AL/PE-RT 16 x 2 mm pipe is a versatile product for applications such as central heating, underfloor heating, and the transmission of cold and hot domestic water. With a length of 200 m, 16 mm diameter, and 2 mm wall thickness, it ensures excellent strength and durability. The outer and inner layers are made of polyethylene with increased thermal resistance, and the antidiffusion guarantees 100% resistance to gas and corrosion penetration. The product features a linear expansion coefficient of 0.024 mm/(m·K), thermal conductivity of 0.43 W/(m²K), and a reaction to fire class E.

Technical data:

Length: 200 m

Outer diameter: 16 mm

Wall thickness: 2 mm

Intermediate layer thickness: 0.21 mm

Outer layer: Polyethylene with increased thermal resistance

Inner layer: Polyethylene with increased thermal resistance

Connection type: Laser butt-welded

Maximum operating pressure at 20°C: 10 bar

Gas and corrosion permeability resistance: 100% Antidiffusion

Linear expansion coefficient: 0.024mm/(m·K)

Thermal conductivity: 0.43 W/(m²K)

Reaction to fire: Class E

Minimum manual bending radius: 80 mm

Minimum bending radius with spring: 56 mm

Application:

- central heating

- underfloor heating

- cold and hot domestic water

Innovative solutions used in this product

100% Anti-Diffusion

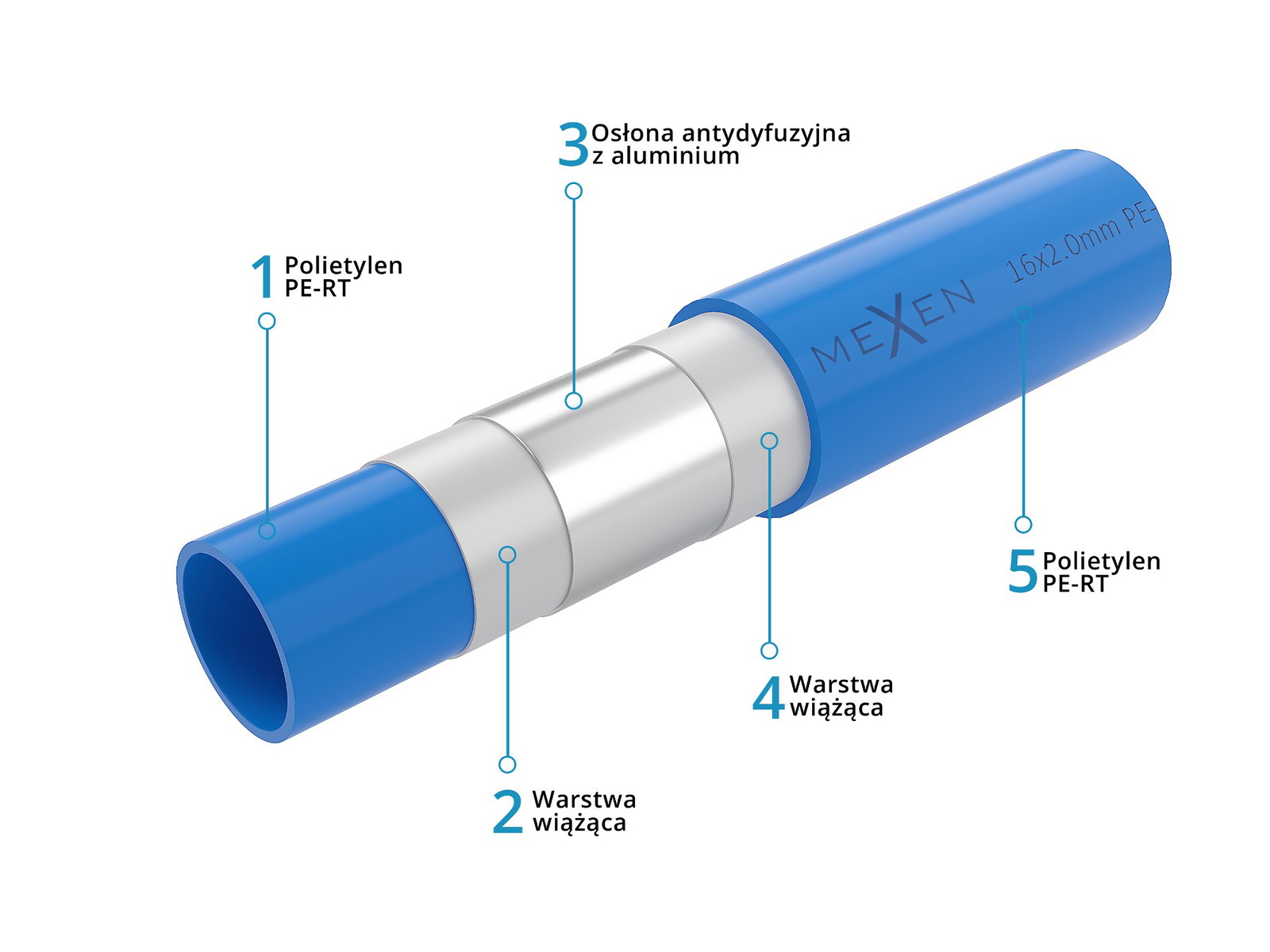

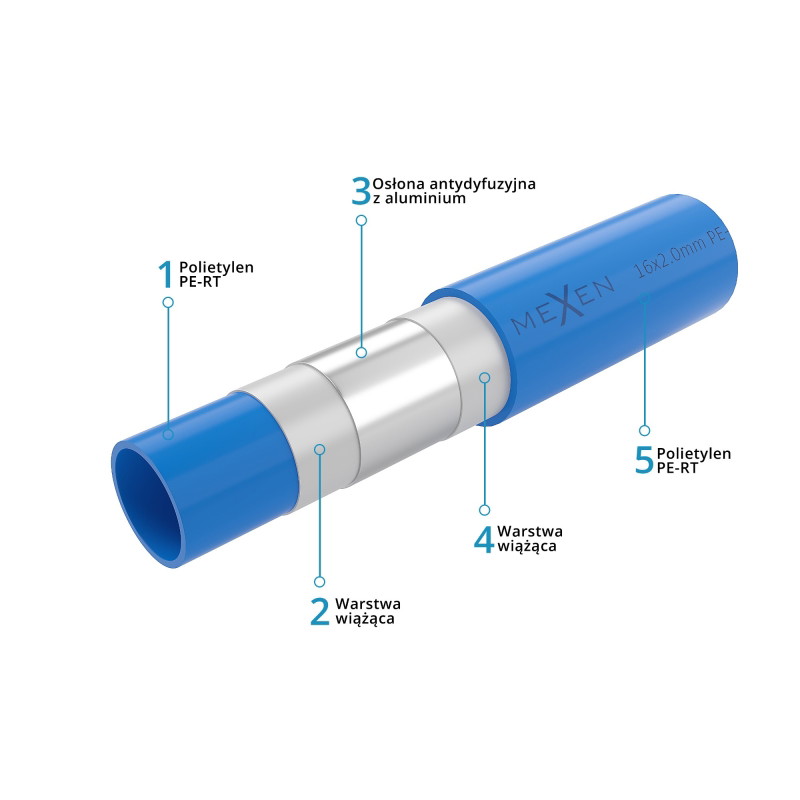

The pipe features a special layer that blocks the penetration of oxygen into the interior of the installation. This prevents corrosion of metal components in the heating system, such as radiators or heat exchangers. Such a pipe is particularly recommended for central heating and underfloor heating installations.

Versatile application

The product is used in water supply installations for transporting cold and hot drinking water, as well as in central heating systems. They are also used in industrial installations for transporting chemically aggressive liquids and in air conditioning systems.

Resistance to high temperature

The product is characterised by extraordinary resistance to high temperatures, not deforming even with prolonged exposure to hot water. The material is also resistant to damage and cracks caused by sudden temperature changes.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it does not adversely affect human health or the natural environment in any way. nr B.BK.60110.1252.2024 valid until 31.03.2028
