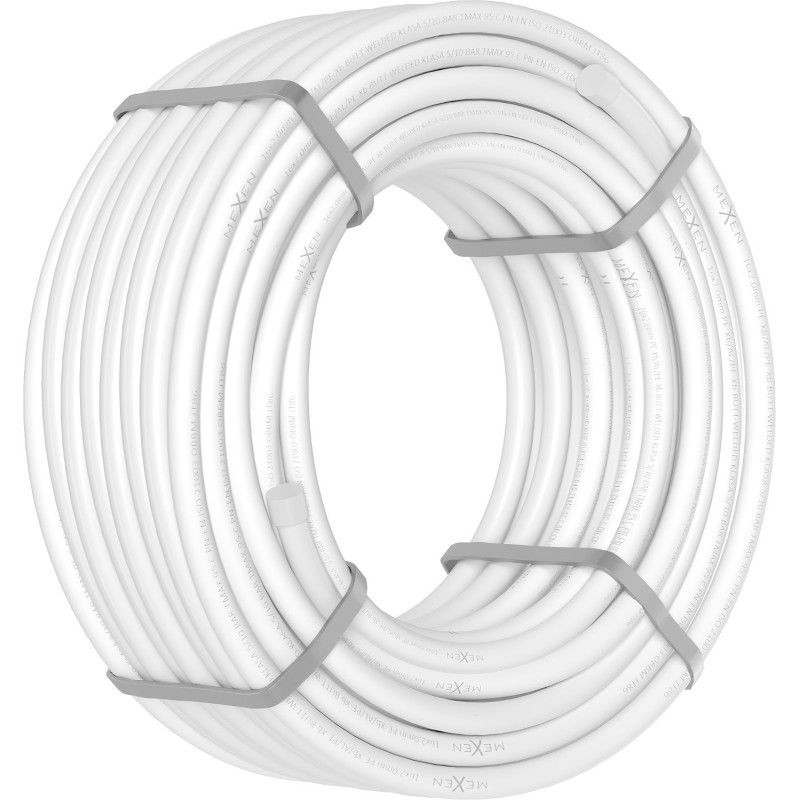

Mexen AL-L PE-Xb/AL/PE-Xb Pipe 32 x 3 mm, 50 m - W97100-2632-50
Technical data:
Length: 50 m
Outer diameter: 32 mm
Wall thickness: 3 mm
Intermediate layer thickness: 0.3 mm

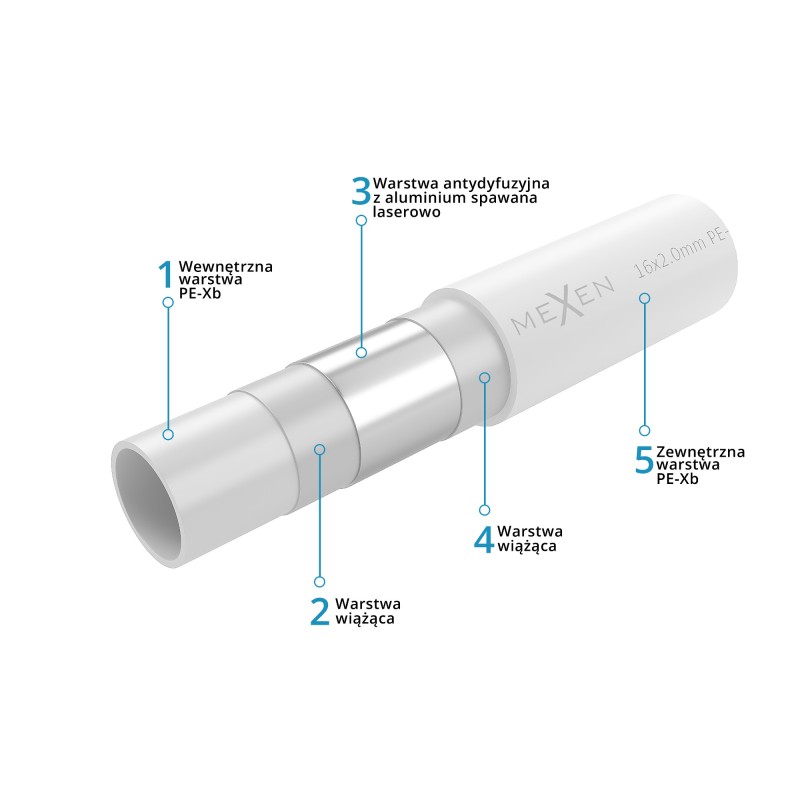

Number of layers: 5
Outer layer: Cross-linked polyethylene

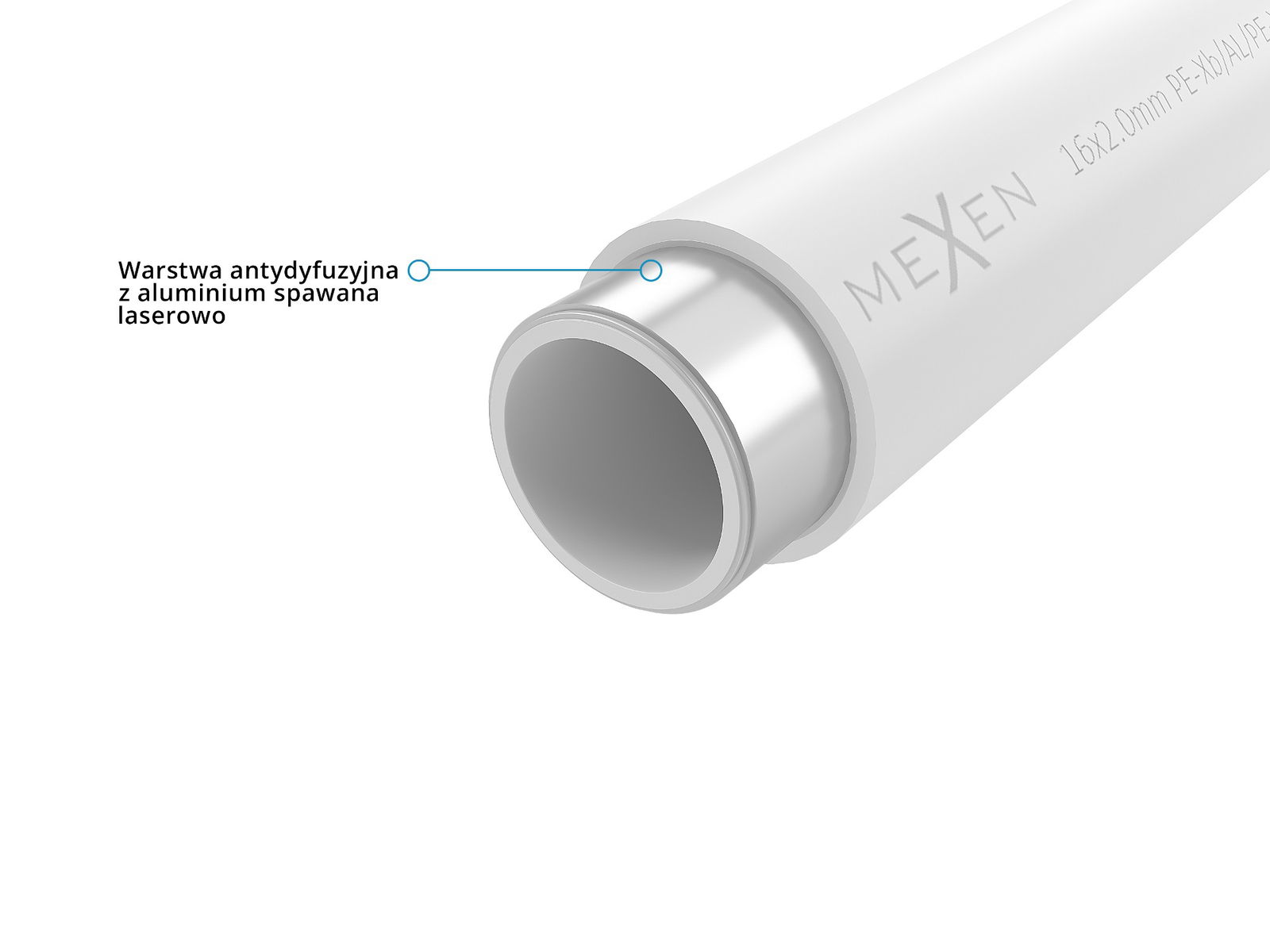

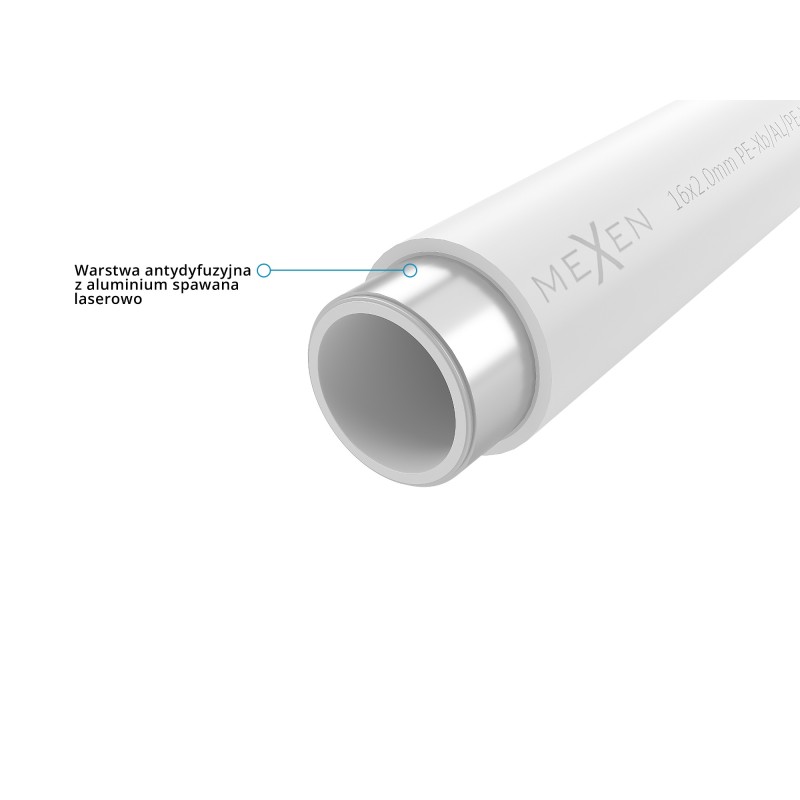

Intermediate layer: Aluminium
Inner layer: Cross-linked polyethylene
Connection type: Butt laser welded
Operating temperature: max 95 °C
Maximum operating pressure at 20°C: 10 bar
Resistance to gas permeability and corrosion: 100% anti-diffusion
Linear expansion coefficient: 0.024mm/(m·K)
Thermal conductivity: 0.43 W/(m²K)
Reaction to fire: Class E
Minimum hand bending radius: 160 mm
Minimum bending radius with spring: 112 mm
Application:
- central heating
- underfloor heating
- cold and hot potable water
