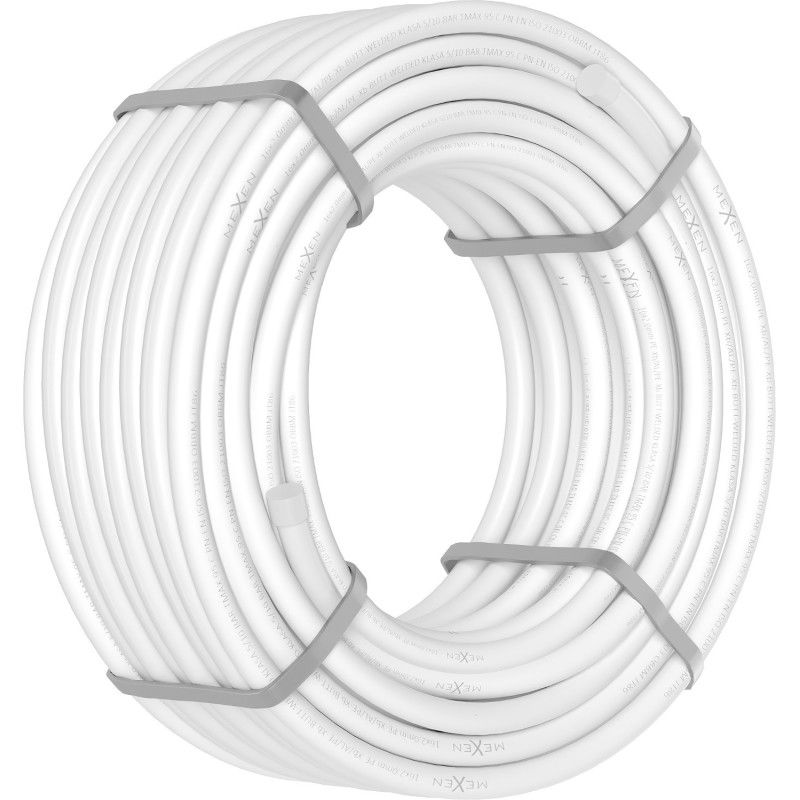

Mexen AL-L PE-Xb/AL/PE pipe 16 x 2 mm, 600 m - W97101-1216-600
Technical Data:
Length: 600 m
External diameter: 16 mm
Wall thickness: 2 mm
Intermediate layer thickness: 0.21 mm

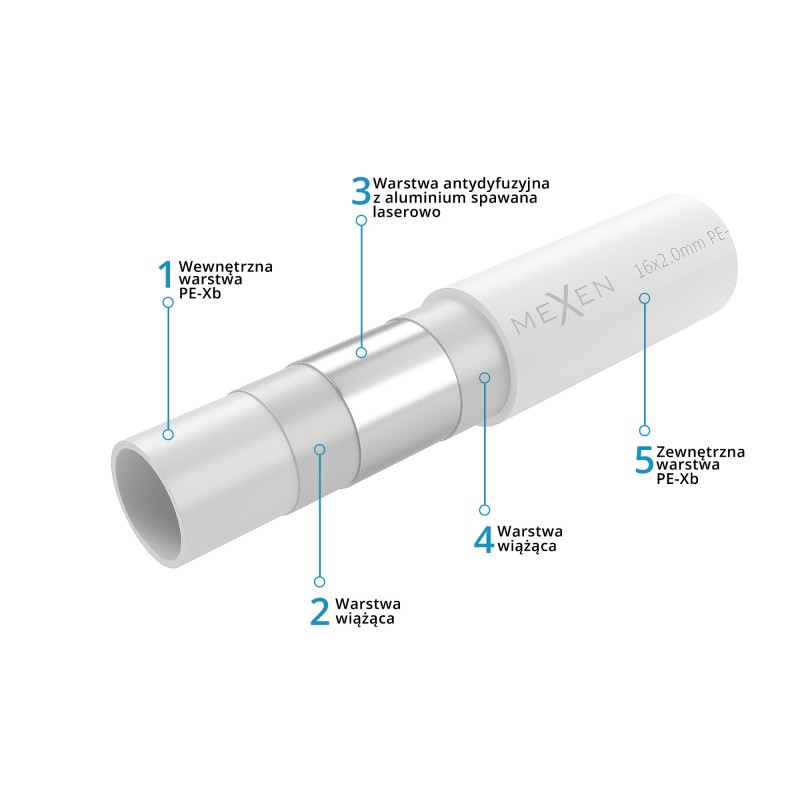

Number of layers: 5
External layer: Polyethylene

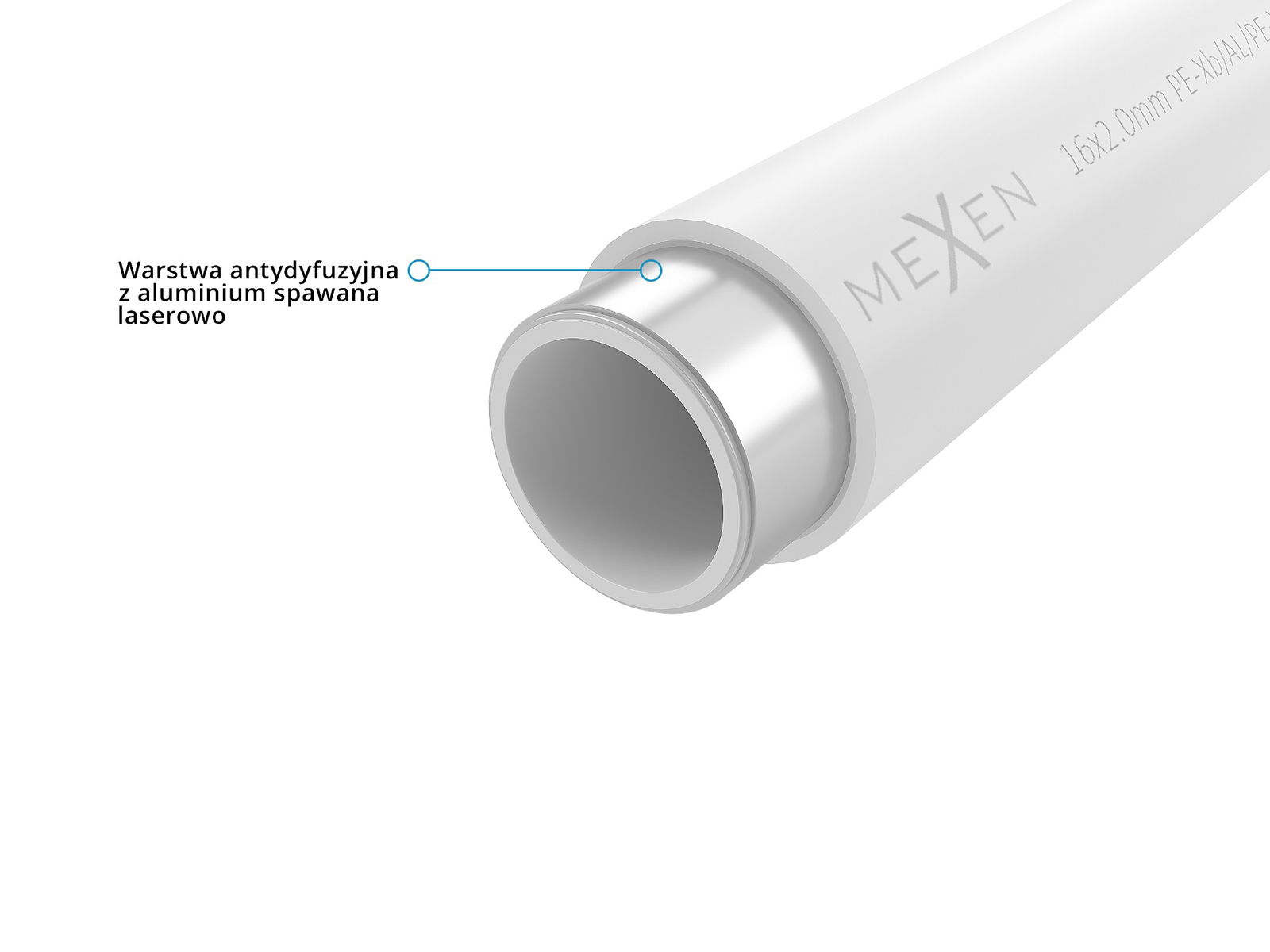

Intermediate layer: Aluminium
Internal layer: Cross-linked polyethylene
Connection type: Laser butt-welded
Operating temperature: max 95 °C
Maximum working pressure at 20°C: 10 bar
Resistance to gas permeability and corrosion: 100% Anti-diffusion
Linear expansion coefficient: 0.024mm/(m·K)
Thermal conductivity: 0.43 W/(m²K)
Reaction to fire: Class E
Minimum manual bending radius: 80 mm
Minimum bending radius using a spring: 56 mm
Application:
- Central heating
- Underfloor heating
- Cold and hot water supply
