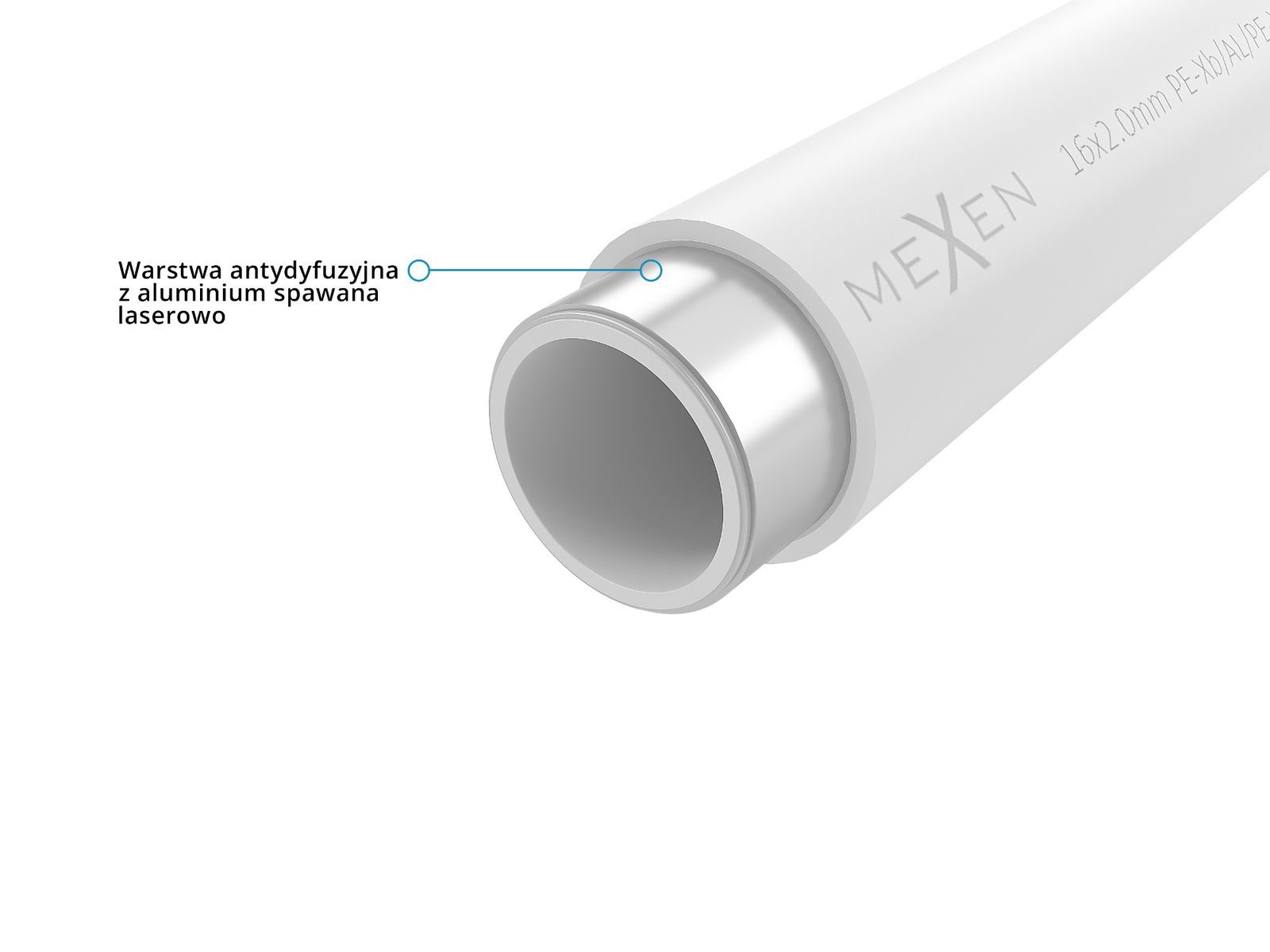

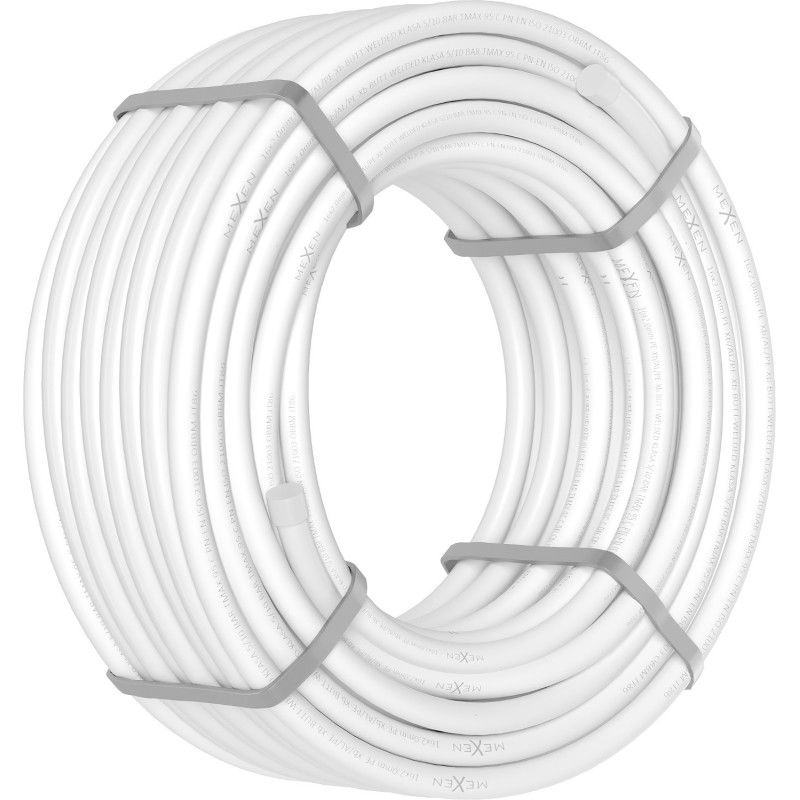

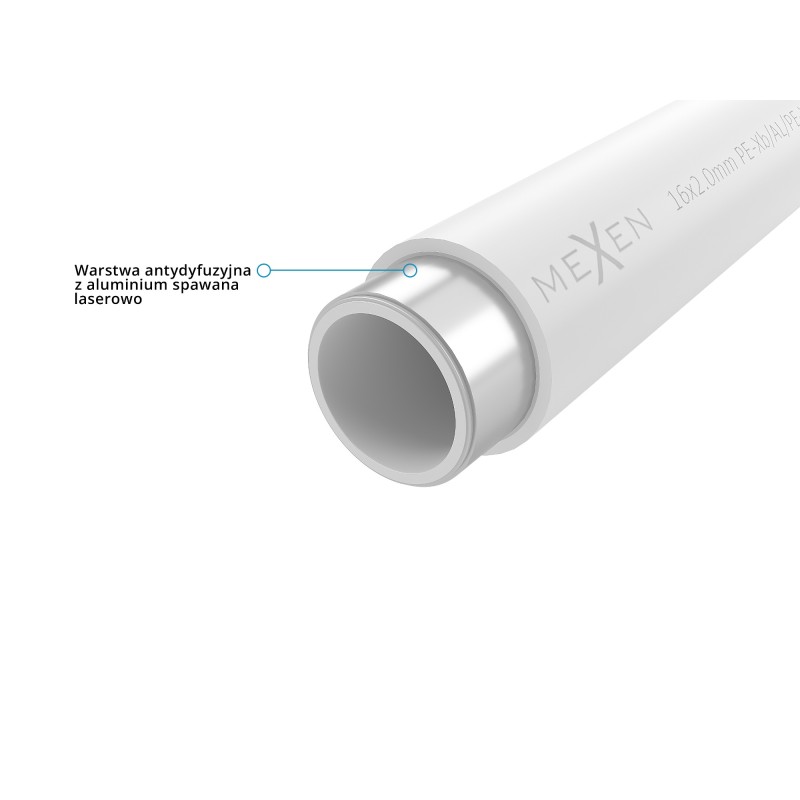

Mexen AL-L pipe PE-Xb/AL/PE-Xb 16 x 2 mm, 600 m - W97100-1216-600
Technical data:
Length: 600 m
Outer diameter: 16 mm
Wall thickness: 2 mm
Intermediate layer thickness: 0.21 mm

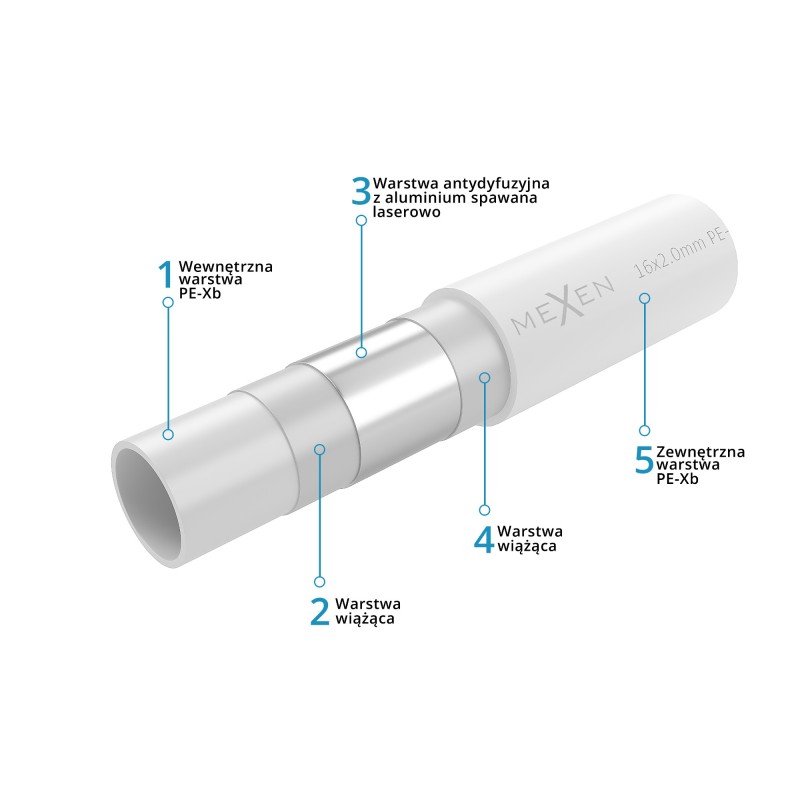

Number of layers: 5
Outer layer: Cross-linked polyethylene
Intermediate layer: Aluminium
Inner layer: Cross-linked polyethylene
Connection type: Laser butt welded
Operating temperature: max 95 °C
Maximum working pressure at 20°C: 10 bar
Resistance to gas permeation and corrosion: Anti-diffusion 100%
Linear expansion coefficient: 0.024mm/(m·K)
Thermal conductivity: 0.43 W/(m²K)
Reaction to fire: Class E
Minimum manual bending radius: 80 mm
Minimum bending radius with spring: 56 mm
Application:
- central heating
- underfloor heating
- cold and hot potable water
