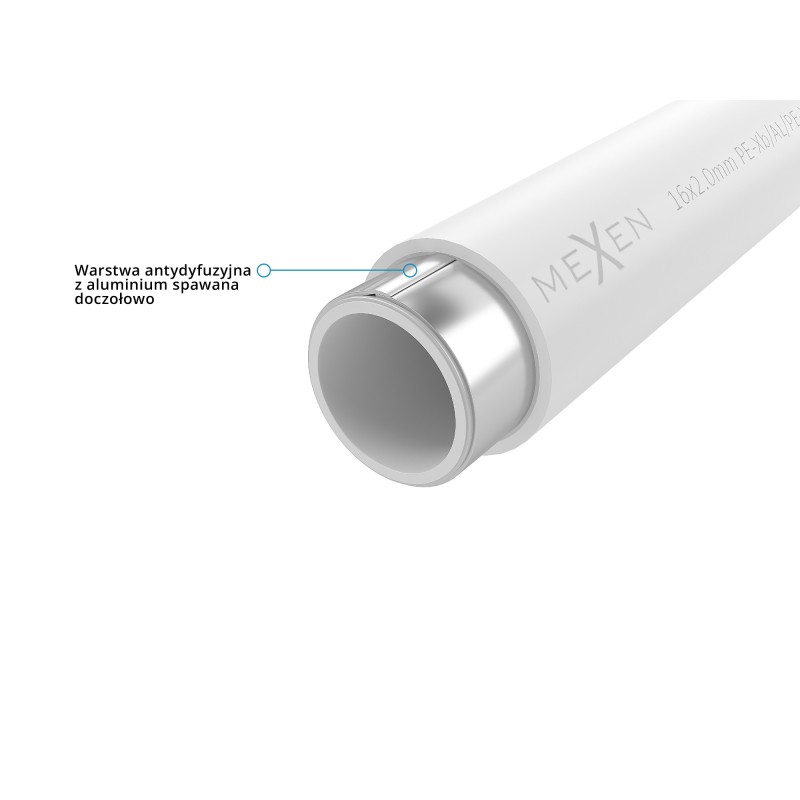

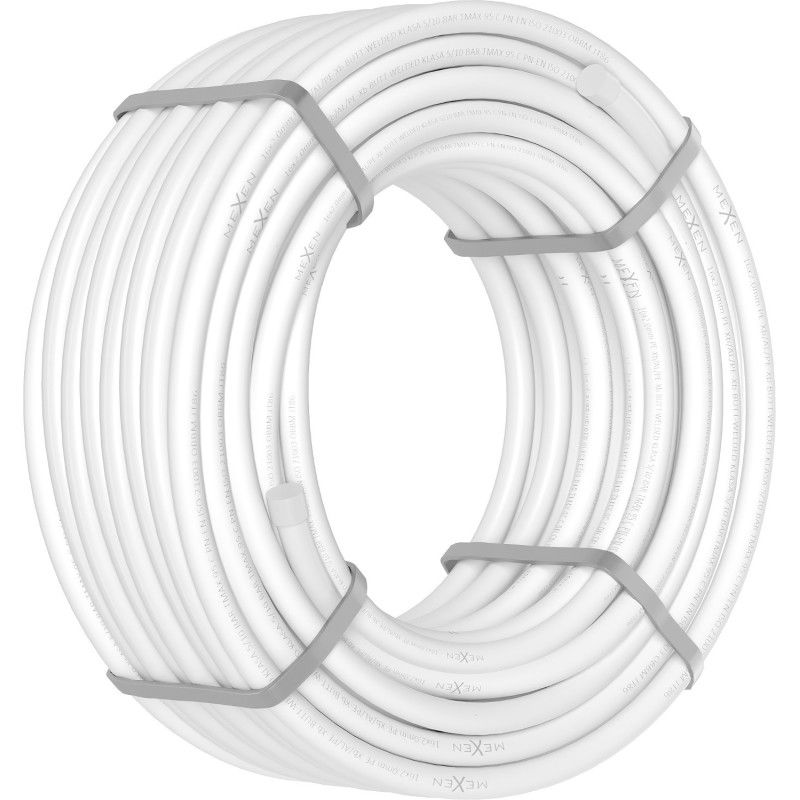

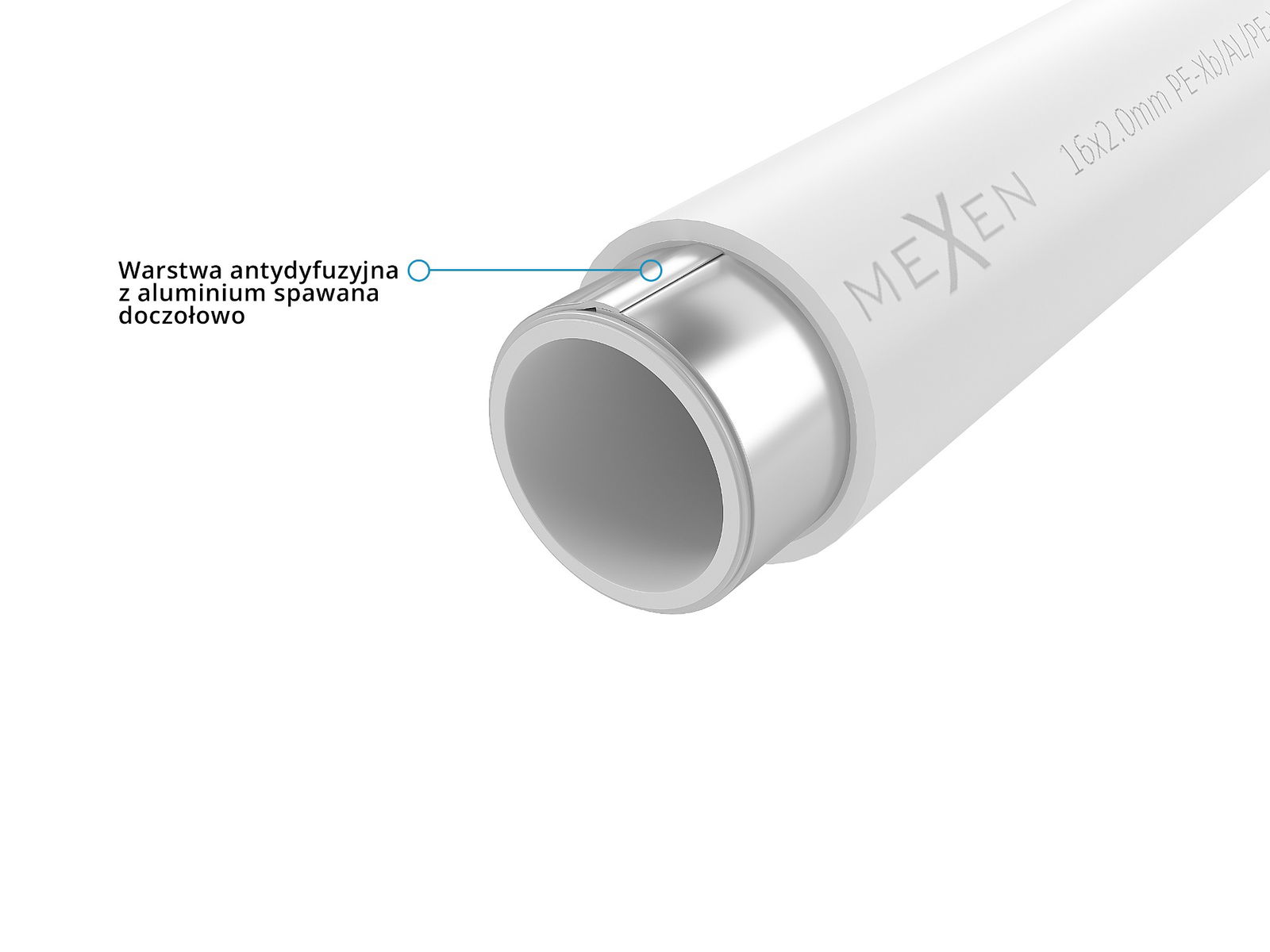

Mexen AL-O pipe PE-Xb/AL/PE 25 x 2.5 mm, 50 m - W97106-2025-50
Technical data:
Length: 50 m
External diameter: 25 mm
Wall thickness: 2.5 mm
Intermediate layer thickness: 0.25 mm

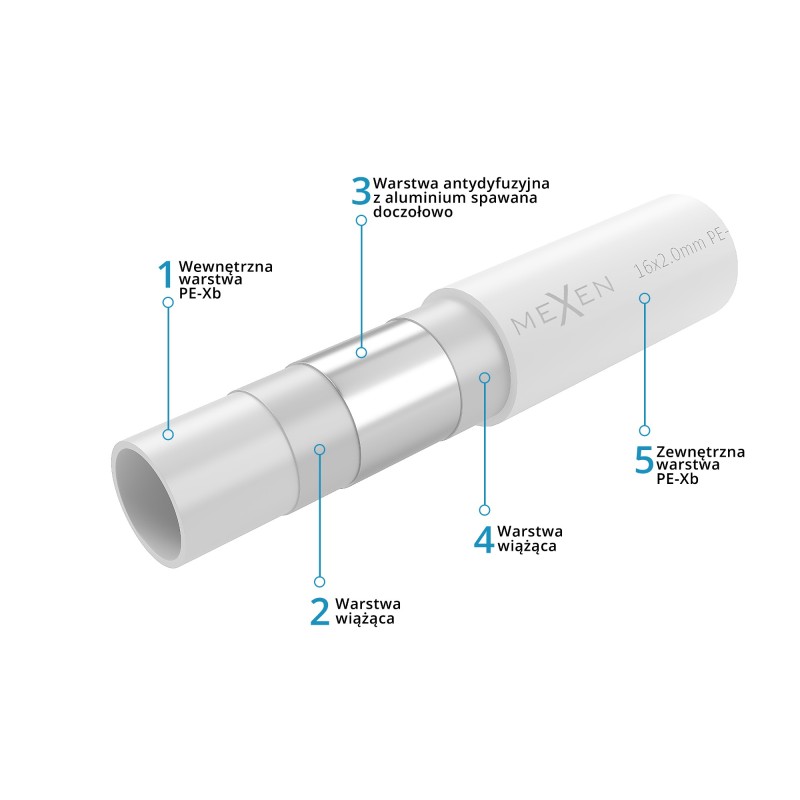

Number of layers: 5
External layer: Polyethylene
Intermediate layer: Aluminium
Internal layer: Cross-linked Polyethylene
Operating temperature: max 95 °C
Maximum working pressure at 20°C: 10 bar
Resistance to gas permeation and corrosion: Anti-diffusion 100%
Coefficient of linear expansion: 0.024mm/(m⋅K)
Thermal conductivity: 0.43 W/(m²K)
Reaction to fire: Class E
Minimum manual bending radius: 125 mm
Minimum bending radius using a spring: 88 mm
Application:
- central heating
- underfloor heating
- cold and hot utility water
